Custom Light

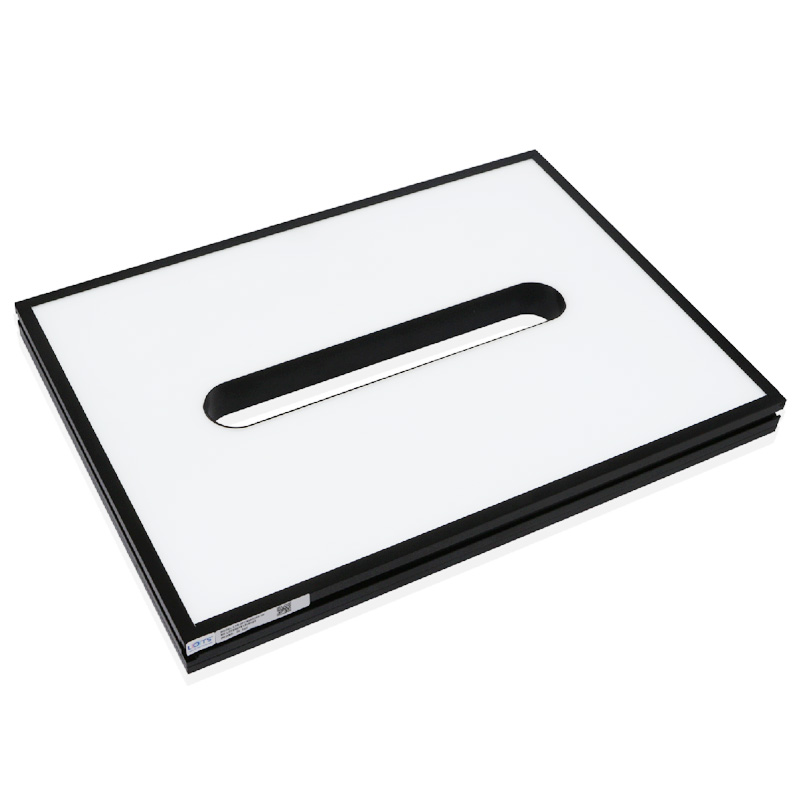

LXV-3FTB
Customized Dual Rectangular Backlight Illumination
The LED array is distributed at the bottom of the light, which is optimally designed into a back-shaped or ring structure. After passing through the special light guide plate, the emitted light forms an even backlight.
Features
- •The LED array is distributed at the bottom of the light, which is optimally designed into a back-shaped or ring structure. After passing through the special light guide plate, the emitted light forms an even backlight, which can be used to measure the contour of four sides or inspect characters of large PCB. Can also be used as forward lighting.
Applications
- •Edge profile dimension measurement, PCB electronic component inspection, large parts defect inspection, printing and packaging defect inspection.
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-3FTB350250-W | White | L367xW267xH27(mm) | 24V | 61W |
| * UV & IR light can be customized as required. | - | - | - | - |
OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention
Model Naming Convention
Vector DiagramDIRECT ENQUIRY
