Custom Light

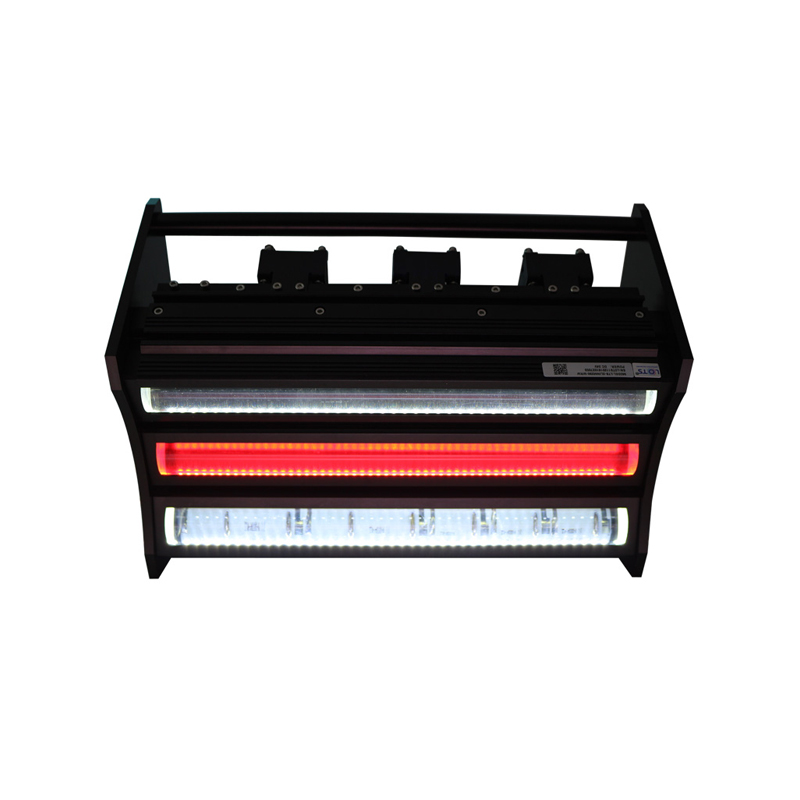

LXV-3LINM
Combined Line Scan Light / Lighting Led
Three bright line scan light combination, each can control the brightness separately, the preset irradiation angle can achieve the maximum brightness at the appropriate working distance.
Features
- •Three bright line scan light combination, each can control the brightness separately, the preset irradiation angle can achieve the maximum brightness at the appropriate working distance.
Applications
- •Screen scratch and crack inspection.
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-3LINM100-R/BGW | Red / Blue / Green / White | L116xW313xH82(mm) | 24V | 96W |
| LXV-3LINM200-R/BGW | Red / Blue / Green / White | L216xW313xH82(mm) | 24V | 192W |
| LXV-3LINM300-R/BGW | Red / Blue / Green / White | L316xW313xH82(mm) | 24V | 288W |
| LXV-3LINM400-R/BGW | Red / Blue / Green / White | L416xW313xH82(mm) | 24V | 384W |
| LXV-3LINM500-R/BGW | Red / Blue / Green / White | L516xW313xH82(mm) | 48V | 576W |
| LXV-3LINM600-R/BGW | Red / Blue / Green / White | L616xW313xH82(mm) | 48V | 768W |
| LXV-3LINM700-R/BGW | Red / Blue / Green / White | L716xW313xH82(mm) | 48V | 864W |
| LXV-3LINM800-R/BGW | Red / Blue / Green / White | L816xW313xH82(mm) | 48V | 864W |
| * UV & IR light can be customized as required. | - | - | - | - |
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-2LINM300-WR | White / Red | L244xW130xH312(mm) | 24V | 381W |
| * UV & IR light can be customized as required. | - | - | - | - |
OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention
Model Naming Convention
