Custom Light

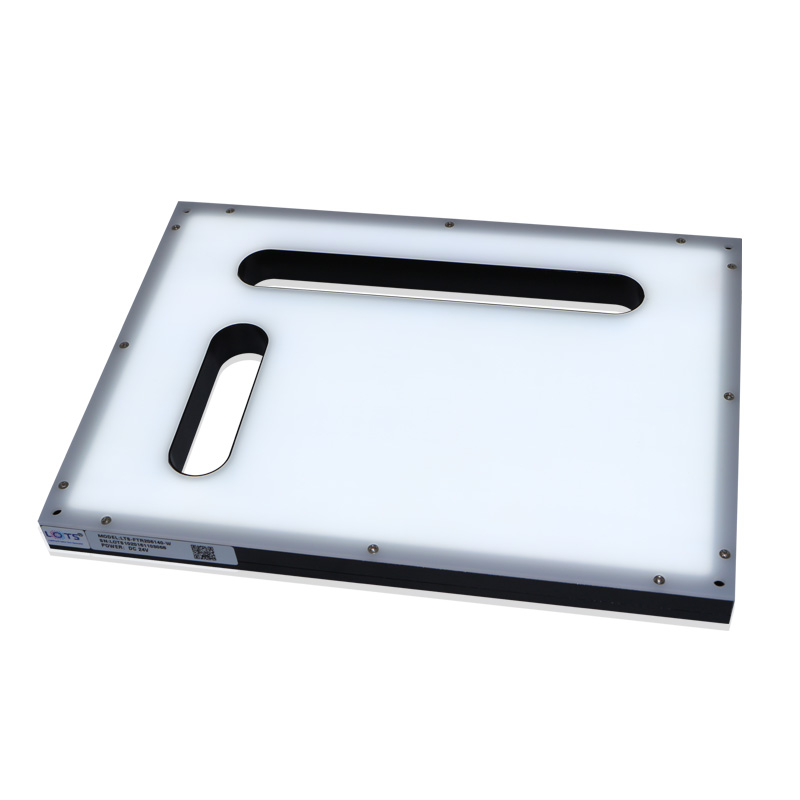

LXV-FTR
Ring Back Light
The customized ring back light adopts a specially designed structure and is designed into multiple annular inspection ports. Multiple cameras can be installed at the same time for inspection, effectively improving the inspection efficiency.
Features
- •The customized ring back light adopts a specially designed structure and is designed into multiple annular inspection ports. Multiple cameras can be installed at the same time for inspection, effectively improving the inspection efficiency. It can be used to measure four side contour and inspect large size PCB characters. Can also be used as forward lighting.
Applications
- •Edge contour dimension measurement, PCB electronic component inspection, large parts defect inspection, printing and packaging defect inspection.
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-FTR206146-W | White | L220xW160xH15(mm) | 24V | 26.2W |
| * UV & IR light can be customized as required. | - | - | - | - |
OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention
Model Naming Convention
