Custom Light

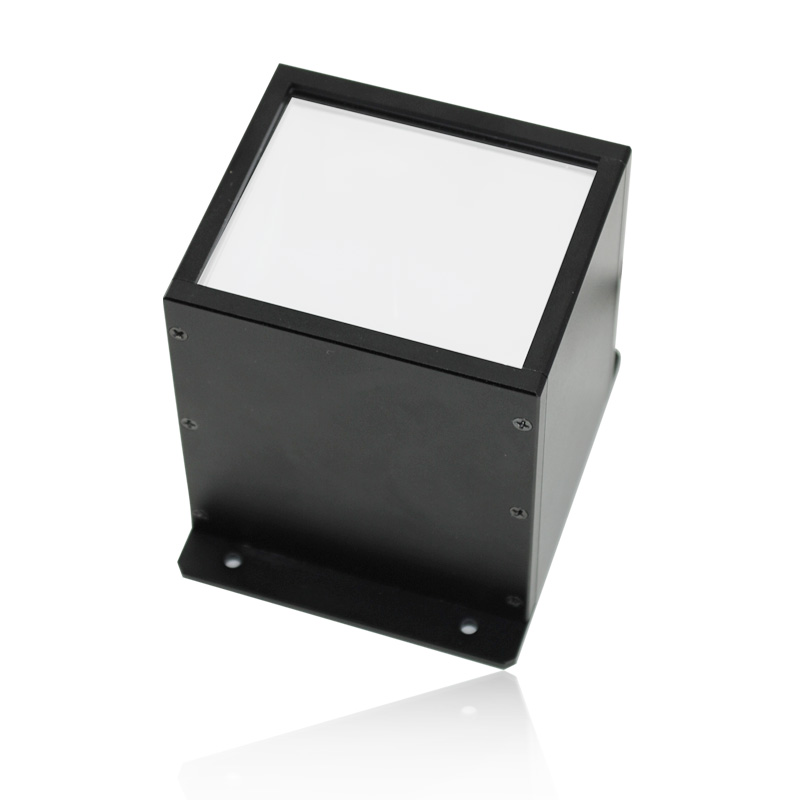

LXV-HFT
Customized Collimated Backlight Illumination
Precise optical path design, compact and reliable overall structure, the output light is close to ideal parallel light, can be used for high-precision size measurement, can also be used with coaxial light.
Features
- •Precise optical path design, compact and reliable overall structure, the output light is close to ideal parallel light, can be used for high-precision size measurement, can also be used with coaxial light, backlight and other series of lights, used to inspect smooth plane small scratches, scratches and other defects.
Applications
- •Metal cylinder profile measurement, glass bottle diameter measurement, ceramic column diameter measurement.
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-HFT6252-W | White | L72xW82xH80(mm) | 24V | 3.6W |
| * UV & IR light can be customized as required. | - | - | - | - |
OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention
Model Naming Convention
Vector DiagramDIRECT ENQUIRY
