Custom Light

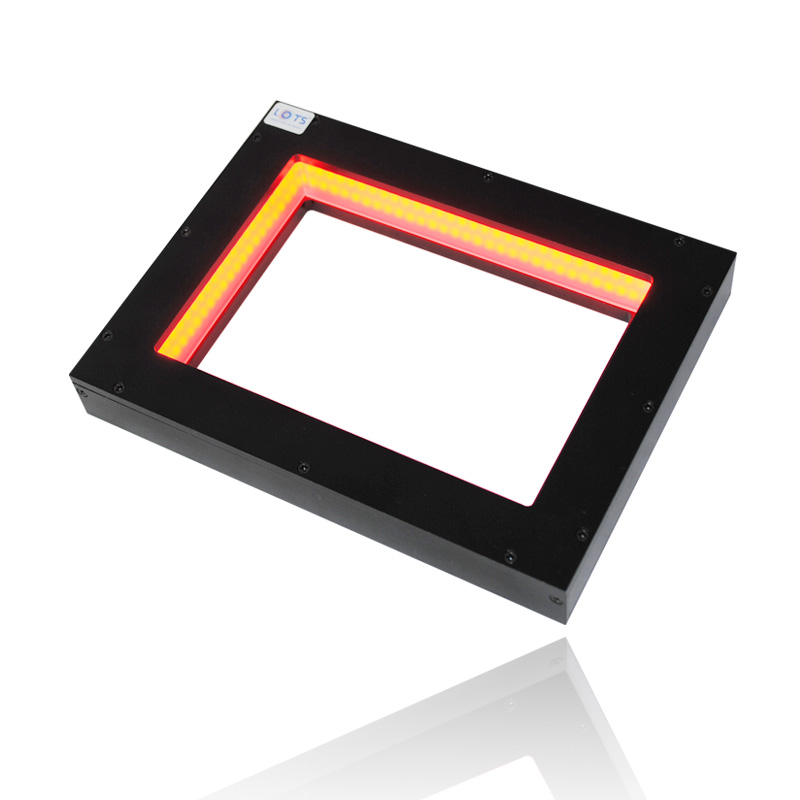

LXV-RIH
Four sides Industrial Led Light Bar
Four bar light with an angle of 20 degrees are combined to achieve the best effect for shooting product edge contour.
Features
- •Four bar light with an angle of 20 degrees are combined to achieve the best effect for shooting product edge contour.
Applications
- •Bar code inspection and wrinkle edge inspection of cigarette packaging.
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-RIH11075-R/BGW | Red / Blue / Green / White | L156xW113xH44(mm) | 24V | 12.3W/14.1W |
| LXV-RIH15075-R/BGW | Red / Blue / Green / White | L200xW116xH42(mm) | 24V | 13.0W/16.2W |
| LXV-RIH125125-R/BGW | Red / Blue / Green / White | L173xW165xH42(mm) | 24V | 12.3W/15.2W |
| LXV-RIH232140-R/BGW | Red / Blue / Green / White | L280xW180xH42(mm) | 24V | 14.1W/17.3W |
| LXV-RIH302156-R/BGW | Red / Blue / Green / White | L350xW200xH42(mm) | 24V | 17.3W/21.6W |
| * UV & IR light can be customized as required. | - | - | - | - |
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-RIH12080-R | Red | L165xW125xH23(mm) | 24V | 5.8W |
| * UV & IR light can be customized as required. | - | - | - | - |
OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention
Model Naming Convention
Vector DiagramDIRECT ENQUIRY
