Custom Light
LXV-RN
Multiple Color Ring Light

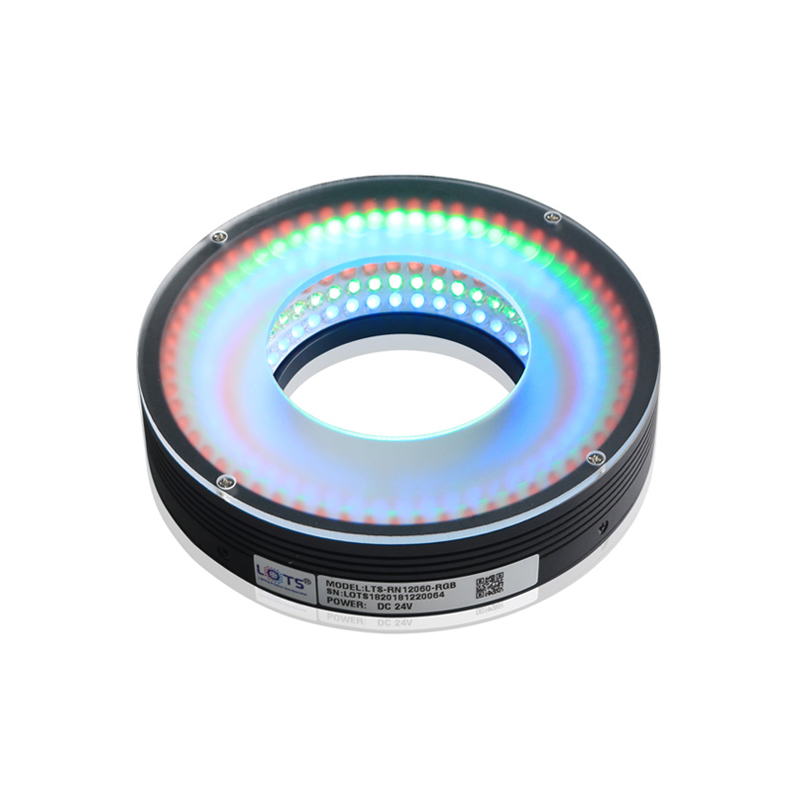

It is composed of high-density LED array, designed in red, green and blue combination, each color can be controlled separately.
Features
- •It is composed of high-density LED array, designed in red, green and blue combination, each color can be controlled separately.
Applications
- •Used for color inspection or fine engraving machine inspection.
| Angle | Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|---|
| 0° | LXV-RN6000-R/BGW | Red / Blue / Green / White | Out dia. φ60,Inner Dia. φ30,Height 11mm | 24V | 1.4W/1.9W |
| LXV-RN7400-R/BGW | / | Out dia. φ74,Inner Dia. φ38,Height 9mm | 24V | 1.9W/2.3W | - |
| LXV-RN9600-R/BGW | / | Out dia. φ96,Inner Dia. φ60,Height 9mm | 24V | 2.3W/2.8W | - |
| LXV-RN12000-R/BGW | / | Out dia. φ120,Inner Dia. φ86,Height 12mm | 24V | 2.8W/3.7W | - |
| LXV-RN14600-R/BGW | / | Out dia. φ146,Inner Dia. φ104,Height 12mm | 24V | 3.7W/4.6W | - |
| LXV-RN15000-R/BGW | / | Out dia. φ150,Inner Dia. φ106,Height 9mm | 24V | 3.7W/4.6W | - |
| LXV-RN17200-R/BGW | / | Out dia. φ172,Inner Dia. φ130,Height 12mm | 24V | 4.6W/5.5W | - |
| LXV-RN20000-R/BGW | / | Out dia. φ200,Inner Dia. φ158,Height 12mm | 24V | 4.6W/5.5W | - |
| LXV-RN22000-R/BGW | / | Out dia. φ220,Inner Dia. φ182,Height 12mm | 24V | 5.5W/6.9W | - |
| LXV-RN25000-R/BGW | / | Out dia. φ250,Inner Dia. φ208,Height 12mm | 24V | 5.5W/6.9W | - |
| LXV-RN30000-R/BGW | / | Out dia. φ300,Inner Dia. φ258,Height 13mm | 24V | 8.3W/9.6W | - |
| 15° | LXV-RN12015-R/BGW | Red / Blue / Green / White | Out dia. φ120,Inner Dia. φ86,Height 28mm | 24V | 6.5W/8.7W |
| LXV-RN14615-R/BGW | / | Out dia. φ146,Inner Dia. φ128,Height 25mm | 24V | 3.9W/4.8W | - |
| LXV-RN17315-R/BGW | / | Out dia. φ173,Inner Dia. φ155,Height 25mm | 24V | 4.6W/5.8W | - |
| LXV-RN18015-R/BGW | / | Out dia. φ180,Inner Dia. φ160,Height 25mm | 24V | 7.2W/9.4W | - |
| 30° | LXV-3RN5030-R/BGW | Red / Blue / Green / White | Out dia. φ50,Inner Dia. φ25,Height 25mm | 24V | 2.8W/3.2W |
| LXV-3RN6030-R/BGW | / | Out dia. φ60,Inner Dia. φ35,Height 25mm | 24V | 2.8W/3.7W | - |
| LXV-3RN7030-R/BGW | / | Out dia. φ70,Inner Dia. φ33,Height 20mm | 24V | 3.2W/4.2W | - |
| LXV-3RN7430-R/BGW | / | Out dia. φ74,Inner Dia. φ40,Height 20mm | 24V | 2.8W/3.2W | - |
| LXV-3RN9030-R/BGW | / | Out dia. φ90,Inner Dia. φ51,Height 23mm | 24V | 4.6W/5.5W | - |
| LXV-3RN10030-R/BGW | / | Out dia. φ100,Inner Dia. φ66,Height 27mm | 24V | 6.0W/7.8W | - |
| LXV-3RN12030-R/BGW | / | Out dia. φ120,Inner Dia. φ80,Height 23mm | 24V | 6.0W/7.8W | - |
| LXV-3RN15030-R/BGW | / | Out dia. φ150,Inner Dia. φ112,Height 28mm | 24V | 12.4W/15.6W | - |
| LXV-3RN18030-R/BGW | / | Out dia. φ180,Inner Dia. φ132,Height 29mm | 24V | 11.9W/15.1W | - |
| LXV-3RN20030-R/BGW | / | Out dia. φ200,Inner Dia. φ164,Height 28mm | 24V | 14.5W/18.2W | - |
| LXV-3RN21030-R/BGW | / | Out dia. φ210,Inner Dia. φ174,Height 28mm | 24V | 18.3W/22.8W | - |
| LXV-3RN24030-R/BGW | / | Out dia. φ240,Inner Dia. φ198,Height 28mm | 24V | 20.1W/24.7W | - |
| LXV-3RN25030-R/BGW | / | Out dia. φ250,Inner Dia. φ201,Height 28mm | 24V | 23.3W/28.8W | - |
| LXV-3RN30030-R/BGW | / | Out dia. φ300,Inner Dia. φ251,Height 28mm | 24V | 27.4W/34.2W | - |
| LXV-3RN35030-R/BGW | / | Out dia. φ350,Inner Dia. φ300,Height 26mm | 24V | 32.9W/40.2W | - |
| 45° | LXV-3RN5045-R/BGW | Red / Blue / Green / White | Out dia. φ50,Inner Dia. φ17,Height 22mm | 24V | 2.3W/2.8W |
| LXV-3RN7045-R/BGW | / | Out dia. φ70,Inner Dia. φ38,Height 21mm | 24V | 3.2W/4.2W | - |
| LXV-3RN9045-R/BGW | / | Out dia. φ90,Inner Dia. φ56,Height 20.5mm | 24V | 4.6W/5.5W | - |
| LXV-3RN10045-R/BGW | / | Out dia. φ100,Inner Dia. φ60,Height 22mm | 24V | 7.3W/8.7W | - |
| LXV-3RN12045-R/BGW | / | Out dia. φ120,Inner Dia. φ68,Height 30mm | 24V | 11.0W/13.7W | - |
| LXV-3RN15045-R/BGW | / | Out dia. φ150,Inner Dia. φ106,Height 25.7mm | 24V | 11.4W/15.6W | - |
| LXV-3RN18045-R/BGW | / | Out dia. φ180,Inner Dia. φ134,Height 25.7mm | 24V | 10.7W/13.1W | - |
| LXV-3RN20045-R/BGW | / | Out dia. φ200,Inner Dia. φ155,Height 25.5mm | 24V | 12.8W/16.5W | - |
| 60° | LXV-RN2860-R/BGW | Red / Blue / Green / White | Out dia. φ28,Inner Dia. φ10,Height 15mm | 24V | 0.4W/0.8W |
| LXV-3RN5060-R/BGW | / | Out dia. φ50,Inner Dia. φ28.5,Height 19.5mm | 24V | 1.9W/2.3W | - |
| LXV-3RN6060-R/BGW | / | Out dia. φ60,Inner Dia. φ33.5,Height 19.5mm | 24V | 1.9W/2.8W | - |
| LXV-3RN6660-R/BGW | / | Out dia. φ66,Inner Dia. φ35,Height 18mm | 24V | 2.8W/3.7W | - |
| LXV-3RN6760-R/BGW | / | Out dia. φ67,Inner Dia. φ36,Height 21mm | 24V | 2.8W/3.7W | - |
| LXV-3RN7060-R/BGW | / | Out dia. φ70,Inner Dia. φ30,Height 20mm | 24V | 2.8W/3.7W | - |
| LXV-3RN7460-R/BGW | / | Out dia. φ74,Inner Dia. φ35,Height 20mm | 24V | 3.2W/4.2W | - |
| LXV-3RN9060-R/BGW | / | Out dia. φ90,Inner Dia. φ40,Height 20mm | 24V | 4.2W/5.1W | - |
| LXV-3RN10060-R/BGW | / | Out dia. φ100,Inner Dia. φ50,Height 22mm | 24V | 6.0W/7.3W | - |
| LXV-3RN12060-R/BGW | / | Out dia. φ120,Inner Dia. φ60,Height 25mm | 24V | 11.0W/13.7W | - |
| LXV-3RN15060-R/BGW | / | Out dia. φ150,Inner Dia. φ94,Height 24.5mm | 24V | 11.4W/14.6W | - |
| LXV-3RN18060-R/BGW | / | Out dia. φ180,Inner Dia. φ126,Height 23mm | 24V | 11.0W/13.7W | - |
| LXV-3RN20060-R/BGW | / | Out dia. φ200,Inner Dia. φ156,Height 20mm | 24V | 14.6W/18.3W | - |
| LXV-3RN21060-R/BGW | / | Out dia. φ210,Inner Dia. φ162,Height 20mm | 24V | 14.6W/18.3W | - |
| LXV-3RN25060-R/BGW | / | Out dia. φ250,Inner Dia. φ181,Height 25mm | 24V | 21.0W/26.5W | - |
| 90° | LXV-RN2890-R/BGW | Red / Blue / Green / White | Out dia. φ28,Inner Dia. φ10,Height 18mm | 24V | 0.4W/0.8W |
| LXV-RN3590-R/BGW | / | Out dia. φ35,Inner Dia. φ14,Height 18mm | 24V | 0.8W/1.1W | - |
| LXV-RN4090-R/BGW | / | Out dia. φ40,Inner Dia. φ18,Height 20mm | 24V | 0.8W/1.1W | - |
| LXV-3RN5090-R/BGW | / | Out dia. φ50,Inner Dia. φ25,Height 19mm | 24V | 1.4W/1.9W | - |
| LXV-3RN5590-R/BGW | / | Out dia. φ55,Inner Dia. φ24,Height 20mm | 24V | 1.4W/1.9W | - |
| LXV-3RN7090-R/BGW | / | Out dia. φ70,Inner Dia. φ36,Height 20.5mm | 24V | 3.2W/4.2W | - |
| LXV-3RN9090-R/BGW | / | Out dia. φ90,Inner Dia. φ40,Height 20mm | 24V | 5.1W/6.0W | - |
| LXV-3RN10090-R/BGW | / | Out dia. φ100,Inner Dia. φ40,Height 20mm | 24V | 7.3W/8.7W | - |
| LXV-3RN11090-R/BGW | / | Out dia. φ110,Inner Dia. φ70,Height 20mm | 24V | 5.1W/6.4W | - |
| LXV-3RN12090-R/BGW | / | Out dia. φ120,Inner Dia. φ50,Height 18mm | 24V | 9.6W/12.4W | - |
| LXV-3RN13590-R/BGW | / | Out dia. φ135,Inner Dia. φ87,Height 20mm | 24V | 9.6W/11.0W | - |
| LXV-3RN15090-R/BGW | / | Out dia. φ150,Inner Dia. φ25,Height 22.5mm | 24V | 13.7W/16.5W | - |
| LXV-3RN16590-R/BGW | / | Out dia. φ165,Inner Dia. φ55,Height 22.5mm | 24V | 19.2W/23.8W | - |
| LXV-3RN20090-R/BGW | / | Out dia. φ200,Inner Dia. φ70,Height 22.5mm | 24V | 22.8W/25.6W | - |
| LXV-3RN24090-R/BGW | / | Out dia. φ240,Inner Dia. φ50,Height 22.5mm | 24V | 27.4W/34.2W | - |
| Special angle | LXV-RN3275-R/BGW | Red / Blue / Green / White | Out dia. φ32,Inner Dia. φ10,Height 16mm | 24V | 1.1W/1.1W |
| LXV-RN3875-R/BGW | / | Out dia. φ38,Inner Dia. φ15,Height 16mm | 24V | 1.1W/1.1W | - |
| LXV-RN4265-R/BGW | / | Out dia. φ42,Inner Dia. φ18,Height 18mm | 24V | 1.5W/1.5W | - |
| LXV-RN4550-R/BGW | / | Out dia. φ45,Inner Dia. φ25,Height 12mm | 24V | 0.8W/1.1W | - |
| LXV-RN5075-R/BGW | / | Out dia. φ50,Inner Dia. φ28,Height 16mm | 24V | 1.5W/2.2W | - |
| LXV-RN5570-R/BGW | / | Out dia. φ55,Inner Dia. φ21,Height 18mm | 24V | 2.2W/2.9W | - |
| LXV-RN6975-R/BGW | / | Out dia. φ69,Inner Dia. φ33,Height 18mm | 24V | 3.3W/4.0W | - |
| LXV-RN7475-R/BGW | / | Out dia. φ74,Inner Dia. φ35,Height 16mm | 24V | 4.4W//4.7W | - |
| LXV-RN7485-R/BGW | / | Out dia. φ74,Inner Dia. φ30,Height 18mm | 24V | 3.3W/4.4W | - |
| LXV-RN8080-R/BGW | / | Out dia. φ80,Inner Dia. φ32,Height 19mm | 24V | 4.0W/5.1W | - |
| LXV-RN9070-R/BGW | / | Out dia. φ90,Inner Dia. φ44,Height 22mm | 24V | 6.2W/7.6W | - |
| LXV-RN9610-R/BGW | / | Out dia. φ96,Inner Dia. φ72,Height 21mm | 24V | 3.6W/4.4W | - |
| LXV-RN10375-R/BGW | / | Out dia. φ103,Inner Dia. φ48,Height 22mm | 24V | 6.5W/8.3W | - |
| LXV-RN12050-R/BGW | / | Out dia. φ120,Inner Dia. φ80,Height 23mm | 24V | 8.7W/10.8W | - |
| LXV-RN12080-R/BGW | / | Out dia. φ120,Inner Dia. φ65,Height 20mm | 24V | 9.4W/10.5W | - |
| LXV-RN16517-R/BGW | / | Out dia. φ165,Inner Dia. φ132,Height 17mm | 24V | 4.4W/5.6W | - |
| LXV-RN18075-R/BGW | / | Out dia. φ180,Inner Dia. φ130,Height 18mm | 24V | 8.7W/10.8W | - |
| * UV & IR light can be customized as required. | - | - | - | - | - |
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-RN10000-W | White | Out dia. φ100,Inner Dia. φ60,Height 80mm | 24V | 19.2W |
| * UV & IR light can be customized as required. | - | - | - | - |
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-RN12060-RGB | Red / Green / Blue | Out dia. φ120,Inner Dia. φ60,Height 25mm | 24V | 9.6W |
| * UV & IR light can be customized as required. | - | - | - | - |
| Model | Color | Dimension | Current | Power |
|---|---|---|---|---|
| LXV-RN15090-B | Blue | Out dia. φ150,Inner Dia. φ30,Height 92.5mm | 24V | 19.9W |
| Model | Color | Dimension | Current | Power |
|---|---|---|---|---|
| LXV-RN8030-RGB | Red / Blue / Green | Out dia. φ80,Inner Dia. φ30,Height 35mm | 24V | 6.8W |
| LXV-RN8060-RGB | Red / Blue / Green | Out dia. φ80,Inner Dia. φ34,Height 19mm | 24V | 6.8W |
