Controller
LXV-3DPA
3DPA High Power Constant Current Controller

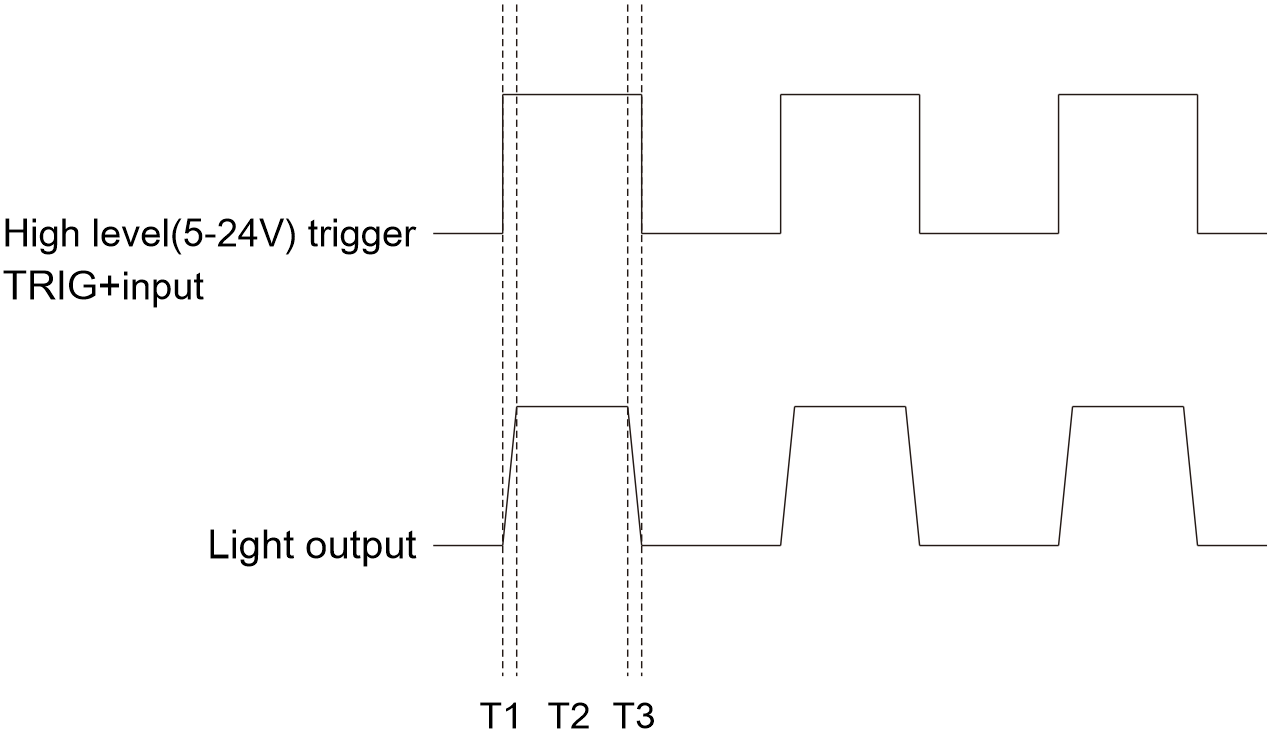

1.The best matched controller for line scan light. 2.Constant current dimming, no flicker, automatically adapt the best adjustment curve 3.7.5KHz highest trigger frequency.

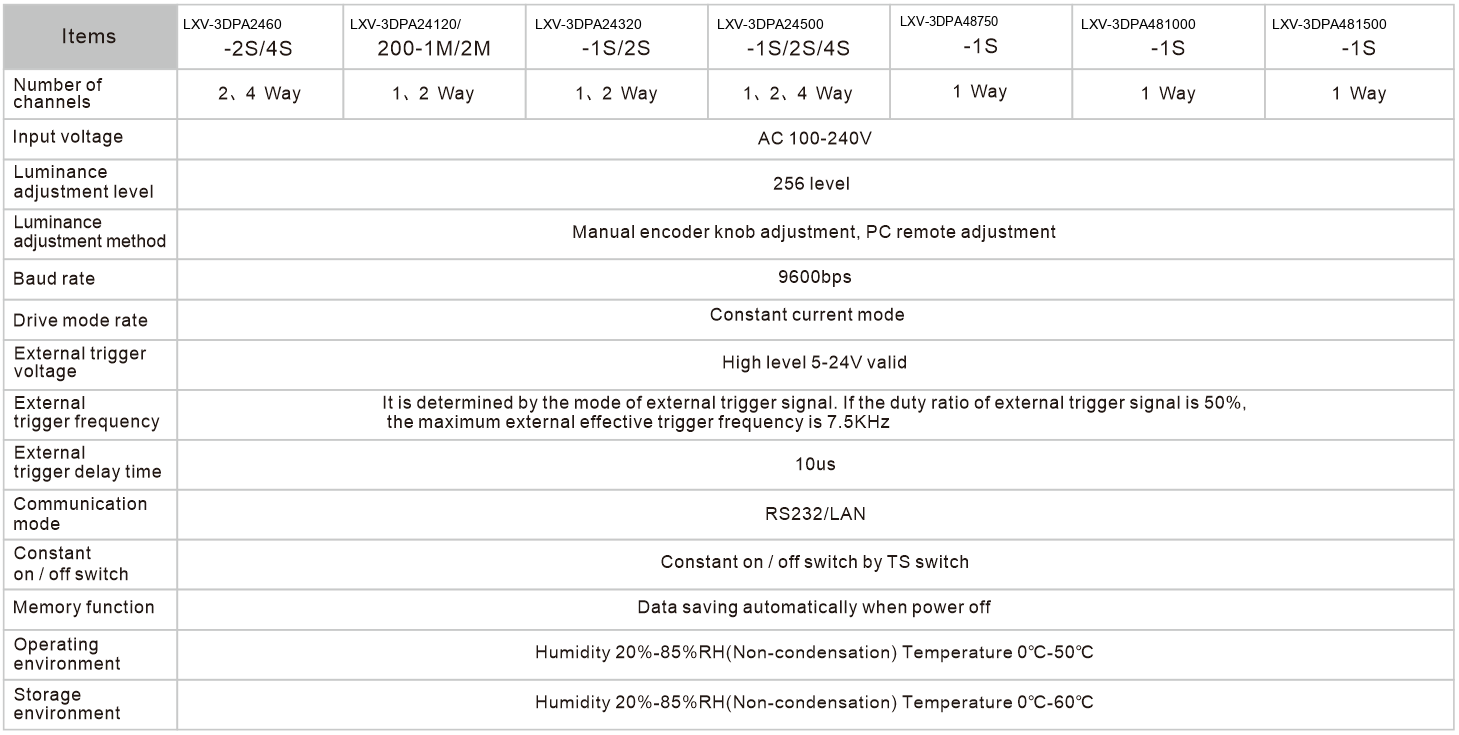

| Product | Model | Max. total power | One way Max. output power | Number of channels | Extenal trigger voltage |
|---|---|---|---|---|---|
| High power constant current controller | LXV-3DPA2460-2S | 60W | 40W | 2 | 5-24V |
| LXV-3DPA2460-4S | 60W | 40W | 4 | - | - |
| LXV-3DPA24120-1M | 120W | 120W | 1 | - | - |
| LXV-3DPA24120-2M | 120W | 120W | 2 | - | - |
| LXV-3DPA24200-1M | 200W | 200W | 1 | - | - |
| LXV-3DPA24200-2M | 200W | 120W | 2 | - | - |
| LXV-3DPA24320-1S | 320W | 320W | 1 | - | - |
| LXV-3DPA24320-2S | 320W | 240W | 2 | - | - |
| LXV-3DPA24500-1S | 450W | 450W | 1 | - | - |
| LXV-3DPA24500-2S | 450W | 240W | 2 | - | - |
| LXV-3DPA24500-4S | 450W | 120W | 4 | - | - |
| LXV-3DPA48750-1S | 700W | 700W | 1 | - | - |
| LXV-3DPA481000-1S | 900W | 900W | 1 | - | - |
| LXV-3DPA481500-1S | 1350W | 1350W | 1 | - | - |
IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-3DPA.
OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention
Model Naming Convention
Vector DiagramDIRECT ENQUIRY
