Controller

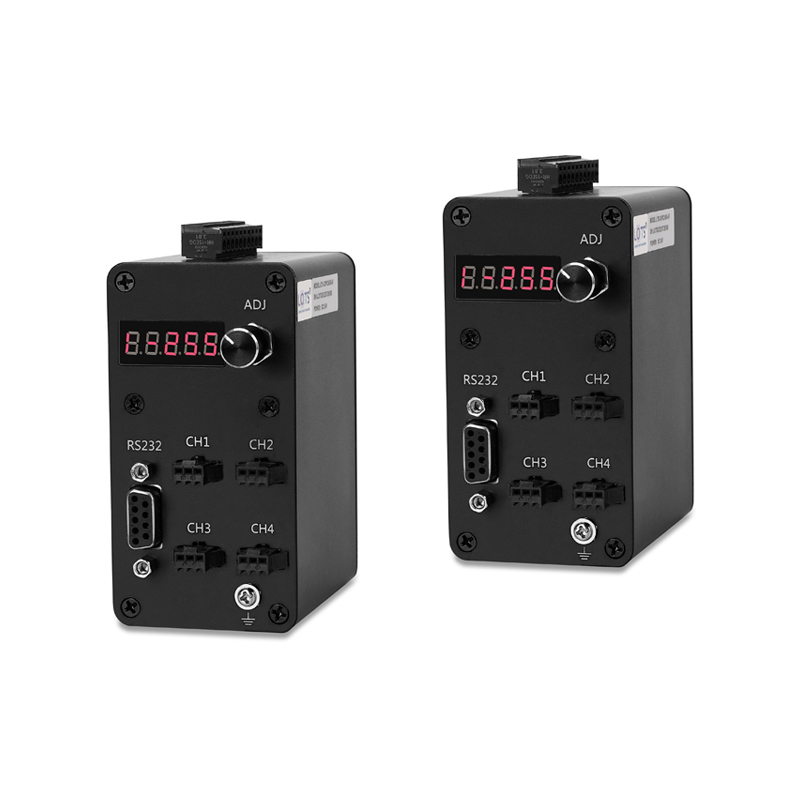

LXV-3DPC
3DPC Digital Controller Machine
1.Support RS232 /LAN communication. 2.High trigger frequency, short response time 10us. 3.2-12 channels for optional.

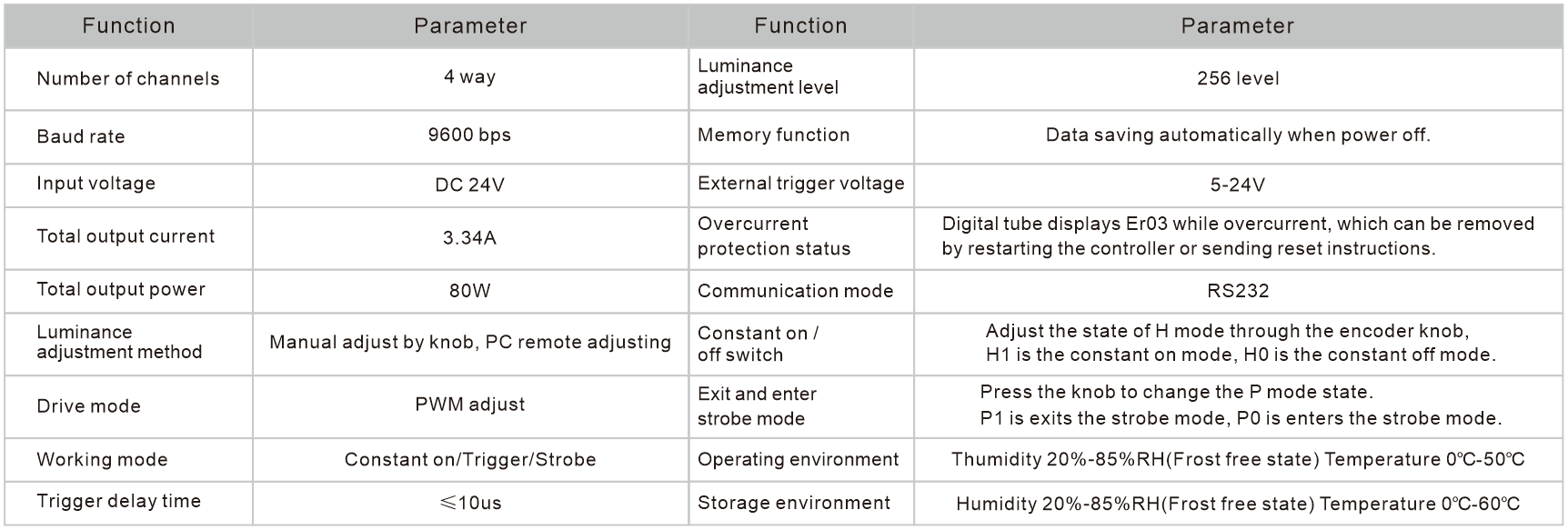

| Product | Model | Output voltage | Total output power | One way Max.output power | Number of channels | External trigger voltage |
|---|---|---|---|---|---|---|
| Digital control box | LXV-3DPC2480-4F | 24V | 80W | 80W | 4 | 5-24V |
| Product | Model | Output voltage | Total output power | One way Max. output power | Number of channels | Extenal trigger voltage | Remark |
|---|---|---|---|---|---|---|---|
| Digital controller | LXV-3DPC2460-2C | 24V | 60W | 40W | 2 | 5-24V | Communication, external trigger, luminance level display and etc. |
| LXV-3DPC2460-4C | 24V | 60W | 40W | 4 | - | - | - |
| LXV-3DPC24120-4C | 24V | 120W | 60W | 4 | - | - | - |
| LXV-3DPC24120-8C | 24V | 120W | 60W | 8 | - | - | - |
| LXV-3DPC24200-4C | 24V | 200W | 60W | 4 | - | - | - |
| LXV-3DPC24200-8C | 24V | 200W | 60W | 8 | - | - | - |
| Product | Model | Output voltage | Total output power | One way Max.output power | Number of channels | Extenal trigger voltage | Remark |
|---|---|---|---|---|---|---|---|
| Digital controller | LXV-3DPC2460-2S | 24V | 60W | 40W | 2 | 5-24V | Communication, external trigger, luminance level display and etc. |
| LXV-3DPC2460-4S | 24V | 60W | 40W | 4 | - | - | - |
| LXV-3DPC24120-4S | 24V | 120W | 60W | 4 | - | - | - |
| LXV-3DPC24120-8S | 24V | 120W | 60W | 8 | - | - | - |
| LXV-3DPC24200-4S | 24V | 200W | 60W | 4 | - | - | - |
| LXV-3DPC24200-8S | 24V | 200W | 60W | 8 | - | - | - |
| LXV-3DPC24200-12S | 24V | 200W | 60W | 12 | - | - | - |
IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-3DPC.
OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention
Model Naming Convention
