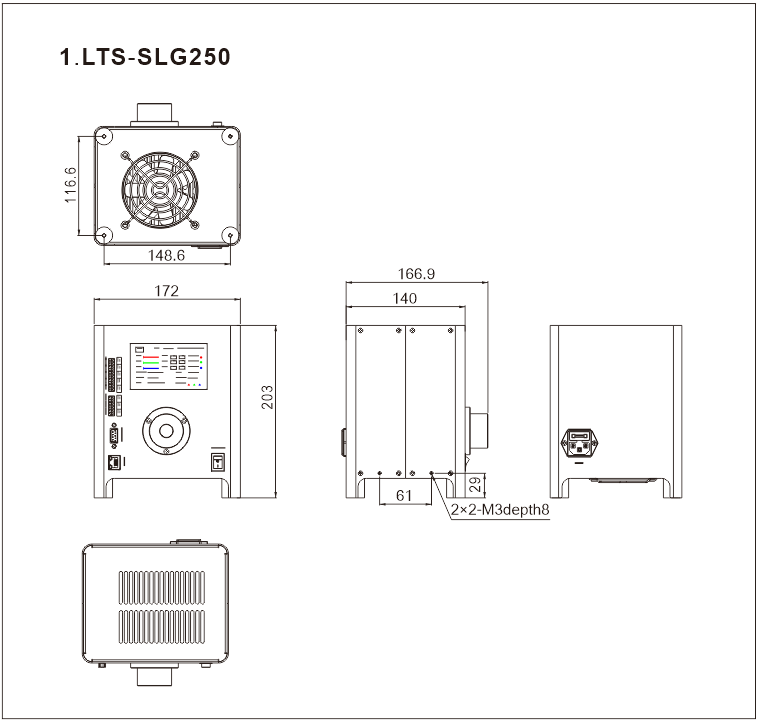

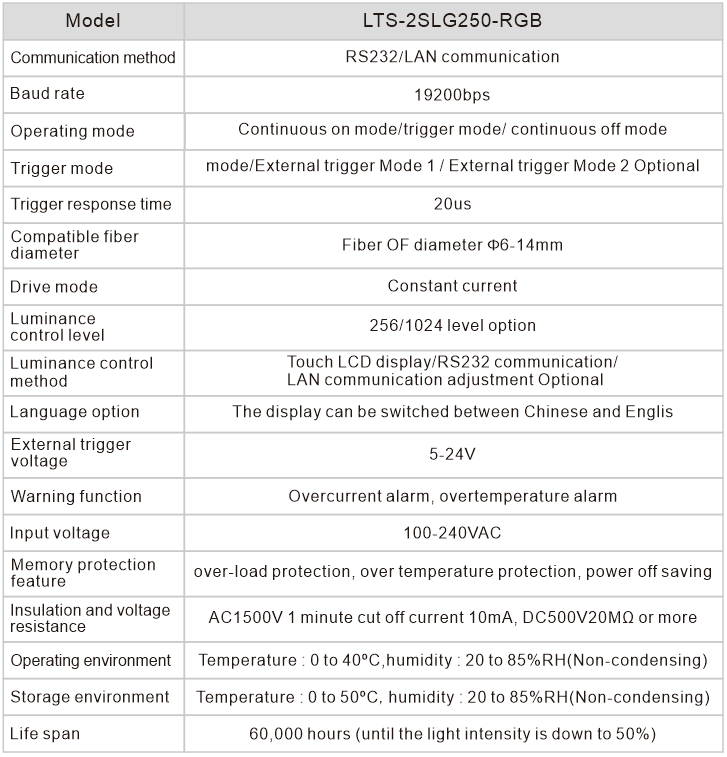

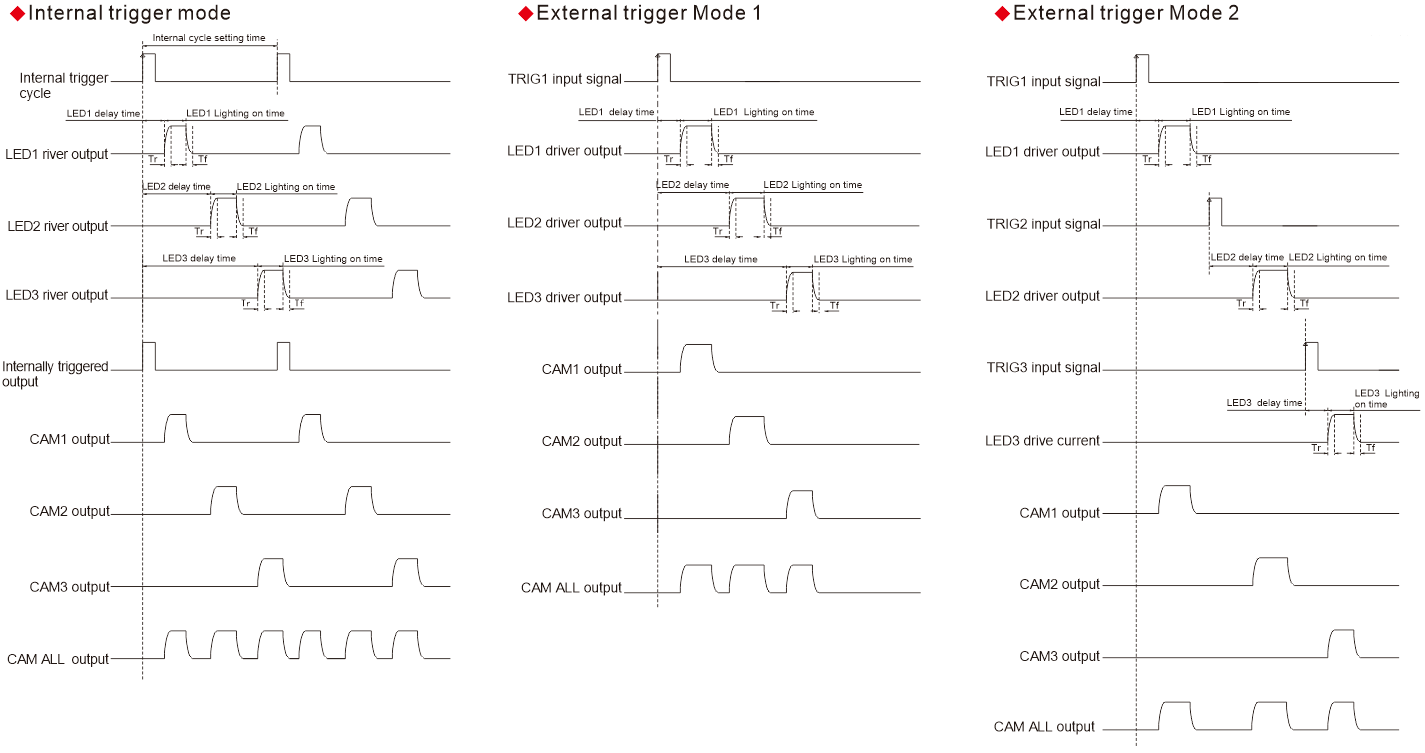

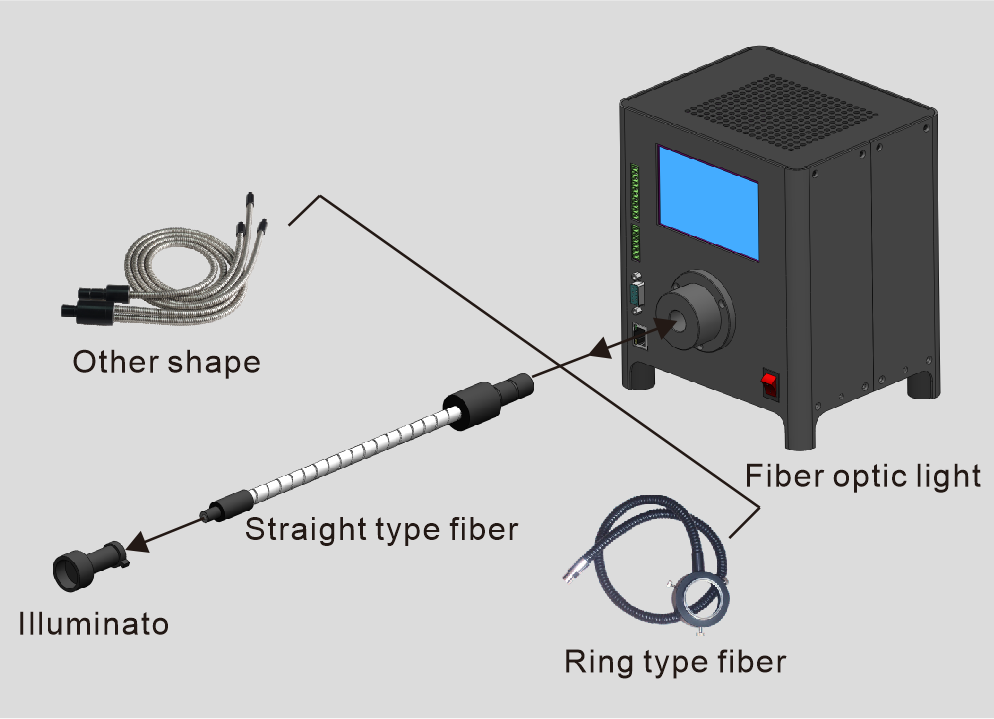

Language HOME ABOUT LuxMV PRODUCTS APPLICATIONS SERVICE SUPPORT PRESS CONTACT US Go! News ARTICLE 2SLG Three-Color Fiber Optic Light: Intelligent Touch Control, Multi-Color Imaging The three-color fiber optic light can achieve independent or mixed RGB output through a single device, saving space while simultaneously obtaining three optical imaging channels. It is particularly suitable for scenarios that require multi-parameter detection, such as biological imaging and material analysis. Features： 1.A single unit can achieve RGB tricolor illumination, separate or mixed color lighting options. 2.Saves space and supports three optical imaging functions. 3.Touch screen LCD display status and setting. 4.With continuous on /IO trigger function, the brightness is adjustable. 5.External trigger mode/internal trigger mode. 6.RS232/LAN communication. 7.With over current /over temperature/power off protection. Application diagram Accessories Sequence chart Parameters Boundary dimension (mm) 2026-01-31 16:29:13 << Previous Page Next Page>> ARTICLE Press HOT ARTICLE (LuxMV)AOI Applications Light L LuxMV SWIR Light Applications New Product For Concave-Convex Condenser Lens For Mounting On 4 Generation High Uniformity L x ABOUT US LuxMV (Lighting & Tech Specialist) is a leading organization in developing and manufacturing machine vision lights for the advanced lighting industry. We supply a broad range of solutions in light, lenses and cameras. PRODUCT Machine Vision Light Custom Light Controller Fiber optic light Camera Lens Accessories CONTACT US info@luxmv.com QUICK CONTACT Send Message Copryright 2019 LuxMV -
2SLG three-color fiber optic light: Intelligent touch control, multi-color imaging
Which hardware and inspection parameters apply to this note?
Open the series named below, then send the part.
| Reference Item | Specification / Action |
|---|---|
| Document Topic | 2SLG three-color fiber optic light: Intelligent touch control, multi-color imaging |
| Related LuxMV Hardware | Browse Machine Vision Lighting Catalog → |
| Validation Step | Verify working distance, field of view, exposure time, and sample batch variation before line release. |
What questions should be confirmed for FAQ and project validation?
Can this article determine a final lighting specification for my project?
No. Use the article as engineering context, then validate the light model, camera, lens, working distance, line speed, and production conditions with the actual inspection target.
How can I request sample evaluation units, 3D CAD files, or laboratory testing?
Contact the LuxMV engineering team with your part material, defect dimension, field of view, and working distance to discuss sample testing, evaluation unit options, and 2D/3D drawings.
