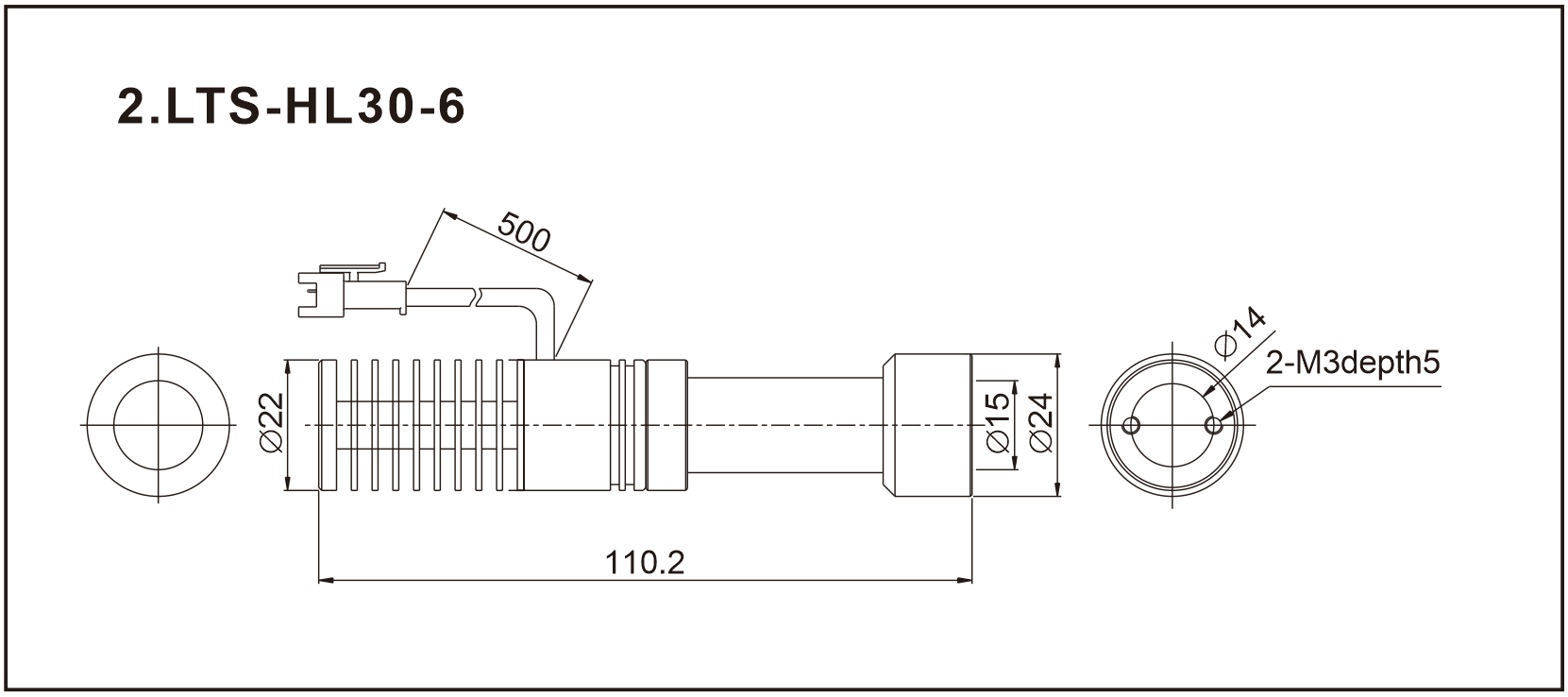

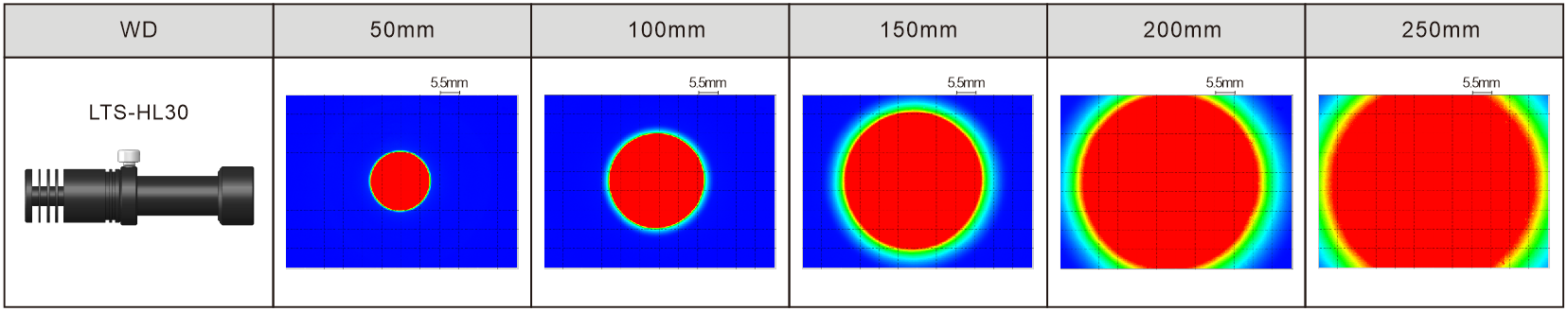

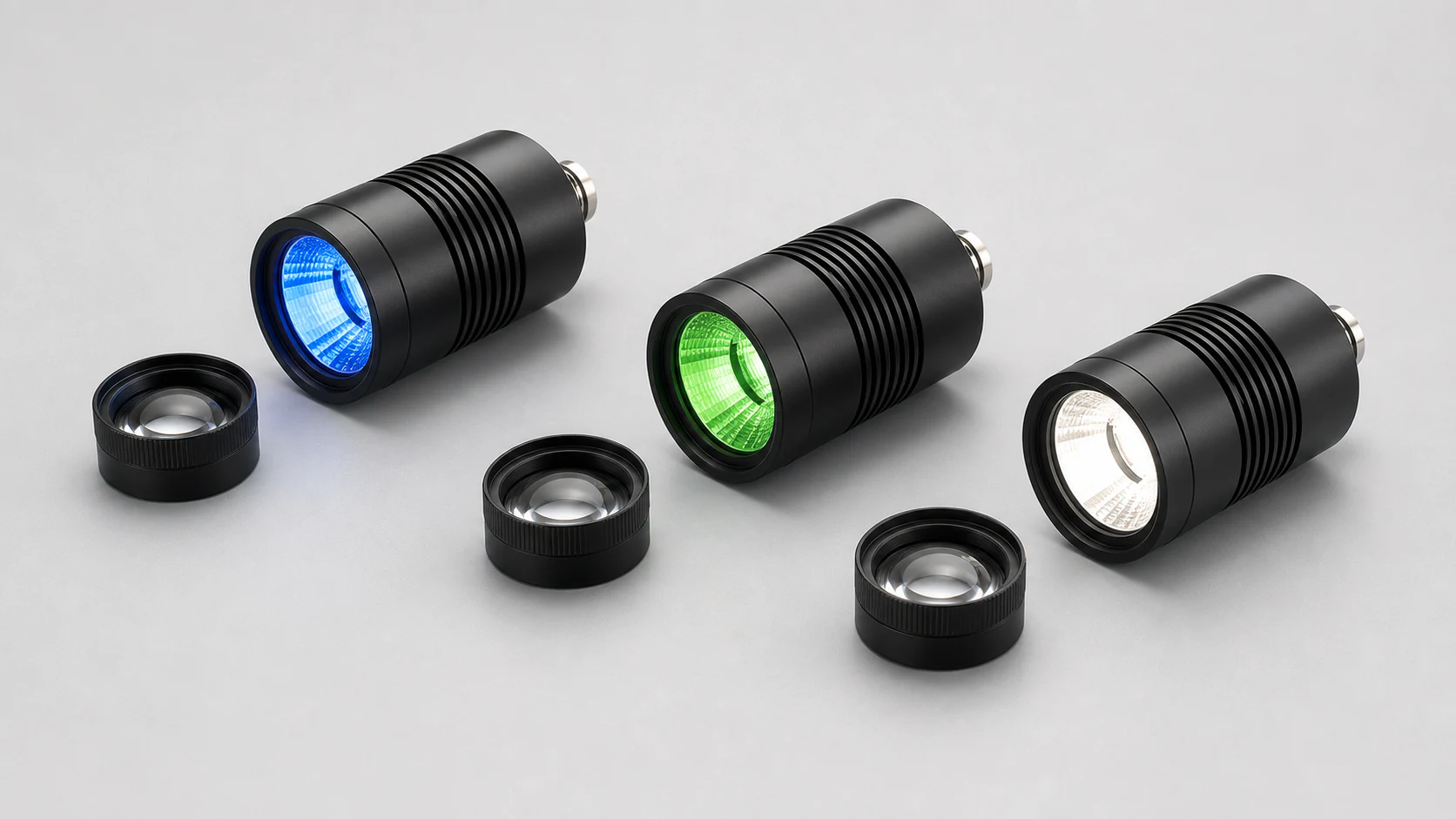

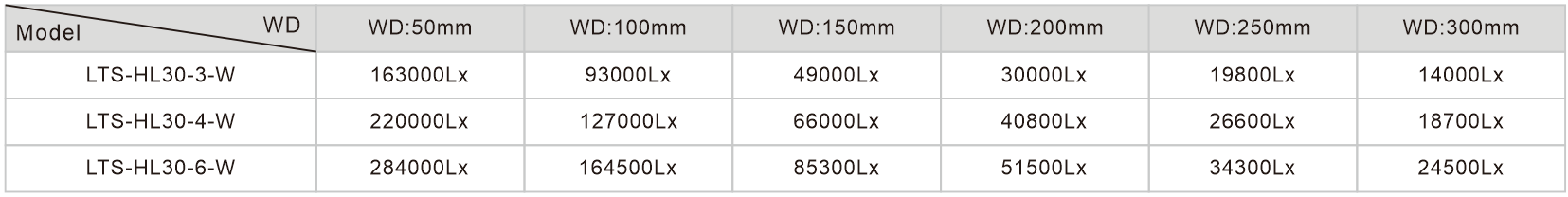

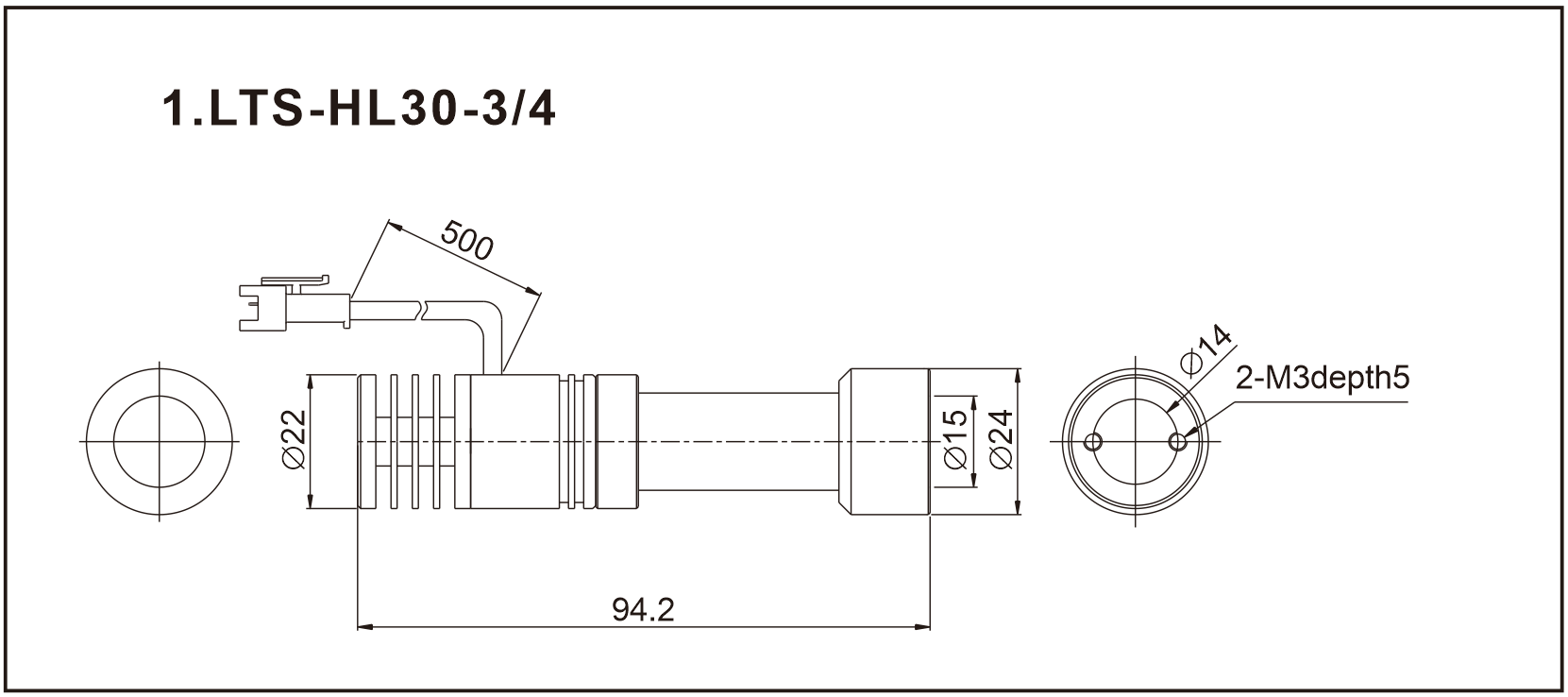

Language HOME ABOUT LuxMV PRODUCTS APPLICATIONS SERVICE SUPPORT PRESS CONTACT US Go! News ARTICLE Condenser Lens For Mounting On The Spot Lights Condenser lens for mounting on the Spot Lights led machine light Condenser lens for mounting on the Spot Lights Condenser lens LuxMV reserched a special condenser lens for mounting on the spot light, which can make the spot light to become a collimated collection light. High luminous, compact volume, and high cost-effective are available. Can be used with polarizer, filter together. Features: The special optical lens is used to gather the light through the diffused light into a uniform light which has good directivity and parallelism, and can be used for a long distance, or can be used as a backlight. Application: Drug inspection, LCD visual inspection, lens scratch or broken spot inspection Light spot effect drawing: Uniformity drawing: Dimension: Free loan demo: Details information welcome to inquiry. Email: info@luxmv.com 2022-06-13 10:24:54 << Previous Page Next Page>> ARTICLE Press HOT ARTICLE (LuxMV)AOI Applications Light L LuxMV SWIR Light Applications New Product For Concave-Convex Condenser Lens For Mounting On 4 Generation High Uniformity L x ABOUT US LuxMV (Lighting & Tech Specialist) is a leading organization in developing and manufacturing machine vision lights for the advanced lighting industry. We supply a broad range of solutions in light, lenses and cameras. PRODUCT Machine Vision Light Custom Light Controller Fiber optic light Camera Lens Accessories CONTACT US info@luxmv.com QUICK CONTACT Send Message Copryright 2019 LuxMV -
Condenser lens for mounting on the Spot Lights
Which hardware and inspection parameters apply to this note?
Open the series named below, then send the part.
| Reference Item | Specification / Action |
|---|---|
| Document Topic | Condenser lens for mounting on the Spot Lights |
| Related LuxMV Hardware | Browse Machine Vision Lighting Catalog → |
| Validation Step | Verify working distance, field of view, exposure time, and sample batch variation before line release. |
What questions should be confirmed for FAQ and project validation?
Can this article determine a final lighting specification for my project?
No. Use the article as engineering context, then validate the light model, camera, lens, working distance, line speed, and production conditions with the actual inspection target.
How can I request sample evaluation units, 3D CAD files, or laboratory testing?
Contact the LuxMV engineering team with your part material, defect dimension, field of view, and working distance to discuss sample testing, evaluation unit options, and 2D/3D drawings.
