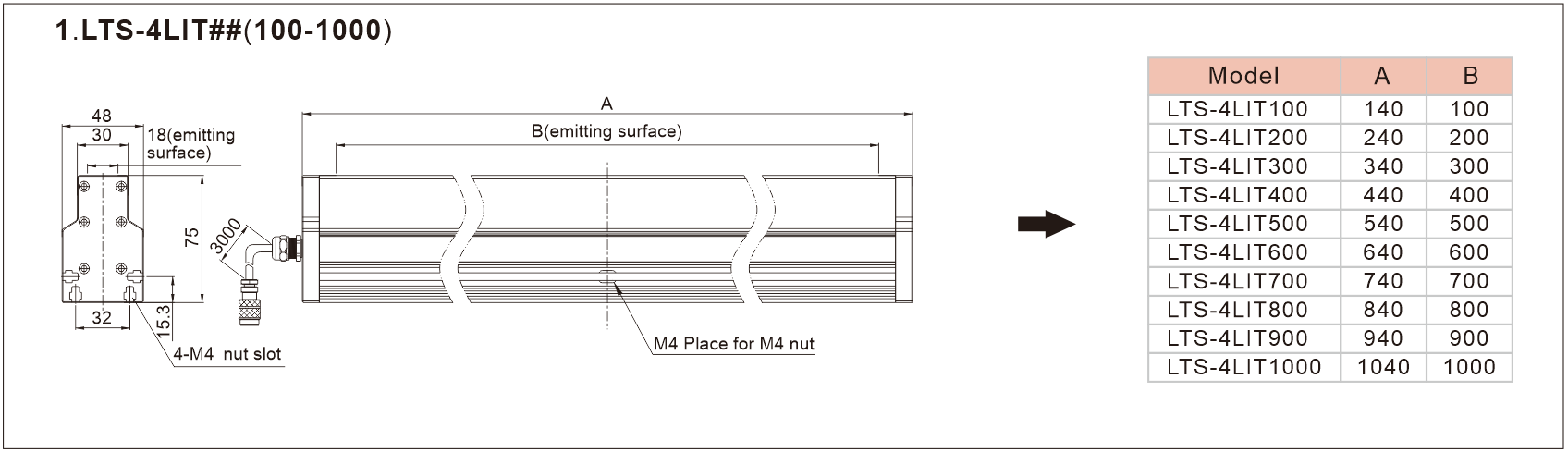

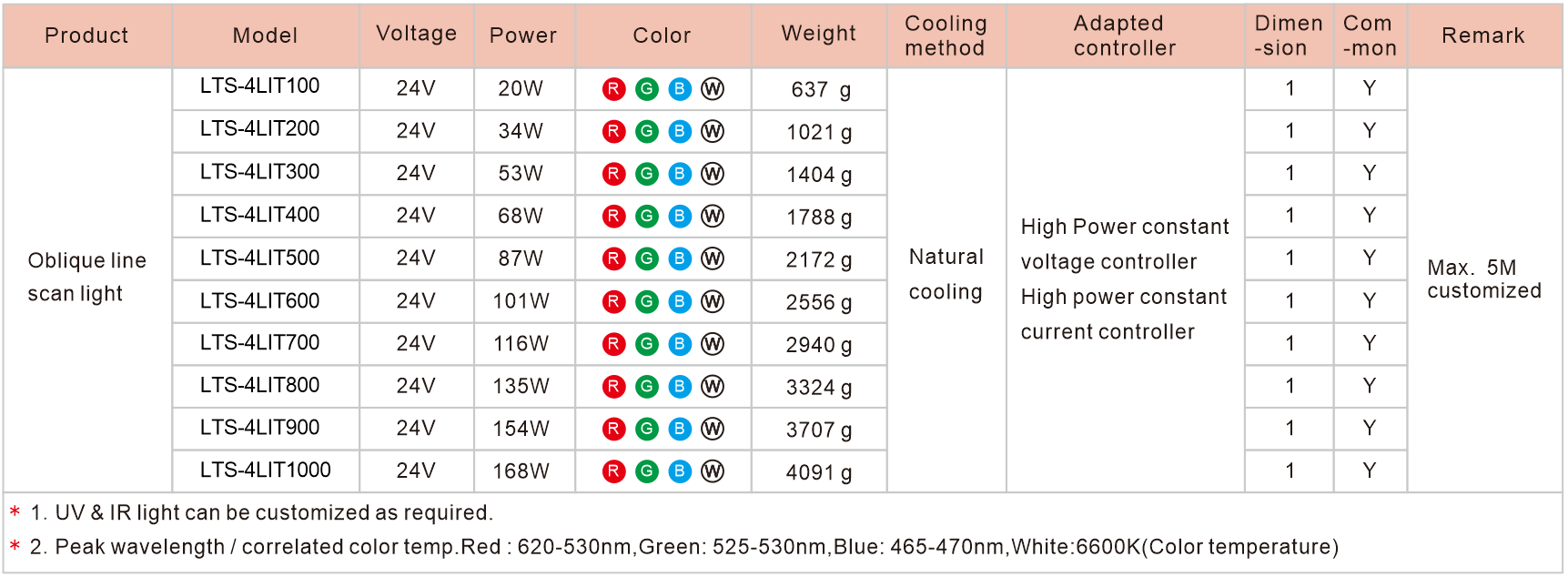

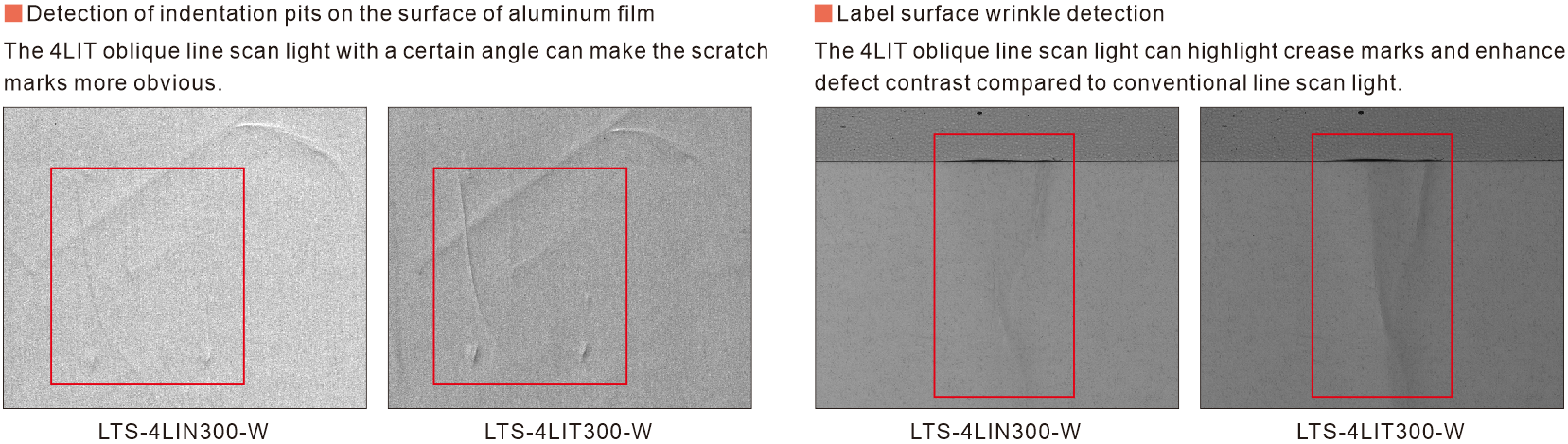

Language HOME ABOUT LuxMV PRODUCTS APPLICATIONS SERVICE SUPPORT PRESS CONTACT US Go! News ARTICLE 【New Products】Oblique Line Scan Light Oblique optical design, the light is emitted at a 20° angle. The oblique line scan light is suitable for line scan system to detect wrinkles and scratches. Applications： 1.Textile fabric inspection for wrinkles 2.Carton inspection for loose threads 3.Film inspection for vertical wrinkles Effect comparison chart Light Parameters Boundary dimension (mm) 2025-08-14 11:16:25 << Previous Page Next Page>> ARTICLE Press HOT ARTICLE (LuxMV)AOI Applications Light L LuxMV SWIR Light Applications New Product For Concave-Convex Condenser Lens For Mounting On 4 Generation High Uniformity L x ABOUT US LuxMV (Lighting & Tech Specialist) is a leading organization in developing and manufacturing machine vision lights for the advanced lighting industry. We supply a broad range of solutions in light, lenses and cameras. PRODUCT Machine Vision Light Custom Light Controller Fiber optic light Camera Lens Accessories CONTACT US info@luxmv.com QUICK CONTACT Send Message Copryright 2019 LuxMV -
【New products】Oblique line scan light
Which hardware and inspection parameters apply to this note?
Open the series named below, then send the part.
| Reference Item | Specification / Action |
|---|---|
| Document Topic | 【New products】Oblique line scan light |
| Related LuxMV Hardware | Browse Machine Vision Lighting Catalog → |
| Validation Step | Verify working distance, field of view, exposure time, and sample batch variation before line release. |
What questions should be confirmed for FAQ and project validation?
How does an oblique line scan light enhance wrinkle and shallow scratch inspection?
Oblique line scan lighting directs illumination at a shallow grazing angle (such as 20° or 30°) relative to the web surface, converting directional wrinkles, height variations, and micro-scratches into sharp shadow contrasts.
As a machine vision lighting supplier, can LuxMV customize emission angles and lengths for oblique line lights?
Share the required illuminated width, grazing angle, wavelength, working distance and thermal constraints with LuxMV. Confirm feasible dimensions, evaluation options and available CAD files for the proposed model.
Can this article determine a final lighting specification for my project?
No. Use the article as engineering context, then validate the light model, camera, lens, working distance, line speed, and production conditions with the actual inspection target.
How can I request sample evaluation units, 3D CAD files, or laboratory testing?
Contact the LuxMV engineering team with your part material, defect dimension, field of view, and working distance to discuss sample testing, evaluation unit options, and 2D/3D drawings.
