Machine Vision Light
LXV-2FPQ
Square Shadowless Light
Unique structure can achieve diffused, even and soft illumination which doesn’t change with the change of altitude. The PCB is fixed with 90 degrees LEDs. Low angle effective illumination can enhance the contrast of features and defects(such as laser printing or etching)
Features
- •Uniformly emitting from 4 direction at low angle.

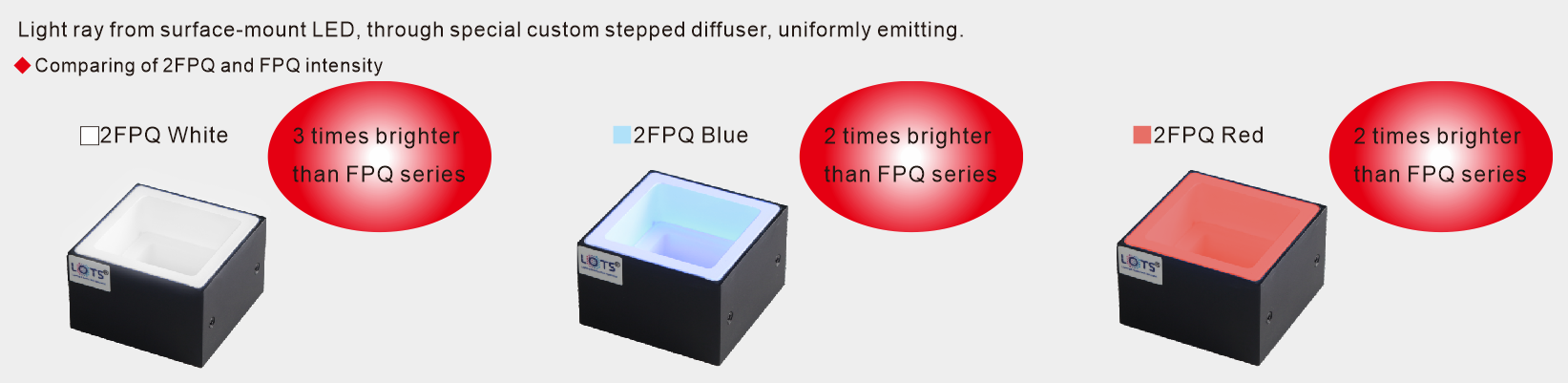

- •2.The 2FPQ is 2-3 times brighter than FPQ series.
- •3.The installation hole at top and flank make the installation more flexible.
- •4.Suitable for quadrangular workpiece (Ex. The outline of four corners).
- •5.Achieve more uniformly emitting by reflector.
Applications
- •BGA,GFP position inspection.
- •2.Integrated circuit material strap inspection.
- •3.Inspection lead pin pitch character of integrated circuit.
- •4.Metal surface scratch inspection.
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-2FPQ3232-R/BGW | Red / Blue / Green / White | L32xW32xH30(mm) | 24V | 2.7W/4.0W |
| LXV-2FPQ4848-R/BGW | Red / Blue / Green / White | L48xW48xH30(mm) | 24V | 5.3W/6.6W |
| LXV-2FPQ6060-R/BGW | Red / Blue / Green / White | L60xW60xH30(mm) | 24V | 7.9W/9.3W |
| LXV-2FPQ7575-R/BGW | Red / Blue / Green / White | L75xW75xH30(mm) | 24V | 10.6W/11.9W |
| LXV-2FPQ9696-R/BGW | Red / Blue / Green / White | L96xW96xH30(mm) | 24V | 10.6W/13.2W |
| LXV-2FPQ120120-R/BGW | Red / Blue / Green / White | L120xW120xH30(mm) | 24V | 15.9W/21.2W |
| LXV-2FPQ150150-R/BGW | Red / Blue / Green / White | L150xW150xH30(mm) | 24V | 21.2W/26.4W |
| LXV-2FPQ180150-R/BGW | Red / Blue / Green / White | L180xW150xH30(mm) | 24V | 23.8W/29.1W |
| LXV-2FPQ250140-R/BGW | Red / Blue / Green / White | L250xW140xH30(mm) | 24V | 27.8W/34.3W |
| LXV-2FPQ350250-R/BGW | Red / Blue / Green / White | L350xW250xH24(mm) | 24V | 43.6W/54.2W |
| * UV & IR light can be customized as required. | - | - | - | - |
IMAGING COMPARISON

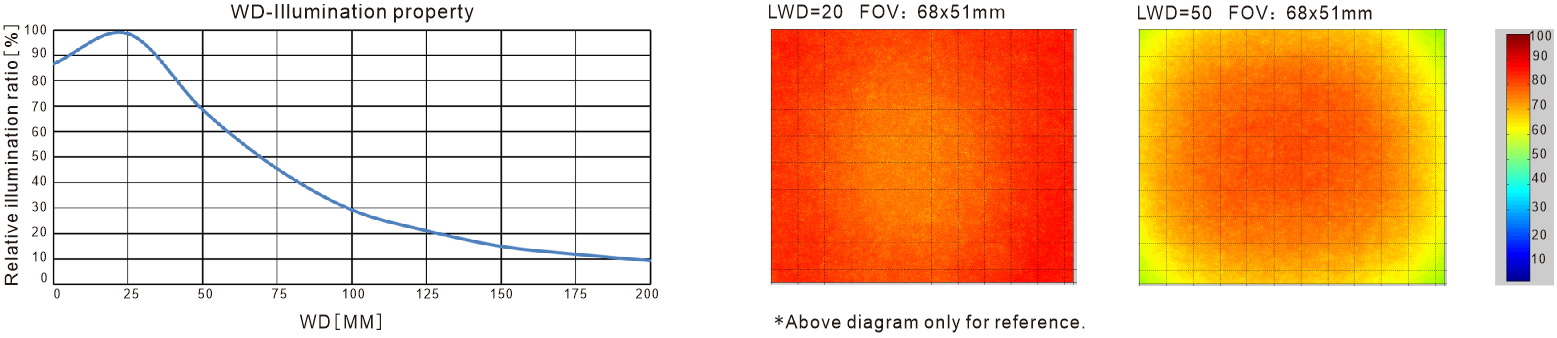

Application Effect Analysis

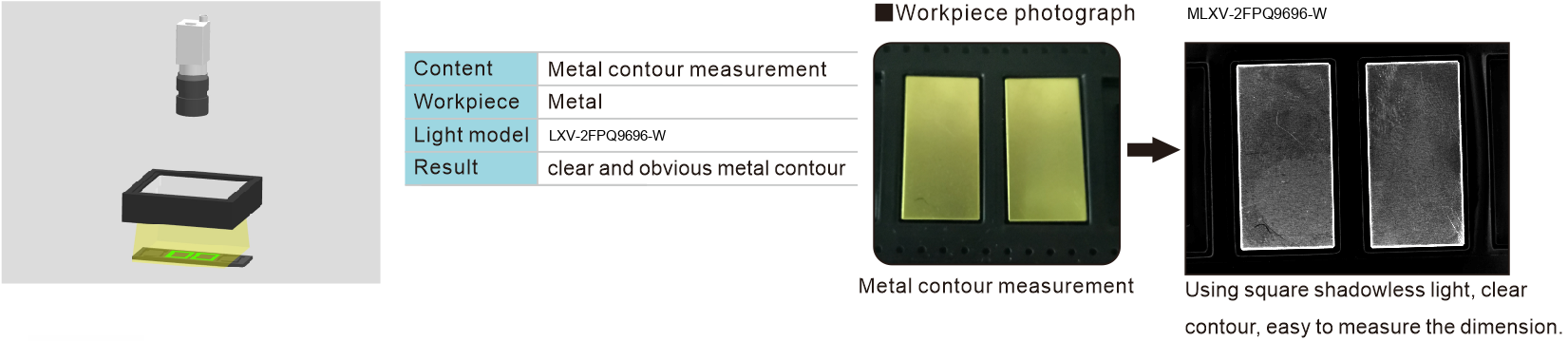

Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-2FPQ.
OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention

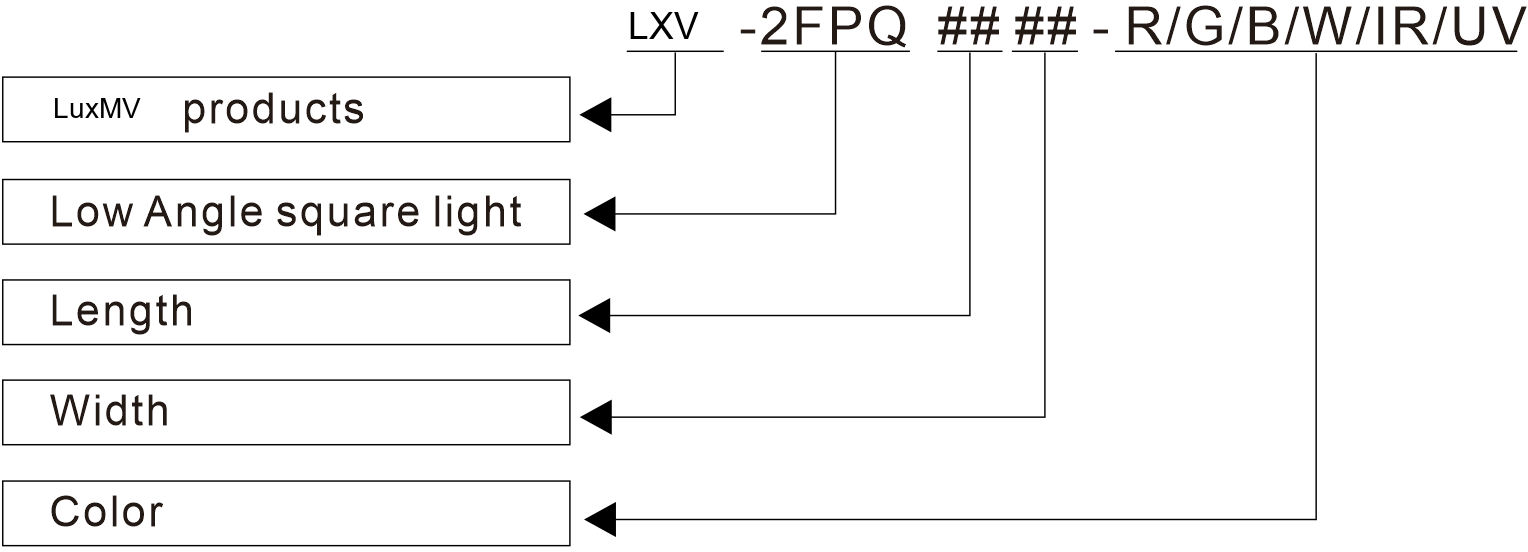

Model Naming Convention
Vector DiagramDIRECT ENQUIRY
Get a Customized Quotation
Need specific dimensions, custom wavelength LED combinations, or special cabling? Our optical engineering and sales offices are ready to assist.
Sales Email: info@luxmv.com
Response SLA: Under 4 Hours (Business Days)
Free Optical Simulation
Send us your target workpiece samples. We will test them in our R&D lighting darkrooms and supply a selection report completely free.
Request Technical Quotation
Our optical engineering sales team responds to all corporate requests within 4 hours.
