Machine Vision Light
LXV-2FTC
Ultrathin Flank Back Light
1.Glass surface scratch inspection. 2.PCB printing defect inspection. 3.Reflective surface defect inspection.
Features
- •A stable structure combined with ultra-thin thickness.
- •2.Easy to install in the narrow space.
- •3.High uniformity.
- •4.Customized size for reference.
Applications
- •Glass surface scratch inspection.
- •2.PCB printing defect inspection.
- •3.Reflective surface defect inspection.
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-2FTC3030-R/BGW | Red / Blue / Green / White | L70xW70xH9.5(mm) | 24V | 3.9W/3.9W |
| LXV-2FTC5050-R/BGW | Red / Blue / Green / White | L90xW90xH9.5(mm) | 24V | 3.9W/7.7W |
| LXV-2FTC6060-R/BGW | Red / Blue / Green / White | L100xW100xH9.5(mm) | 24V | 3.9W/7.7W |
| LXV-2FTC100100-R/BGW | Red / Blue / Green / White | L140xW140xH9.5(mm) | 24V | 7.7W/11.6W |
| LXV-2FTC150150-R/BGW | Red / Blue / Green / White | L190xW190xH9.5(mm) | 24V | 11.6W/15.4W |
| LXV-2FTC200200-R/BGW | Red / Blue / Green / White | L240xW240xH9.5(mm) | 24V | 15.4W/19.2W |
| LXV-2FTC250250-R/BGW | Red / Blue / Green / White | L290xW290xH9.5(mm) | 24V | 19.2W/23.1W |
| LXV-2FTC300300-R/BGW | Red / Blue / Green / White | L340xW340xH9.5(mm) | 24V | 23.1W/30.8W |
| LXV-2FTC360360-R/BGW | Red / Blue / Green / White | L400xW400xH9.5(mm) | 24V | 23.1W/30.8W |
| LXV-2FTC450450-R/BGW | Red / Blue / Green / White | L490xW490xH9.5(mm) | 24V | 30.8W/38.4W |
| * UV & IR light can be customized as required. | - | - | - | - |

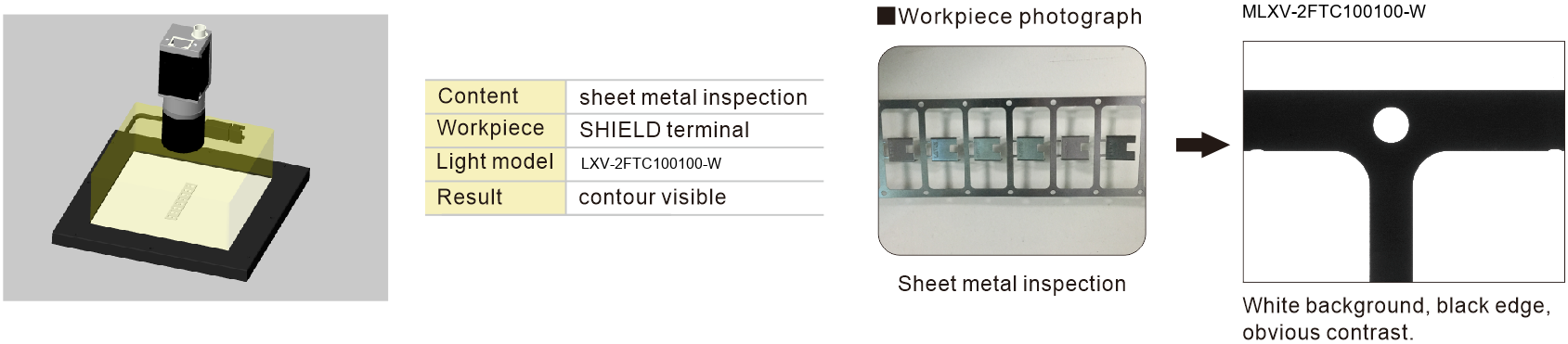

IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-2FTC.

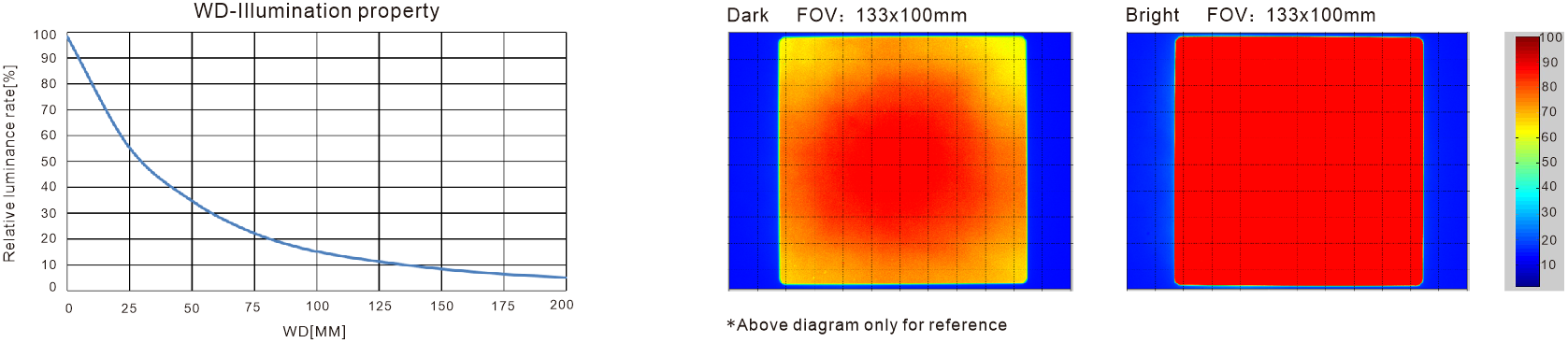

OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention
Model Naming Convention
Vector Diagram
