Machine Vision Light
LXV-2LFM
Striped shadowless light
1.The concave & convex and crease defects on reflective glass, mirror, glass, mobile phone film or other reflective surface inspection.
Features

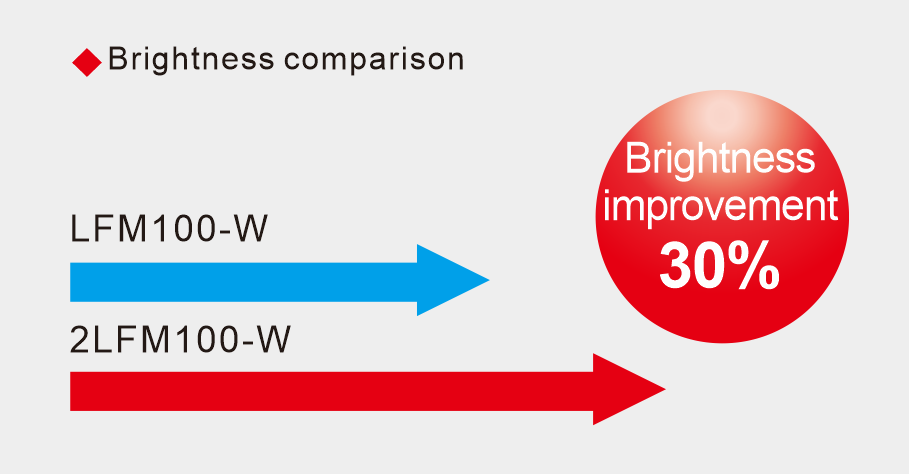

- •The brightness has increased by more than 30%.
- •2.There are no diffraction shadows, and the uniformity is better.
- •3.The stripes are finer and sharper, meeting the requirements of higher detection accuracy.
- •4.Suitable for concave and convex/crease defects on smooth product surfaces.
Applications
- •The concave & convex and crease defects on reflective glass, mirror, glass, mobile phone film or other reflective surface inspection.
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-2LFM100-R/BGW | Red / Blue / Green / White | L140xW140xH11.5mm) | 24V | 12.5W/18.7W |
| LXV-2LFM150-R/BGW | Red / Blue / Green / White | L190xW190xH11.5(mm) | 24V | 25.0W/31.0W |
| * UV & IR light can be customized as required. | - | - | - | - |

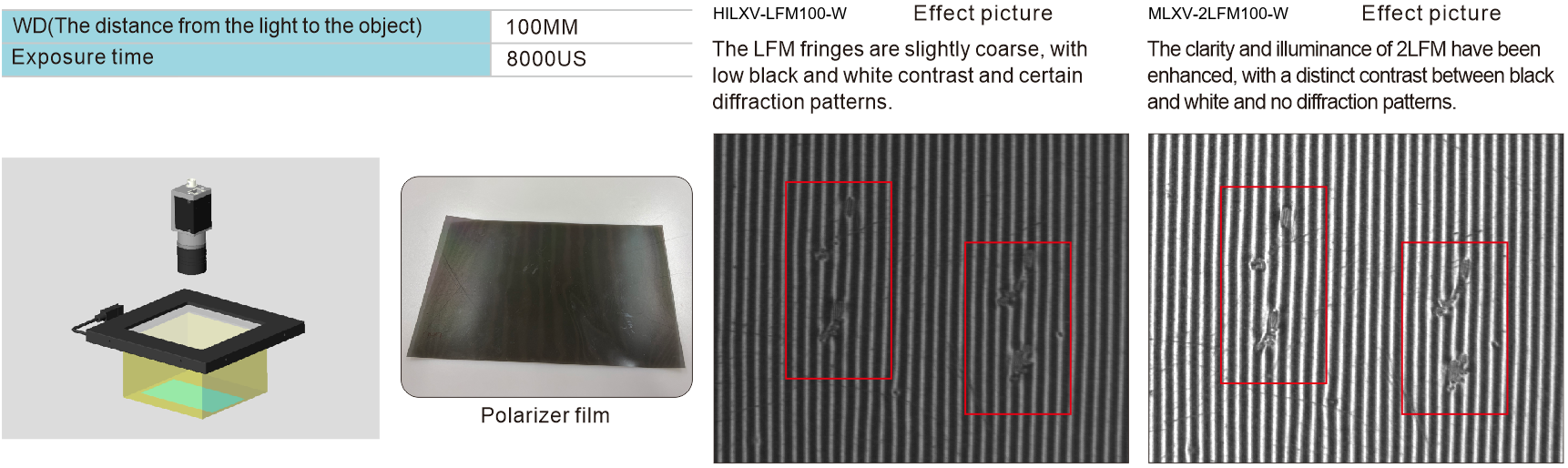

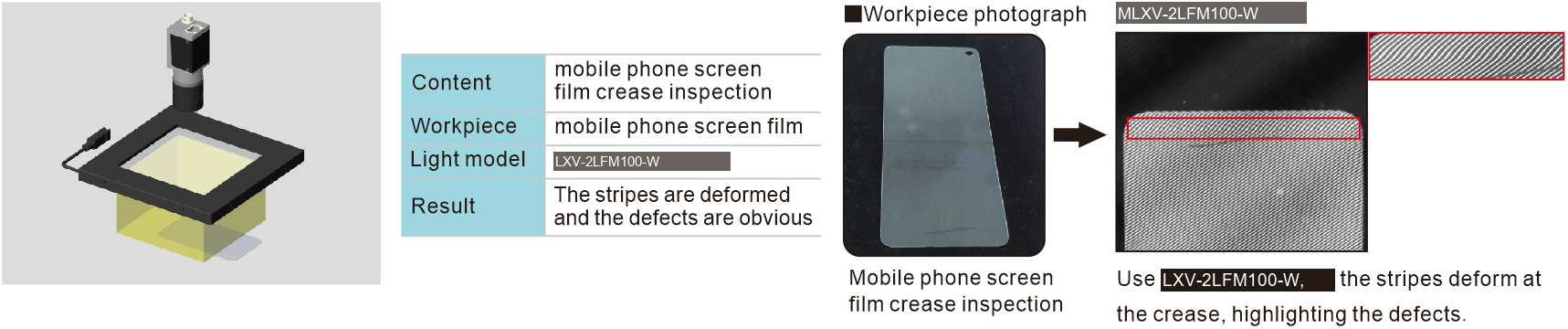

IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-2LFM.
OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention
Model Naming Convention

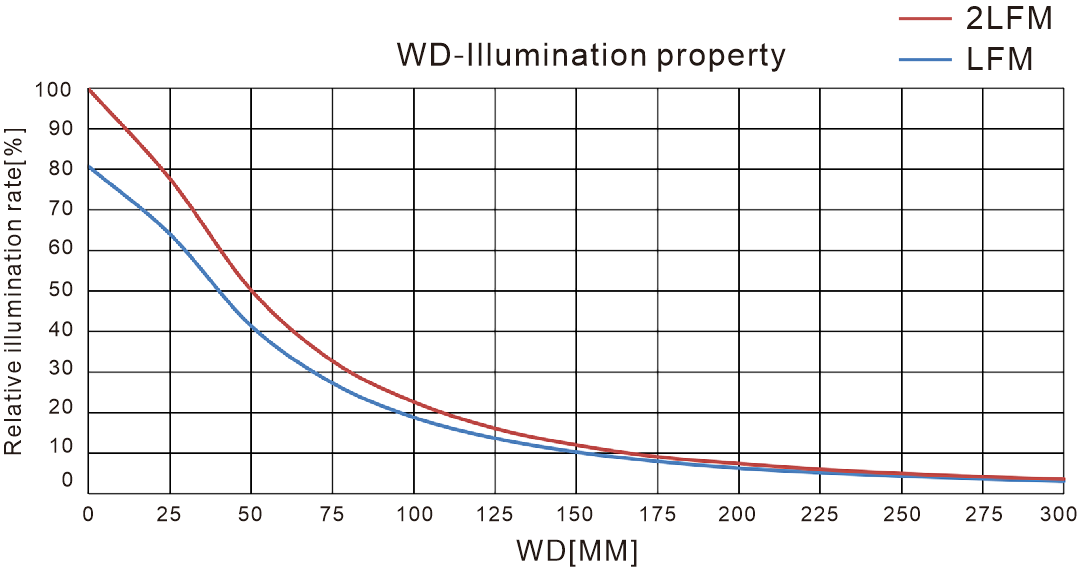

Vector Diagram
