Machine Vision Light
LXV-2HSL
Collimated Collector Light
1.PCB printed character inspection. 2.The surface scratch inspection. 3.Edge contour inspection. 4.Mark position inspection.
Features
- •Special structure adopted, more concentrated light,
- •higher intensity and parallelism.
- •2.Stable structure, good heat dissipation.
- •3.Apply to ultra-distance inspection.
Applications
- •PCB printed character inspection.
- •2.The surface scratch inspection.
- •3.Edge contour inspection.
- •4.Mark position inspection.
| Model | Color | Dimension | Voltage | Power | Spot diameter(mm) |
|---|---|---|---|---|---|
| LXV-2HSL8832-R/BGW | Red / Blue / Green / White | L88xOut dia. φ32(mm) | 3V | 3W | 20 |
| LXV-2HSL10542-R/BGW | Red / Blue / Green / White | L105xOut dia. φ42(mm) | 3V | 3W | 30 |
| LXV-2HSL10944-R/BGW | Red / Blue / Green / White | L109xOut dia. φ44(mm) | 3V | 3W | 35 |
| LXV-2HSL14861-R/BGW | Red / Blue / Green / White | L148xOut dia. φ61(mm) | 3V | 3W | 50 |
| LXV-2HSL15072-R/BGW(New) | Red / Blue / Green / White | L150.05xOut dia. φ72(mm) | 5V | 3W | 60 |
| LXV-2HSL18196-R/BGW(New) | Red / Blue / Green / White | L181.3xOut dia. φ96(mm) | 5V | 3W | 80 |
| LXV-2HSL19396-R/BGW | Red / Blue / Green / White | L193.8xOut dia. φ96(mm) | 24V | 4.8W | 90 |
| LXV-2HSL190115-R/BGW(New) | Red / Blue / Green / White | L190.4xOut dia. φ115.87(mm) | 24V | 5W | 100-110 |
| * UV & IR light can be customized as required. | - | - | - | - | - |
OPTICAL DESIGN & NAMING

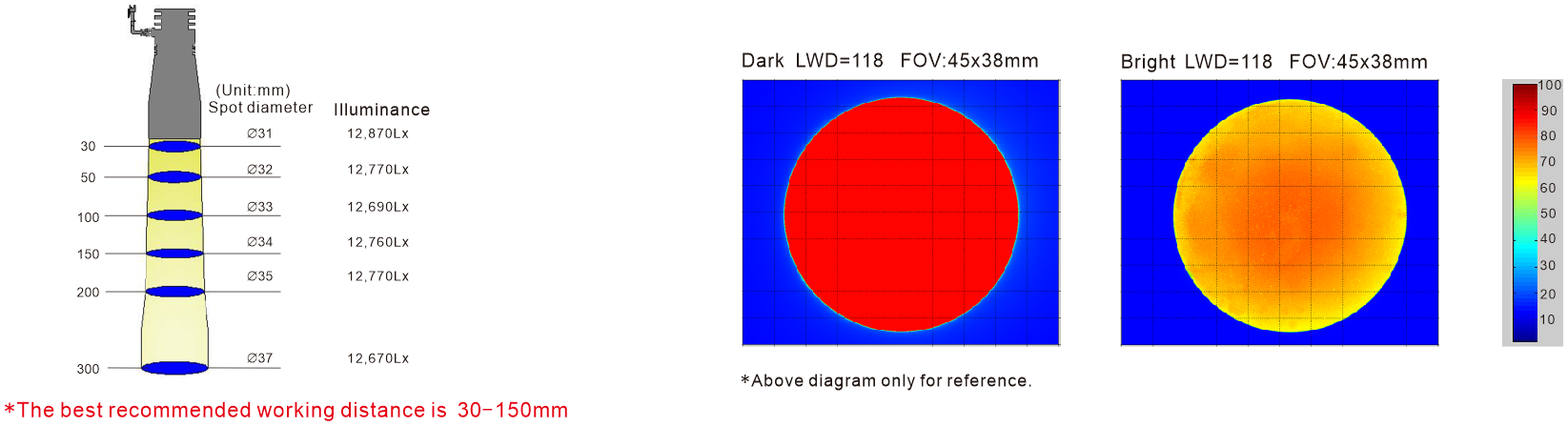

Optical Diagram & Model Naming Convention
Model Naming Convention
Vector Diagram
