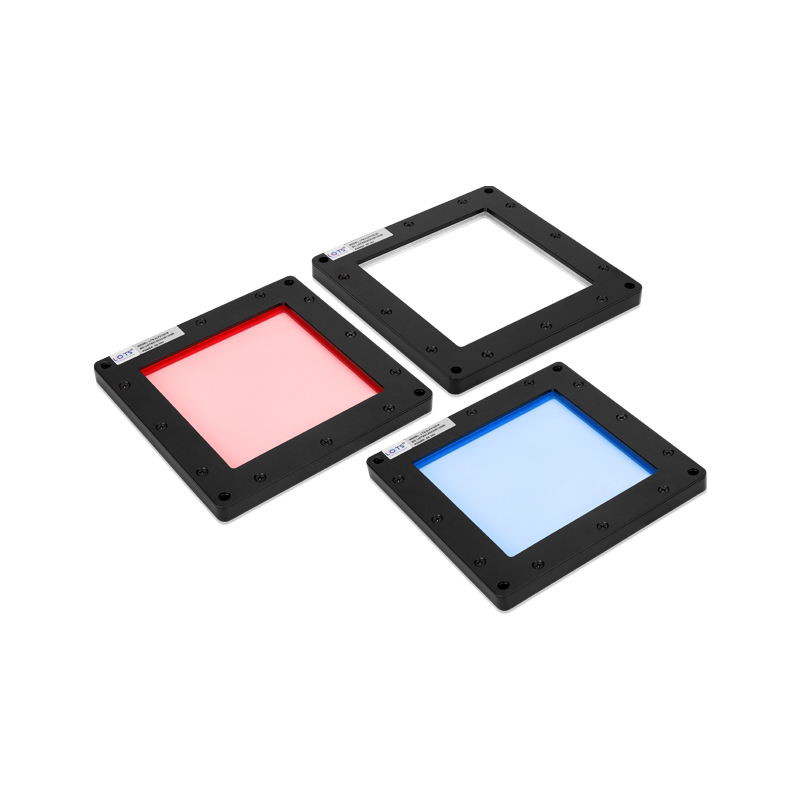

Machine Vision Light
LXV-2LFX
Flat Dome Light Industrial
1.Suitable for a wide range of applications from high to low WD. 2.No dot pattern or Moire ripple. 3.5 times brighter than LFX.
Features
- •Suitable for a wide range of applications from high to low WD.
- •2.No dot pattern or Moire ripple.
- •3.5 times brighter than LFX.
- •4.High light transmittance, good uniformity.
- •5.With coaxial and dome shadowless light effect
Applications
- •Reflective bag character detection.
- •2.Metal can production date detection.
- •3.concave and convex surface pattern detection.
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-2LFX50-C-R/BGW | Red / Blue / Green / White | L90xW90xH11.5(mm) | 24V | 6.3W/12.5W |
| LXV-2LFX75-C-R/BGW | Red / Blue / Green / White | L115xW115xH11.5(mm) | 24V | 12.5W/12.5W |
| LXV-2LFX100-C-R/BGW | Red / Blue / Green / White | L140xW140xH11.5(mm) | 24V | 12.5W/18.7W |
| LXV-2LFX150-C-R/BGW | Red / Blue / Green / White | L190xW190xH11.5(mm) | 24V | 25.0W/31.2W |
| LXV-2LFX200-C-R/BGW | Red / Blue / Green / White | L240xW240xH11.5(mm) | 24V | 31.2W/43.7W |
| * UV & IR light can be customized as required. | - | - | - | - |

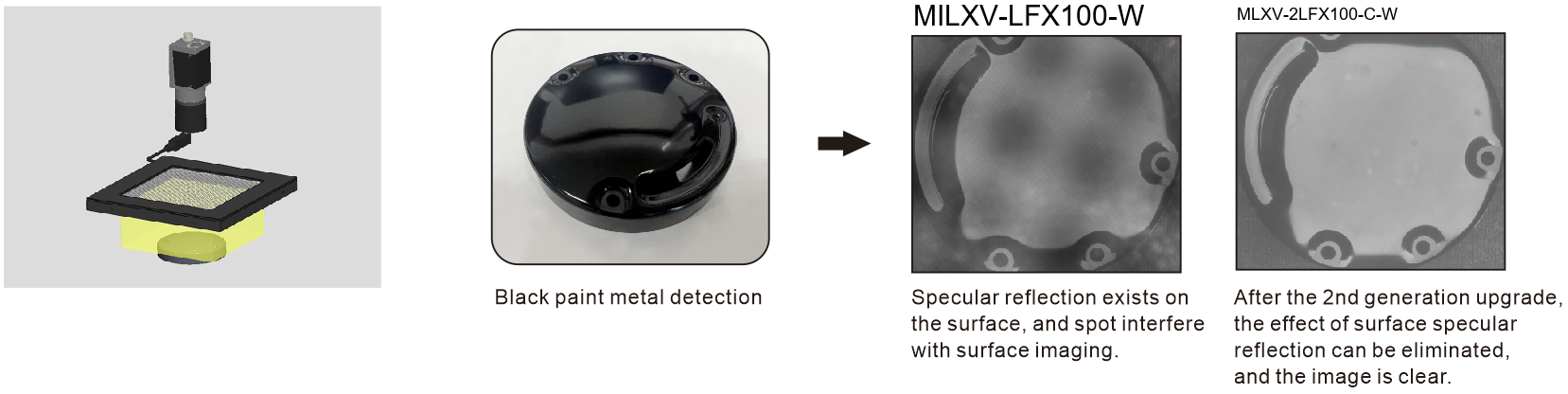

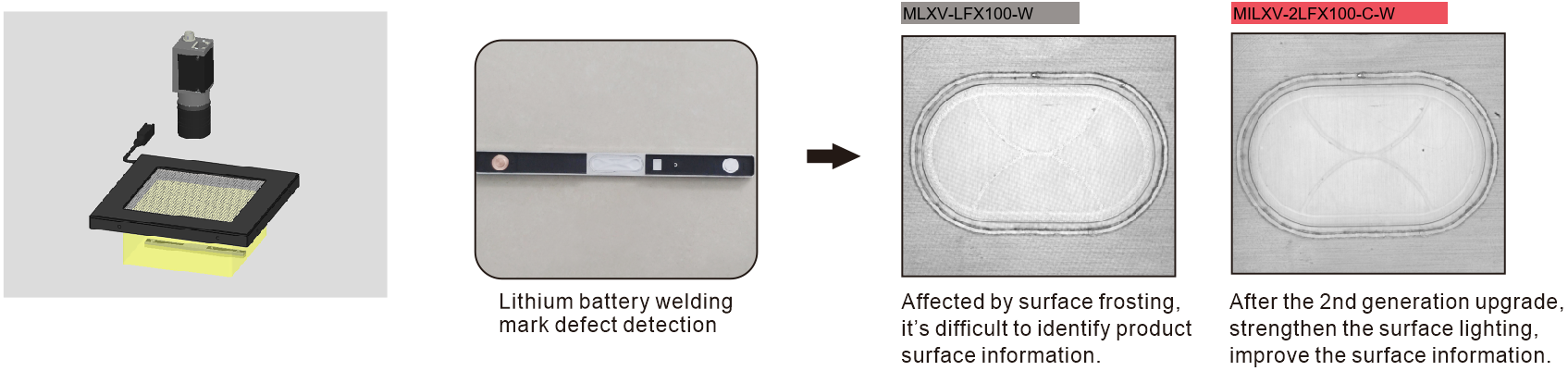

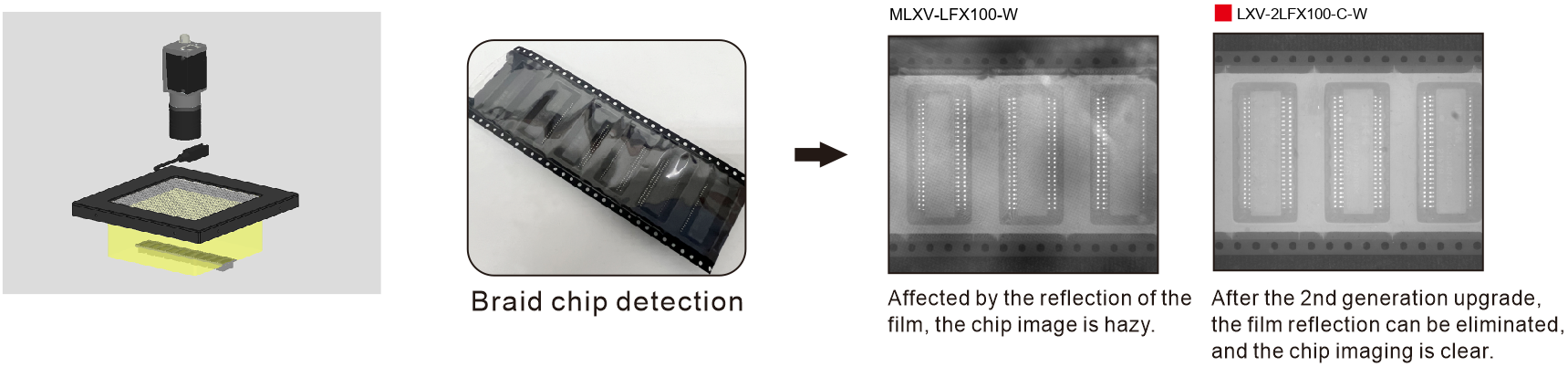

IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-2LFX.
OPTICAL DESIGN & NAMING

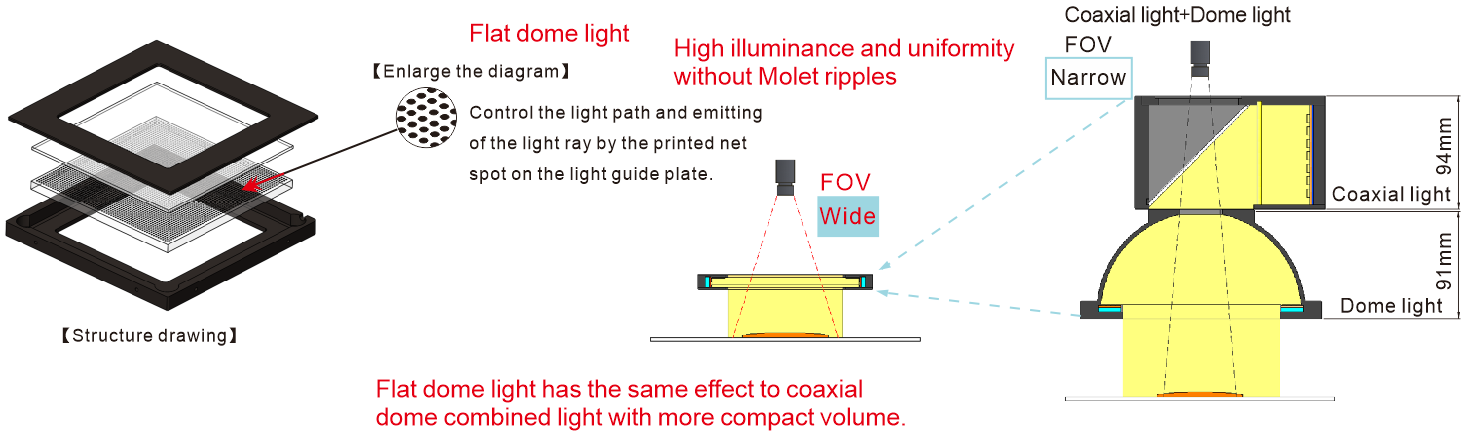

Optical Diagram & Model Naming Convention
Model Naming Convention

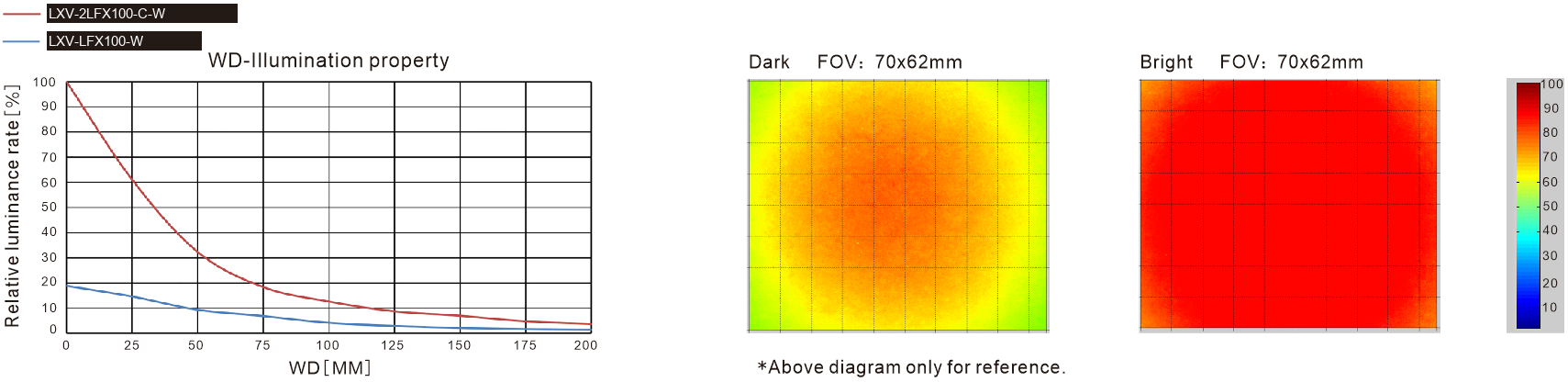

Vector Diagram
DIRECT ENQUIRY
Get a Customized Quotation
Need specific dimensions, custom wavelength LED combinations, or special cabling? Our optical engineering and sales offices are ready to assist.
Sales Email: info@luxmv.com
Response SLA: Under 4 Hours (Business Days)
Free Optical Simulation
Send us your target workpiece samples. We will test them in our R&D lighting darkrooms and supply a selection report completely free.
Request Technical Quotation
Our optical engineering sales team responds to all corporate requests within 4 hours.
