Machine Vision Light

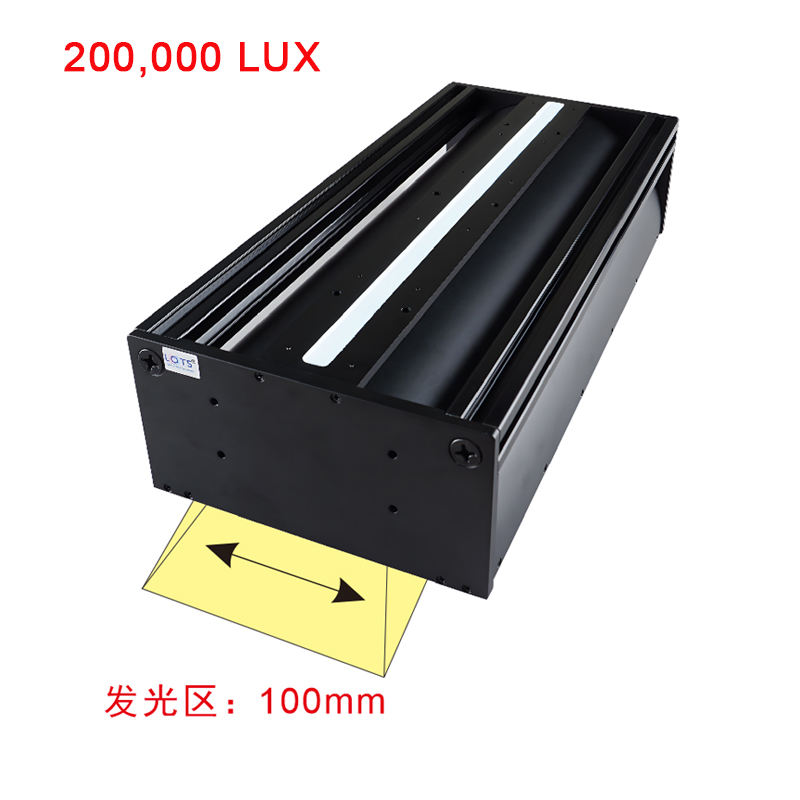

LXV-2MDL
Small Tunnel Line Scan Light
1.PCB board printing inspection. 2.Vacuum packaging bag inspection. 3.Metal surface inspection. 4.Glass surface gloss inspection.
Features

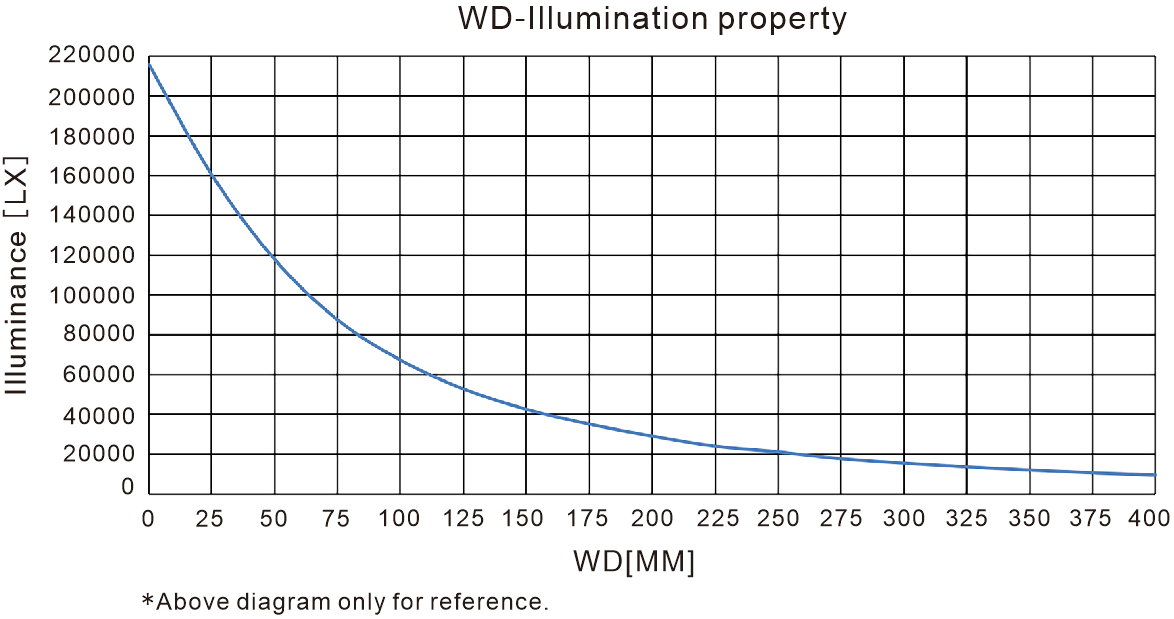

- •Compact size, light weight, illuminance up to 200,000 LX.
- •2.Uses high-efficiency LED, which emits evenly diffused light onto the arch shape.
- •3.Can eliminate shadows caused by workpiece unevenness, helping improve overall imaging uniformity.
- •4.Natural cooling for heat dissipation, suitable for substrate manufacturing processes or cleanroom environments.
Applications
- •PCB board printing inspection.
- •2.Vacuum packaging bag inspection.
- •3.Metal surface inspection.
- •4.Glass surface gloss inspection.
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-2MDL100-R/BGW | Red / Blue / Green / White | L112xW145xH75(mm) | 24V | 22W |
| LXV-2MDL200-R/BGW | Red / Blue / Green / White | L212xW145xH75(mm) | 24V | 44W |
| LXV-2MDL300-R/BGW | Red / Blue / Green / White | L312xW145xH75(mm) | 24V | 65W |
| LXV-2MDL400-R/BGW | Red / Blue / Green / White | L412xW145xH75(mm) | 24V | 87W |
| LXV-2MDL500-R/BGW | Red / Blue / Green / White | L512xW145xH75(mm) | 24V | 108W |
| LXV-2MDL600-R/BGW | Red / Blue / Green / White | L612xW145xH75(mm) | 24V | 130W |
| LXV-2MDL700-R/BGW | Red / Blue / Green / White | L712xW145xH75(mm) | 24V | 152W |
| LXV-2MDL800-R/BGW | Red / Blue / Green / White | L812xW145xH75(mm) | 24V | 173W |
| LXV-2MDL900-R/BGW | Red / Blue / Green / White | L912xW145xH75(mm) | 24V | 195W |
| LXV-2MDL1000-R/BGW | Red / Blue / Green / White | L1012xW145xH75(mm) | 24V | 216W |
| * UV & IR light can be customized as required. | - | - | - | - |
IMAGING COMPARISON
Application Effect Analysis

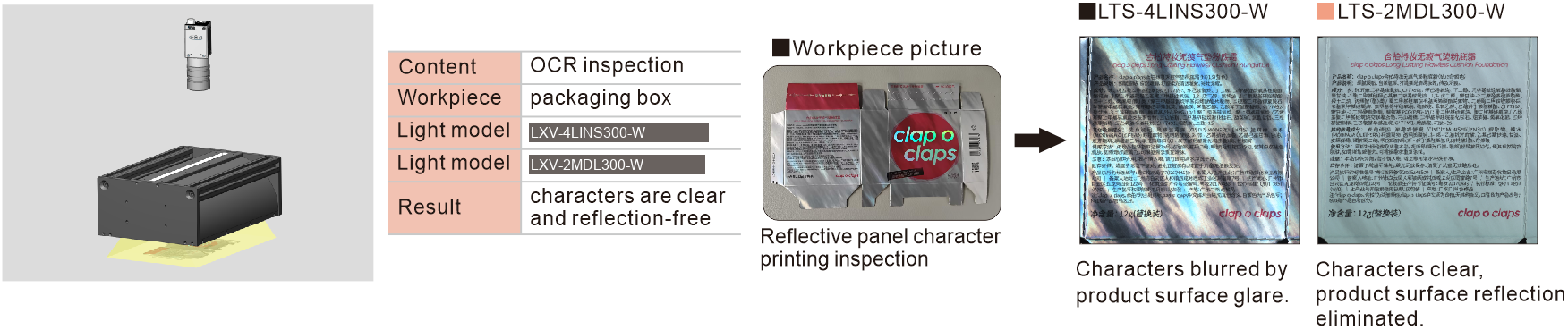

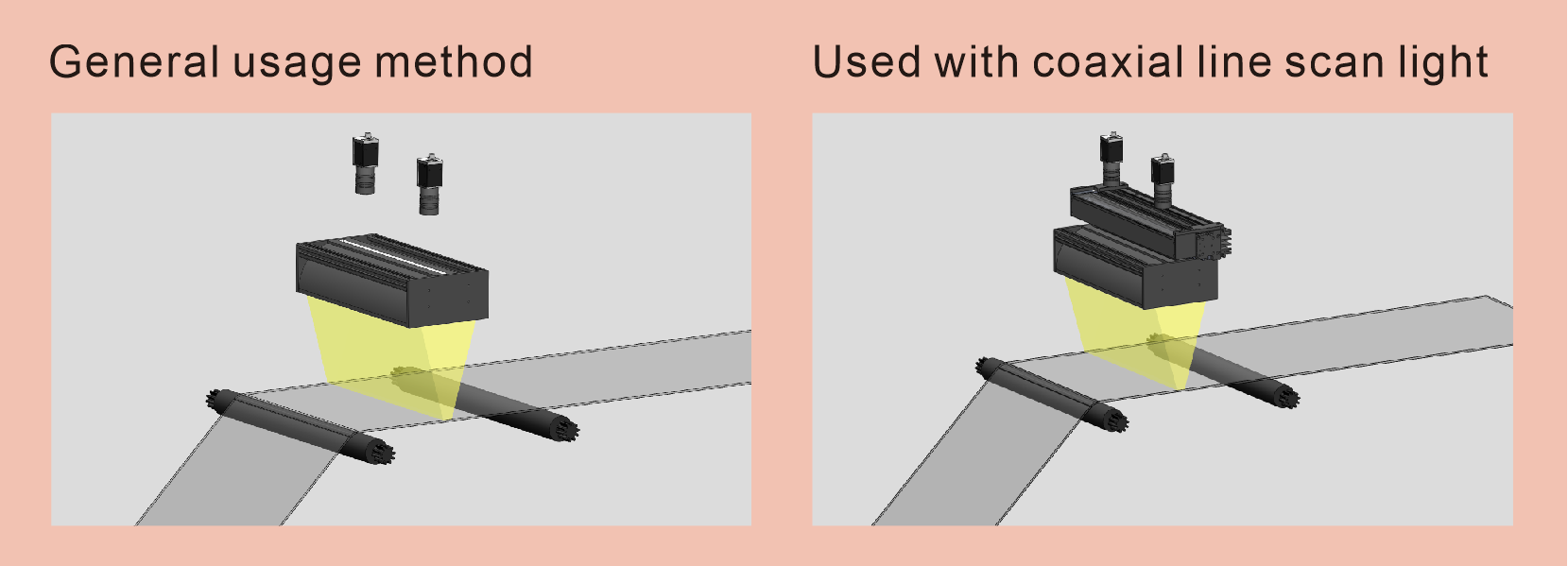

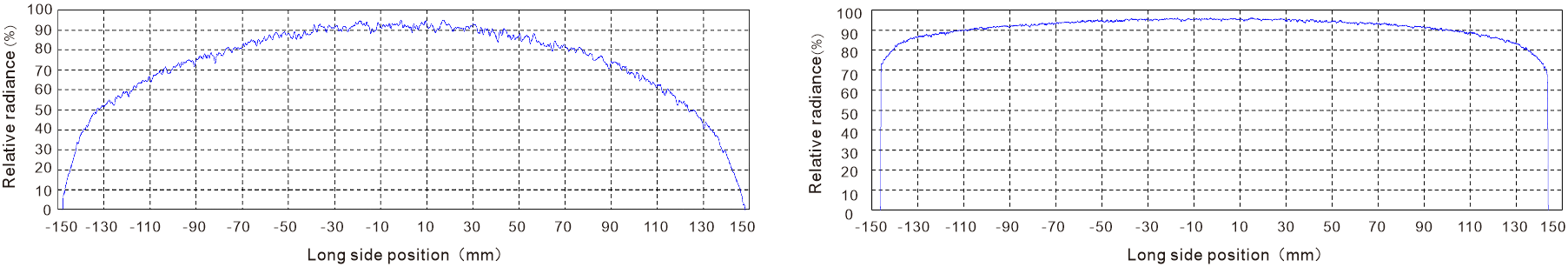

Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-2MDL.
