Machine Vision Light
LXV-2SDL

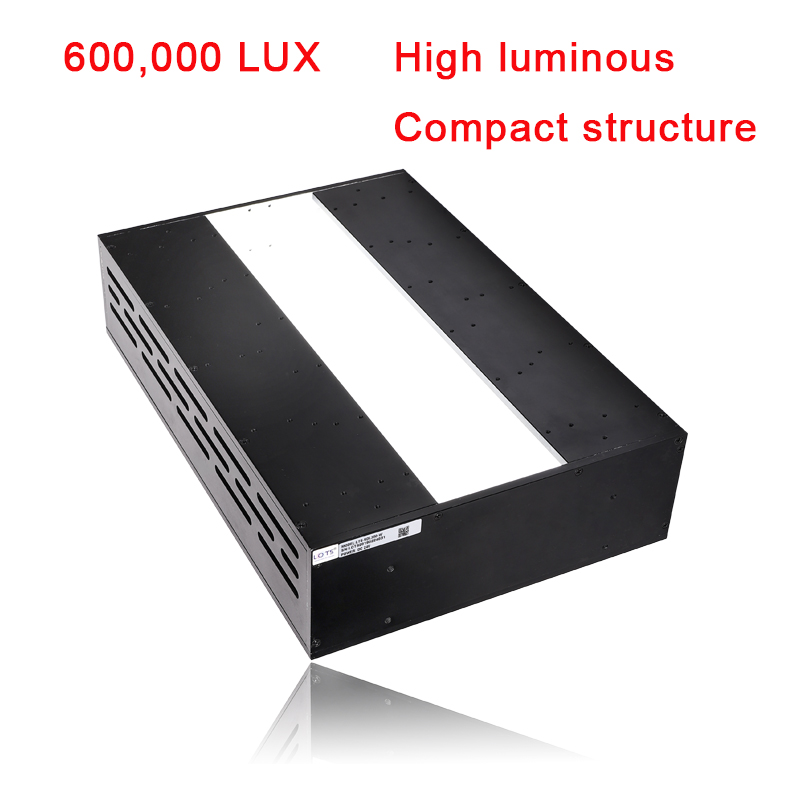

Tunnel Line Scan Light
Tunnel line scan light, high uniformity, high luminous. 2 times brightness updated, matched with line scan camera, used to PCB printing, metal surface inspection.
Features
- •Good parallelism, high luminance in light weight.

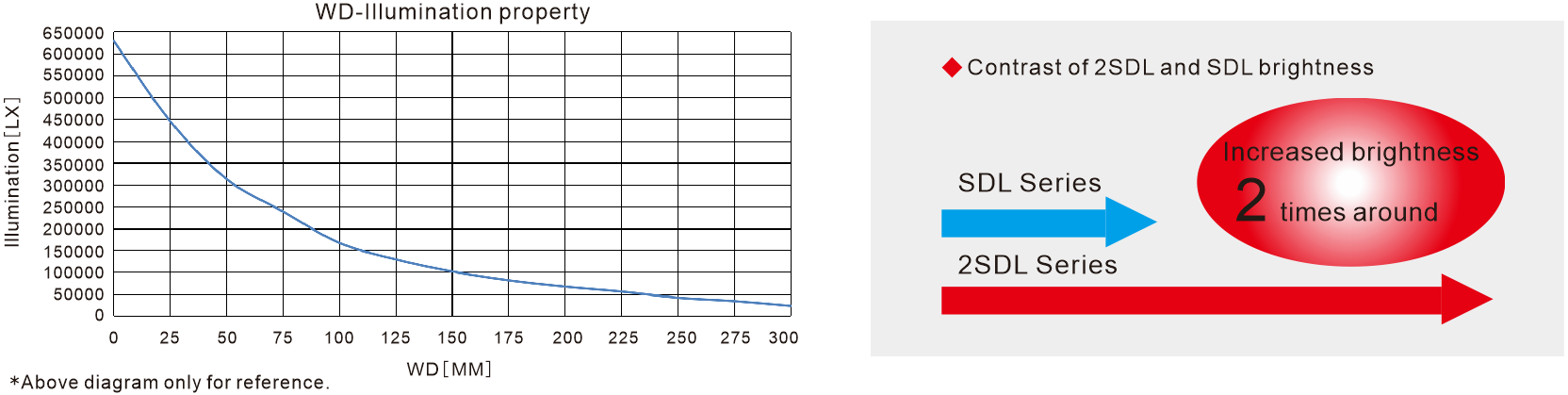

- •2.Brightness is 2 times higher than SDL series, weight is reduced by 50%.
- •3.Used for line scan system of cigarette package surface inspection,
- •curved surface inspection.
Applications
- •PCB printing inspection.
- •2.Vacuum packing inspection.
- •3.Metal surface inspection.
- •4.Glass surface gloss inspection.
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-2SDL100-R/BGW | Red / Blue / Green / White | L116.3xW245xH82.5(mm) | 24V | 101W |
| LXV-2SDL200-R/BGW | Red / Blue / Green / White | L216.3xW245xH82.5(mm) | 24V | 168W |
| LXV-2SDL300-R/BGW | Red / Blue / Green / White | L316.3xW245xH82.5(mm) | 24V | 236W |
| LXV-2SDL400-R/BGW | Red / Blue / Green / White | L416.3xW245xH82.5(mm) | 24V | 336W |
| LXV-2SDL500-R/BGW | Red / Blue / Green / White | L516.3xW245xH82.5(mm) | 48V | 404W |
| LXV-2SDL800-R/BGW | Red / Blue / Green / White | L816.3xW245xH82.5(mm) | 48V | 605W |
| LXV-2SDL1000-R/BGW | Red / Blue / Green / White | L1016.3xW245xH82.5(mm) | 48V | 807W |
| * UV & IR light can be customized as required | - | - | - | - |

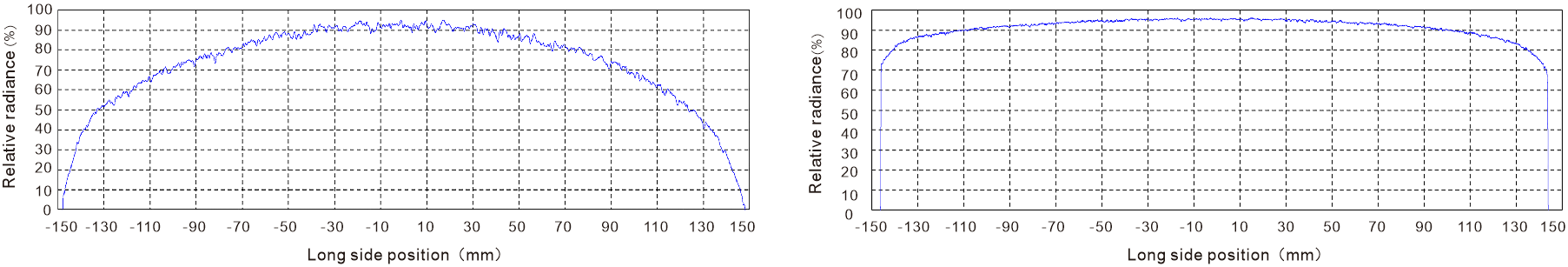

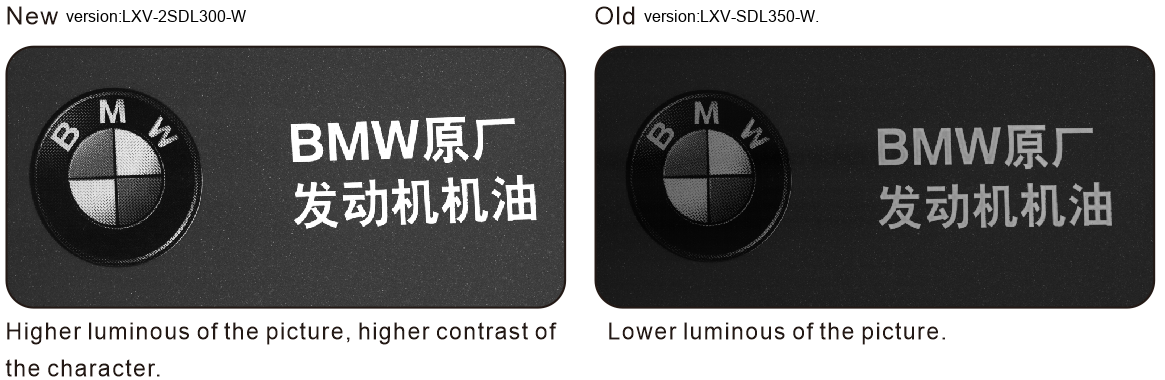

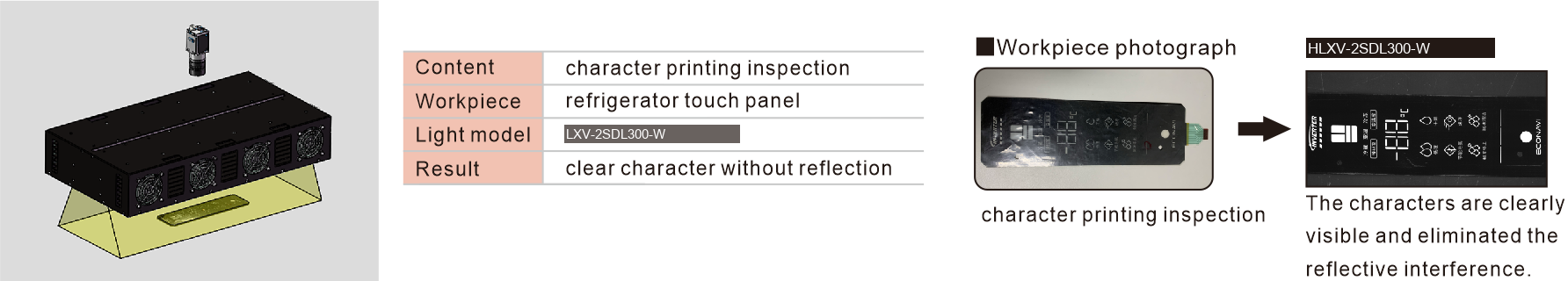

IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-2SDL.
OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention
Model Naming Convention
