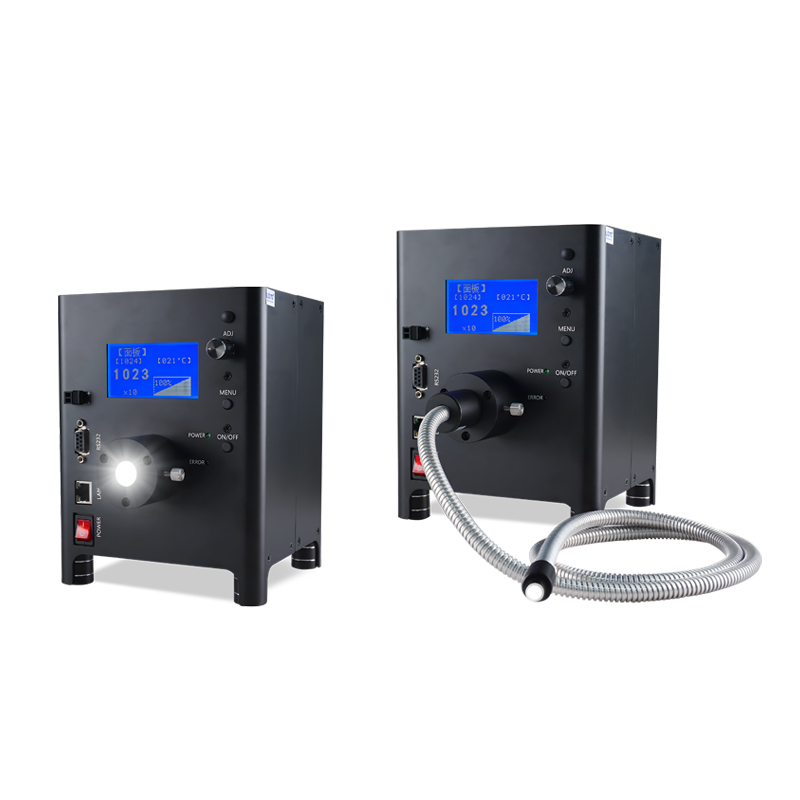

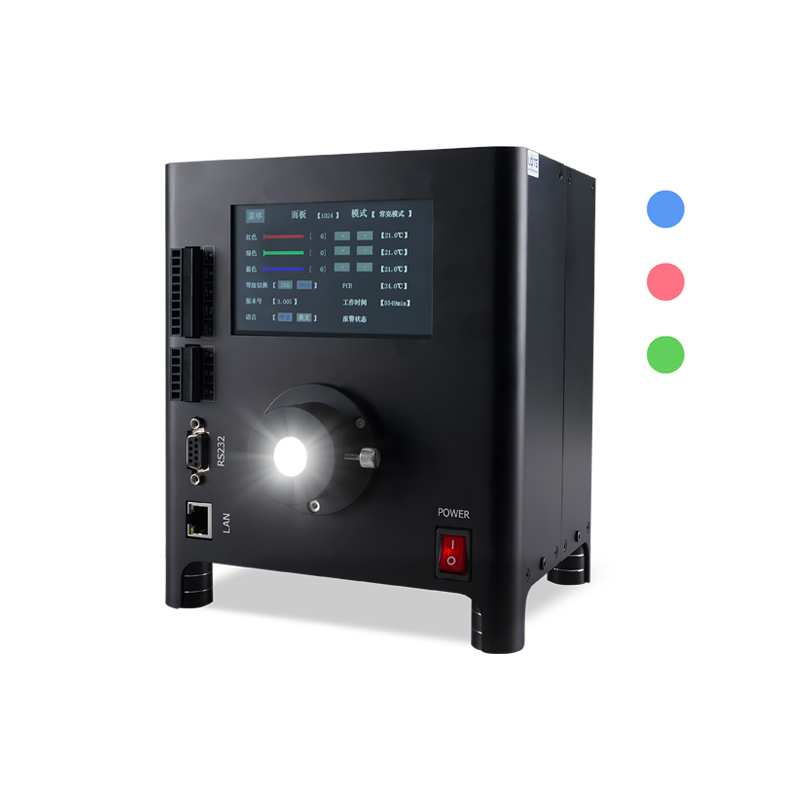

LXV-2SLG

Laser Fiber Light (light box)

Laser Fiber Light (light box) the maximum white brightness is approximately 30 million Lx, and the frequency can reach 8KHZ.

•The LCD display screen shows the status and set actions.
•2.It can be manually adjusted or externally controlled through software.

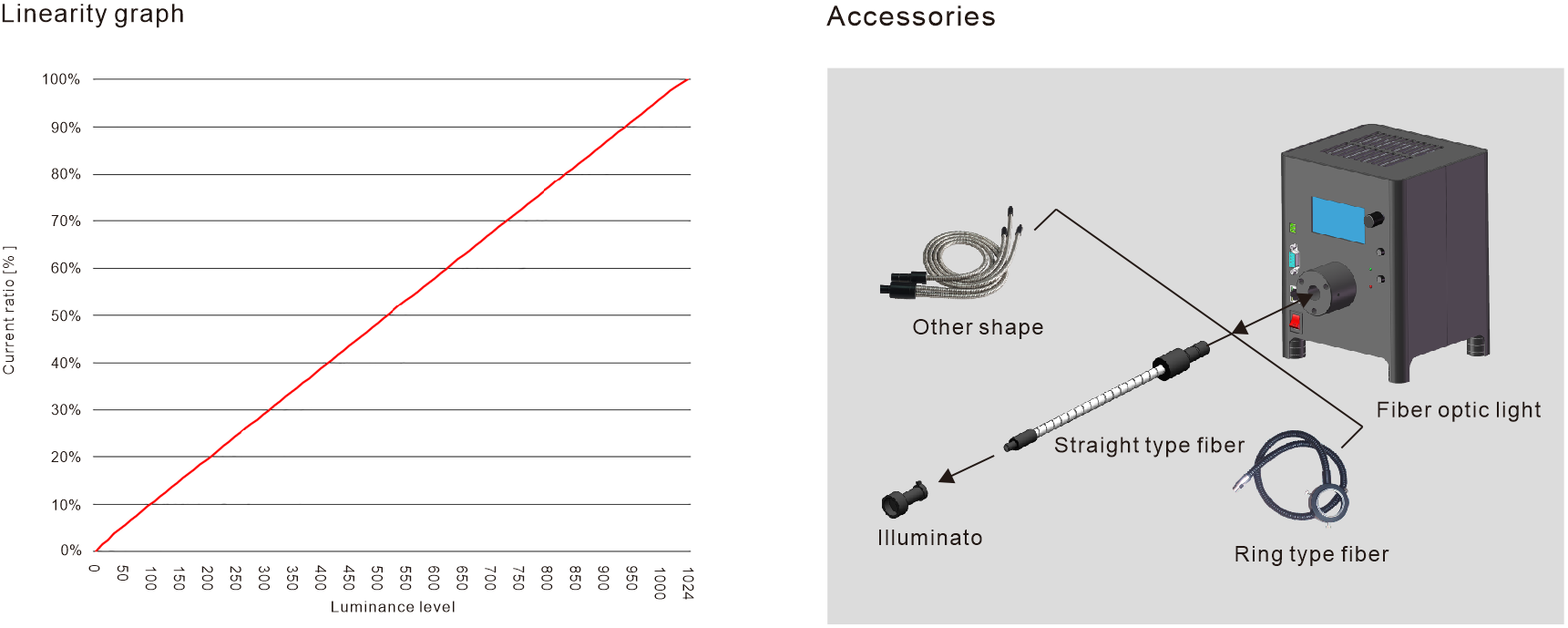

•3.Constant current dimming, with adjustable dimming levels of 256/1024.
•4.Support RS232 communication and Ethernet communication.
•5.It is equipped with overcurrent protection, over-temperature protection and power-off preservation functions.
•6.The maximum white brightness is approximately 30 million Lx, and the frequency can reach 8KHZ.

Model	Output power	Color	Dimension	External trigger voltage
LXV-2SLG150-R/G/B/W	150W	Red / Blue / Green / White	L177xW155xH203(mm)	Strobe / constant on using External trigger voltage 5-24V
LXV-2SLG250-R/G/B/W	250W	Red / Blue / Green / White	L177xW155xH203(mm)	-
LXV-2SLG250-CW	250W	White	L177xW155xH203(mm)	-

Model	Output power	Color	Dimension	External trigger voltage
LXV-2SLG350-W	350W	White	L193.5xW155xH203(mm)	Strobe / constant on using External trigger voltage 5-24V

Model	LXV-2SLG150-R/G/B/W	LXV-2SLG250-R/G/B/W	LXV-2SLG250-CW
Color	R/G/B/W	R/G/B/W	CW(High CRI)
CRI	≤80	≤80	≥95
Communication	RS232/LAN	-	-
Number of channels	1 Way	-	-
Compatible fiber diameter (mm)	Fiber OF diameter Φ6-14mm	-	-
Lighting angle	Full angle 30°	-	-
Drive mode	Constant current	-	-
Luminance control level	256/1024 Level	-	-
Luminance control method	LCD display adjustment/RS232 communication adjustment/LAN communication adjustment optional	-	-
Baud rate	19200bps	-	-
External trigger voltage	5-24V	-	-
External trigger respond time	20us	-	-
Input voltage	100-240V AC	-	-
Protection functions	Over-load protection, over temperature protection, power off saving	-	-
Insulation and voltage resistance	AC1500V cut off current 10mA for 1 minute, DC500 V 20 MΩ or more	-	-
Operating temp. & humidity	Temperature : 0 to 40ºC,humidity : 20 to 85%RH(Non-condensing)	-	-
Storage environment	Temperature : 0 to50ºC,humidity : 20 to 85%RH(Non-condensing)	-	-
Life span	60,000h (till the luminance output reduced to 50%)	15,000h	-

Model	LXV-2SLG350-W
Color temp.	7000K
CRI	70
Emitting angle	50°
luminance value	Approximately 30 million Lx(8mm optical fiber beam)
Compatible fiber diameter(mm)	The core diameter of the high-temperature resistant optical fiber is 6-14mm
Color	White
Average life span	15,000 hours (stabilization time of 70% of the maximum light quantity)
Drive mode	Constant Current Driving
Input voltage	100-240V AC
Number of channels	1 way
Baud rate	19200bps
Input frequency range	50/60Hz
Luminance control method	Manual encoder knob adjustment, remote adjustment on PC
Luminance control level	256/1024 level
Protection functions	The set brightness parameters will be automatically saved upon power failure
External trigger voltage	Pulse width trigger, high level 5-24V is effective
External trigger frequency	It is determined by the external trigger signal mode. If the duty cycle of the external trigger signal is 50%. The maximum external effective trigger frequency is 8KHZ
External trigger respond time	20us
Startup response time	≦6S
Protection functions	Overcurrent protection, power-off preservation, temperature protection
Communication mode	RS232/LAN
Service environment	Temperature : 0 to 40ºC,humidity : 20 to 85%RH(Non-condensing)
Storage environment	Temperature : 0 to50ºC,humidity : 20 to 85%RH(Non-condensing)
Constant on/constant off mode switching	This model has two modes: constantly on and constantly off, which can be switched through the initial state function inside the MANU
