Fiber Optic Light
LXV-2SLG -SWIR
SWIR Fiber Optic Light
1.Used for exterior and interior inspection. 2.9 wavelengths from 810nm to 1650nm are standard. 3.Best for replacing halogen light sources.
Features
- •Used for exterior and interior inspection.
- •2.9 wavelengths from 810nm to 1650nm are standard.
- •3.Best for replacing halogen light sources.
- •4.Due to the LEDs, it helps to long-term use and reduce the thermal damage to the irradiation.
Applications
- •Semiconductor wafer and chip crack impurity detection
- •2.Food screening and sorting
- •3.Condition identification of fillers
- •4.Low light night vision to observe objects in the night
| Model | Type | Wavelength | Dimension | External trigger voltage |
|---|---|---|---|---|
| LXV-2SLG150 | NIR | 810/850/940nm | L177xW155xH203(mm) | 5-24V |
| LXV-2SLG150 | SWIR | 1050/1125/1200/1300/1500/1650nm | L177xW155xH203(mm) | 5-24V |
| LXV-2SLG250 | SWIR | 1300nm | L177xW155xH203(mm) | 5-24V |
| Model | LXV-2SLG150-NIR | LXV-2SLG150-SWIR | LXV-2SLG250-SWIR |
|---|---|---|---|
| LED Wavelength | 810-940nm | 1050-1650nm | 1300nm |
| Number of channels | 1 ch | - | - |
| Compatible fiber diameter | Fiber OF diameter Φ6-14mm | - | - |
| Drive mode | Constant current | - | - |
| Luminance control level | 256/1024 Level | - | - |
| Luminance control method | Manual encoder knob adjustment, RS232/LAN communication optional | - | - |
| Communication method | RS232/LAN | - | - |
| Baud rate | 19200bps | - | - |
| External trigger voltage | 5-24V | - | - |
| Trigger response time | 20us | - | - |
| Input voltage | 100-240V AC | - | - |
| Protection functions | Over-load protection, over temperature protection, power off saving | - | - |
| Insulation and voltage resistance | AC1500V 1 minute cut off current 10mA, DC500V20MΩ or more | - | - |
| Operating environment | Temperature : 0 to 40ºC，humidity : 20 to 85%RH(Non-condensing) | - | - |
| Storage environment | Temperature : 0 to 50ºC，humidity : 20 to 85%RH(Non-condensing) | - | - |
| Life span | 30000 hours (until the light intensity reaches 50% of the time) | - | - |

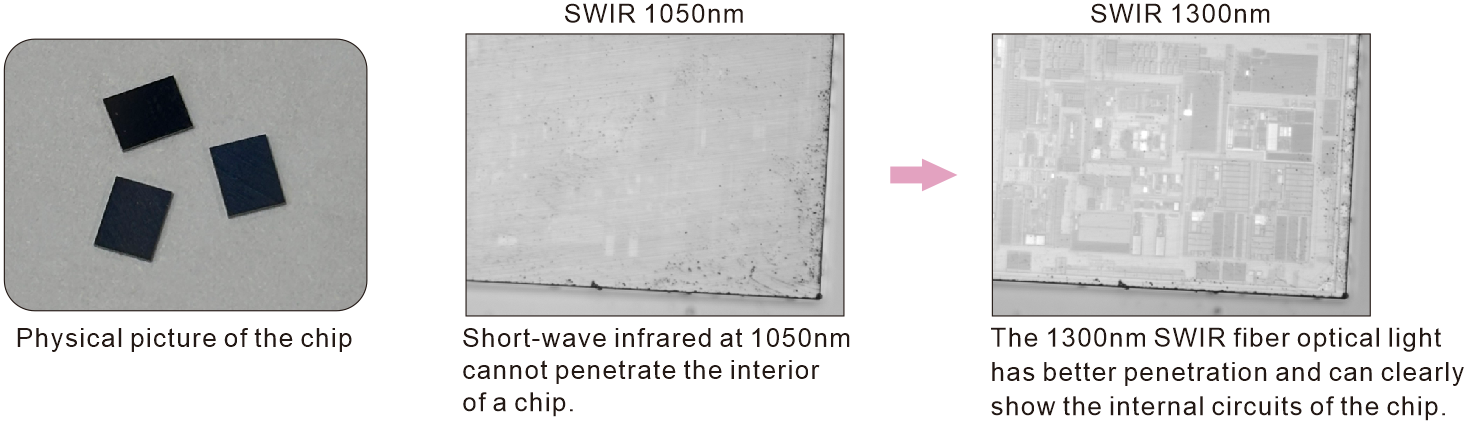

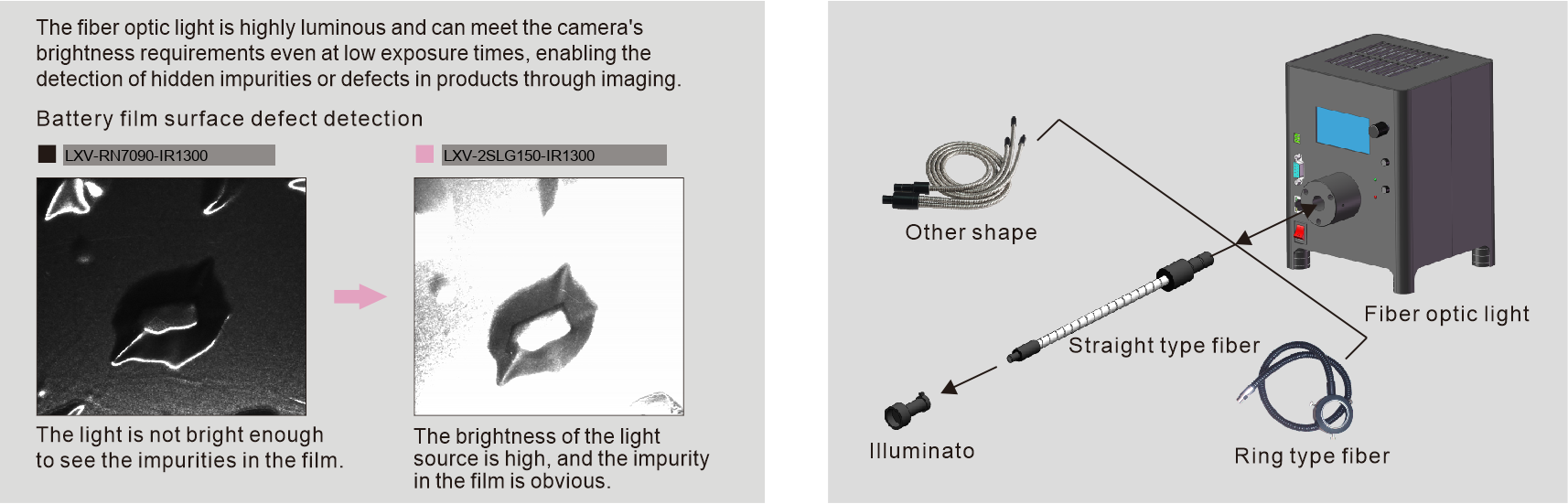

IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-2SLG -SWIR.

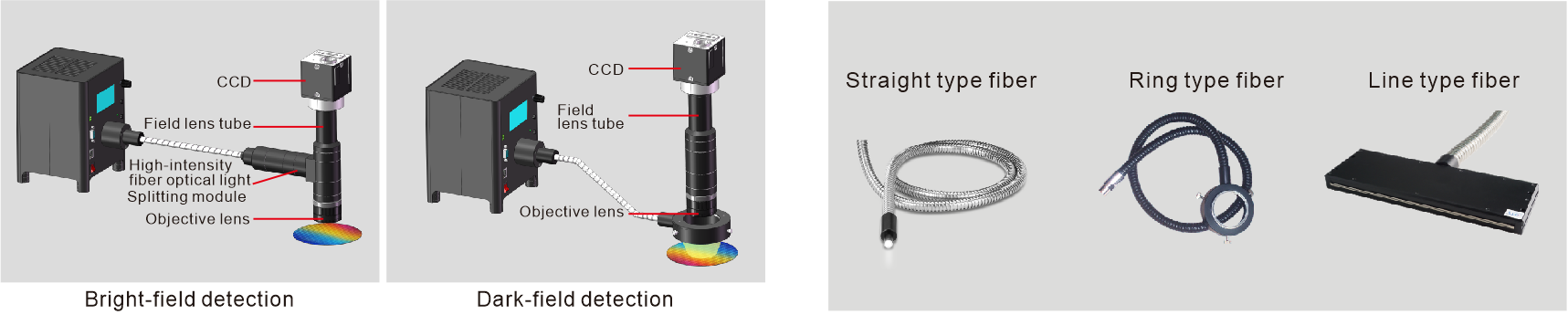

OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention
Model Naming Convention
