Fiber Optic Light
LXV-2SLG-UV
UV Fiber Optic Light
Uv fiber light source has fluorescence effect, biological effect, photochemical effect and photoelectric effect, and has a wide range of applications in various industries.
Features
- •Optical Path Design for Efficient Optical Coupling Lens.
- •2.Constant-Current Dimming Output with 256/1024 Dimming Levels.

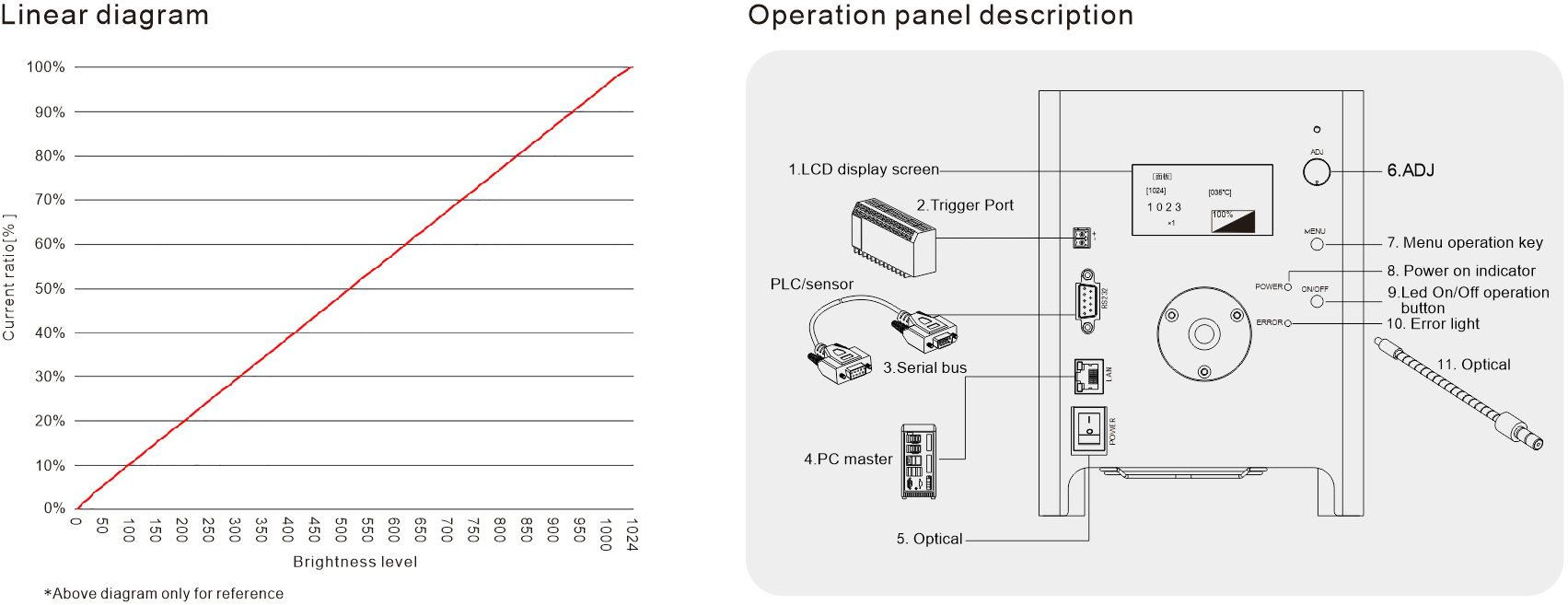

- •3.LCD Display for Status and Setting Indication.
- •4.IO Trigger Frequency up to 8KHz.
- •5.Support for RS232 and LAN Communication.

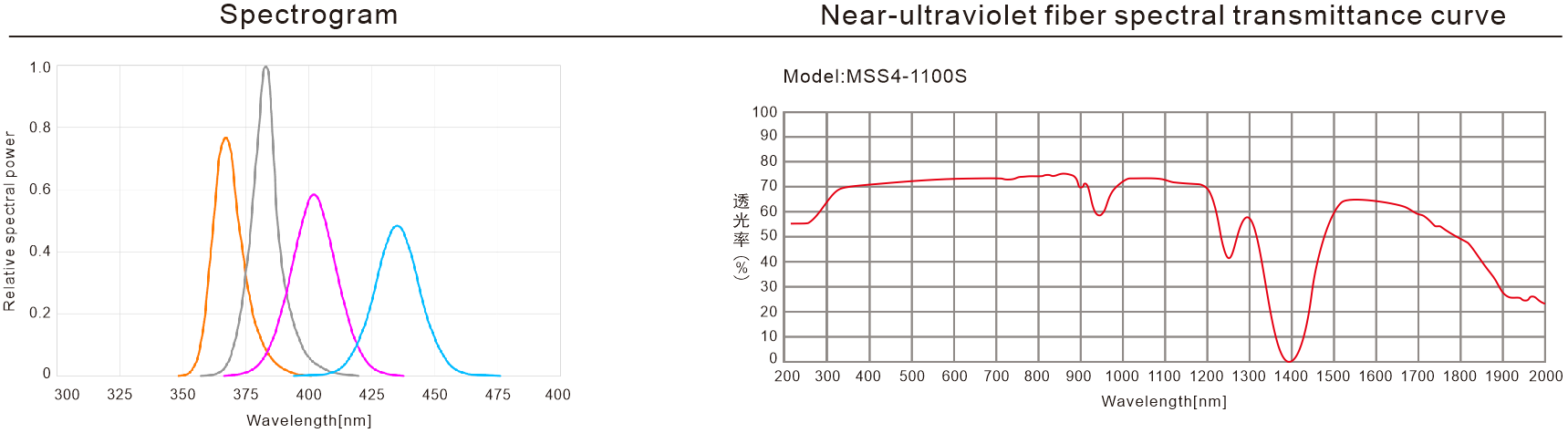

- •6.UV Output at 365/385/395/405nm.
- •7.Capable of Inducing Material-Specific Reactions .
- •8.Features Overcurrent, Overtemperature, and Power-Failure Protection.
Applications
- •Fluorescent Penetrant Inspection
- •2.UV Curing in PCB Industry
- •3.Medical Applications
- •4.Electronic Chip Production and Inspection
| Model | Output power | Color | UVA Wavelength | Dimension | External trigger voltage |
|---|---|---|---|---|---|
| LXV-2SLG150 | 150W | UV | 365/385/395/405 | L177xW155xH203(mm) | 5-24V |
| Model | LXV-2SLG150-UV365 | LXV-2SLG150-UV385/395/405 |
|---|---|---|
| LED wavelength range | 3817mW/cm²(light beams6mm) | — |
| Compatible fiber diameter | Fiber of diameterΦ6-14mm | - |
| Input voltage | 100-240V AC | - |
| Number of channel | 1ch | - |
| Baud rate | 19200bps | - |
| Power input frequency range | 50/60Hz | - |
| Wavelength | Manual encoder knob adjustment, RS232/LAN communication optional | - |
| Luminance control method | Constant current | - |
| Drive mode | 256/1024 Level | - |
| Luminance control level | Automatic saving of brightness parameters upon power failure | - |
| Protection functions | Pulse width trigger, high level 5-24V effective | - |
| External trigger frequency | Determined by external trigger signal, if the external trigger signal duty cycle is 50%, the frequency Max. is 8KHz. | - |
| External trigger response time | 20us | - |
| Power-on response time | ≦6S | - |
| Protection functions | Over-load protection, over temperature protection, power off saving | - |
| Communication method | RS232/LAN | - |
| Operating environment | Temperature : 0 to 40ºC，humidity : 20 to 85%RH(Non-condensing) | - |
| Storage environment | Temperature : 0 to 50ºC，humidity : 20 to 85%RH(Non-condensing) | - |
| Normal on/close switch | Change the initial state through the encoder knob adjustment, continuous on/off mode | - |
| Fiber option | Recommended quartz material can be customized | - |

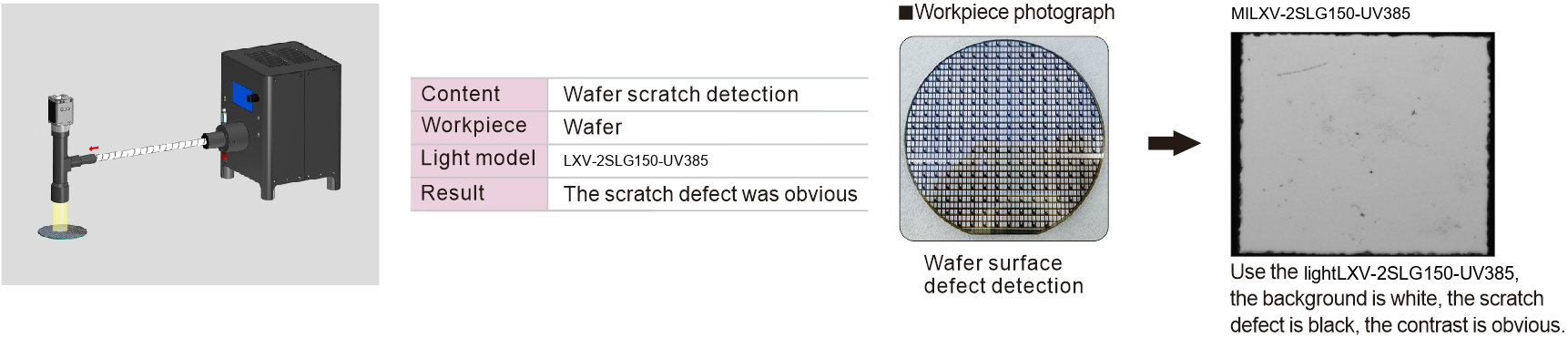

IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-2SLG-UV.
OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention
Model Naming Convention
