Fiber Optic Light
LXV-MHAB
Fiber Optic Light (Light Box)
1.Used with electronic endoscopic microscopes. 2.Automotive endoscopes. 3.Industrial endoscopes. 4.Optical fibers.

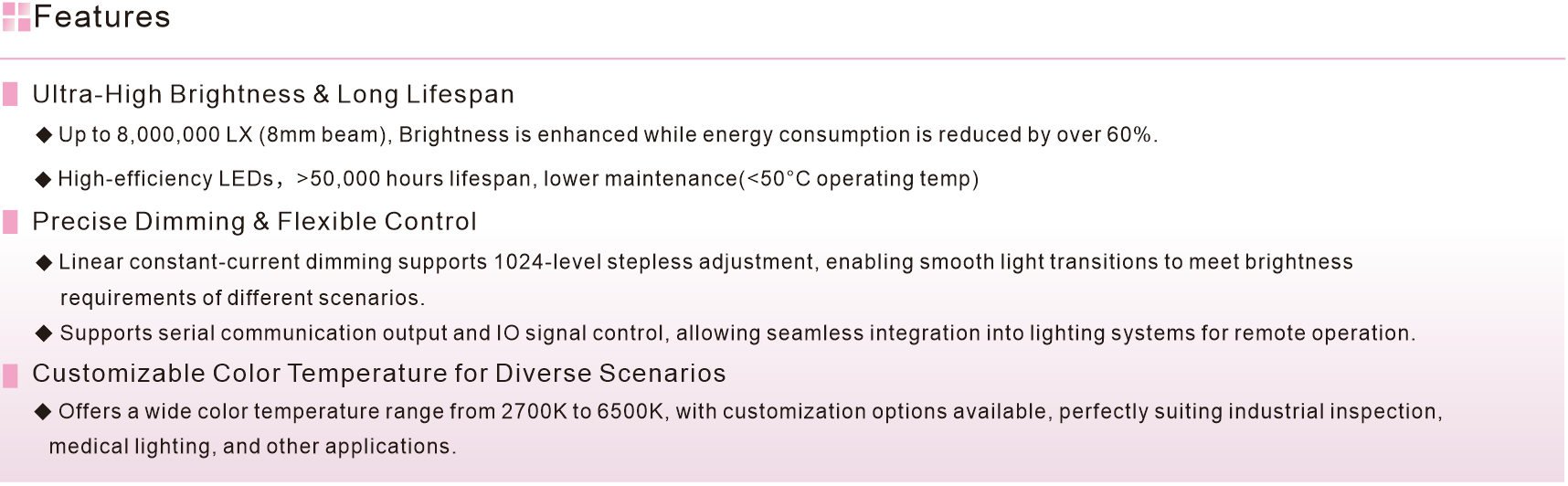

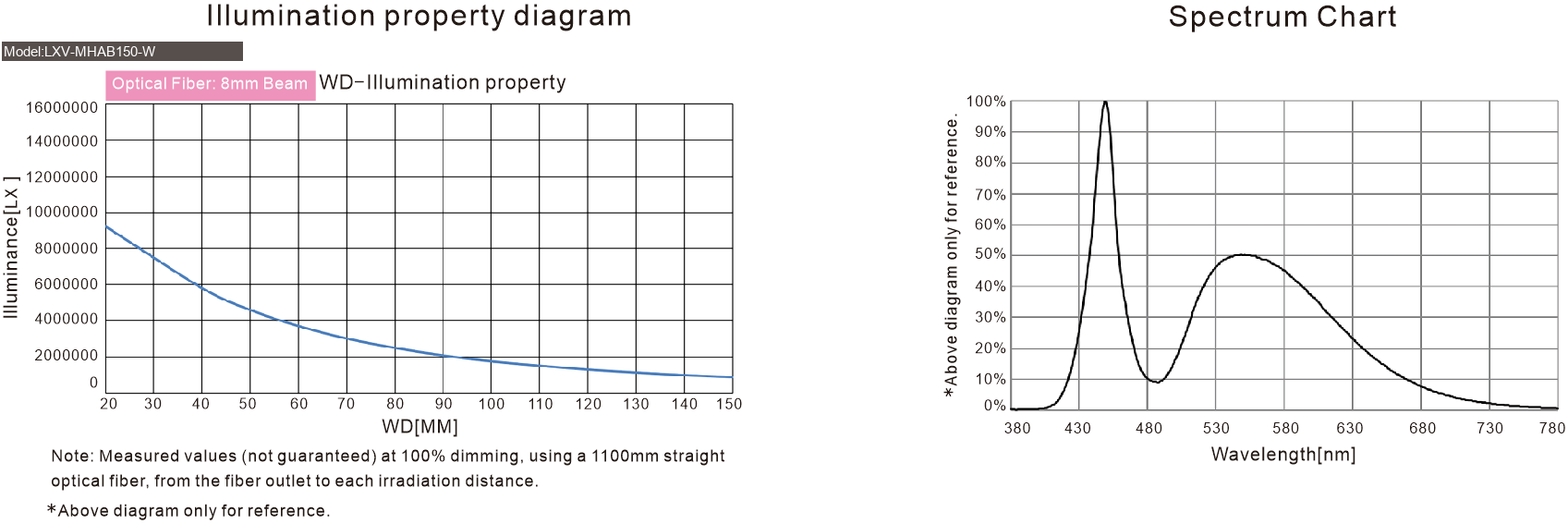

Features
- •Illuminance at 20mm: approx. 8,000,000 Lx.
- •2.High brightness achieved via multi-group coupling lens design.
- •3.Ideal for medical endoscopes and industrial semiconductor module applications.
Applications
- •Used with electronic endoscopic microscopes.
- •2.Automotive endoscopes.
- •3.Industrial endoscopes.
- •4.Optical fibers.

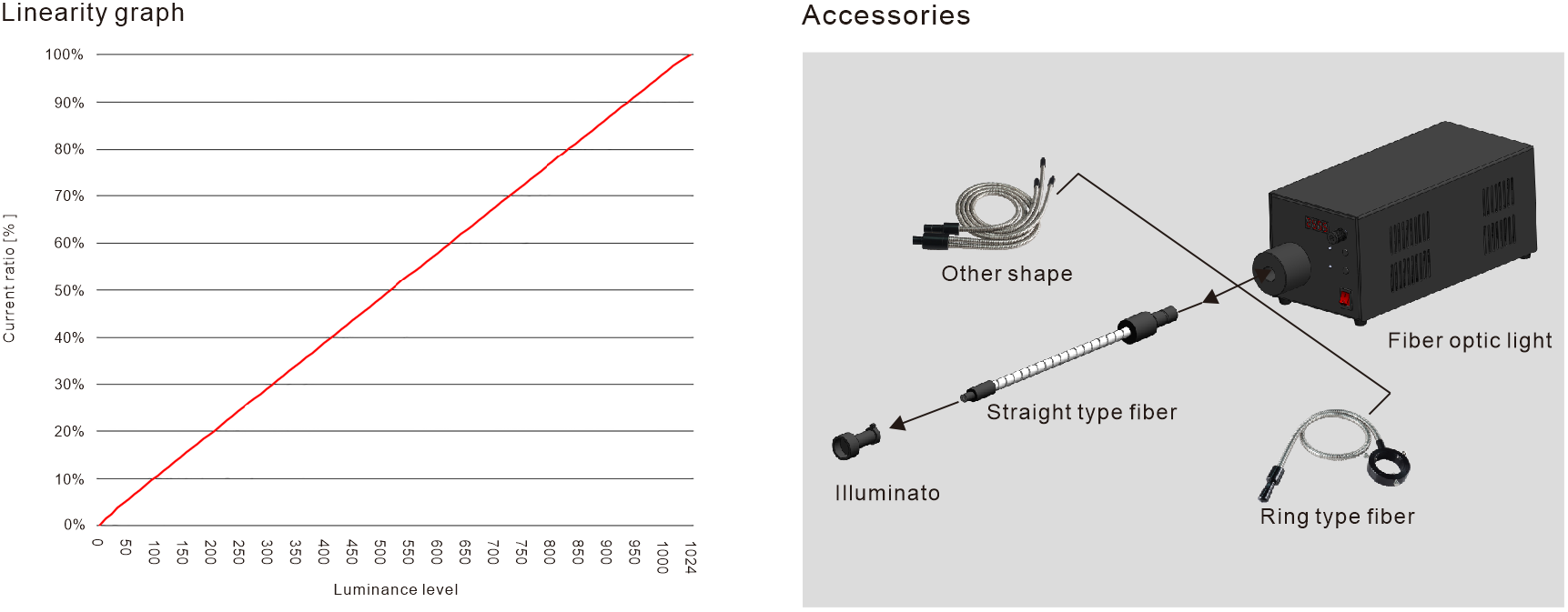

| Model | Output power | Color | Dimension | External trigger voltage |
|---|---|---|---|---|
| LXV-MHAB150-W | 150W | White | L299xW120xH116.7(mm) | External trigger voltage 5-24V |
| Model | LXV-MHAB150-W |
|---|---|
| Input Voltage | 100-240VAC |
| Output Channels | 1 Channel |
| Baud Rate | 19200bps |
| Power Input Frequency Range | 50/60Hz |
| Brightness Adjustment Method | Manual encoder knob adjustment, PC remote adjustment |
| Drive mode | Constant Current |
| Brightness Adjustment Level | 256/1024 levels switchable via button and encoder knob combination |
| Save Function | Automatically saves brightness settings after power-off |
| External Trigger Voltage | Pulse width trigger, active high level 5-24V |
| External Trigger Frequency | Determined by external trigger signal; up to 8KHz when duty cycle is 50% |
| External Trigger Response Time | 20us |
| Power-On Response Time | ≦6S |
| Product Protection Functions | Overcurrent protection, power-off memory, temperature protection |
| Applicable Beam Diameter | Fiber core diameter ∅6-14mm |
| Communication mode | RS232 |
| Operating temp. & humidity | Temperature : 0 to 40ºC,humidity : 20 to 85%RH(Non-condensing) |
| Storage Environment | Temperature : 0 to50ºC,humidity : 20 to 85%RH(Non-condensing) |
| Normal on/close switch | The initial operating state (continuous on/off) can be adjusted using a button and encoder knob combination. |
IMAGING COMPARISON

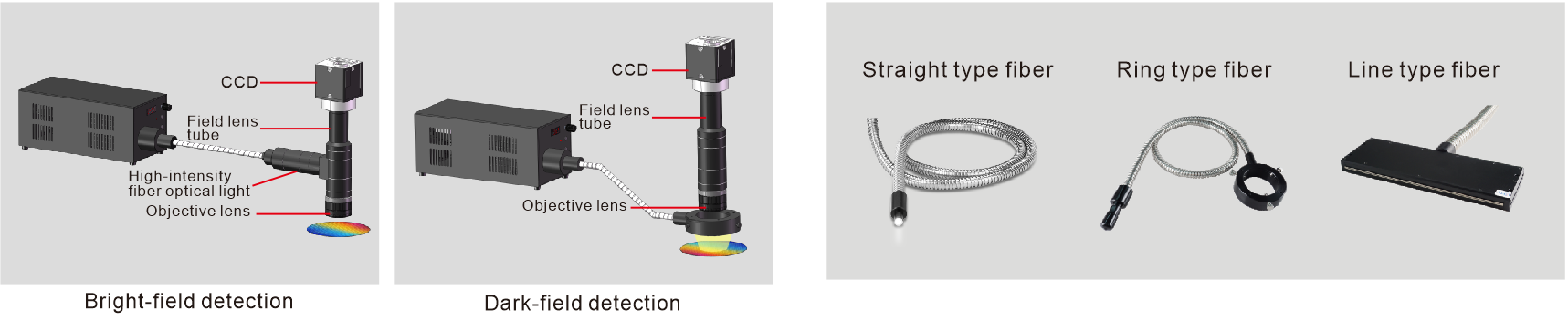

Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-MHAB.
OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention
Model Naming Convention

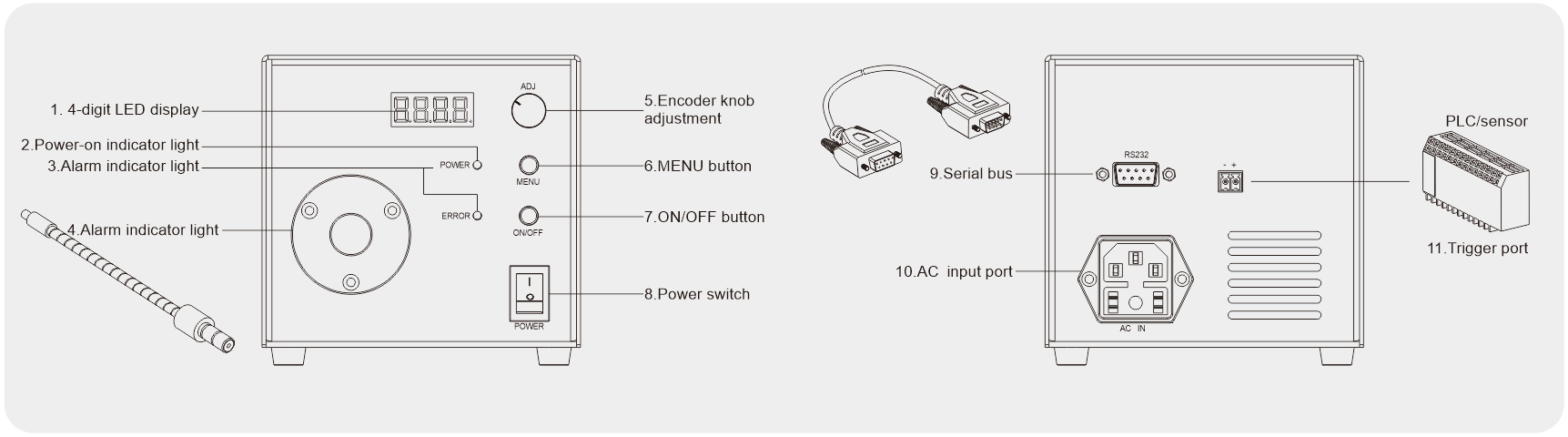

Vector Diagram
