Fiber Optic Light
LXV-2SLG-RGB
RGB Fiber Optic Light
RGB fiber optic light a single unit can achieve RGB tricolor illumination, separate or mixed color lighting options.Saves space and supports three optical imaging functions.
Features
- •A single unit can achieve RGB tricolor illumination, separate or mixed color lighting options.
- •2.Saves space and supports three optical imaging functions.
- •3.Touch screen LCD display status and setting.
- •4.With continuous on /IO trigger function, the brightness is adjustable.
- •5.External trigger mode/internal trigger mode.
- •6.RS232/LAN communication.
- •7.With over current /over temperature/power off protection.
| Model | Output power | Color | Dimension | External trigger voltage |
|---|---|---|---|---|
| LXV-2SLG250 | 250W | RGB | L166.9xW172xH203(mm) | 5-24V |
| Model | LXV-2SLG250-RGB |
|---|---|
| Communication method | RS232/LAN communication |
| Baud rate | 19200bps |
| Operating mode | Continuous on mode/trigger mode/ continuous off mode |

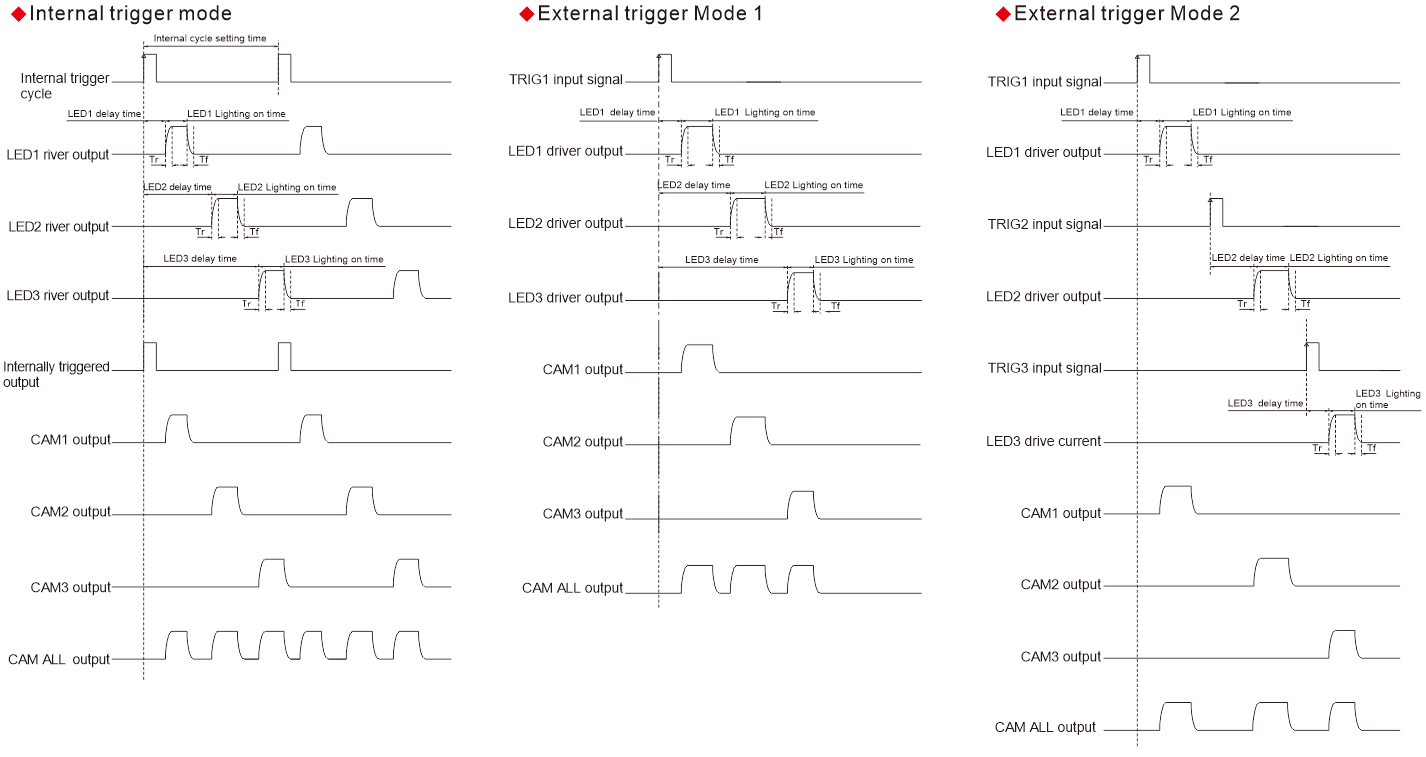

| Trigger mode | Follow trigger/Internal trigger mode/External trigger Mode 1 / External trigger Mode 2 Optional |
| Trigger response time | 20us |
| Compatible fiber diameter | Fiber OF diameter Φ6-14mm |
| Drive mode | Constant current |
| Luminance control level | 256/1024 level option |
| Luminance control method | Touch LCD display/RS232 communication/LAN communication adjustment Optional |
| Language option | The display can be switched between Chinese and Englis |
| External trigger voltage | 5-24V |
| Warning function | Overcurrent alarm, overtemperature alarm |
| Input voltage | 100-240VAC |
| Memory protection feature | Over-load protection, over temperature protection, power off saving |
| Insulation and voltage resistance | AC1500V 1 minute cut off current 10mA, DC500V20MΩ or more |
| Operating environment | Temperature : 0 to 40ºC，humidity : 20 to 85%RH(Non-condensing) |
| Storage environment | Temperature : 0 to 50ºC，humidity : 20 to 85%RH(Non-condensing) |
| Life span | 60,000 hours (until the light intensity is down to 50%) |

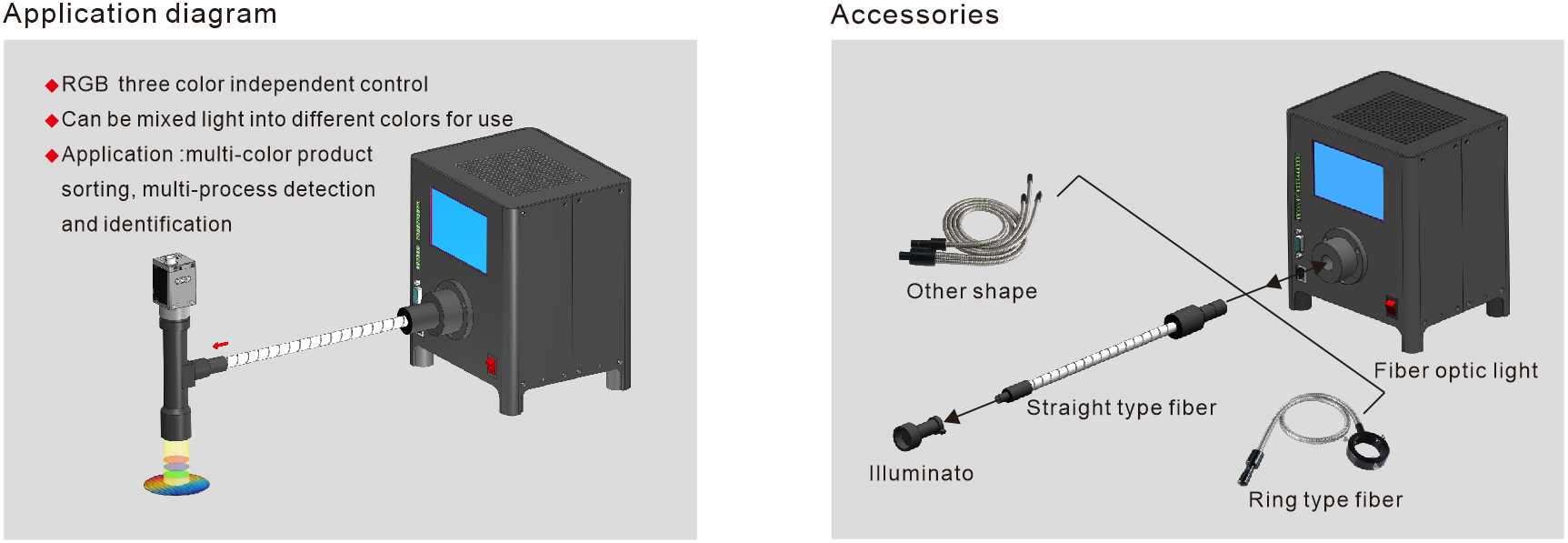

IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-2SLG-RGB.

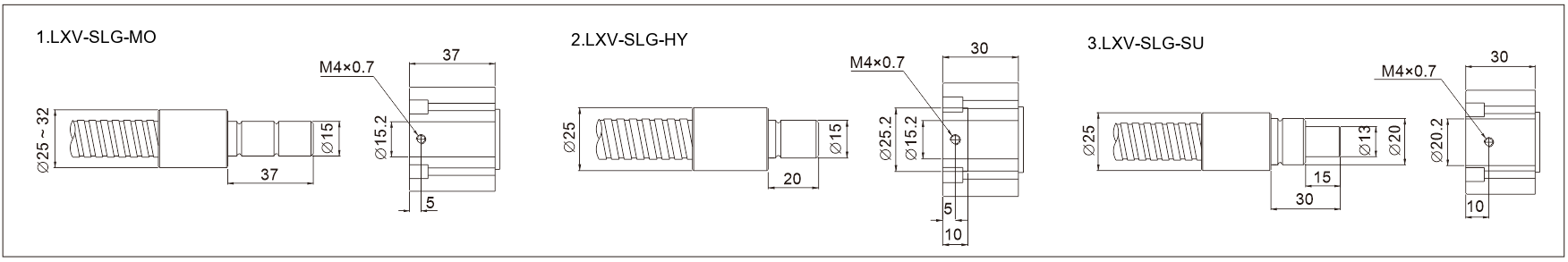

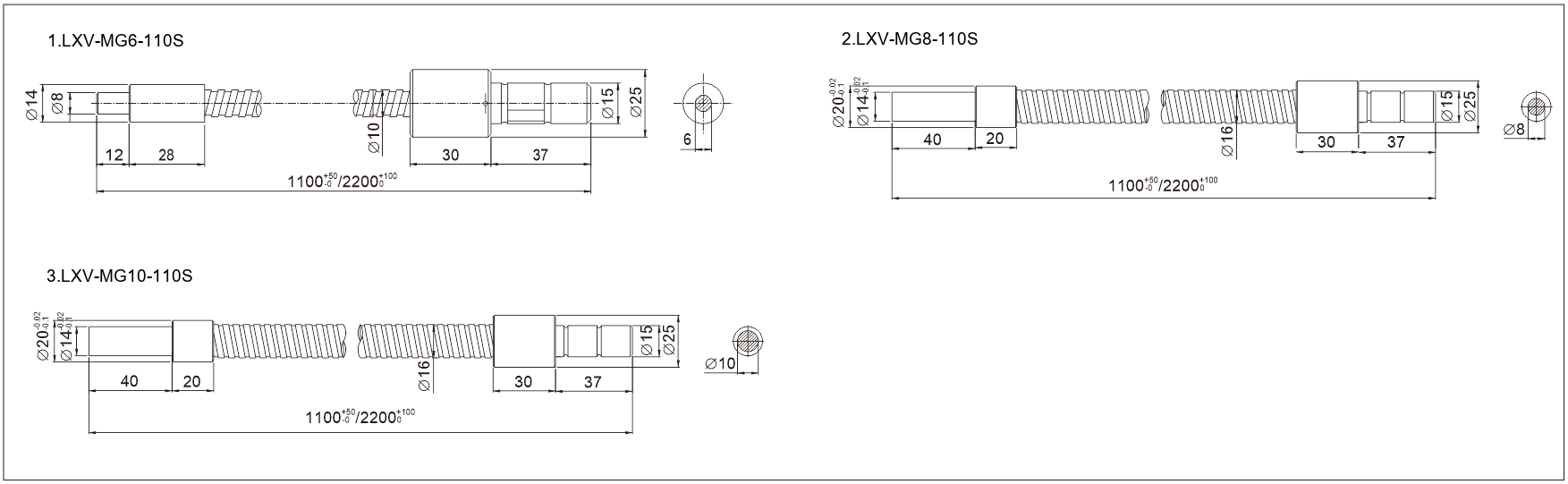

OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention
Model Naming Convention
Vector DiagramDIRECT ENQUIRY
