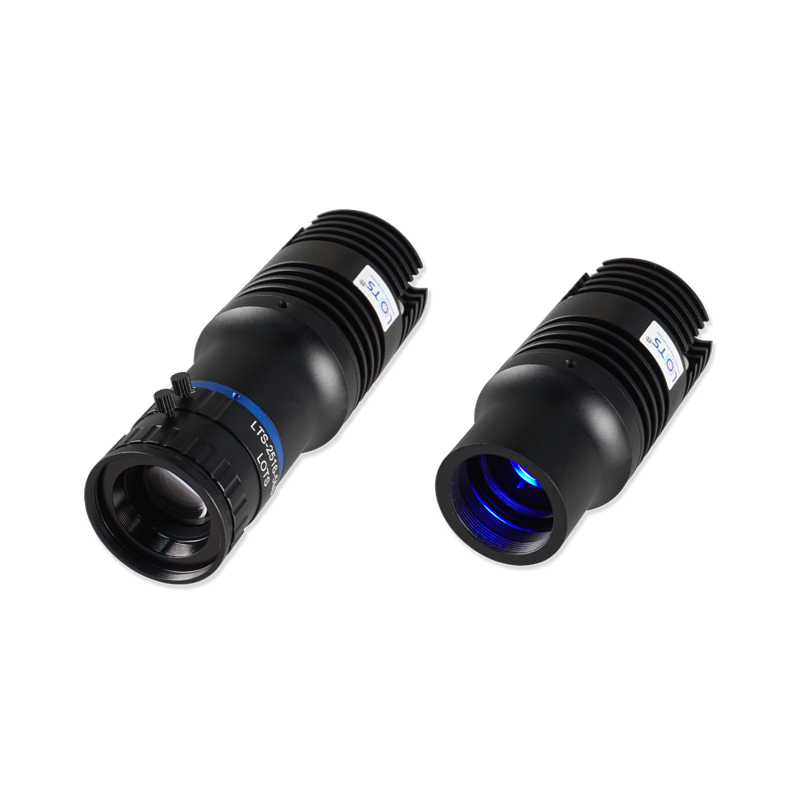

Machine Vision Light
LXV-2STL
Projection structure light Industrial
1.Three-dimensional reconstruction and analyze. 2.Mechanical calibration. 3.Visualization and mapping. 4.Electronic components dimension measurement.
Features
- •The structure upgrade is simple, the weight is lighter, and the cost performance is higher.
- •2.The sharpness and precision of the projected pattern have been enhanced.
- •3.LED projection structured light suitable for 3D imaging.
- •4.Parallel light usage can also be changed.
Applications
- •Three-dimensional reconstruction and analyze.
- •2.Mechanical calibration.
- •3.Visualization and mapping.
- •4.Electronic components dimension measurement.
| Model | Color | Dimension | Power | Mount |
|---|---|---|---|---|
| LXV-2STL05-R/BGW | Red / Blue / Green / White | L84.62xOut dia. φ40(mm) | 5W | C mount |
| LXV-2STL10-W | White | L84.62xOut dia. φ50(mm) | 10W | - |
| * UV & IR light can be customized as required. | - | - | - | - |

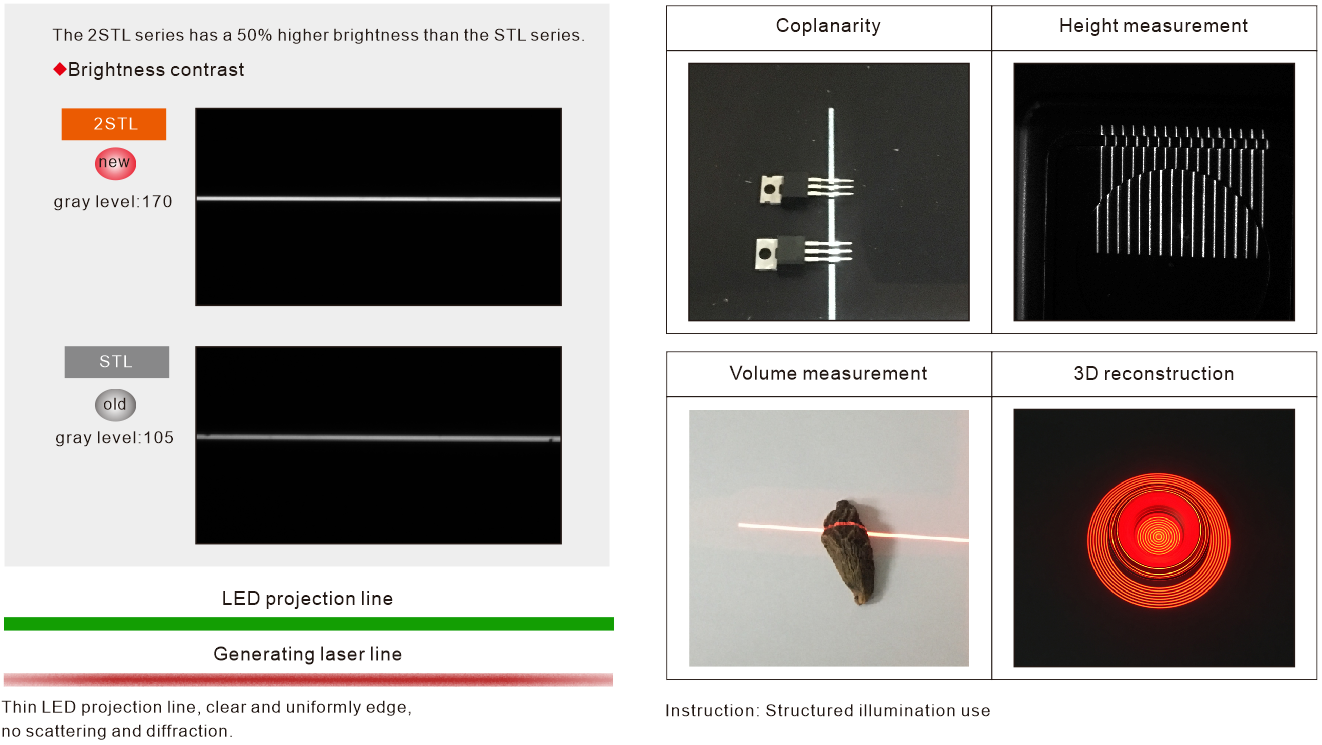

IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-2STL.

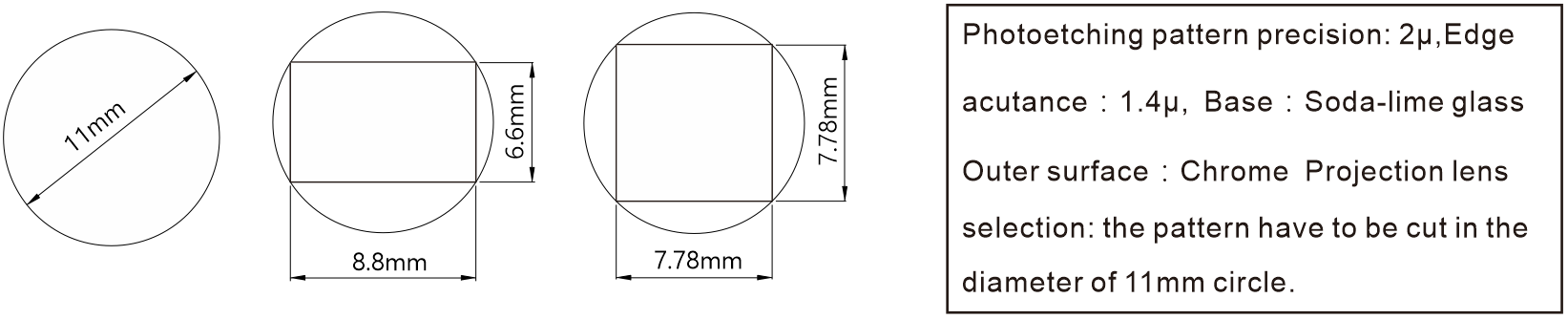

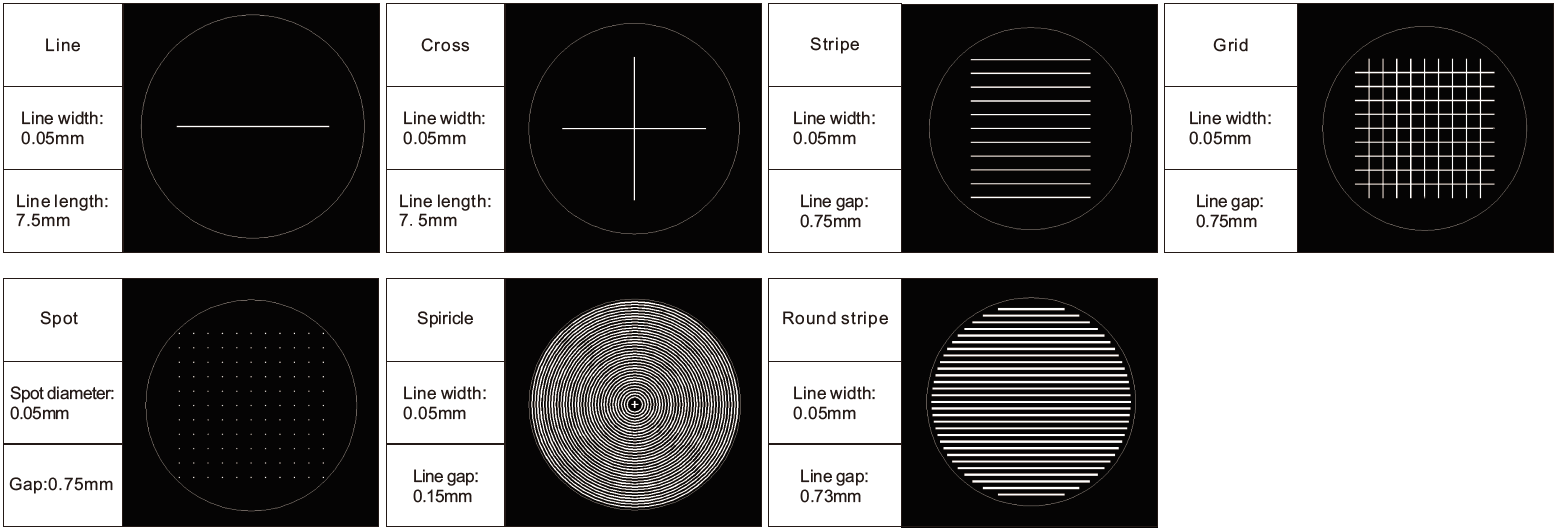

OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention
Model Naming Convention
Vector DiagramDIRECT ENQUIRY
