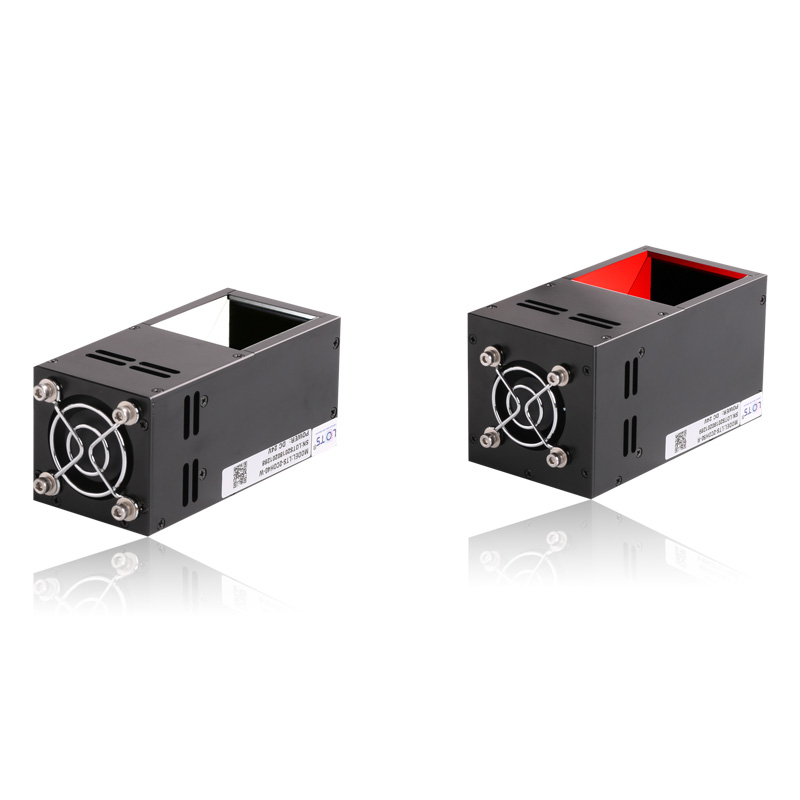

Machine Vision Light
LXV-3COH
High Power Coaxial Light
New coaxial light is based on the original effect, to reduce the overall size. Compact design, can be used in print, silk screen inspection.
Features
- •Luminance is twice to triple to the normal coaxial light, high uniformity.
- •2.For the inspection of shoot in motion or short exposure products.
Applications
- •The scratch inspection of metal or plastic surface.
- •2.The indentation or defect inspection of reflective surface.
- •3.The character or line inspection of printed circuit board.
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-3COH30-R/BGW | Red / Blue / Green / White | L96xW40xH40(mm) | 24V | 9.6W/14.4W |
| LXV-3COH40-R/BGW | Red / Blue / Green / White | L111xW50xH50(mm) | 24V | 14.4W/14.4W |
| LXV-3COH50-R/BGW | Red / Blue / Green / White | L121xW60xH60(mm) | 24V | 21.6W/24.0W |
| LXV-3COH60-R/BGW | Red / Blue / Green / White | L131xW70xH70(mm) | 24V | 28.8W/36.0W |
| LXV-3COH80-R/BGW | Red / Blue / Green / White | L151xW92xH90(mm) | 24V | 50.4W/72.0W |
| LXV-3COH100-R/BGW | Red / Blue / Green / White | L181xW112xH110(mm) | 24V | 81.6W/108.0W |
| * UV & IR light can be customized as required. | - | - | - | - |

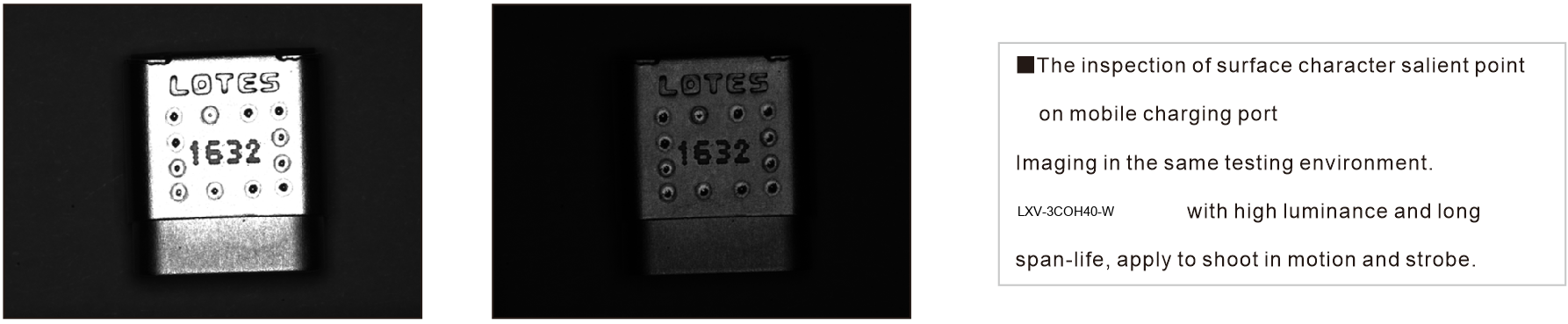

IMAGING COMPARISON

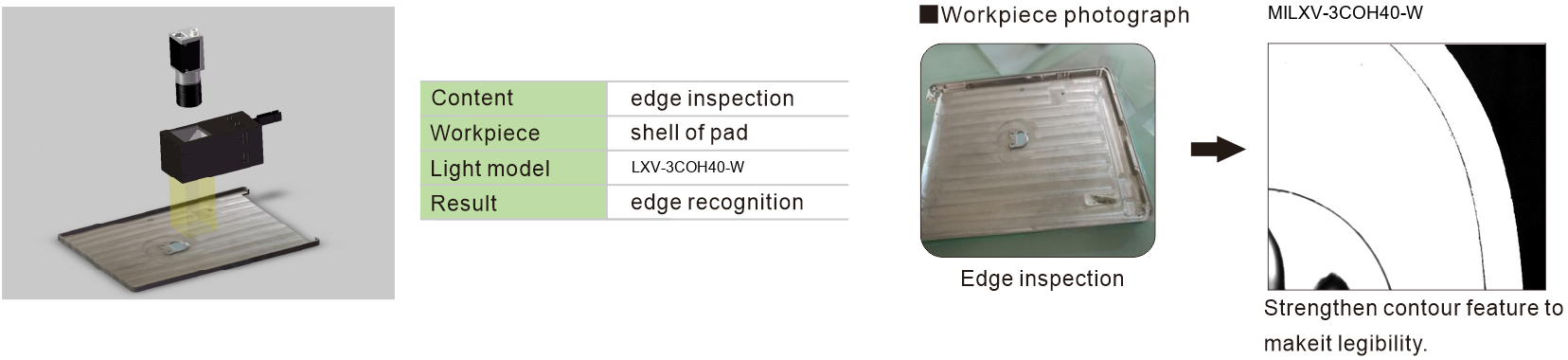

Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-3COH.
OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention

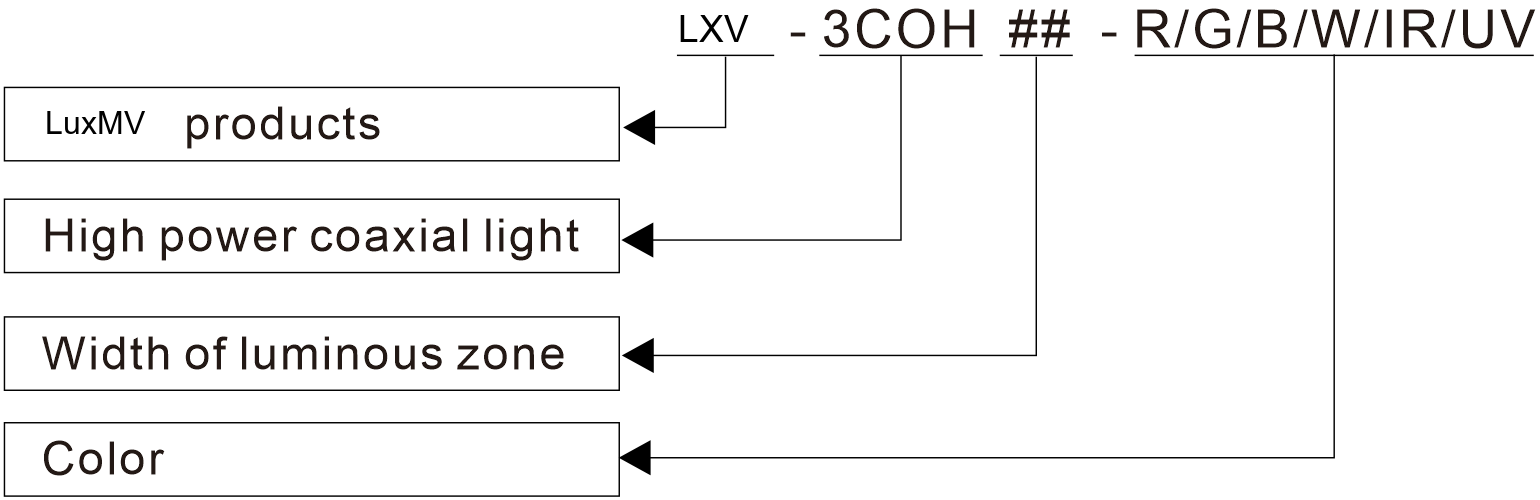

Model Naming Convention

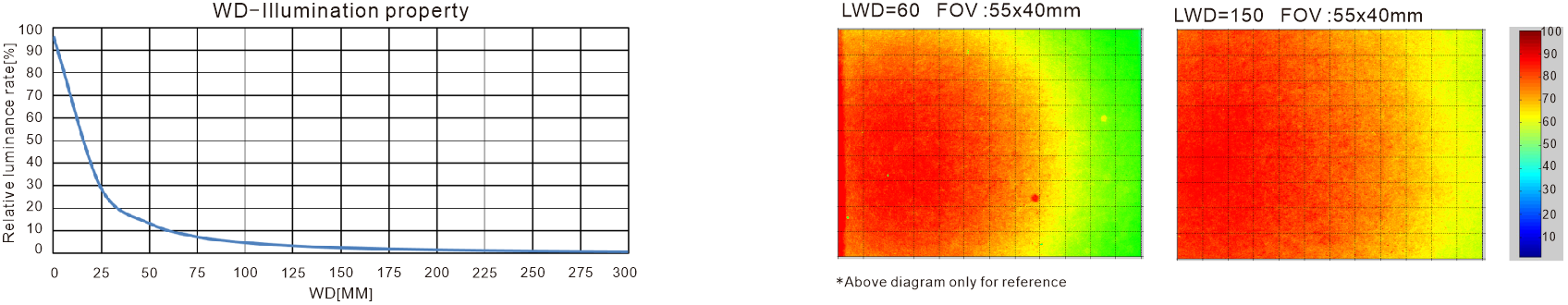

Vector Diagram
