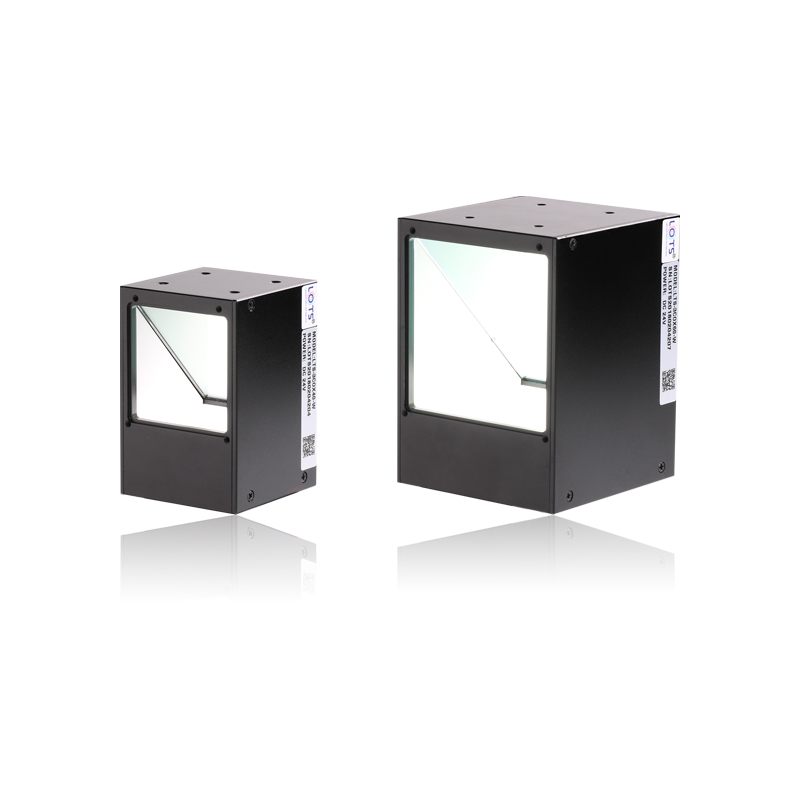

Machine Vision Light
LXV-3CON-N
Narrow Angle Coaxial Light
1.The defect inspection of reflective surface. 2.Mark position location. 3.The crack or scratch inspection of metal surface. 4.Edge measure contour inspection
Features
- •High uniformity, high luminance.
- •2.Light ray is approximate parallel.
- •3.Apply to mirror surface.
Applications
- •The defect inspection of reflective surface.
- •2.Mark position location.
- •3.The crack or scratch inspection of metal surface.
- •4.Edge measure contour inspection
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-3CON30-N-R/BGW | Red / Blue / Green / White | L64xW40xH40(mm) | 24V | 2.9W/4.4W |
| LXV-3CON40-N-R/BGW | Red / Blue / Green / White | L74xW50xH50(mm) | 24V | 4.4W/4.4W |
| LXV-3CON50-N-R/BGW | Red / Blue / Green / White | L84xW60xH60(mm) | 24V | 6.5W/7.2W |
| LXV-3CON60-N-R/BGW | Red / Blue / Green / White | L94xW70xH70(mm) | 24V | 8.7W/10.8W |
| LXV-3CON80-N-R/BGW | Red / Blue / Green / White | L114xW92xH90(mm) | 24V | 15.2W/21.6W |
| LXV-3CON100-N-R/BGW | Red / Blue / Green / White | L134xW112xH110(mm) | 24V | 24.5W/32.4W |
| * UV & IR light can be customized as required. | - | - | - | - |

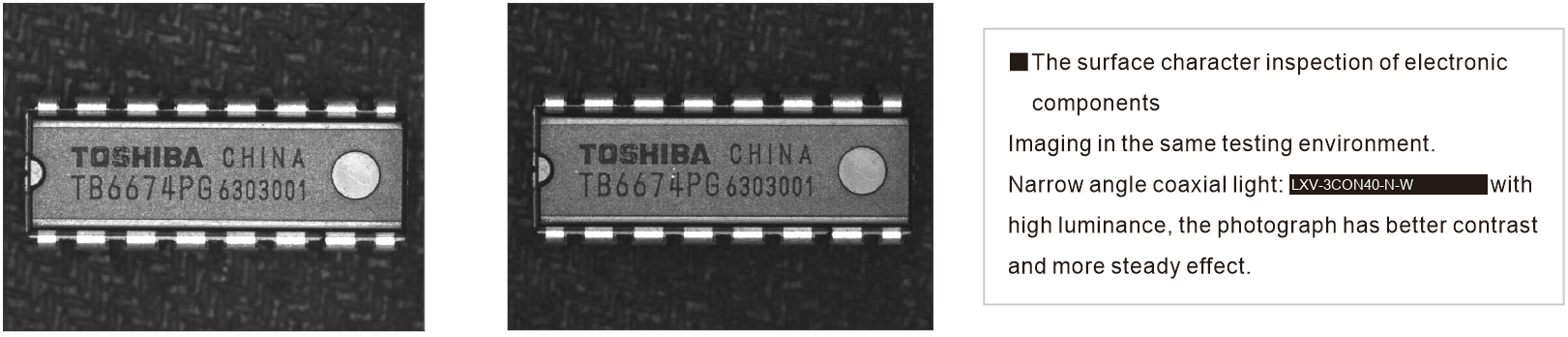

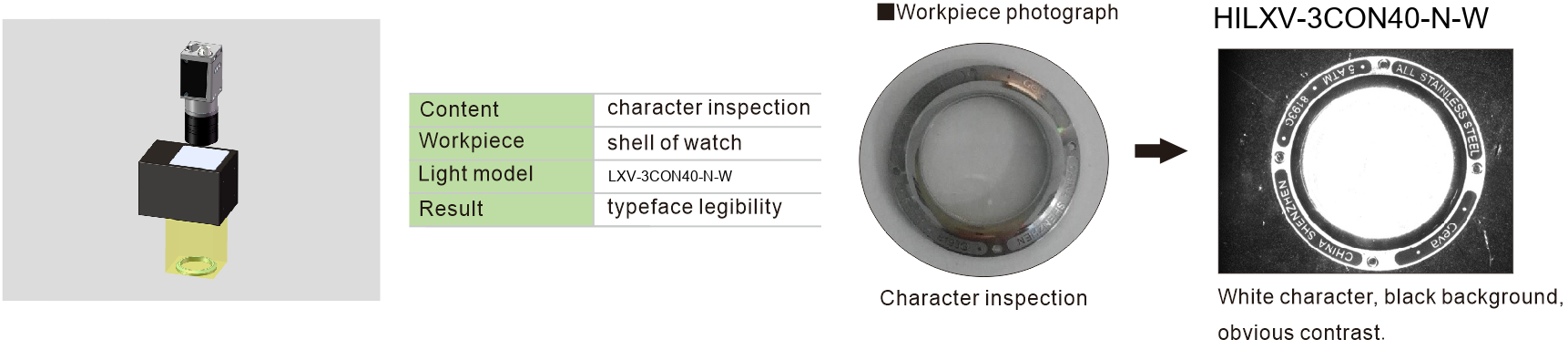

IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-3CON-N.

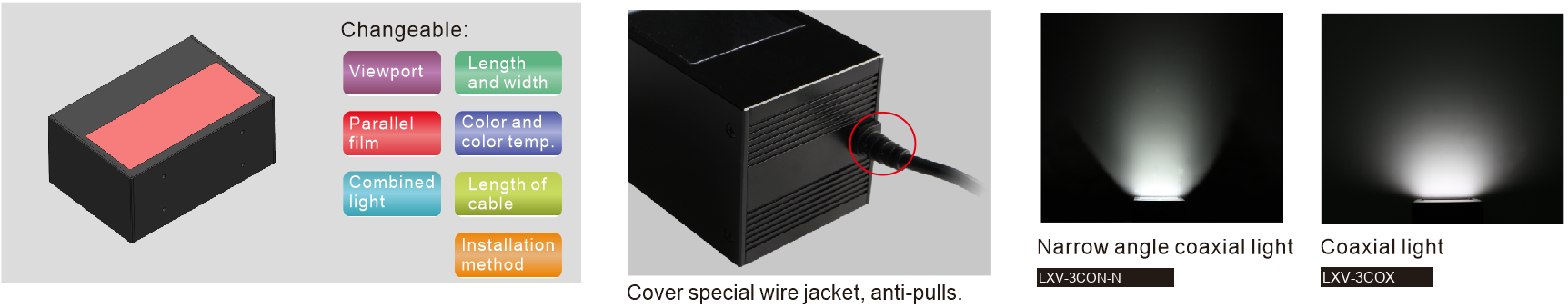

OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention
Model Naming Convention

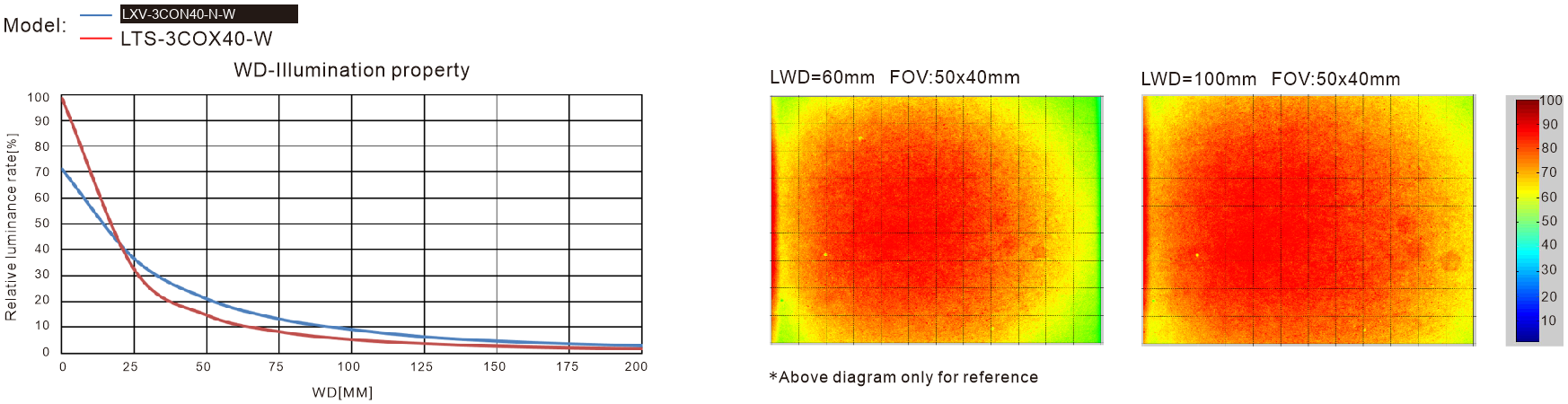

Vector Diagram
