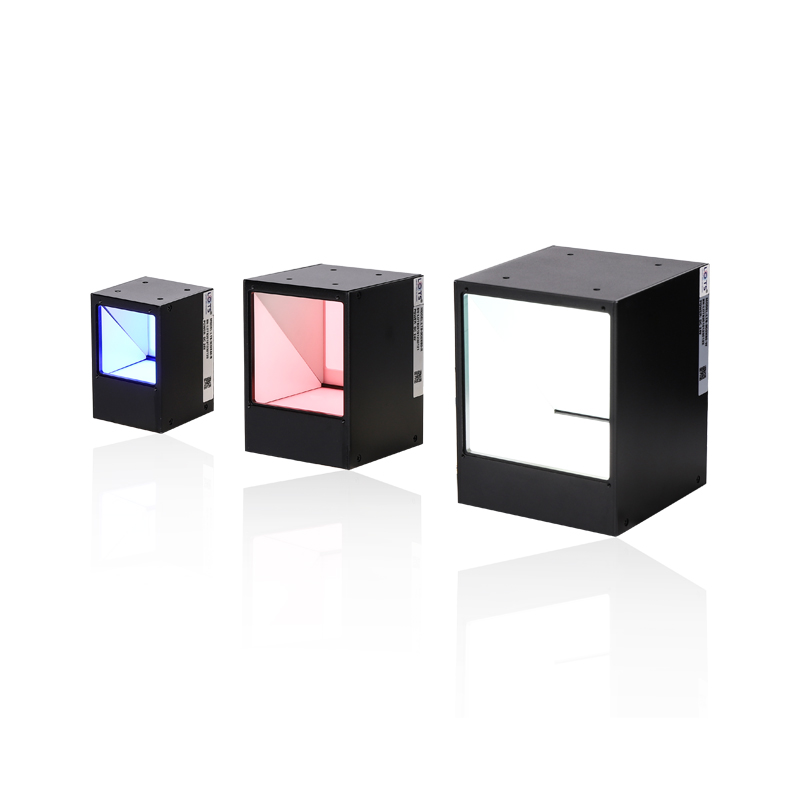

Machine Vision Light
LXV-3COX
Coaxial Light
1.The damage inspection of the chip, wafer. 2.The scratch of reflective surface. 3.Bar code, QR code recognition. 4.Printing, silk-screen inspection.
Features
- •Luminance up 50%.
- •2.Compact, high cost-effective.
- •3.Compact, high cost-effective.
- •4.Cover wire jacket, anti-pulls.
- •5.Can add dust-proof mirror, dust-proof.
Applications
- •The damage inspection of the chip, wafer.
- •2.The scratch of reflective surface.
- •3.Bar code, QR code recognition.
- •4.Printing, silk-screen inspection.
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-3COX20-R/BGW | Red / Blue / Green / White | L54xW30xH30(mm) | 24V | 1.5W/1.5W |
| LXV-3COX30-R/BGW | Red / Blue / Green / White | L64xW40xH40(mm) | 24V | 2.9W/4.4W |
| LXV-3COX40-R/BGW | Red / Blue / Green / White | L74xW50xH50(mm) | 24V | 4.4W/4.4W |
| LXV-3COX50-R/BGW | Red / Blue / Green / White | L84xW60xH60(mm) | 24V | 6.5W/7.2W |
| LXV-3COX60-R/BGW | Red / Blue / Green / White | L94xW70xH70(mm) | 24V | 8.7W/10.8W |
| LXV-3COX80-R/BGW | Red / Blue / Green / White | L114W92xH90(mm) | 24V | 15.2W/21.6W |
| LXV-3COX100-R/BGW | Red / Blue / Green / White | L134xW112xH110(mm) | 24V | 24.5W/32.4W |
| LXV-3COX120-R/BGW | Red / Blue / Green / White | L154xW132xH130(mm) | 24V | 34.6W/45.4W |
| * UV & IR light can be customized as required. | - | - | - | - |
OPTICAL DESIGN & NAMING

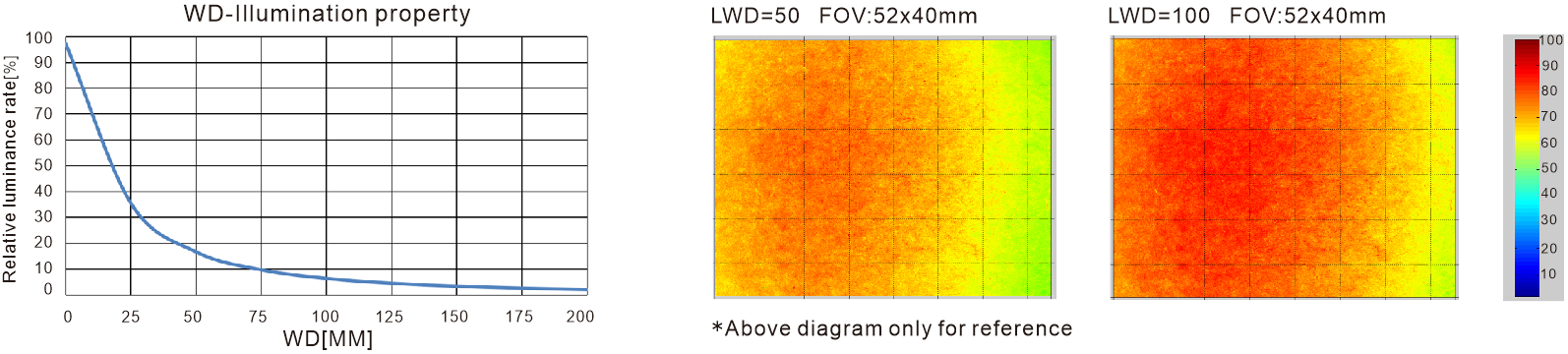

Optical Diagram & Model Naming Convention
Model Naming Convention
Vector Diagram
