Machine Vision Light

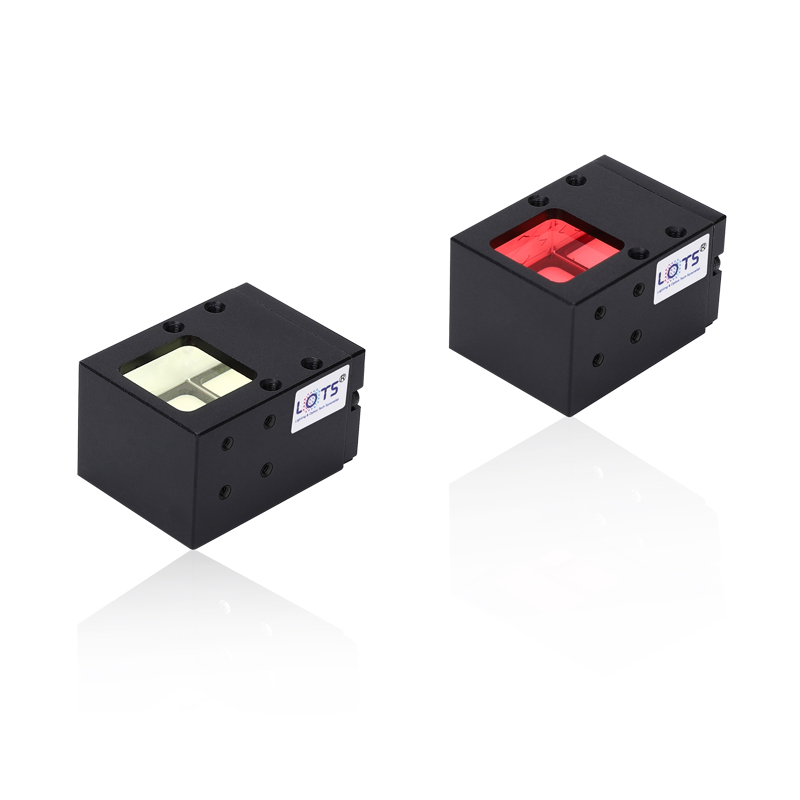

LXV-3COX-CP
High Precision Coaxial Light
1.The damage inspection of the chip, wafer. 2.The scratch of reflective surface. 3.Bar code, QR code recognition. 4.Printing, silk-screen inspection.
Features
- •Adopt high precision cube spectrometer to instead of plate spectrometer, high inspection precision.
- •2.More suitable for tiny object inspection.
- •3.Compact structure, suitable for limited space environment
Applications
- •The damage inspection of the chip, wafer.
- •2.The scratch of reflective surface.
- •3.Bar code, QR code recognition.
- •4.Printing, silk-screen inspection.
| Model | Color | Dimension | Voltage | Power | Remark |
|---|---|---|---|---|---|
| LXV-3COX13-CP-R/BGW | Red / Blue / Green / White | L36xW25xH19(mm) | 24V | 0.8W/2.2W | Prism |
| LXV-3COX18-CP-R/BGW | Red / Blue / Green / White | L41xW30xH24(mm) | 24V | 1.5W/1.5W | - |
| LXV-3COX28-CP-R/BGW | Red / Blue / Green / White | L55.5xW40xH34(mm) | 24V | 2.9W/4.4W | - |
| LXV-3COX20-CP-R/BGW | Red / Blue / Green / White | L54xW30xH30mm) | 24V | 1.5W/1.5W | - |
| LXV-3COX30-CP-R/BGW | Red / Blue / Green / White | L64xW40xH40(mm) | 24V | 2.9W/4.4W | - |
| LXV-3COX40-CP-R/BGW | Red / Blue / Green / White | L74xW50xH50(mm) | 24V | 4.4W/4.4W | - |
| LXV-3COX50-CP-R/BGW | Red / Blue / Green / White | L84xW60xH60(mm) | 24V | 6.5W/7.2W | - |
| LXV-3COX60-CP-R/BGW | Red / Blue / Green / White | L94xW70xH70(mm) | 24V | 8.7W/10.8W | - |
| LXV-3COX80-CP-R/BGW | Red / Blue / Green / White | L114xW90xH92(mm) | 24V | 15.2W/21.6W | - |
| LXV-3COX100CP-R/BGW | Red / Blue / Green / White | L134xW110xH112(mm) | 24V | 24.5W/32.4W | - |
| LXV-3COX120-CP-R/BGW | Red / Blue / Green / White | L154xW130xH132(mm) | 24V | 34.6W/45.4W | - |
| * UV & IR light can be customized as required. | - | - | - | - | - |

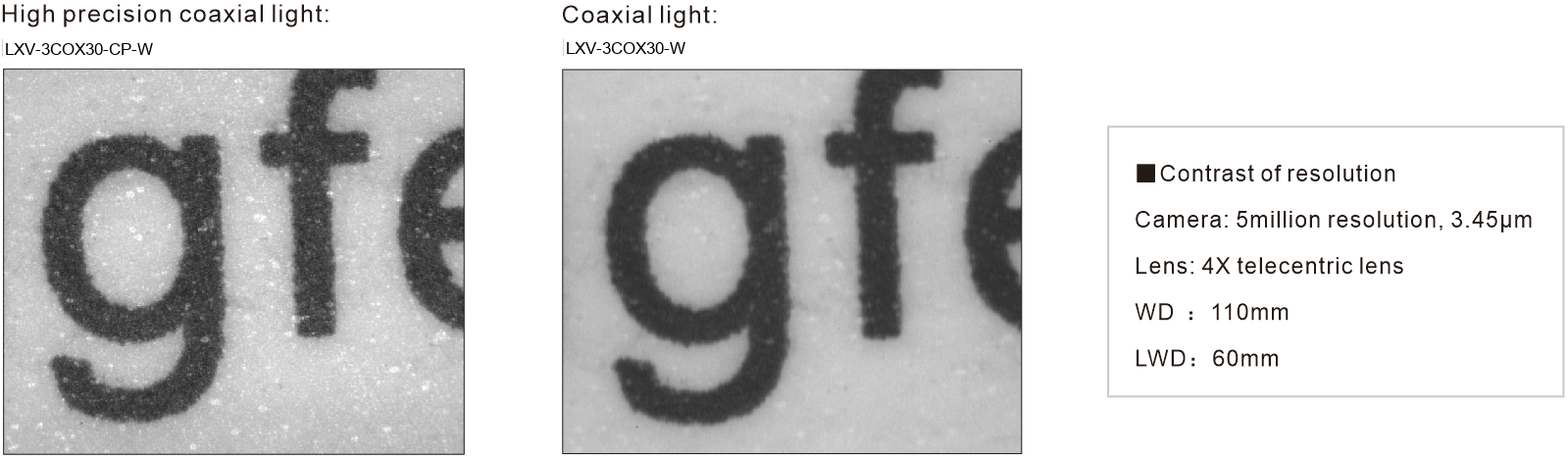

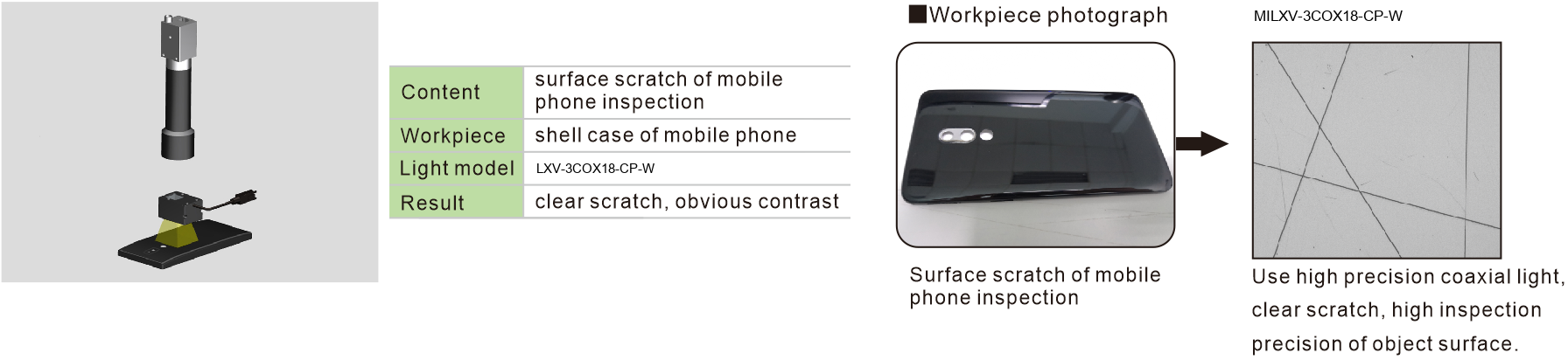

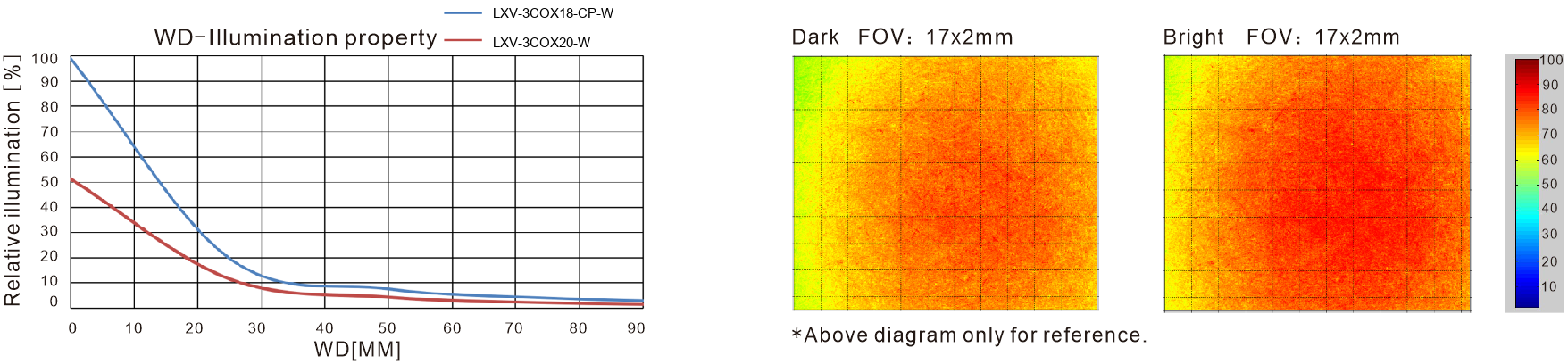

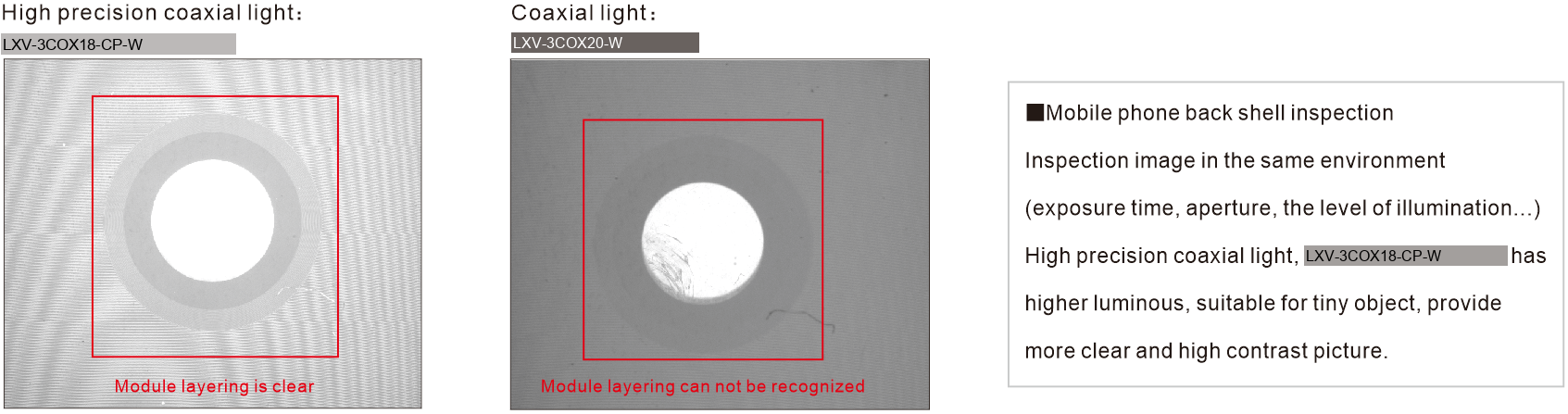

IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-3COX-CP.
OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention
Model Naming Convention
Vector DiagramDIRECT ENQUIRY
