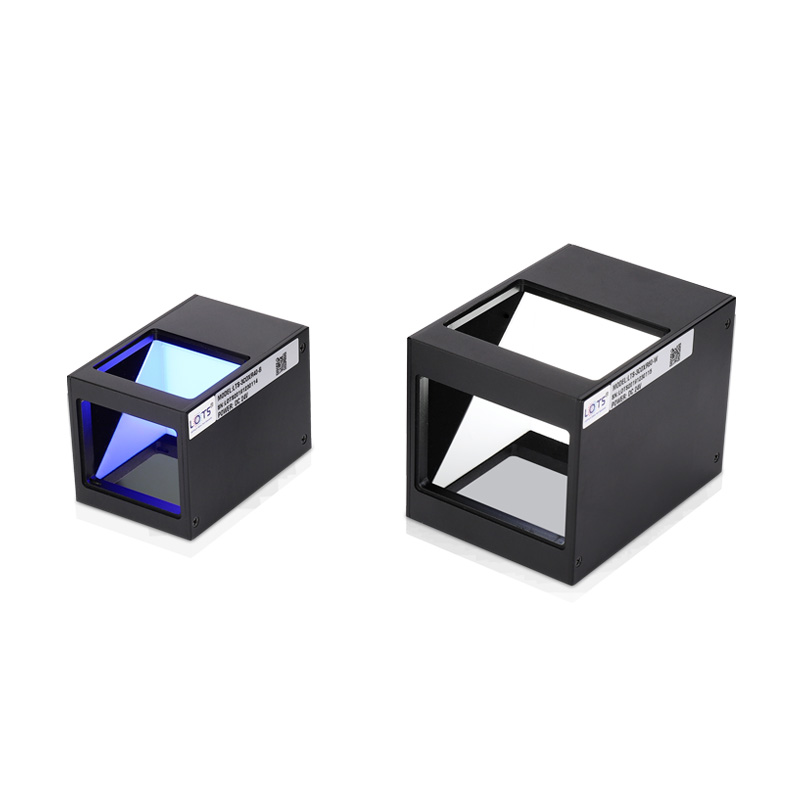

Machine Vision Light
LXV-3COXR
Right-angle Coaxial Light
1.The surface scratch of bright and clear object. 2.food packaging.
Features
- •Compact,space saving.
- •2.90° between ray and CCD camera, compact structure.
Applications
- •The surface scratch of bright and clear object, food packaging
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-3COXR20-R/BGW | Red / Blue / Green / White | L54xW30xH30(mm) | 24V | 1.5W/1.5W |
| LXV-3COXR30-R/BGW | Red / Blue / Green / White | L64xW40xH40(mm) | 24V | 2.9W/4.4W |
| LXV-3COXR40-R/BGW | Red / Blue / Green / White | L74xW50xH50(mm) | 24V | 4.4W/4.4W |
| LXV-3COXR50-R/BGW | Red / Blue / Green / White | L84xW60xH60(mm) | 24V | 6.5W/7.2W |
| LXV-3COXR60-R/BGW | Red / Blue / Green / White | L94xW70xH70(mm) | 24V | 8.7W/10.8W |
| LXV-3COXR80-R/BGW | Red / Blue / Green / White | L114xW92xH92(mm) | 24V | 15.2W/21.6W |
| LXV-3COXR100-R/BGW | Red / Blue / Green / White | L134xW112xH112(mm) | 24V | 26.0W/32.4W |
| * UV & IR light can be customized as required. | - | - | - | - |

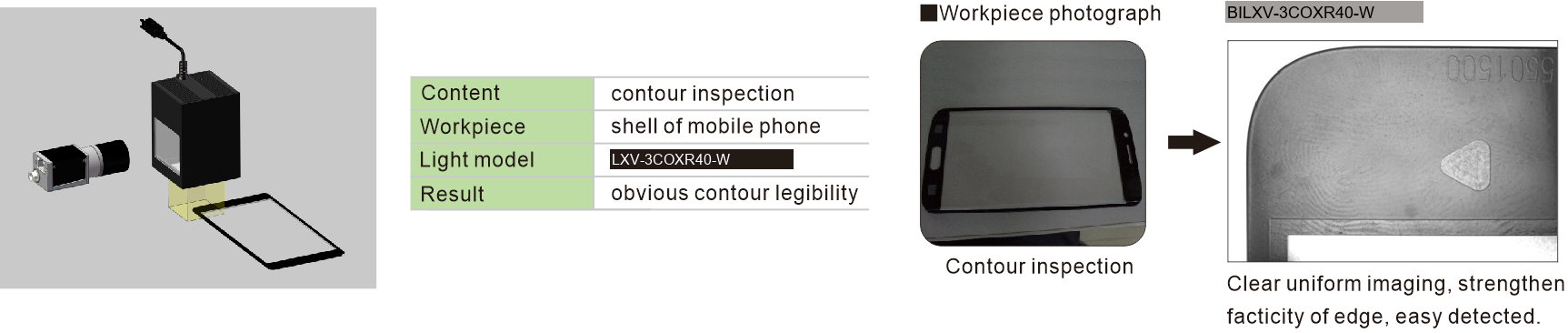

IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-3COXR.
OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention

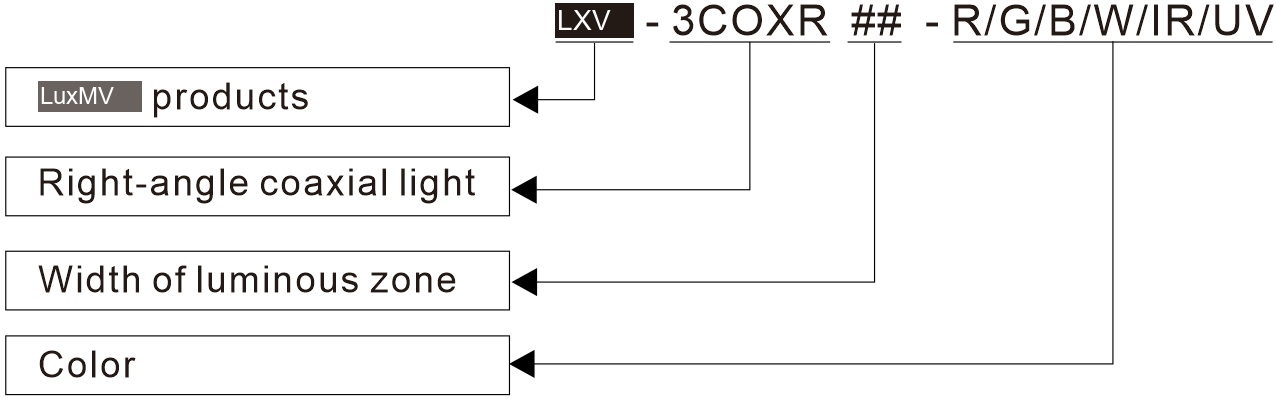

Model Naming Convention

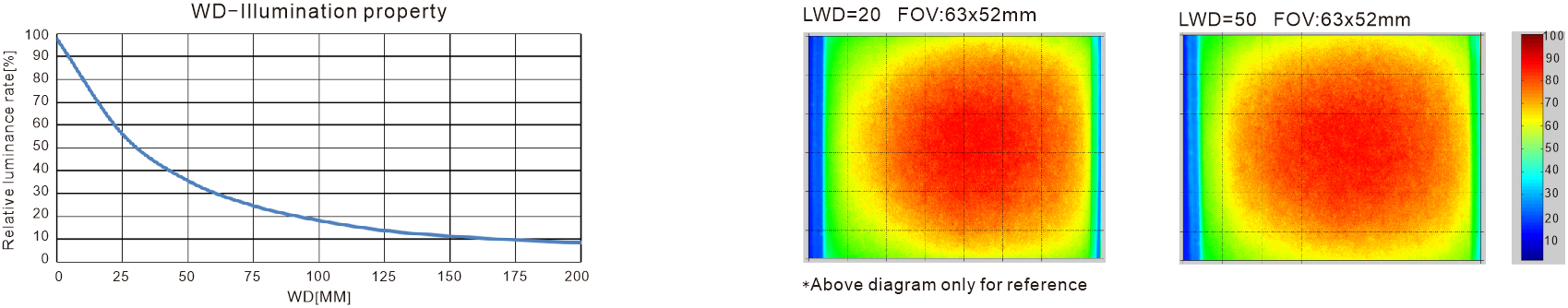

Vector Diagram
