Machine Vision Light
LXV-3DM

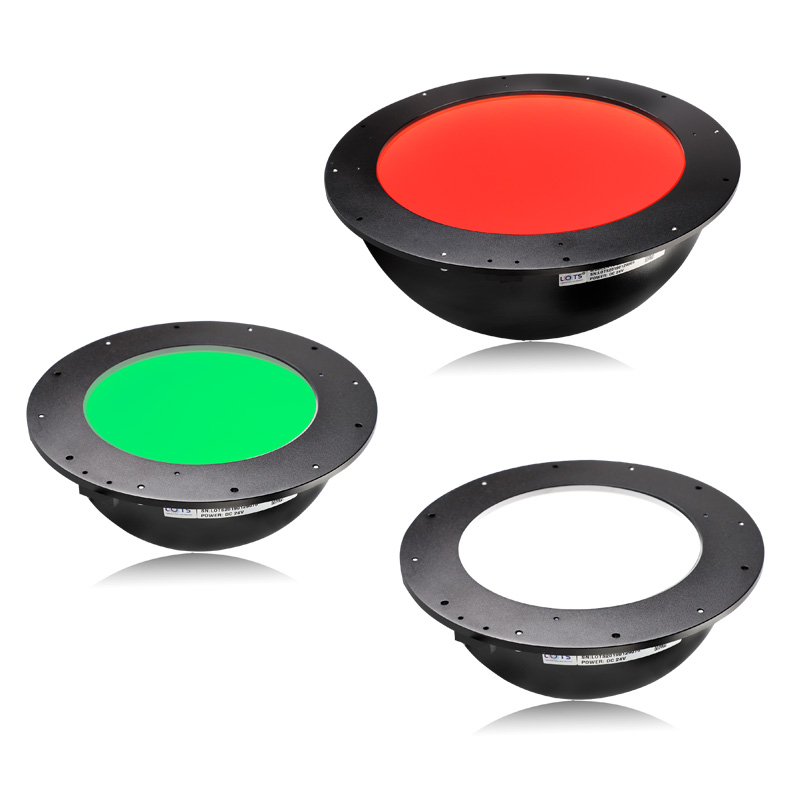

Dome Shadowless Light
Making full use of hemisphere diffuse reflection structure; can flash out high-uniformity and high-intensity light; suitable for the inspection of objects which is uneven and light-reflecting.
Features
- •High uniformity, large emitting area.
- •2.Lightweight design, high luminance.
- •3.Frame fixed method, more uniform stress, more fastness and more reliable when long time using.
- •4.Flexible outline, can be customized.
Applications
- •Reflect light, unflatness surface inspection.
- •2.IC surface character inspection.
- •3.Condenser surface defect inspection.
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-3DM116-R/BGW | Red / Blue / Green / White | Outer dia. φ116mm,Inner dia. φ30mm,Height 51.7mm | 24V | 13.0W/17.3W |
| LXV-3DM175-R/BGW | Red / Blue / Green / White | Outer dia. φ175mm,Inner dia. φ35mm,Height 76.93mm | 24V | 21.6W/27.4W |
| LXV-3DM198-R/BGW | Red / Blue / Green / White | Outer dia. φ198mm,Inner dia. φ40mm,Height 87.96mm | 24V | 37.5W/47.6W |
| LXV-3DM260-R/BGW | Red / Blue / Green / White | Outer dia. φ260mm,Inner dia. φ48mm,Height 118.98mm | 24V | 51.9W/64.8W |
| * UV & IR light can be customized as required. | - | - | - | - |
IMAGING COMPARISON
Application Effect Analysis

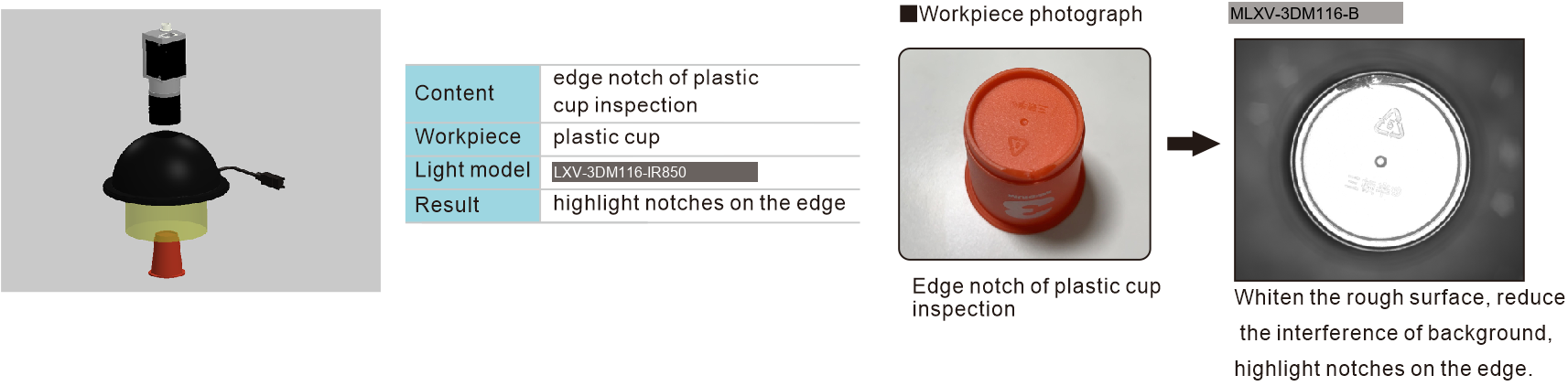

Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-3DM.
OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention

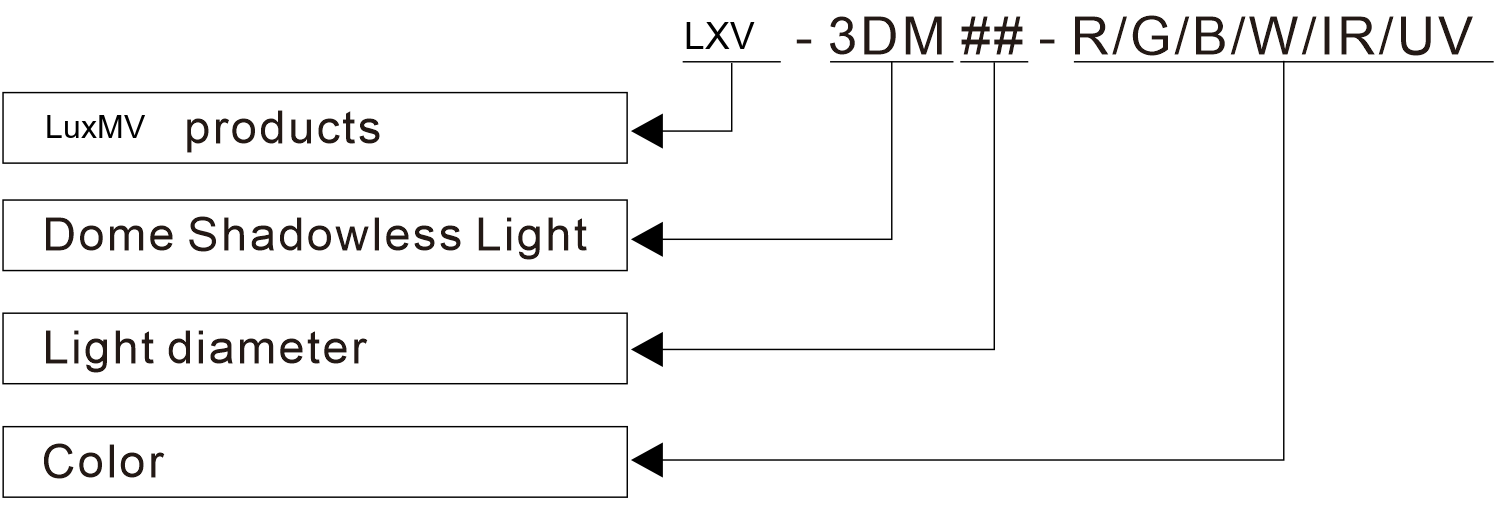

Model Naming Convention

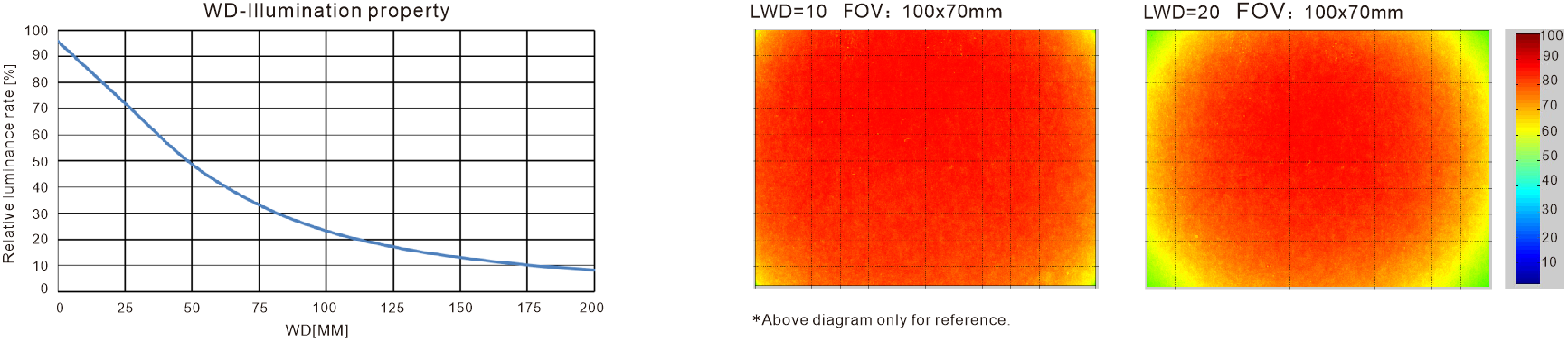

Vector Diagram
DIRECT ENQUIRY
Get a Customized Quotation
Need specific dimensions, custom wavelength LED combinations, or special cabling? Our optical engineering and sales offices are ready to assist.
Sales Email: info@luxmv.com
Response SLA: Under 4 Hours (Business Days)
Free Optical Simulation
Send us your target workpiece samples. We will test them in our R&D lighting darkrooms and supply a selection report completely free.
Request Technical Quotation
Our optical engineering sales team responds to all corporate requests within 4 hours.
