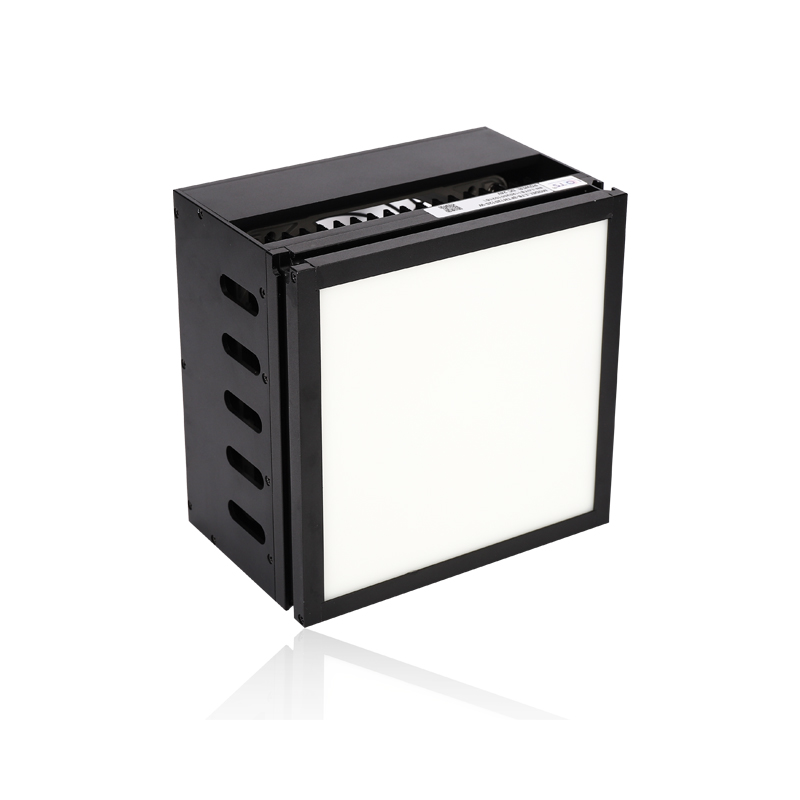

Machine Vision Light
LXV-3FTH
Ultra Brightness Back Light
1.Measurement with high speed. 2.Contour inspection. 3.Dimension measurement.
Features
- •Luminance 800,000 to 2,000,000 lux.
- •2.Can be used as constant on or strobing.
- •3.Used for short exposure time and high speed shooting.
Applications
- •Measurement with high speed.
- •2.Contour inspection.
- •3.Dimension measurement.
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-3FTH8888 | Red / Blue / Green / White | L105xW105xH96.52(mm) | 24V | 57.6W/72.0W |
| LXV-3FTH100100 | Red / Blue / Green / White | L131xW117xH96.52(mm) | 24V | 64.8W/81.6W |
| LXV-3FTH120120 | Red / Blue / Green / White | L151xW137xH96.52(mm) | 24V | 96.0W/120W |
| LXV-3FTH150150 | Red / Blue / Green / White | L181xW167xH98.52(mm) | 24V | 144W/187.2W |
| * UV & IR light can be customized as required. | - | - | - | - |

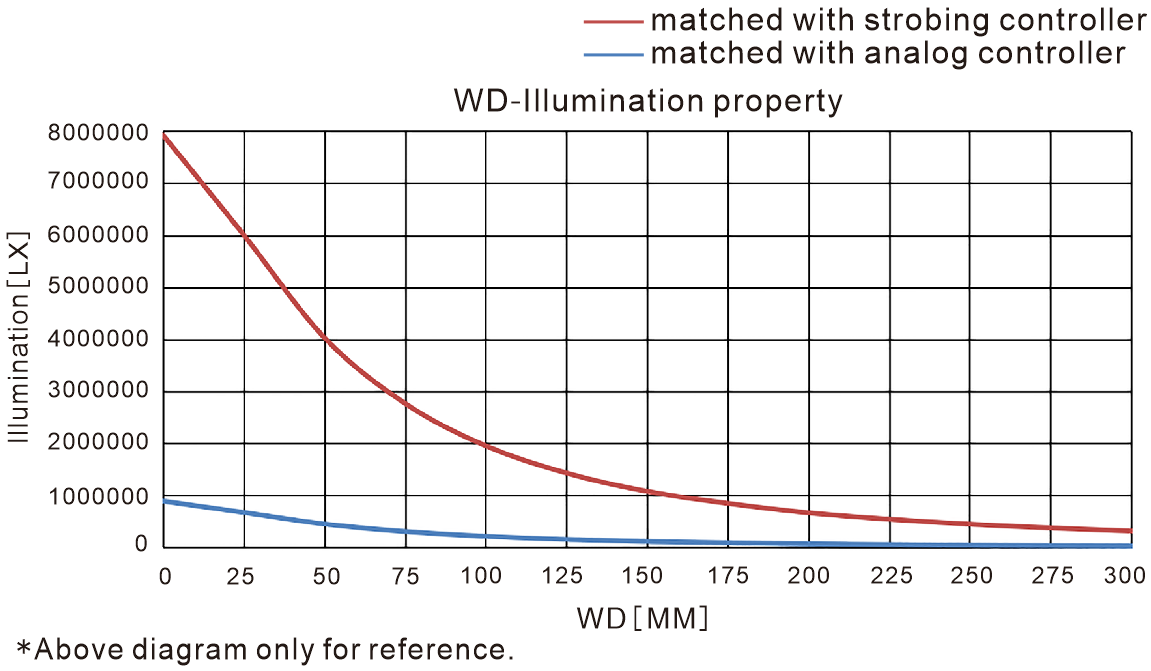

IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-3FTH.
OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention
Model Naming Convention
