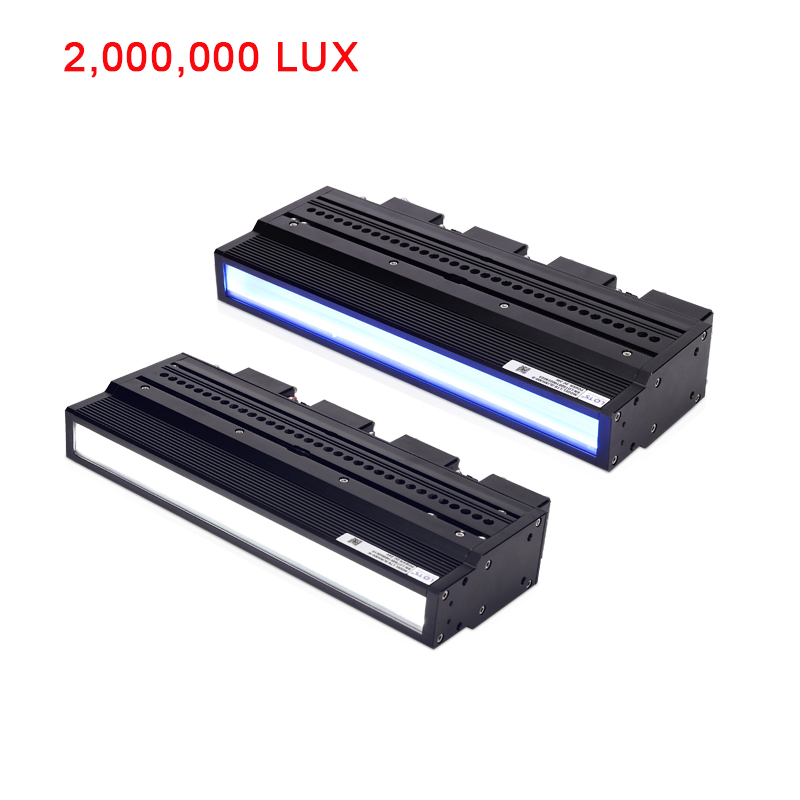

Machine Vision Light
LXV-3LINH
Ultra Bright Line Scan Light
1.PCB surface inspection. 2.Li battery coating defect inspection. 3.Leather surface defect inspection.
Features
- •The luminance of light outlet can reach 2,000,000LUX.
- •2.Adopt special structure design for heat-dissipation, convenient to replacement.
- •3.Standard model add the optical film to improve the uniformity.
- •4.Used in the applications with high luminance requirements.
Applications
- •PCB surface inspection.
- •2.Li battery coating defect inspection.
- •3.Leather surface defect inspection.
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-3LINH100-R/BGW | Red / Blue / Green / White | L100xW50xH145.46(mm) | 24V | 48W |
| LXV-3LINH200-R/BGW | Red / Blue / Green / White | L200xW50xH145.46(mm) | 24V | 120W |
| LXV-3LINH300-R/BGW | Red / Blue / Green / White | L300xW50xH145.46(mm) | 24V | 168W |
| LXV-3LINH400-R/BGW | Red / Blue / Green / White | L400xW50xH145.46(mm) | 24V | 240W |
| LXV-3LINH500-R/BGW | Red / Blue / Green / White | L500xW50xH145.46(mm) | 24V | 288W |
| LXV-3LINH600-R/BGW | Red / Blue / Green / White | L600xW50xH145.46(mm) | 24V | 336W |
| LXV-3LINH700-R/BGW | Red / Blue / Green / White | L700xW50xH145.46(mm) | 48V | 432W |
| LXV-3LINH800-R/BGW | Red / Blue / Green / White | L800xW50xH145.46(mm) | 48V | 480W |
| LXV-3LINH900-R/BGW | Red / Blue / Green / White | L900xW50xH145.46(mm) | 48V | 576W |
| LXV-3LINH1000-R/BGW | Red / Blue / Green / White | L1000xW50xH145.46(mm) | 48V | 672W |
| * UV & IR light can be customized as required. | - | - | - | - |

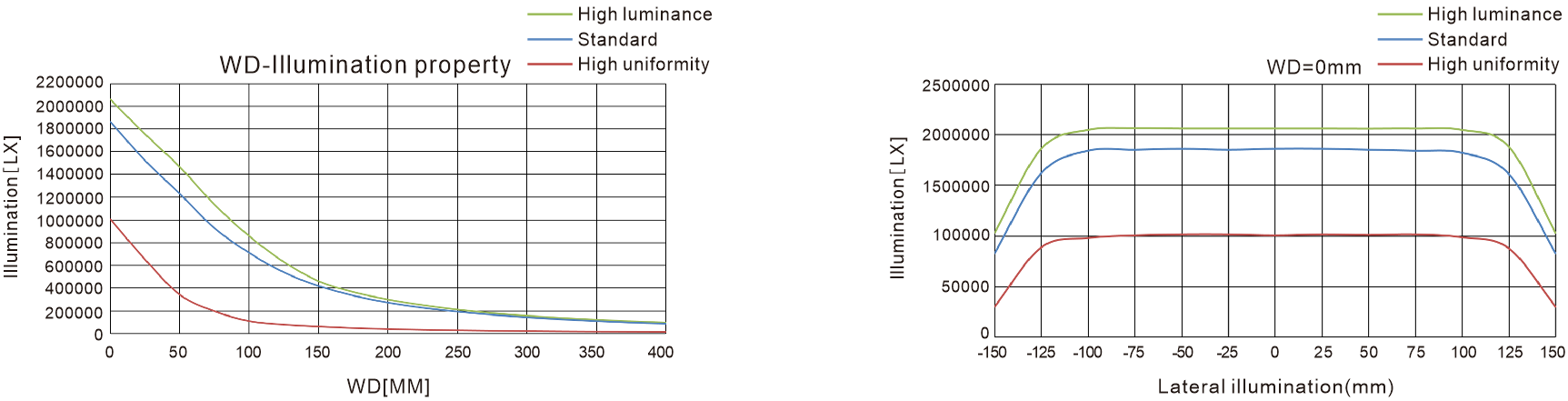

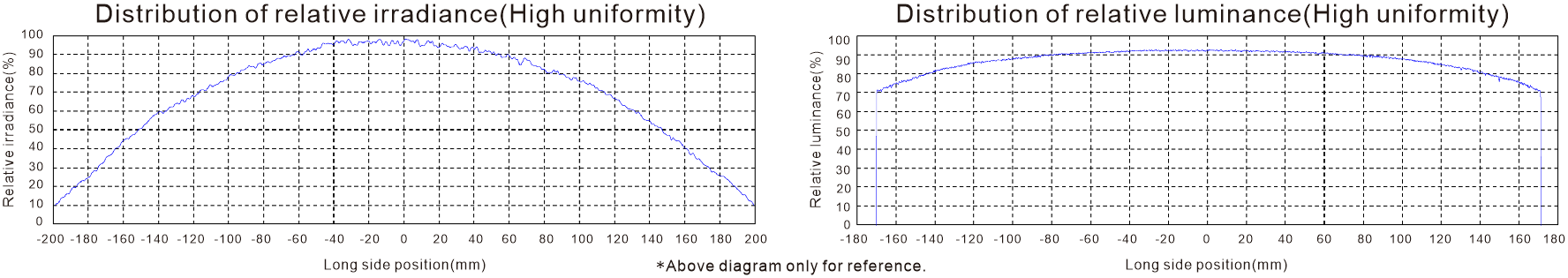

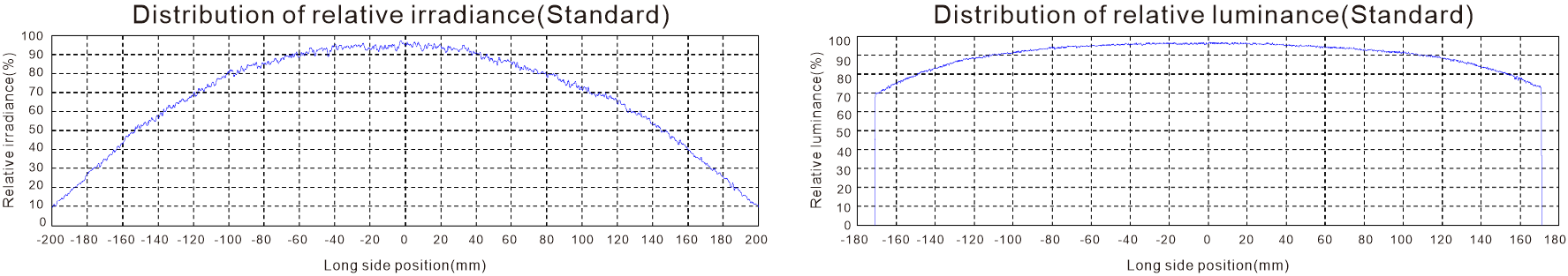

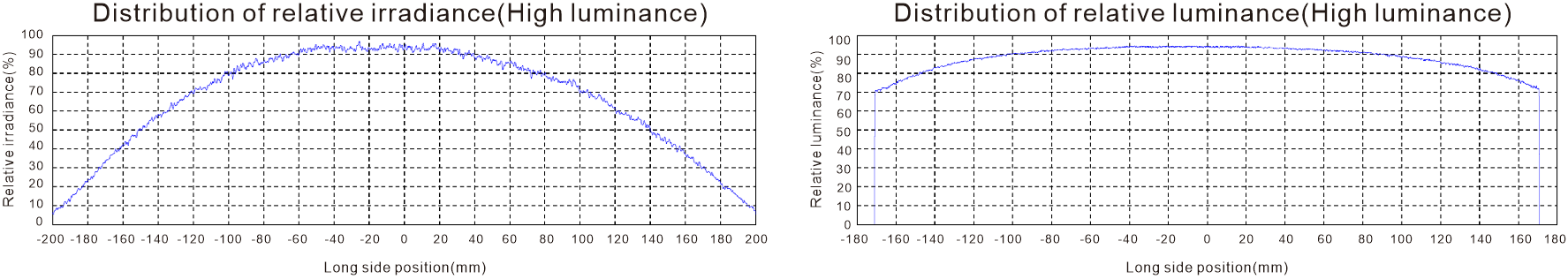

IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-3LINH.
OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention
Model Naming Convention
Vector DiagramDIRECT ENQUIRY
