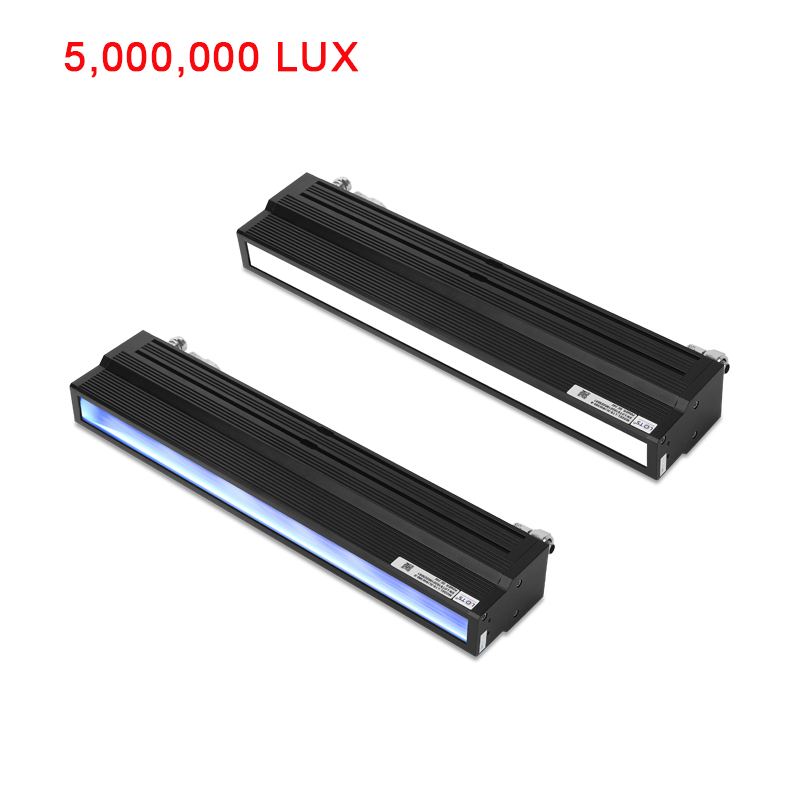

Machine Vision Light
LXV-3LINP
Water Cooling Line Scan Light
1.Steel plate inspection. 2.Glass inspection. 3.Metal surface inspection. 4.Coal inspection.
Features

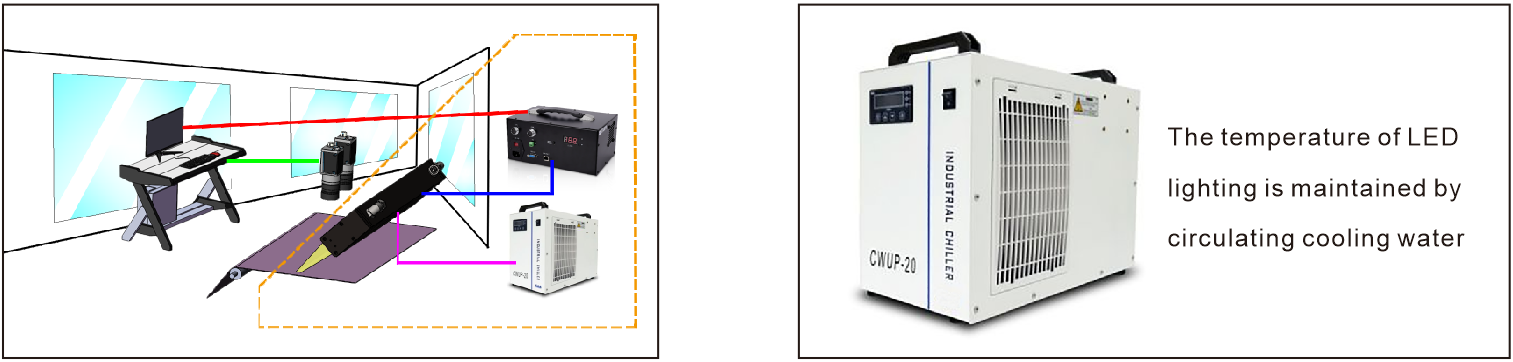

- •Adopted water cooling mechanism design, achieve ultra-bright, fanless and compact.
- •2.Up to 2.5-5million Lx, used for fanless and silent environment.
- •3.Best for dust-free room using.
- •4.Best line scan light for defect inspection with high speed motion.
Applications
- •Steel plate inspection.
- •2.Glass inspection.
- •3.Metal surface inspection.
- •4.Coal inspection.
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-3LINP100-R/BGW | Red / Blue / Green / White | L100xW40xH111.7(mm) | 24V | 72W/87W |
| LXV-3LINP200-R/BGW | Red / Blue / Green / White | L200xW40xH111.7(mm) | 24V | 144W/173W |
| LXV-3LINP300-R/BGW | Red / Blue / Green / White | L300xW40xH111.7(mm) | 24V | 216W/260W |
| LXV-3LINP400-R/BGW | Red / Blue / Green / White | L400xW40xH111.7(mm) | 24V | 288W/346W |
| LXV-3LINP500-R/BGW | Red / Blue / Green / White | L500xW40xH111.7(mm) | 24V | 360W/432W |
| LXV-3LINP600-R/BGW | Red / Blue / Green / White | L600xW40xH111.7(mm) | 48V | 384W/461W |
| LXV-3LINP700-R/BGW | Red / Blue / Green / White | L700xW40xH111.7(mm) | 48V | 432W/519W |
| LXV-3LINP800-R/BGW | Red / Blue / Green / White | L800xW40xH111.7(mm) | 48V | 480W/576W |
| LXV-3LINP900-R/BGW | Red / Blue / Green / White | L900xW40xH111.7(mm) | 48V | 576W/692W |
| LXV-3LINP1000-R/BGW | Red / Blue / Green / White | L1000xW40xH111.7(mm) | 48V | 672W/807W |
| * UV & IR light can be customized as required. | - | - | - | - |

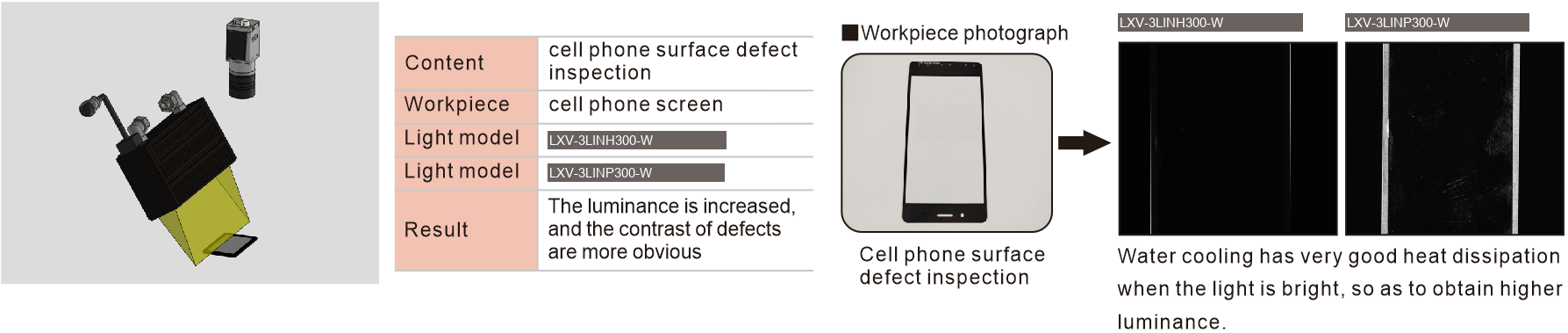

IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-3LINP.
OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention

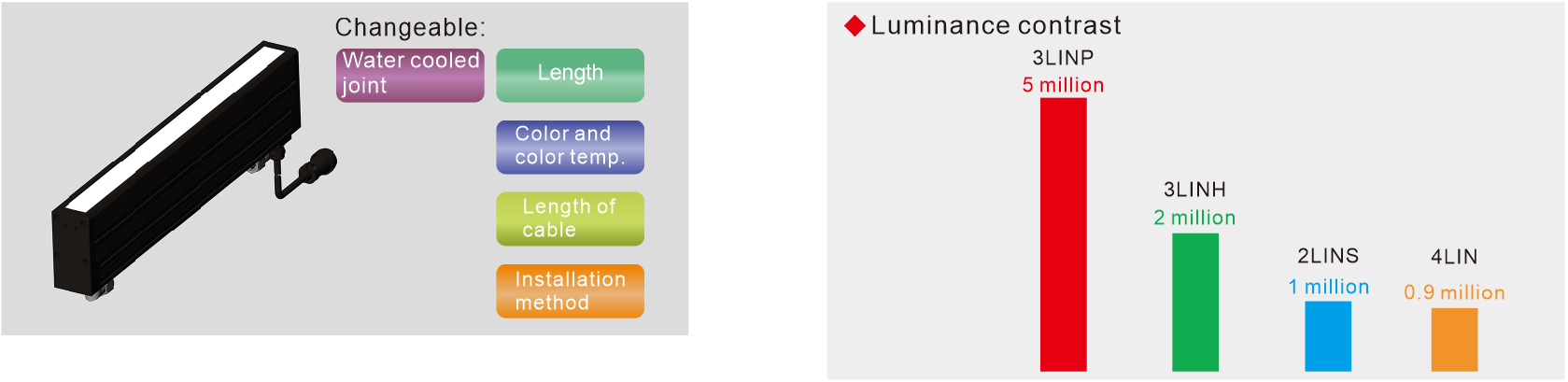

Model Naming Convention
Vector DiagramDIRECT ENQUIRY
Get a Customized Quotation
Need specific dimensions, custom wavelength LED combinations, or special cabling? Our optical engineering and sales offices are ready to assist.
