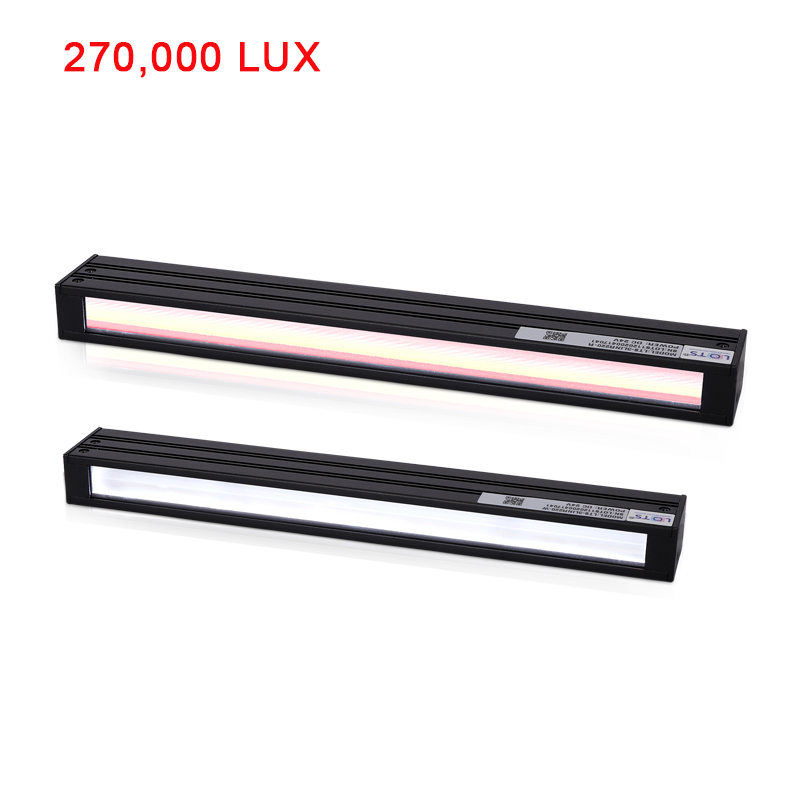

Machine Vision Light
LXV-3LINR
Mini line scan light
High brightness up to 2 million illumination, can add optical film to improve uniformity, adapted to circuit board surface and battery coating inspection.
Features
- •Use high power surface-mount lamp, high luminance.
- •2.Compact volume, width only 30mm, natural cooling.
- •3.Standard model add the optical film to improve the uniformity.
Applications
- •Displayer surface dusty inspection.
- •2.Paste label surface defect inspection.
- •3.Packaging carton location inspection.
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-3LINR70-RGB/W | Red / Green / Blue / White | L70xW20xH30(mm) | 24V | 3.6W/4.4W |
| LXV-3LINR80-RGB/W | Red / Green / Blue / White | L80xW20xH30(mm) | 24V | 3.6W/4.4W |
| LXV-3LINR120-RGB/W | Red / Green / Blue / White | L120xW20xH30(mm) | 24V | 7.2W/6.5W |
| LXV-3LINR220-RGB/W | Red / Green / Blue / White | L220xW20xH30(mm) | 24V | 14.4W/13.0W |
| LXV-3LINR320-RGB/W | Red / Green / Blue / White | L320xW20xH30(mm) | 24V | 21.6W/19.5W |
| LXV-3LINR420-RGB/W | Red / Green / Blue / White | L420xW20xH30(mm) | 24V | 28.8W/26.0W |
| LXV-3LINR520-RGB/W | Red / Green / Blue / White | L520xW20xH30(mm) | 24V | 36.0W/32.4W |
| * UV & IR light can be customized as required. | - | - | - | - |

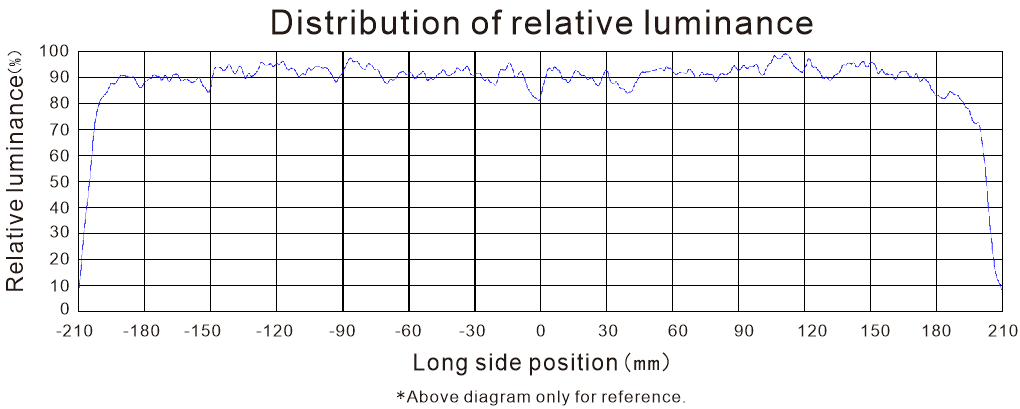

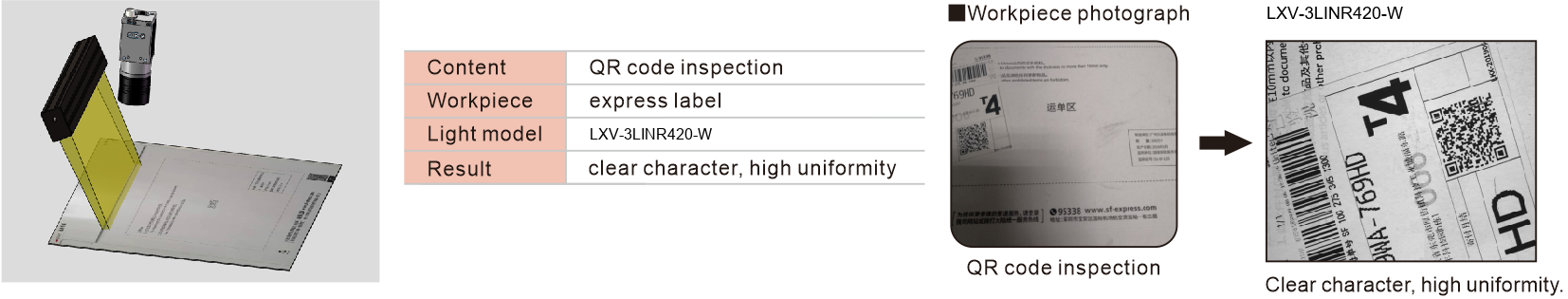

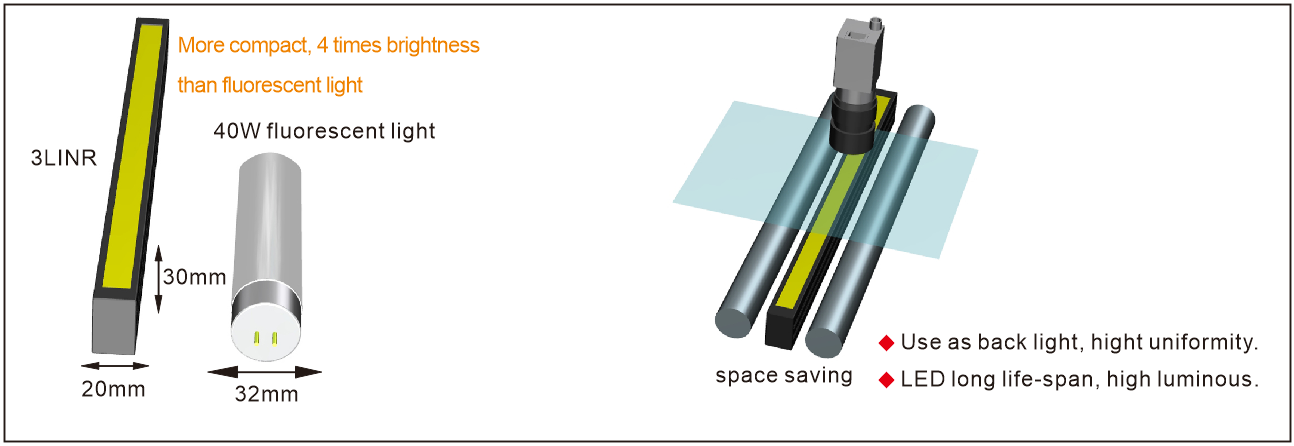

IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-3LINR.
OPTICAL DESIGN & NAMING

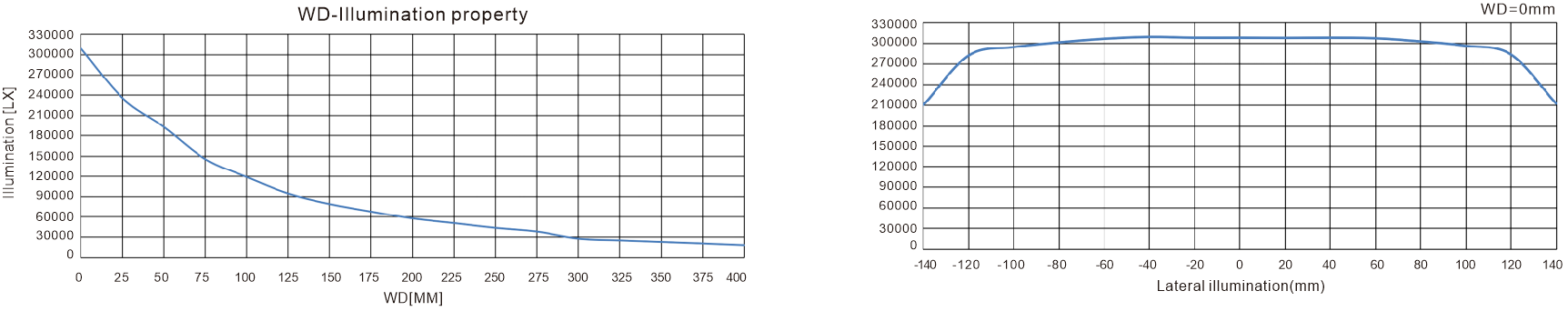

Optical Diagram & Model Naming Convention
Model Naming Convention
Vector Diagram
