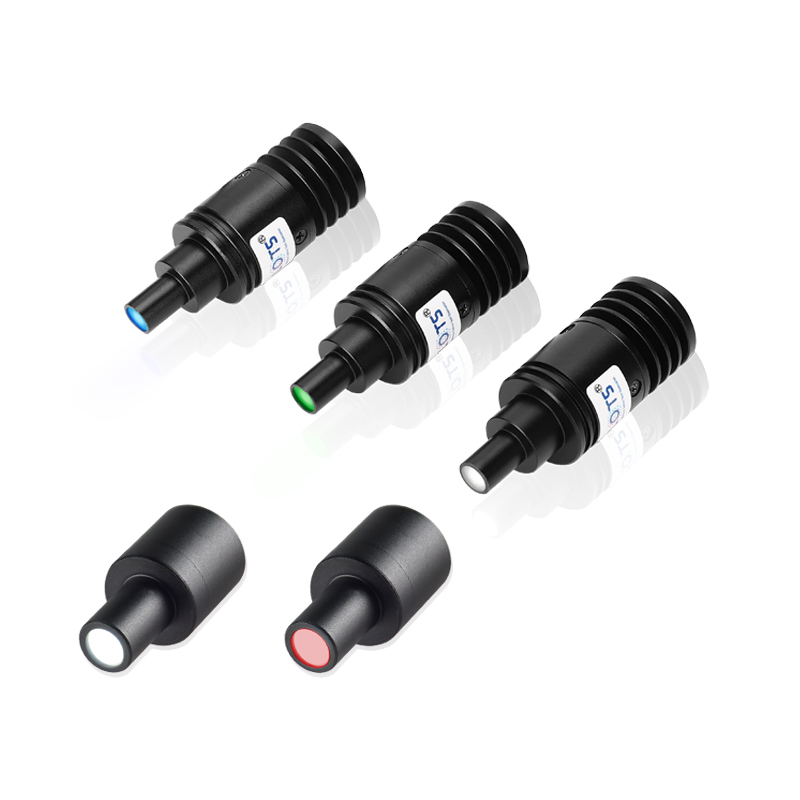

Machine Vision Light
LXV-3SL
3 Generation Spot Light
1.Mono spot light: high luminance, high uniformity, can reach 400,000-1,000,000 Lx. 2.Four-color spot light: unique design of light path, one light hasR/G/B/W four colors, each color is controllable, no spot displacement.
Features
- •Mono spot light: high luminance, high uniformity,
- •can reach 400,000-1,000,000 Lx.
- •2.Four-color spot light: unique design of light path, one light has
- •R/G/B/W four colors, each color is controllable, no spot displacement.
Applications
- •Mark position location.
- •2.ITO glass circuit inspection.
- •3.Oral liquid impurity inspection.
- •4.Liquid crystal glass base counterpoint.
| Model | Current/Voltage | Power | Color | Illumination | Description |
|---|---|---|---|---|---|
| LXV-3SL08-24 | 24V | 1W | R/G/B/W/IR850/940 | 130,000Lx | / |
| LXV-3SL081 | 350MA | 1W | R/G/B/W/IR850/940 | 400,000Lx | / |
| LXV-3SL083 | 700MA | 2.2W | R/G/B/W/IR850/940 | 400,000Lx | / |
| LXV-3SL123 | 700MA | 2.2W | R/G/B/W | 400,000Lx | Used with a 12mm aperture telecentric lens |
| LXV-3SL083-24V | 24V | 2.2W | R/G/B/W/IR | 400,000Lx | Used with 24v controller |
| LXV-3SL084 | 1000MA | 4W | R/G/B/W | 600,000Lx | / |
| LXV-3SL084(Four colors) | 350MA | 4W | RGBW | / | Four-color spot light |
| LXV-3SL086 | 1500MA | 6W | R/G/B/W | 850,000Lx | / |
| LXV-3SL0810 | 2500MA | 10W | R/G/B/W | 1,700,000Lx | / |
| LXV-3SL22 | 700MA | 2.2W | UV410/395/385/365 | / | UV spot light |
| * UV & IR light can be customized as required. | - | - | - | - | - |
OPTICAL DESIGN & NAMING

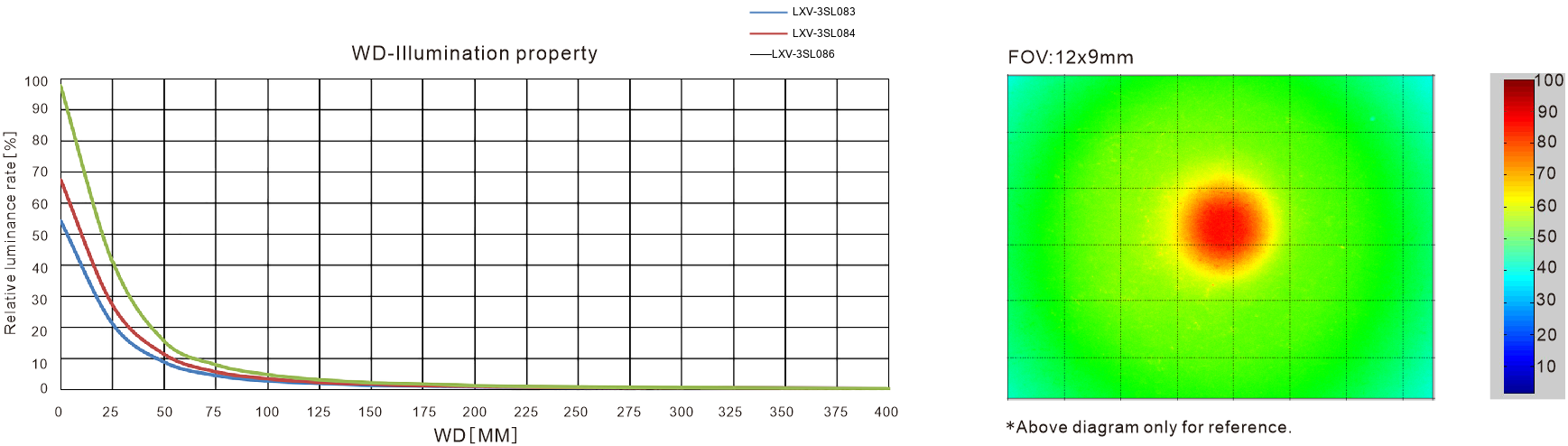

Optical Diagram & Model Naming Convention
Model Naming Convention
Vector Diagram
