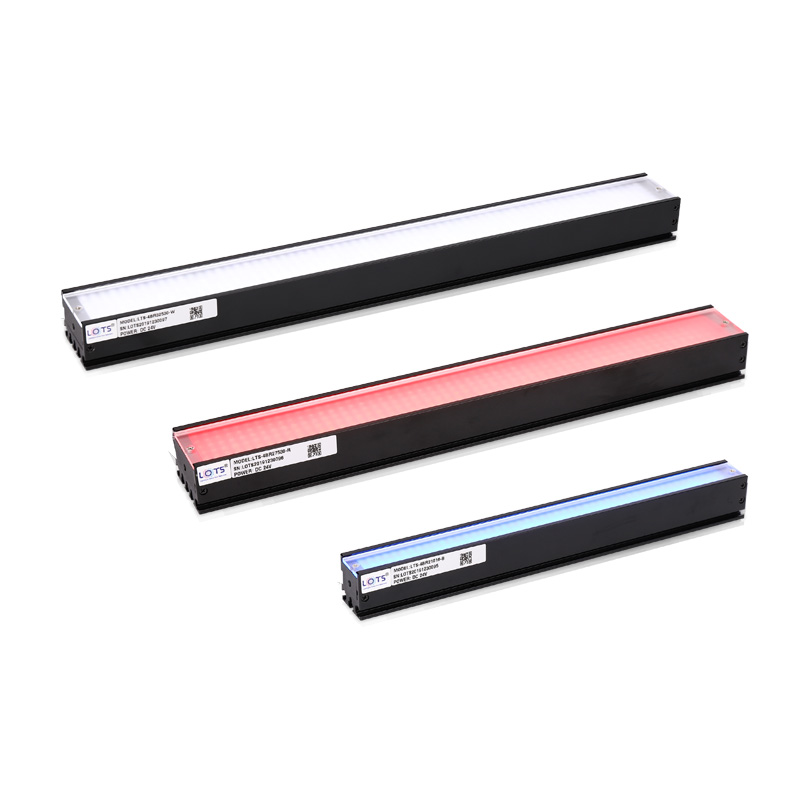

LXV-4BR product
Machine Vision Light

LXV-4BR

High Luminance Bar Light Machine Vision System

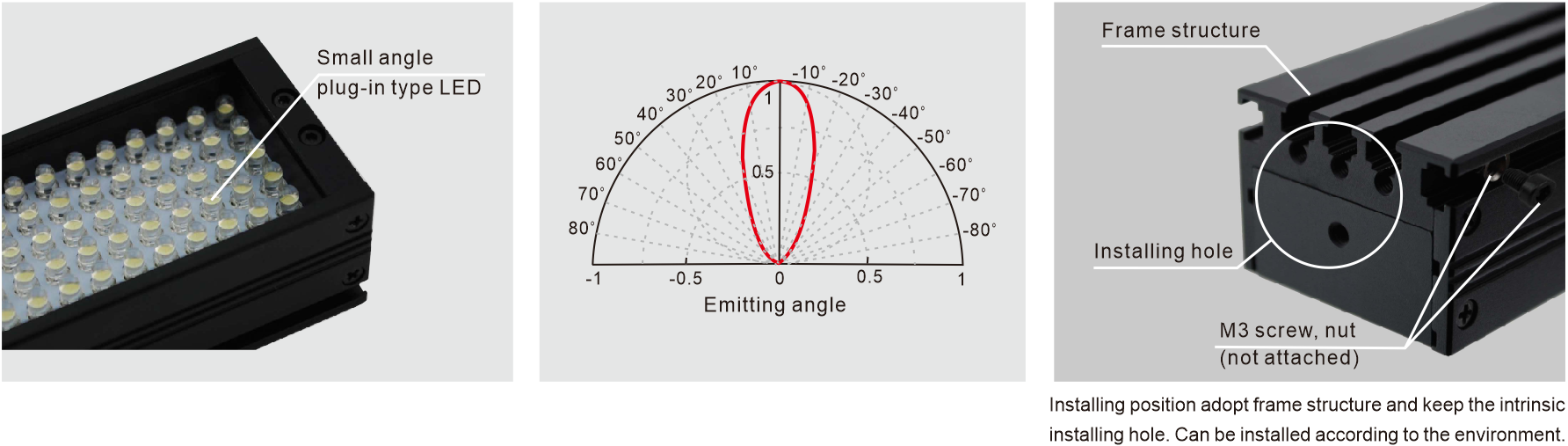

The shell is designed by aluminum alloy integrated molding; special heat transferring design; multi-option illumination angles and installation way; High-density LED arrays; can be used for a wide range of applications.

Features

  • •Small angle LED array design, high luminance.
  • •2.Processed by high precision mould, shorten the difference between different batch. high heat transmitting performance.
  • •3.Multiple installation method, easy to install.
  • •4.Different transmittance diffuser plate optional.

Applications

  • •Big size LCD panel defect inspection.
  • •2.Metal surface defect inspection.
  • •3.Printing character defect inspection.
  • •4.Connector pin flatness inspection.
ModelColorDimensionVoltagePower
LXV-4BR3016-R/BGWRed / Blue / Green / WhiteL42xW22xH26(mm)24V0.8W/1.1W
LXV-4BR6016-R/BGWRed / Blue / Green / WhiteL72xW22xH26(mm)24V1.5W/2.2W
LXV-4BR9016-R/BGWRed / Blue / Green / WhiteL102xW22xH26(mm)24V2.2W/3.3W
LXV-4BR12016-R/BGWRed / Blue / Green / WhiteL132xW22xH26(mm)24V2.9W/4.4W
LXV-4BR15016-R/BGWRed / Blue / Green / WhiteL162xW22xH26(mm)24V3.6W/5.4W
LXV-4BR18016-R/BGWRed / Blue / Green / WhiteL192xW22xH26(mm)24V4.4W/6.5W
LXV-4BR21016-R/BGWRed / Blue / Green / WhiteL222xW22xH26(mm)24V5.1W/7.6W
LXV-4BR24016-R/BGWRed / Blue / Green / WhiteL252xW22xH26(mm)24V5.8W/8.7W
LXV-4BR27016-R/BGWRed / Blue / Green / WhiteL282xW22xH26(mm)24V6.5W/9.8W
LXV-4BR30016-R/BGWRed / Blue / Green / WhiteL312xW22xH26(mm)24V7.2W/10.8W
LXV-4BR33016-R/BGWRed / Blue / Green / WhiteL342xW22xH26(mm)24V8.0W/11.9W
LXV-4BR36016-R/BGWRed / Blue / Green / WhiteL372xW22xH26(mm)24V8.7W/13.0W
LXV-4BR39016-R/BGWRed / Blue / Green / WhiteL402xW22xH26(mm)24V9.4W/14.1W
LXV-4BR42016-R/BGWRed / Blue / Green / WhiteL432xW22xH26(mm)24V10.1W/15.2W
LXV-4BR45016-R/BGWRed / Blue / Green / WhiteL462xW22xH26(mm)24V10.8W/16.2W
LXV-4BR48016-R/BGWRed / Blue / Green / WhiteL492xW22xH26(mm)24V11.6W/17.3W
LXV-4BR51016-R/BGWRed / Blue / Green / WhiteL522xW22xH26(mm)24V12.3W/18.4W
LXV-4BR2530-R/BGWRed / Blue / Green / WhiteL37xW36xH26(mm)24V1.1W/1.8W
LXV-4BR5030-R/BGWRed / Blue / Green / WhiteL62xW36xH26(mm)24V2.2W/3.6W
LXV-4BR7530-R/BGWRed / Blue / Green / WhiteL87xW36xH26(mm)24V3.3W/5.4W
LXV-4BR10030-R/BGWRed / Blue / Green / WhiteL112xW36xH26(mm)24V4.4W/7.2W
LXV-4BR12530-R/BGWRed / Blue / Green / WhiteL137xW36xH26(mm)24V5.4W/9.0W
LXV-4BR15030-R/BGWRed / Blue / Green / WhiteL162xW36xH26(mm)24V6.5W/10.8W
LXV-4BR17530-R/BGWRed / Blue / Green / WhiteL187xW36xH26(mm)24V7.6W/12.6W
LXV-4BR20030-R/BGWRed / Blue / Green / WhiteL212xW36xH26(mm)24V8.7W/14.4W
LXV-4BR22530-R/BGWRed / Blue / Green / WhiteL237xW36xH26(mm)24V9.8W/16.2W
LXV-4BR25030-R/BGWRed / Blue / Green / WhiteL262xW36xH26(mm)24V10.8W/18.0W
LXV-4BR27530-R/BGWRed / Blue / Green / WhiteL287xW36xH26(mm)24V11.9W/19.8W
LXV-4BR30030-R/BGWRed / Blue / Green / WhiteL312xW36xH26(mm)24V13.0W/21.6W
LXV-4BR32530-R/BGWRed / Blue / Green / WhiteL337xW36xH26(mm)24V14.1W/23.4W
LXV-4BR35030-R/BGWRed / Blue / Green / WhiteL362xW36xH26(mm)24V15.2W/25.2W
LXV-4BR37530-R/BGWRed / Blue / Green / WhiteL387xW36xH26(mm)24V16.2W/27.0W
LXV-4BR40030-R/BGWRed / Blue / Green / WhiteL412xW36xH26(mm)24V17.3W/28.8W
LXV-4BR42530-R/BGWRed / Blue / Green / WhiteL437xW36xH26(mm)24V18.4W/30.6W
LXV-4BR45030-R/BGWRed / Blue / Green / WhiteL462xW36xH26(mm)24V19.5W/32.4W
LXV-4BR47530-R/BGWRed / Blue / Green / WhiteL487xW36xH26(mm)24V20.6W/34.2W
LXV-4BR50030-R/BGWRed / Blue / Green / WhiteL512xW36xH26(mm)24V21.6W/36.0W
LXV-4BR3830-R/BGWRed / Blue / Green / WhiteL50xW36xH26(mm)24V1.5W/2.9W
LXV-4BR60030-R/BGWRed / Blue / Green / WhiteL612xW36xH26(mm)24V26.0W/43.2W
LXV-4BR80030-R/BGWRed / Blue / Green / WhiteL812xW36xH26(mm)24V34.6W/57.6W
LXV-4BR90030-R/BGWRed / Blue / Green / WhiteL912xW36xH26(mm)24V38.9W/64.8W
LXV-4BR100030-R/BGWRed / Blue / Green / WhiteL1012xW36xH26(mm)24V43.2W/72.0W
LXV-4BR120030-R/BGWRed / Blue / Green / WhiteL1212xW36xH26(mm)24V51.9W/86.4W
LXV-4BR180030-R/BGWRed / Blue / Green / WhiteL1812xW36xH26(mm)24V77.8W/129.6W
* UV & IR light can be customiz----
IMAGING COMPARISON

Application Effect Analysis

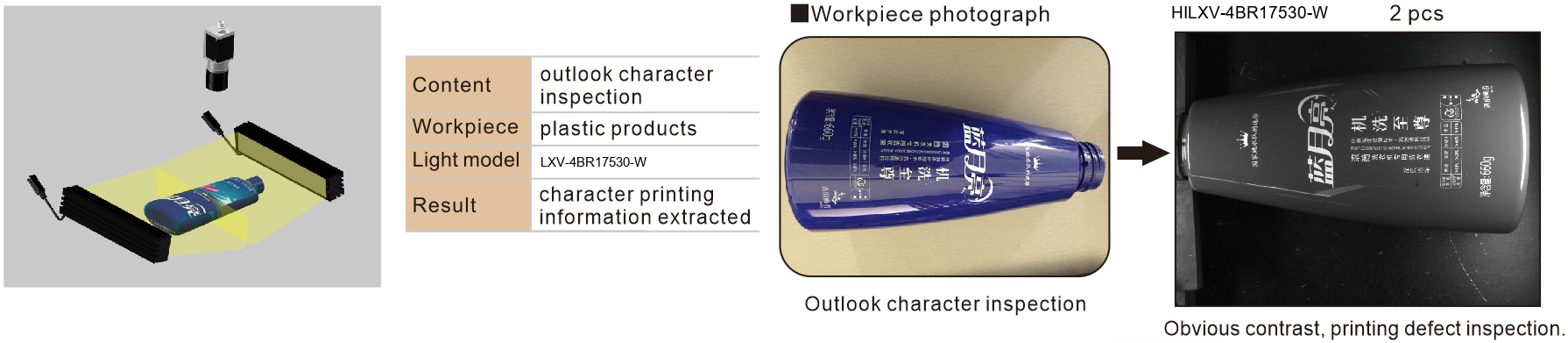

Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-4BR.

LXV-4BR application case 1
LXV-4BR application case 2
LXV-4BR application case 3
LXV-4BR application case 4
OPTICAL DESIGN & NAMING

Optical Diagram & Model Naming Convention

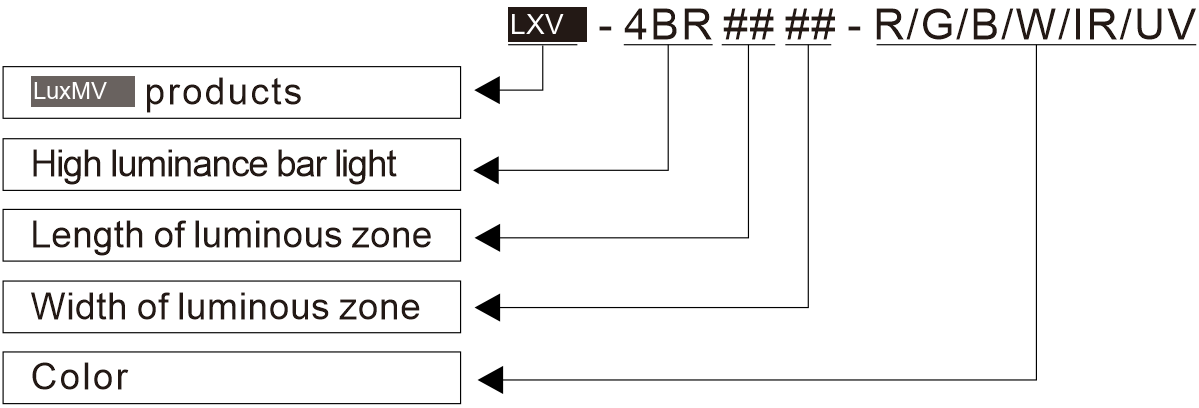

Model Naming Convention
