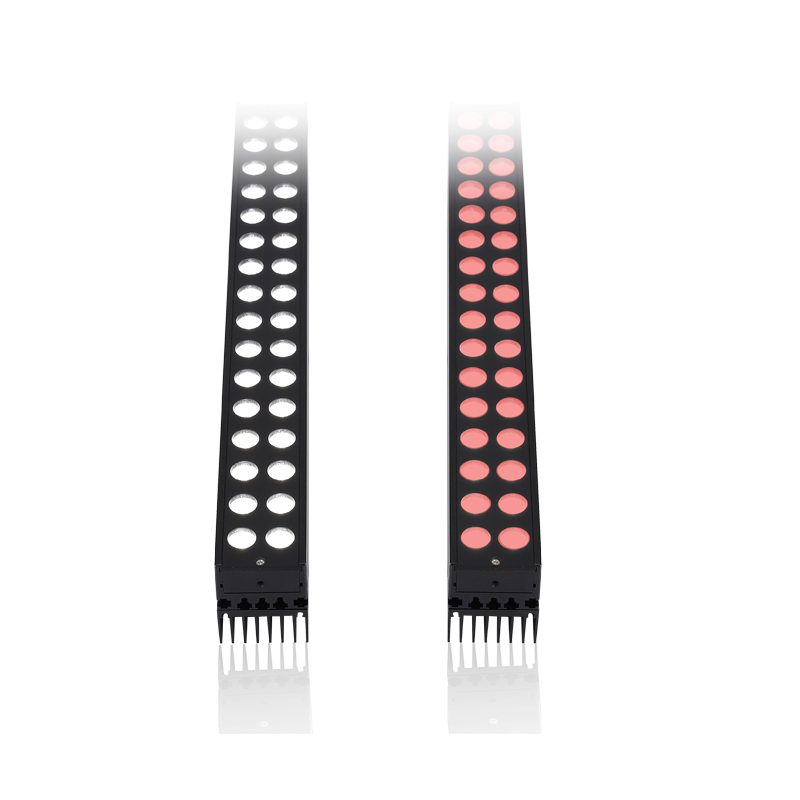

Machine Vision Light
LXV-4BRH
High Power Bar Light
Adopted to high power LED design, the luminance is 2-3 times than original. Adapted to the enrironment where highlight is needed. Easy to install, good heat-dissipation.
Features
- •High power LED used, lighting to long working distance, high luminance.
- •2.Multiple installation method, easy to install.
- •3.One-piece aluminium alloy design, high heat transmitting performance.
Applications
- •Big size LCD panel defect inspection.
- •2.Metal surface defect inspection.
- •3.Printing character defect inspection.
- •4.Connector pin flatness inspection.
| Model | Color | Dimension | Voltage | Power | General lens | Narrow angle lens |
|---|---|---|---|---|---|---|
| LXV-4BRH15016-R/BGW | Red / Blue / Green / White | L162xW22xH36mm) | 24V | 8.4W/8.4W | -W | -L-W |
| LXV-4BRH30016-R/BGW | Red / Blue / Green / White | L312xW22xH36(mm) | 24V | 16.8W/16.8W | - | - |
| LXV-4BRH45016-R/BGW | Red / Blue / Green / White | L462xW22xH36(mm) | 24V | 25.2W/25.2W | - | - |
| LXV-4BRH60016-R/BGW | Red / Blue / Green / White | L612xW22xH36(mm) | 24V | 33.6W/33.6W | - | - |
| LXV-4BRH75016-R/BGW | Red / Blue / Green / White | L762xW22xH36(mm) | 24V | 42.0W/42.0W | - | - |
| LXV-4BRH90016-R/BGW | Red / Blue / Green / White | L912xW22xH36(mm) | 24V | 50.4W/50.4W | - | - |
| LXV-4BRH15030-R/BGW | Red / Blue / Green / White | L162xW36xH46(mm) | 24V | 14.4W/14.4W | - | - |
| LXV-4BRH30030-R/BGW | Red / Blue / Green / White | L312xW36xH46(mm) | 24V | 28.8W/28.8W | - | - |
| LXV-4BRH45030-R/BGW | Red / Blue / Green / White | L462xW36xH46(mm) | 24V | 43.2W/43.2W | - | - |
| LXV-4BRH60030-R/BGW | Red / Blue / Green / White | L612xW36xH46(mm) | 24V | 57.6W/64.8W | - | - |
| LXV-4BRH75030-R/BGW | Red / Blue / Green / White | L762xW36xH46(mm) | 24V | 72.0W/72.0W | - | - |
| LXV-4BRH90030-R/BGW | Red / Blue / Green / White | L912xW36xH46(mm) | 24V | 86.4W/86.4W | - | - |
| * UV & IR light can be customized as required. | - | - | - | - | - | - |

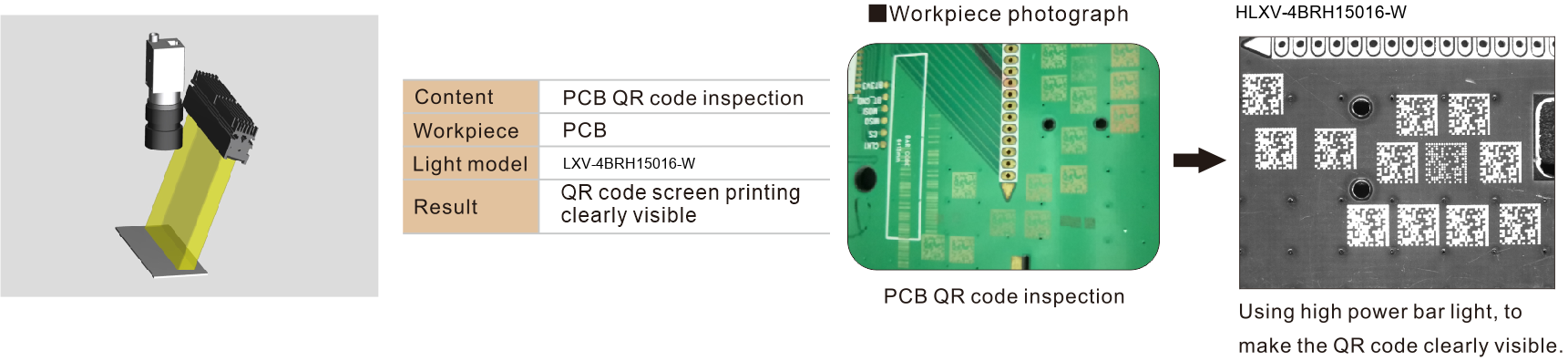

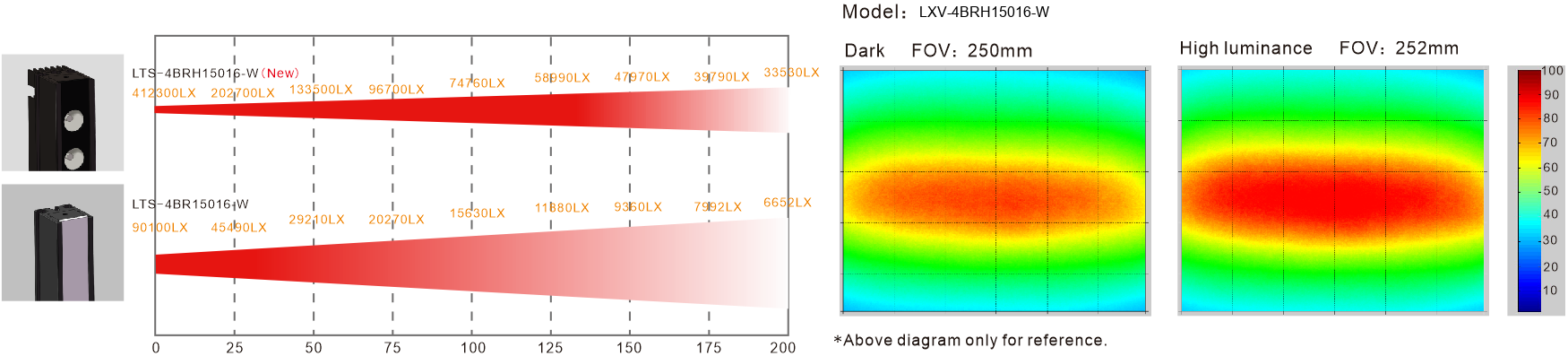

IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-4BRH.

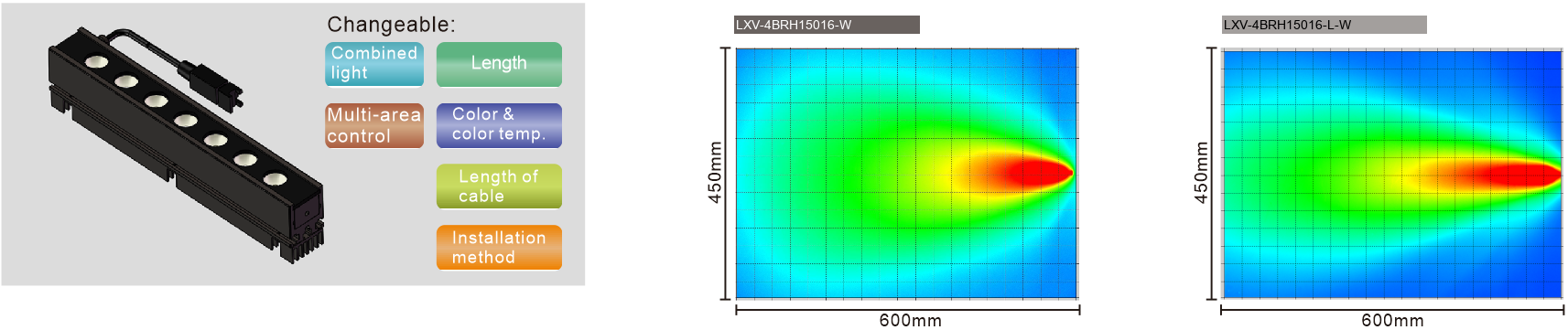

OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention

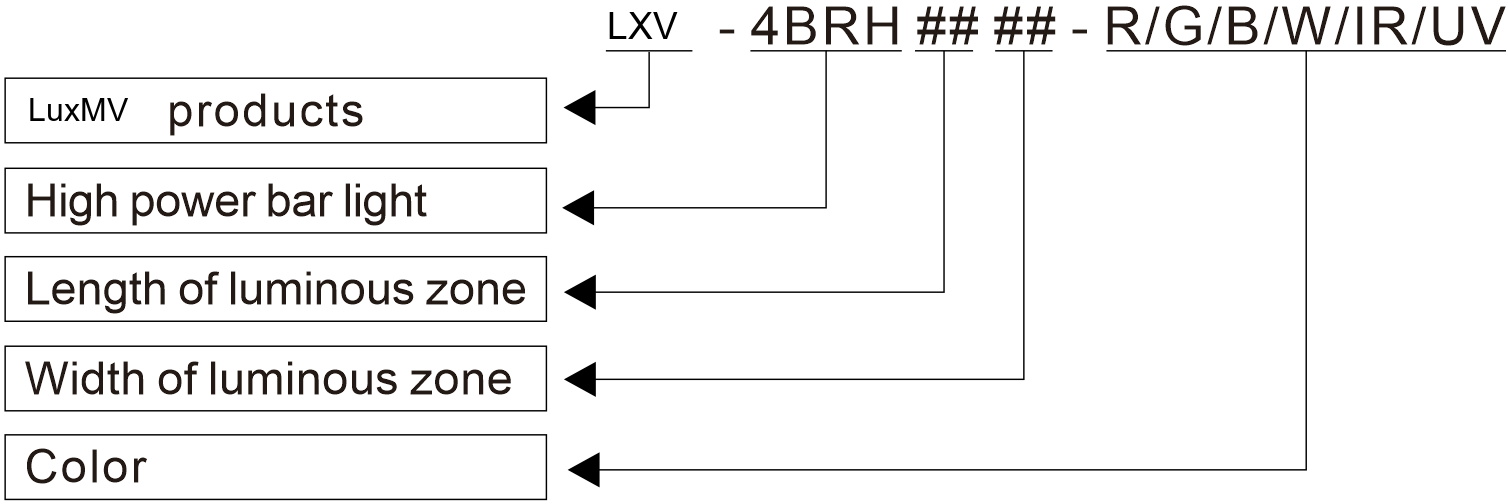

Model Naming Convention
