Machine Vision Light
LXV-4BRM

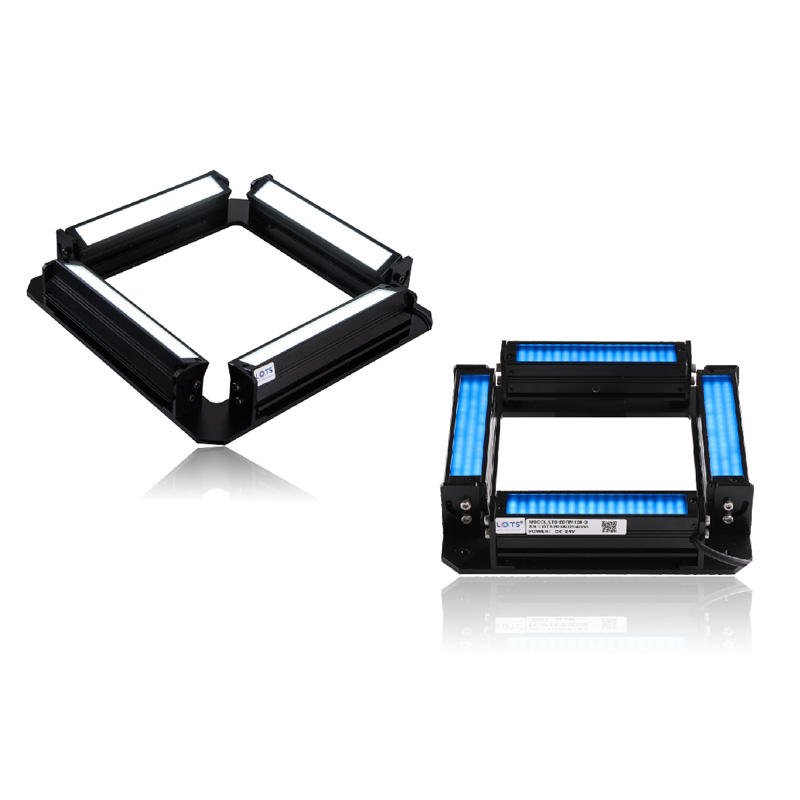

Combined Bar Light
Freely consisted of one or more bar lights; the angle of each bar light can be adjusted to achieve different effect.
Features
- •Four sides combined bar light, can illuminate by each side, independent control.
- •2.According to the workpiece needs, to adjust the angle of light.
- •3.Various applications.
Applications
- •PCB inspection.
- •2.IC element inspection.
- •3.Tin soldering inspection.
- •4.Mark position location.
- •5.Packing bar code illumination
- •6.Sphere workpiece illumination
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-4BRM96-R/BGW | Red / Blue / Green / White | L96xW96xH37(mm) | 24V | 2.9W/4.4W |
| LXV-4BRM130-R/BGW | Red / Blue / Green / White | L130xW130xH37(mm) | 24V | 5.8W/8.7W |
| LXV-4BRM160-R/BGW | Red / Blue / Green / White | L160xW160xH37(mm) | 24V | 8.7W/13.0W |
| LXV-4BRM200-R/BGW | Red / Blue / Green / White | L200xW200xH37(mm) | 24V | 11.6W/17.3W |
| LXV-4BRM230-R/BGW | Red / Blue / Green / White | L230xW230xH37(mm) | 24V | 14.4W/21.6W |
| LXV-4BRM290-R/BGW | Red / Blue / Green / White | L290xW290xH37(mm) | 24V | 20.2W/30.3W |
| LXV-4BRM204154-R/BGW | Red / Blue / Green / White | L204xW154xH37(mm) | 24V | 9.4W/13.7W |
| LXV-4BRM285235-R/BGW | Red / Blue / Green / White | L285xW235xH44(mm) | 24V | 26.0W/43.2W |
| LXV-4BRM330260-R/BGW | Red / Blue / Green / White | L330xW260xH44(mm) | 24V | 32.4W/54.0W |
| LXV-4BRM400360-R/BGW | Red / Blue / Green / White | L400xW360xH39(mm) | 24V | 24.5W/36.8W |
| LXV-4BRM532382-R/BGW | Red / Blue / Green / White | L532xW382xH46(mm) | 24V | 56.2W/93.6W |
| * UV & IR light can be customized as required. | - | - | - | - |
IMAGING COMPARISON
Application Effect Analysis

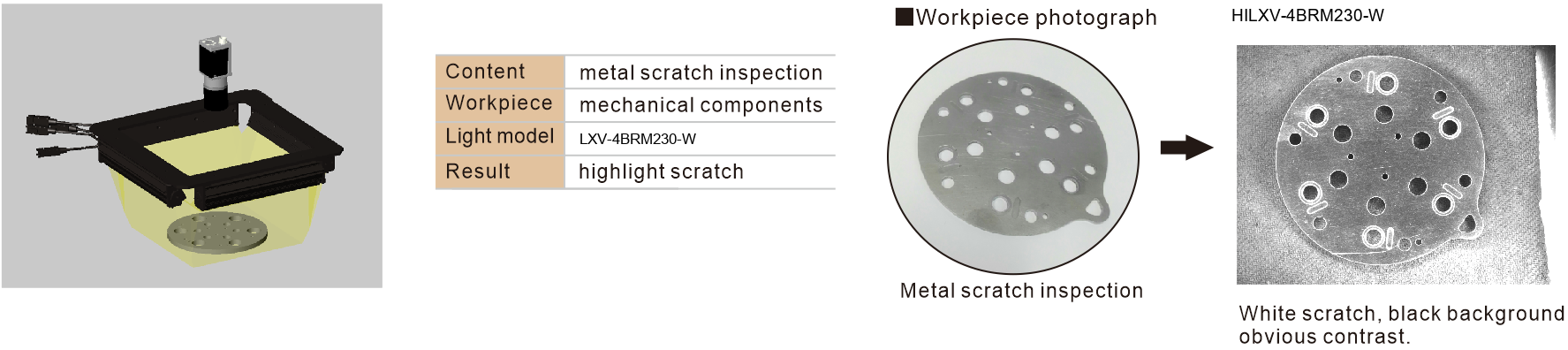

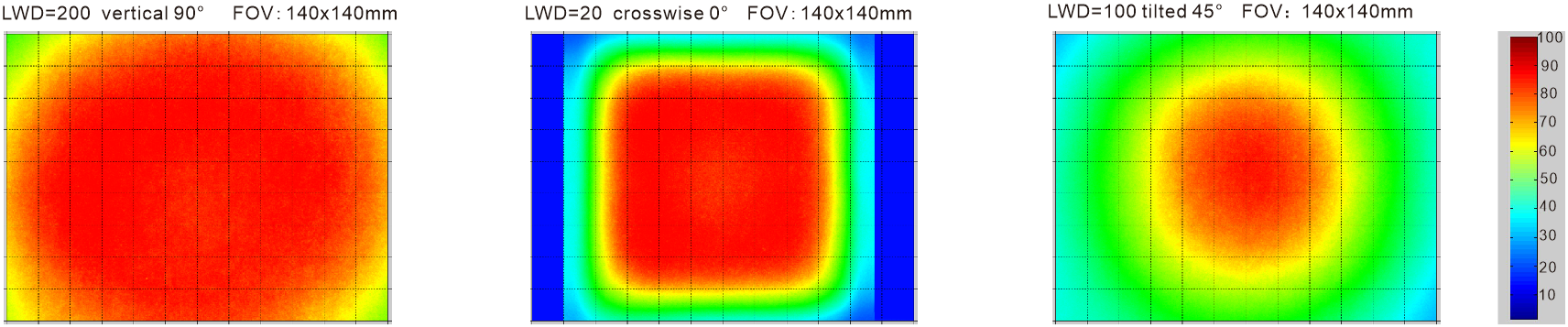

Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-4BRM.
OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention
Model Naming Convention
Vector DiagramDIRECT ENQUIRY
Get a Customized Quotation
Need specific dimensions, custom wavelength LED combinations, or special cabling? Our optical engineering and sales offices are ready to assist.
