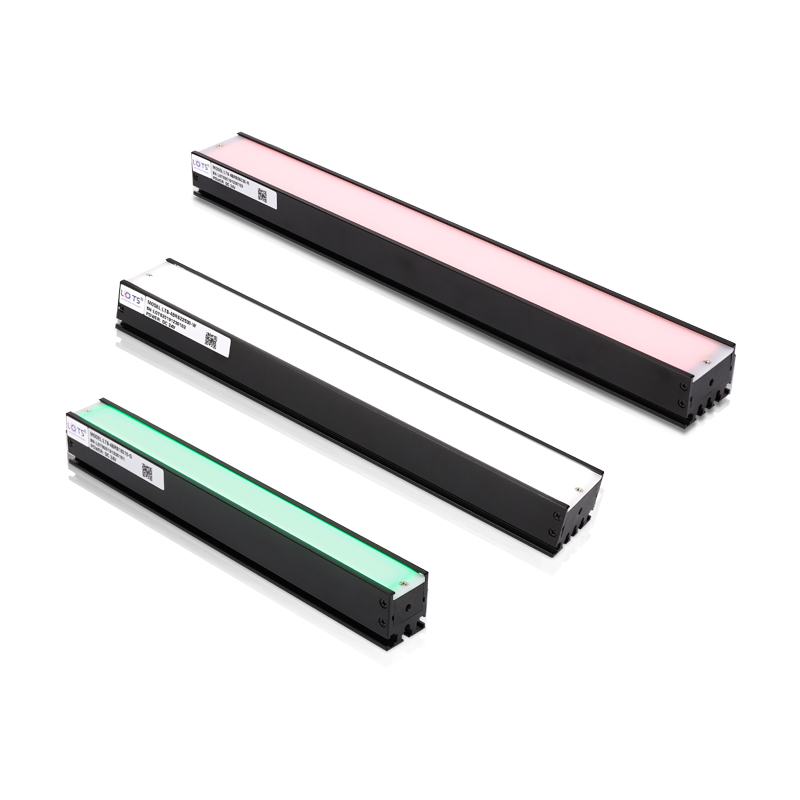

LXV-4BRS

High Uniformity Bar Light

High-density chip LEDs mounted on a PCB; can be combined freely and widely applied; can be used as the back light in some cases; Special heat transferring design to keep long working life.

Features

  • •Wide angle LED array design, high luminance.
  • •2.Processed by high precision mould, shorten the difference between different batch. high heat transmitting performance.
  • •3.Multiple installation method, easy to install.
  • •4.Different transmittance diffuser plate optional.

Applications

  • •Metal surface defect inspection.
  • •2.Printing character defect inspection.
  • •3.Edge defect inspection.
ModelColorDimensionVoltagePower
LXV-4BRS3016-R/BGWRed / Blue / Green / WhiteL42xW22xH26(mm)24V0.8W/1.1W
LXV-4BRS6016-R/BGWRed / Blue / Green / WhiteL72xW22xH26(mm)24V1.5W/2.2W
LXV-4BRS9016-R/BGWRed / Blue / Green / WhiteL102xW22xH26(mm)24V2.2W/3.3W
LXV-4BRS12016-R/BGWRed / Blue / Green / WhiteL132xW22xH26(mm)24V2.9W/4.4W
LXV-4BRS15016-R/BGWRed / Blue / Green / WhiteL162xW22xH26(mm)24V3.6W/5.4W
LXV-4BRS18016-R/BGWRed / Blue / Green / WhiteL192xW22xH26(mm)24V4.4W/6.4W
LXV-4BRS21016-R/BGWRed / Blue / Green / WhiteL222xW22xH26(mm)24V5.1W/7.6W
LXV-4BRS24016-R/BGWRed / Blue / Green / WhiteL252xW22xH26(mm)24V5.8W/8.7W
LXV-4BRS27016-R/BGWRed / Blue / Green / WhiteL282xW22xH26(mm)24V6.5W/9.8W
LXV-4BRS30016-R/BGWRed / Blue / Green / WhiteL312xW22xH26(mm)24V7.2W/10.8W
LXV-4BRS33016-R/BGWRed / Blue / Green / WhiteL342xW22xH26(mm)24V8.0W/11.9W
LXV-4BRS36016-R/BGWRed / Blue / Green / WhiteL372xW22xH26(mm)24V8.7W/13.0W
LXV-4BRS39016-R/BGWRed / Blue / Green / WhiteL402xW22xH26(mm)24V9.4W/14.1W
LXV-4BRS42016-R/BGWRed / Blue / Green / WhiteL432xW22xH26(mm)24V10.1W/15.2W
LXV-4BRS45016-R/BGWRed / Blue / Green / WhiteL462xW22xH26(mm)24V10.8W/16.2W
LXV-4BRS48016-R/BGWRed / Blue / Green / WhiteL492xW22xH26(mm)24V11.6W/17.3W
LXV-4BRS51016-R/BGWRed / Blue / Green / WhiteL522xW22xH26(mm)24V12.3W/18.4W
LXV-4BRS2530-R/BGWRed / Blue / Green / WhiteL37xW36xH26(mm)24V1.1W/1.1W
LXV-4BRS5030-R/BGWRed / Blue / Green / WhiteL62xW36xH26(mm)24V2.2W/2.2W
LXV-4BRS7530-R/BGWRed / Blue / Green / WhiteL87xW36xH26(mm)24V3.3W/3.3W
LXV-4BRS10030-R/BGWRed / Blue / Green / WhiteL112xW36xH26(mm)24V4.4W/4.4W
LXV-4BRS12530-R/BGWRed / Blue / Green / WhiteL137xW36xH26(mm)24V5.4W/5.4W
LXV-4BRS15030-R/BGWRed / Blue / Green / WhiteL162xW36xH26(mm)24V6.5W/6.5W
LXV-4BRS17530-R/BGWRed / Blue / Green / WhiteL187xW36xH26(mm)24V7.6W/7.6W
LXV-4BRS20030-R/BGWRed / Blue / Green / WhiteL212xW36xH26(mm)24V8.7W/8.7W
LXV-4BRS22530-R/BGWRed / Blue / Green / WhiteL237xW36xH26(mm)24V9.8W/9.8W
LXV-4BRS25030-R/BGWRed / Blue / Green / WhiteL262xW36xH26(mm)24V10.8W/10.8W
LXV-4BRS27530-R/BGWRed / Blue / Green / WhiteL287xW36xH26(mm)24V11.9W/11.9W
LXV-4BRS30030-R/BGWRed / Blue / Green / WhiteL312xW36xH26(mm)24V13.0W/13.0W
LXV-4BRS32530-R/BGWRed / Blue / Green / WhiteL337xW36xH26(mm)24V14.1W/14.1W
LXV-4BRS35030-R/BGWRed / Blue / Green / WhiteL362xW36xH26(mm)24V15.2W/15.2W
LXV-4BRS37530-R/BGWRed / Blue / Green / WhiteL387xW36xH26(mm)24V16.2W/16.2W
LXV-4BRS40030-R/BGWRed / Blue / Green / WhiteL412xW36xH26(mm)24V17.3W/17.3W
LXV-4BRS42530-R/BGWRed / Blue / Green / WhiteL437xW36xH26(mm)24V18.4W/18.4W
LXV-4BRS45030-R/BGWRed / Blue / Green / WhiteL462xW36xH26(mm)24V19.5W/19.5W
LXV-4BRS47530-R/BGWRed / Blue / Green / WhiteL487xW36xH26(mm)24V20.6W/20.6W
LXV-4BRS50030-R/BGWRed / Blue / Green / WhiteL512xW36xH26(mm)24V21.6W/21.6W
LXV-4BRS75030-R/BGWRed / Blue / Green / WhiteL762xW36xH26(mm)24V32.4W/32.4W
LXV-4BRS100030-R/BGWRed / Blue / Green / WhiteL1012xW36xH26(mm)24V43.2W/43.2W
LXV-4BRS150030-R/BGWRed / Blue / Green / WhiteL1512xW36xH26(mm)24V64.8W/64.8W
* UV & IR light can be customized as required.----
IMAGING COMPARISON

Application Effect Analysis

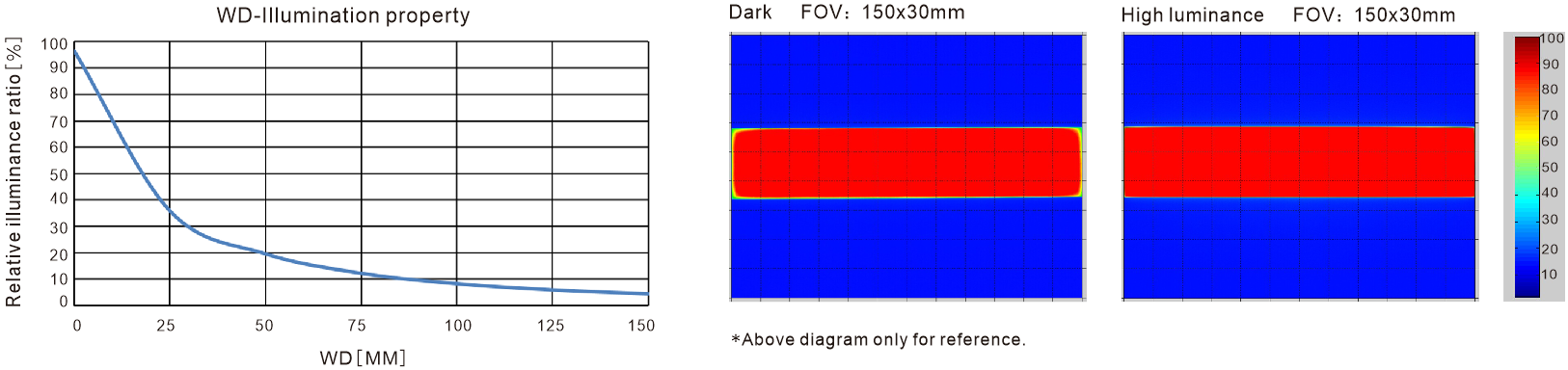

Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-4BRS.

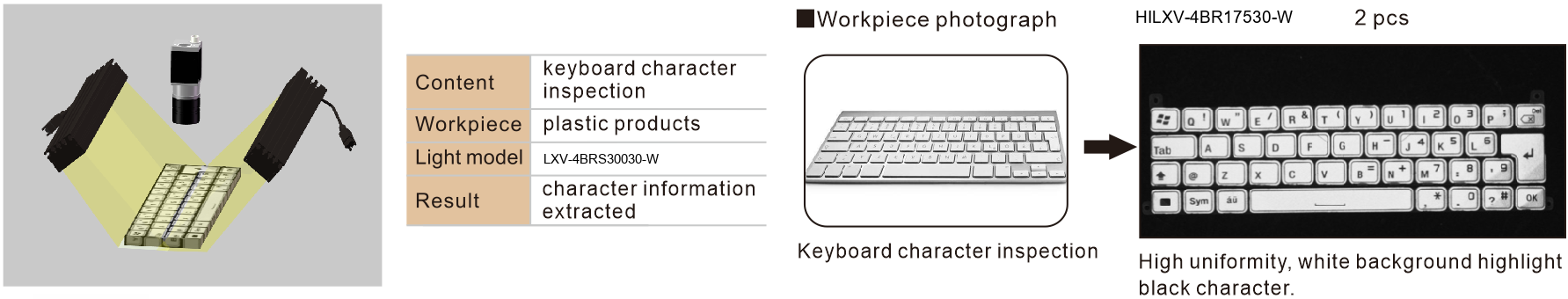

LXV-4BRS application case 1

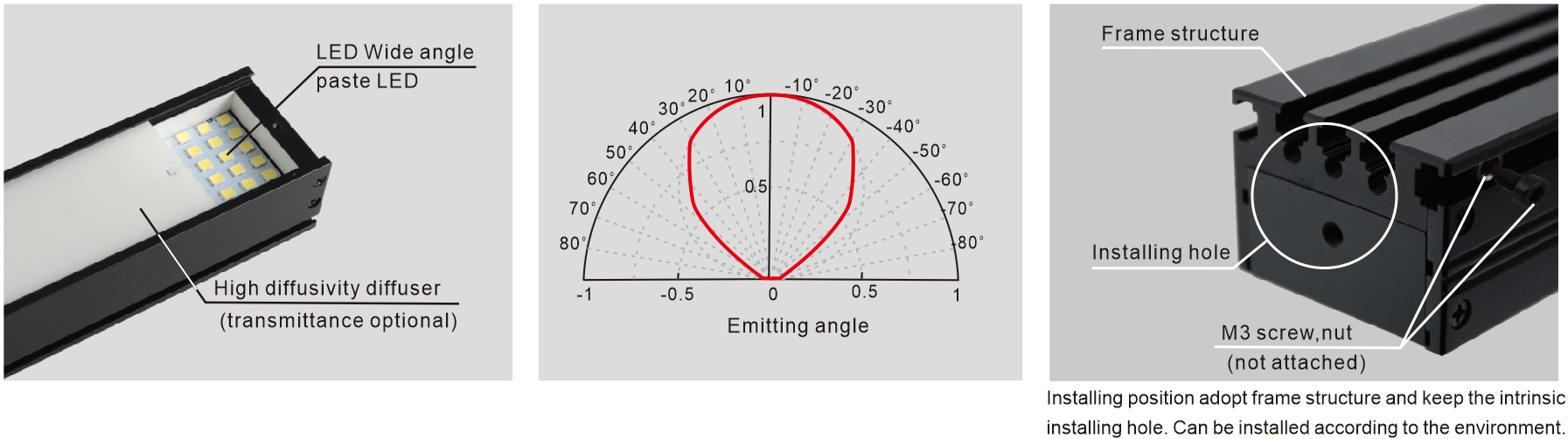

LXV-4BRS application case 2
LXV-4BRS application case 3
LXV-4BRS application case 4
OPTICAL DESIGN & NAMING

Optical Diagram & Model Naming Convention

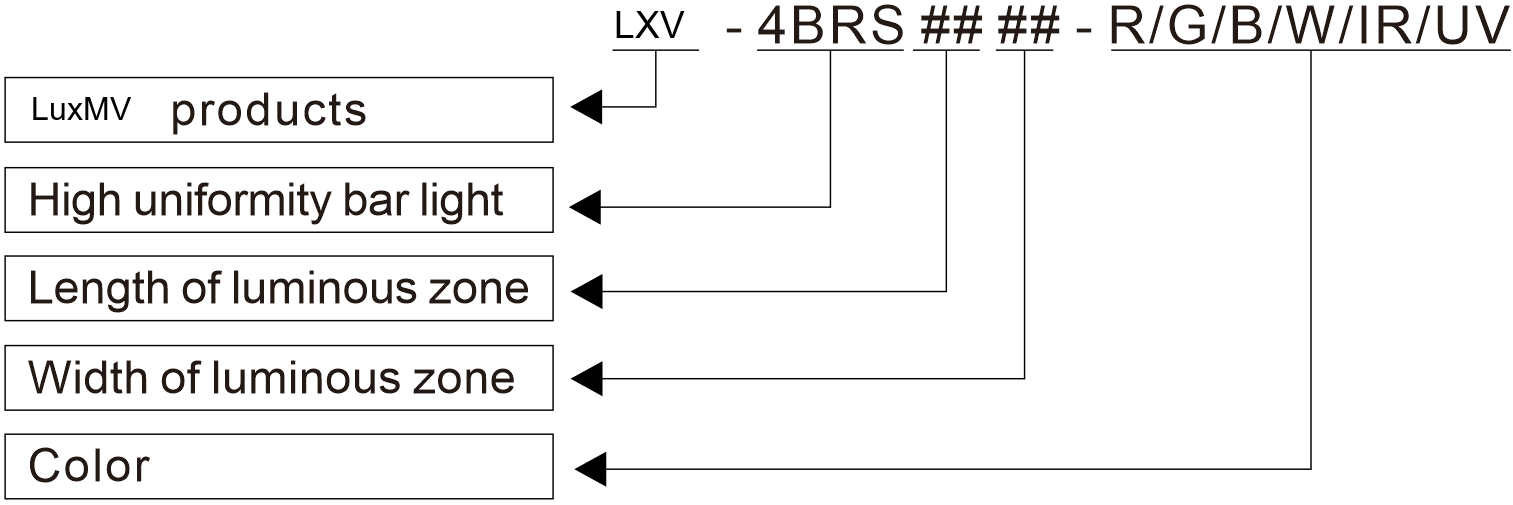

Model Naming Convention

Vector Diagram
LXV-BRS####W/R/B/GLuxMV productBar light (linear light)Length (mm)Width (mm)LED light color/wavelength
DIRECT ENQUIRY

Get a Customized Quotation

Need specific dimensions, custom wavelength LED combinations, or special cabling? Our optical engineering and sales offices are ready to assist.

Sales Email: info@luxmv.com
Response SLA: Under 4 Hours (Business Days)

Free Optical Simulation

Send us your target workpiece samples. We will test them in our R&D lighting darkrooms and supply a selection report completely free.

Request Technical Quotation

Our optical engineering sales team responds to all corporate requests within 4 hours.
