Machine Vision Light
LXV-4COXL/4COHL/3COHL/4COSL

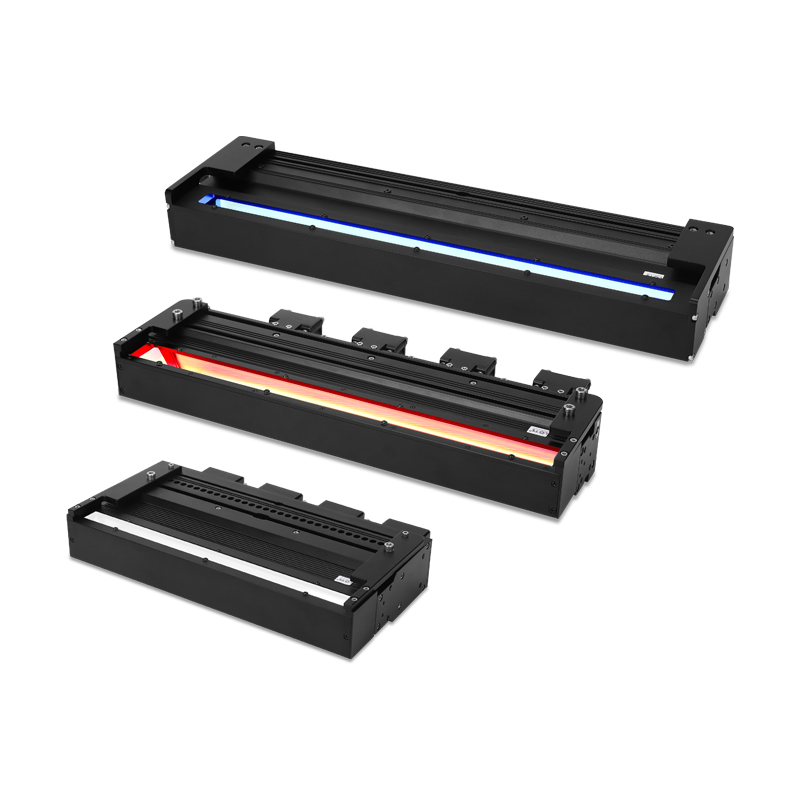

Coaxial Line Scan Light
Special cylindrical condenser lens is adopted to gather high brightness LEDs into a high brightness linear light; Optimal uniform light for shiny and reflective surfaces.
Features
- •Special structure and optical lens design adopted.
- •2.Good uniformity.
- •3.Good stability and high heat dissipation performance.
Applications
- •PCB inspection.
- •2.Mobile screen inspection.
- •3.Steel plate inspection.
- •4.Glass scratch inspection.
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-4COXL100-R/BGW | Red / Blue / Green / White | L140xW56xH115(mm) | 24V | 18W |
| LXV-4COXL200-R/BGW | Red / Blue / Green / White | L240xW56xH115(mm) | 24V | 36W |
| LXV-4COXL300-R/BGW | Red / Blue / Green / White | L340xW56xH115(mm) | 24V | 54W |
| LXV-4COXL400-R/BGW | Red / Blue / Green / White | L440xW56xH115(mm) | 24V | 72W |
| LXV-4COXL500-R/BGW | Red / Blue / Green / White | L540xW56xH115(mm) | 24V | 90W |
| LXV-4COXL600-R/BGW | Red / Blue / Green / White | L640xW56xH115(mm) | 24V | 108W |
| LXV-4COXL700-R/BGW | Red / Blue / Green / White | L740xW56xH115(mm) | 24V | 126W |
| LXV-4COXL800-R/BGW | Red / Blue / Green / White | L840xW56xH115(mm) | 24V | 144W |
| LXV-4COXL900-R/BGW | Red / Blue / Green / White | L940xW56xH115(mm) | 24V | 162W |
| LXV-4COXL1000-R/BGW | Red / Blue / Green / White | L1040xW56xH115(mm) | 24V | 180W |
| LXV-4COHL100-R/BGW | White | L140xW142.1xH56(mm) | 24V | 34.6W |
| LXV-4COHL200-R/BGW | White | L240xW142.1xH56(mm) | 24V | 64.8W |
| LXV-4COHL300-R/BGW | White | L340xW142.1xH56(mm) | 24V | 95.0W |
| LXV-4COHL400-R/BGW | White | L440xW142.1xH56(mm) | 24V | 130W |
| LXV-4COHL500-R/BGW | White | L540xW142.1xH56(mm) | 24V | 165W |
| LXV-4COHL600-R/BGW | White | L640xW142.1xH56(mm) | 24V | 190W |
| LXV-4COHL700-R/BGW | White | L740xW142.1xH56(mm) | 24V | 221W |
| LXV-4COHL800-R/BGW | White | L840xW142.1xH56(mm) | 24V | 260W |
| LXV-4COHL900-R/BGW | White | L940xW142.1xH56(mm) | 24V | 286W |
| LXV-4COHL1000-R/BGW | White | L1040xW142.1xH56(mm) | 24V | 324W |
| LXV-3COHL100-R/BGW | Red / Blue / Green / White | L100xW58xH168.5(mm) | 24V | 48W |
| LXV-3COHL200-R/BGW | Red / Blue / Green / White | L200xW58xH168.5(mm) | 24V | 120W |
| LXV-3COHL300-R/BGW | Red / Blue / Green / White | L300xW58xH168.5(mm) | 24V | 168W |
| LXV-3COHL400-R/BGW | Red / Blue / Green / White | L400xW58xH168.5(mm) | 24V | 240W |
| LXV-3COHL500-R/BGW | Red / Blue / Green / White | L500xW58xH168.5(mm) | 24V | 288W |
| LXV-3COHL600-R/BGW | Red / Blue / Green / White | L600xW58xH168.5(mm) | 24V | 336W |
| LXV-3COHL700-R/BGW | Red / Blue / Green / White | L700xW58xH168.5(mm) | 48V | 432W |
| LXV-3COHL800-R/BGW | Red / Blue / Green / White | L800xW58xH168.5(mm) | 48V | 480W |
| LXV-3COHL900-R/BGW | Red / Blue / Green / White | L900xW58xH168.5(mm) | 48V | 576W |
| LXV-3COHL1000-R/BGW | Red / Blue / Green / White | L1000xW58xH168.5(mm) | 48V | 642W |
| LXV-4COSL100-R/BGW | White | L140xW157.1xH58(mm) | 24V | 84W |
| LXV-4COSL200-R/BGW | White | L240xW157.1xH58(mm) | 24V | 168W |
| LXV-4COSL300-R/BGW | White | L340xW157.1xH58(mm) | 24V | 252W |
| LXV-4COSL400-R/BGW | White | L440xW157.1xH58(mm) | 24V | 336W |
| LXV-4COSL500-R/BGW | White | L540xW157.1xH58(mm) | 48V | 420W |
| LXV-4COSL600-R/BGW | White | L640xW157.1xH58(mm) | 48V | 504W |
| LXV-4COSL700-R/BGW | White | L740xW157.1xH58(mm) | 48V | 588W |
| LXV-4COSL800-R/BGW | White | L840xW157.1xH58(mm) | 48V | 672W |
| LXV-4COSL900-R/BGW | White | L940xW157.1xH58(mm) | 48V | 756W |
| LXV-4COSL1000-R/BGW | White | L1040xW157.1xH58(mm) | 48V | 840W |
| * UV & IR light can be customized as required. | - | - | - | - |

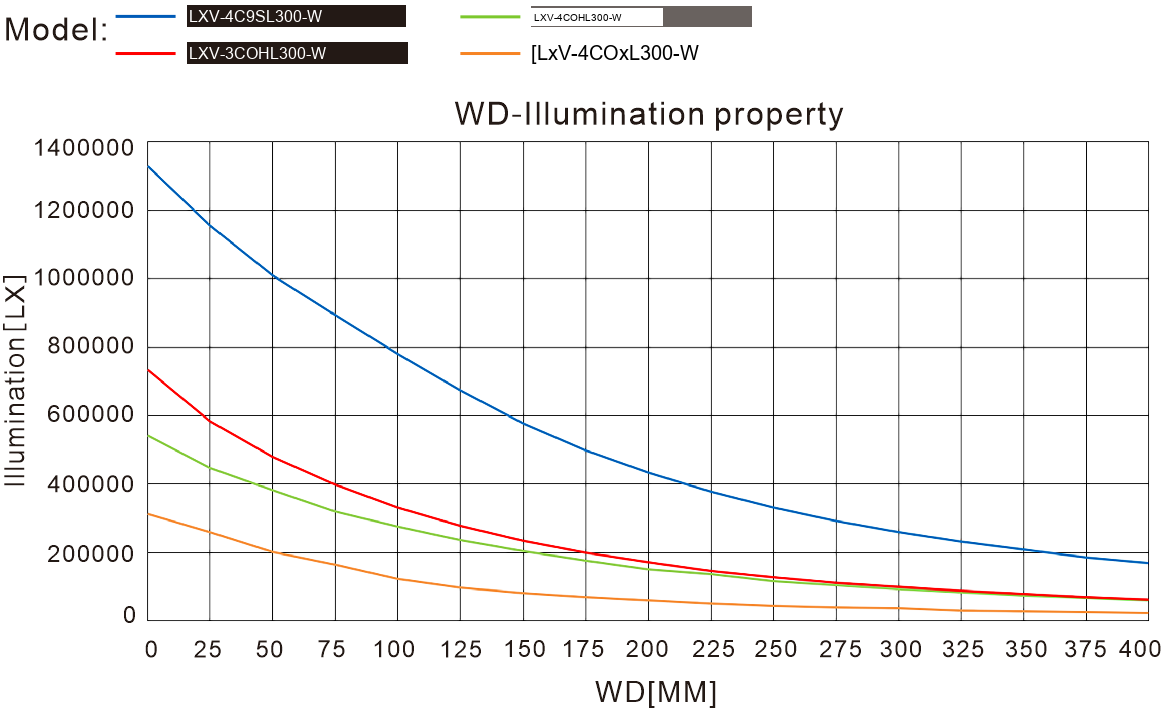

IMAGING COMPARISON

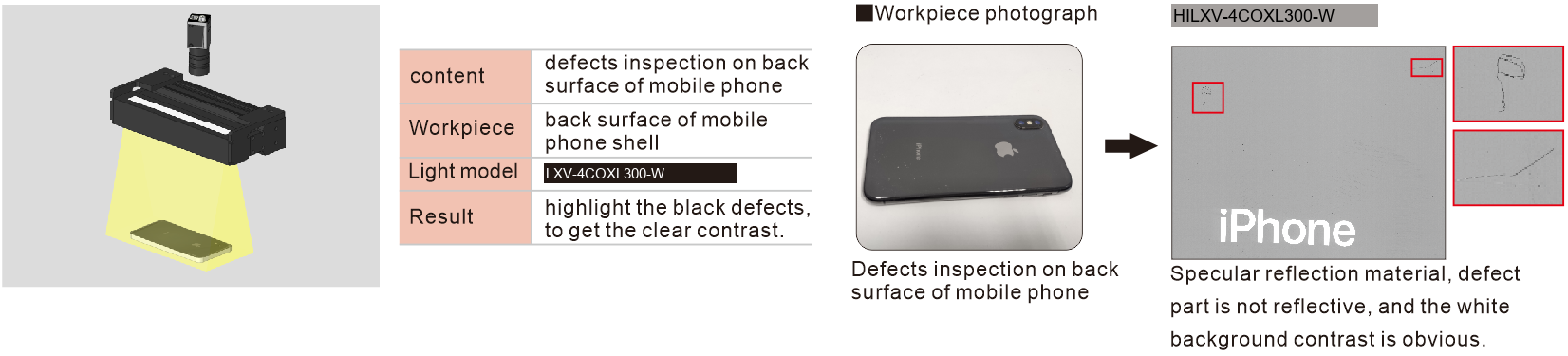

Application Effect Analysis

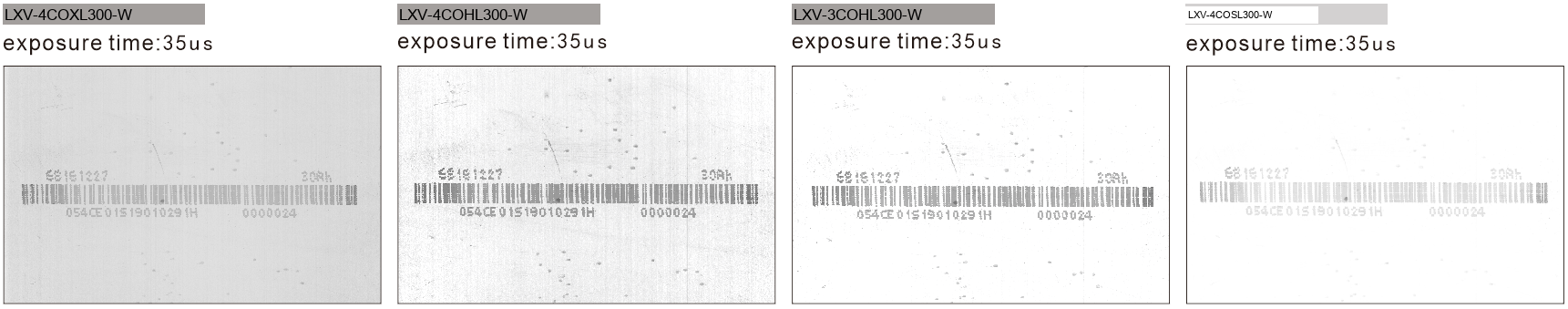

Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-4COXL/4COHL/3COHL/4COSL.
OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention
Model Naming Convention

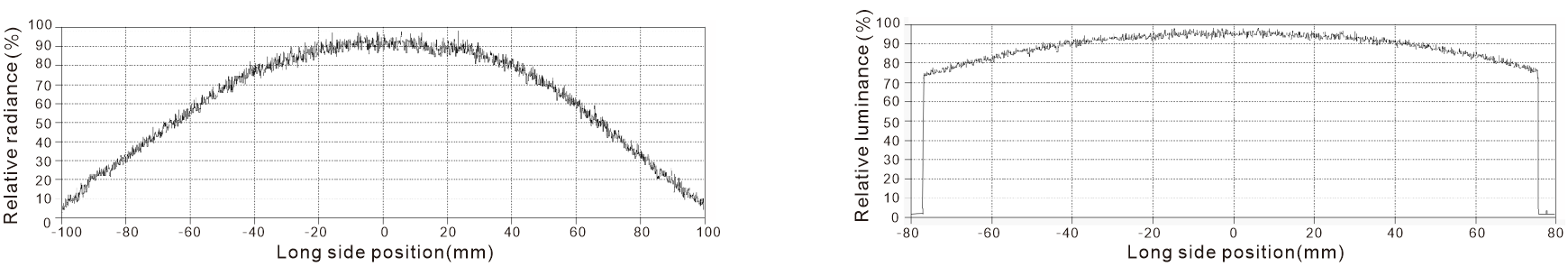

Vector Diagram
