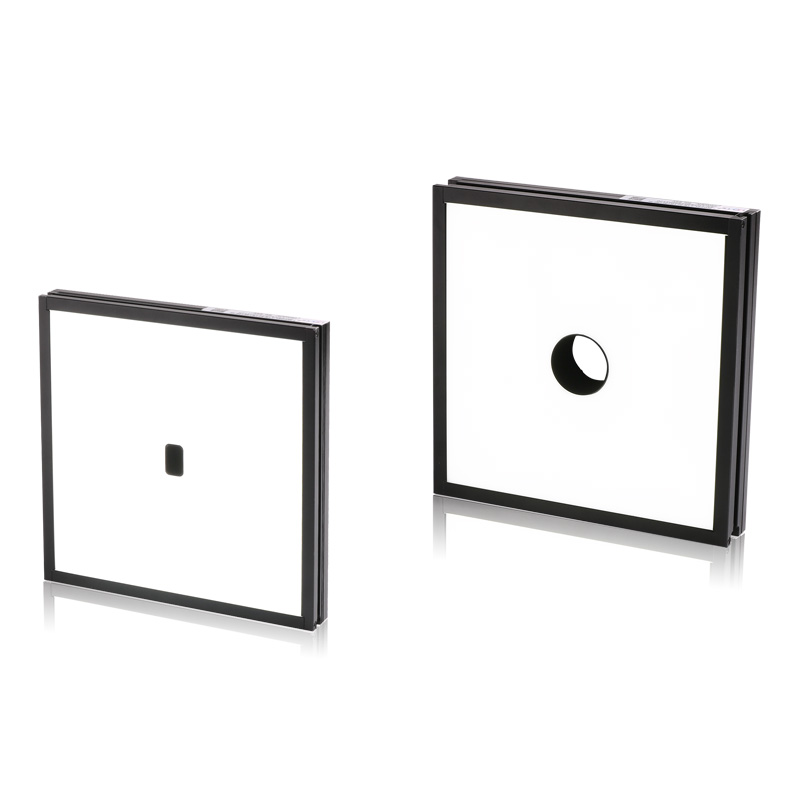

Machine Vision Light
LXV-4FTB/4FTR/3FTR
Ring Back Light
1.Boundary dimension measurement. 2.Damaged edge inspection. 3.Transparency impurity inspection. 4.Oral liquid level height inspection.
Features
- •High-density LED distribute to the bottom of the light.
- •2.High uniformity, high luminance.
- •3.Diverse dimension for reference, used to various applications.
- •4.Emitting area and the center hole can be customized.
Applications
- •Boundary dimension measurement.
- •2.Damaged edge inspection.
- •3.Transparency impurity inspection.
- •4.Oral liquid level height inspection.
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-4FTB9090-R/BGW | Red / Blue / Green / White | L104xW104xH21(mm) | 24V | 5.9W/7.4W |
| LXV-4FTB110110-R/BGW | Red / Blue / Green / White | L146xW124xH21(mm) | 24V | 6.4W/8.0W |
| LXV-4FTB140140-R/BGW | Red / Blue / Green / White | L154xW154xH21(mm) | 24V | 13.8W/17.5W |
| LXV-4FTB200100-R/BGW | Red / Blue / Green / White | L214xW114xH21(mm) | 24V | 12.2W/15.4W |
| LXV-4FTB200180-R/BGW | Red / Blue / Green / White | L236xW194xH21mm) | 24V | 23.3W/29.1W |
| LXV-4FTB236186-R/BGW | Red / Blue / Green / White | L250xW200xH21(mm) | 24V | 27.5W/35.4W |
| LXV-4FTR120120-D30-R/BGW | Red / Blue / Green / White | L134xW134xH17(mm) | 24V | 9.6W/12.2W |
| LXV-4FTR141141-D35-R/BGW | Red / Blue / Green / White | L155xW155xH17(mm) | 24V | 12.2W/15.4W |
| LXV-4FTR150150-D30-R/BGW | Red / Blue / Green / White | L164xW164xH19(mm) | 24V | 15.9W/20.6W |
| LXV-4FTR170170-2D40-R/BGW | Red / Blue / Green / White | L184xW184xH17(mm) | 24V | 18.0W/22.2W |
| LXV-4FTR180180-D40-R/BGW | Red / Blue / Green / White | L194xW194xH19mm) | 24V | 21.2W/26.4W |
| LXV-4FTR200100-2D40-R/BGW | Red / Blue / Green / White | L214xW114xH19(mm) | 24V | 11.7W/14.8W |
| LXV-4FTR200200-D50-R/BGW | Red / Blue / Green / White | L214xW214xH17(mm) | 24V | 27.5W/34.4W |
| LXV-4FTR250210-D60-R/BGW | Red / Blue / Green / White | L286xW224xH19(mm) | 24V | 31.7W/46.0W |
| LXV-4FTR300200-D40-R/BGW | Red / Blue / Green / White | L314xW214xH21(mm) | 24V | 43.9W/55.0W |
| LXV-4FTR400300-D50-R/BGW | Red / Blue / Green / White | L414xW314xH19(mm) | 24V | 65.5W/82.4W |
| LXV-3FTR100100-D34-R/BGW | Red / Blue / Green / White | L117xW117xH27(mm) | 24V | 6.4W/8.5W |
| LXV-3FTR110110-D40-R/BGW | Red / Blue / Green / White | L127W127xH23(mm) | 24V | 9.8W/12.3W |
| LXV-3FTR150100-D40-R/BGW | Red / Blue / Green / White | L167xW117xH25(mm) | 24V | 11.9W/14.8W |
| LXV-3FTR150150-D30-R/BGW | Red / Blue / Green / White | L167xW167xH27(mm) | 24V | 15.9W/20.1W |
| LXV-3FTR200200-D50-R/BGW | Red / Blue / Green / White | L217xW217xH27(mm) | 24V | 25.4W/31.7W |
| LXV-3FTR220220-D60-R/BGW | Red / Blue / Green / White | L237xW237xH27(mm) | 24V | 33.9W/42.2W |
| LXV-3FTR300220-D45-R/BGW | Red / Blue / Green / White | L317xW217xH25(mm) | 24V | 52.6W/65.9W |
| LXV-3FTR300300-D50-R/BGW | Red / Blue / Green / White | L317xW317xH27(mm) | 24V | 58.1W/73.4W |
| LXV-3FTR350300-D80-R/BGW | Red / Blue / Green / White | L367W317xH27(mm) | 24V | 57.1W/70.8W |
| LXV-3FTR400300-D50-R/BGW | Red / Blue / Green / White | L417xW317xH27(mm) | 24V | 65.5W/82.4W |
| LXV-3FTR400400-D50-R/BGW | Red / Blue / Green / White | L417xW417xH30(mm) | 24V | 82.6W/103.5W |
| LXV-3FTR500400-D65-R/BGW | Red / Blue / Green / White | L517xW417xH30(mm) | 24V | 126.8W/158.4W |
| LXV-3FTR500500-D60-R/BGW | Red / Blue / Green / White | L517xW517xH31(mm) | 24V | 82.1W/102.3W |
| LXV-3FTR600600-D50-R/BGW | Red / Blue / Green / White | L617xW617xH51(mm) | 24V | 184.4W/231.9W |
| LXV-3FTR1000700-D65-R/BGW | Red / Blue / Green / White | L1017xW717xH51(mm) | 24V | 363.6W/390.0W |
| * UV & IR light can be customized as required. | - | - | - | - |

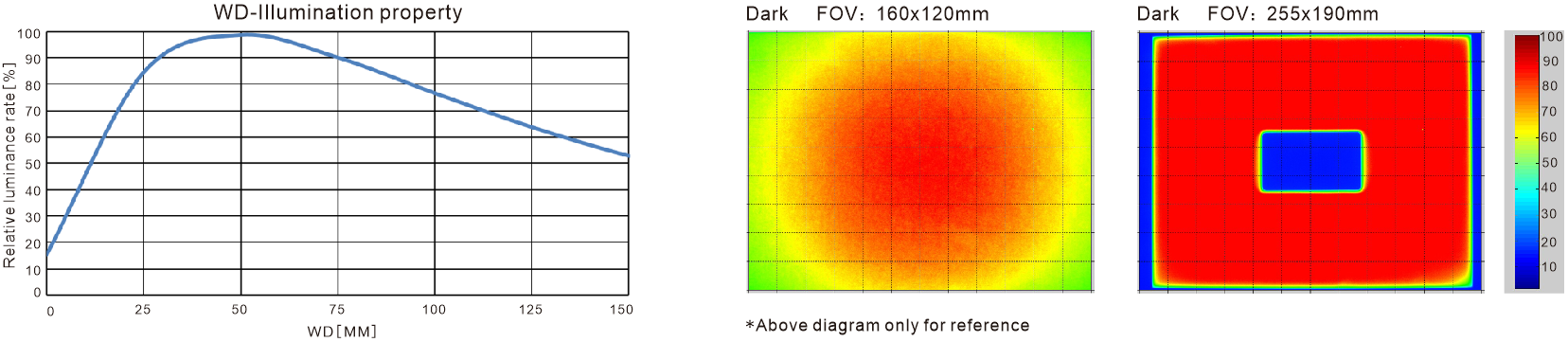

IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-4FTB/4FTR/3FTR.
OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention
Model Naming Convention
