Machine Vision Light

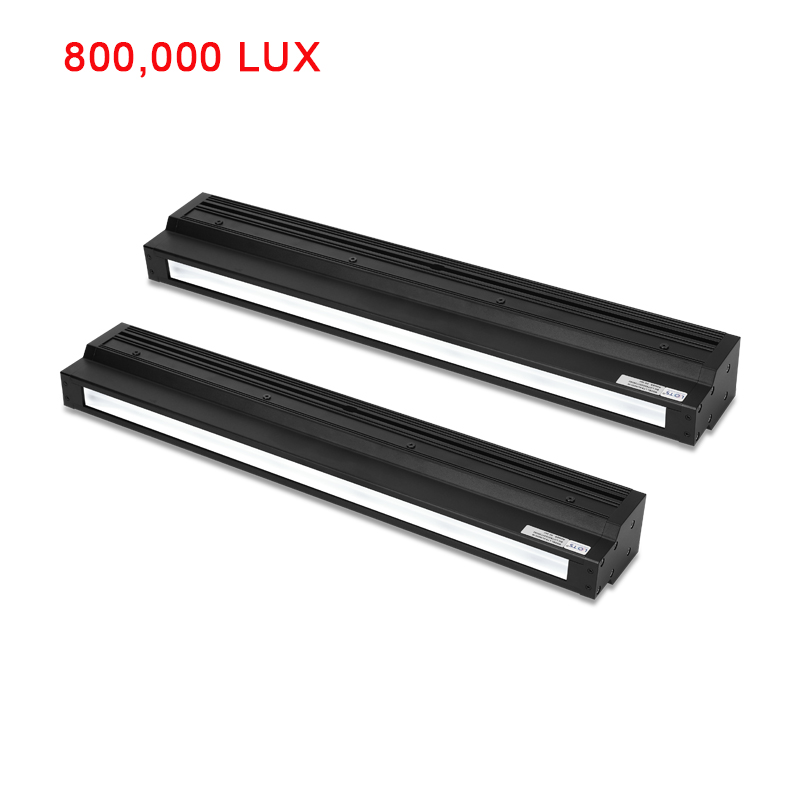

LXV-4LIN
Natural Cooling Line Scan Light
1.Steel plate inspection. 2.Glass plate inspection. 3.PCB board inspection. 4.Metal surface inspection.
Features
- •High uniformity & parallelism, perfectly match to line scan camera.
- •2.Light weight, good heat dissipation, high brightness.
- •3.High cost performance, compact size, suitable for batch use.
- •4.Fan-less natural cooling type, suitable for dust-free room.
- •5.Can be used as direct light or backlight.
- •6.Can replace fiber line light.
Applications
- •Steel plate inspection.
- •2.Glass plate inspection.
- •3.PCB board inspection.
- •4.Metal surface inspection.
- •5.Lithium battery film inspection.
- •6.Visual inspection.
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-4LIN100-R/BGW | Red / Blue / Green / White | L140xW48xH75(mm) | 24V | 20W |
| LXV-4LIN200-R/BGW | Red / Blue / Green / White | L240xW48xH75(mm) | 24V | 34W |
| LXV-4LIN300-R/BGW | Red / Blue / Green / White | L340xW48xH75(mm) | 24V | 53W |
| LXV-4LIN400-R/BGW | Red / Blue / Green / White | L440xW48xH75(mm) | 24V | 68W |
| LXV-4LIN500-R/BGW | Red / Blue / Green / White | L540xW48xH75(mm) | 24V | 87W |
| LXV-4LIN600-R/BGW | Red / Blue / Green / White | L640xW48xH75(mm) | 24V | 101W |
| LXV-4LIN700-R/BGW | Red / Blue / Green / White | L740xW48xH75(mm) | 24V | 116W |
| LXV-4LIN800-R/BGW | Red / Blue / Green / White | L840xW48xH75(mm) | 24V | 135W |
| LXV-4LIN900-R/BGW | Red / Blue / Green / White | L940xW48xH75(mm) | 24V | 154W |
| LXV-4LIN1000-R/BGW | Red / Blue / Green / White | L1040xW48xH75(mm) | 24V | 168W |
| * UV & IR light can be customized as required. | - | - | - | - |

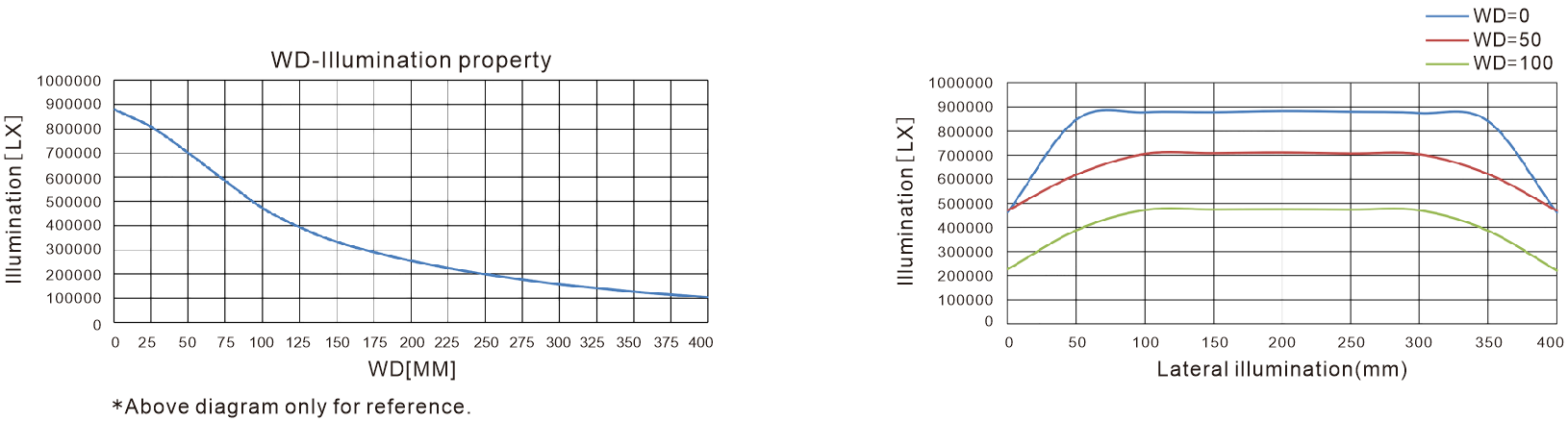

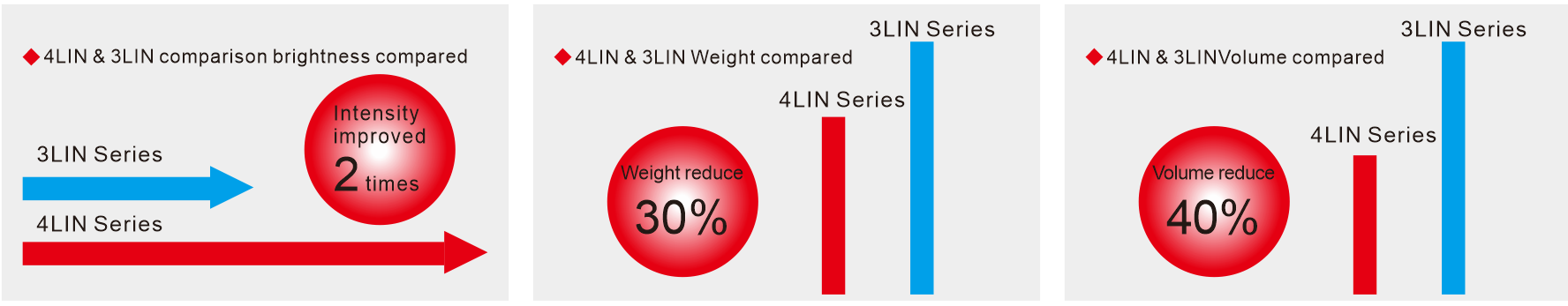

IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-4LIN.

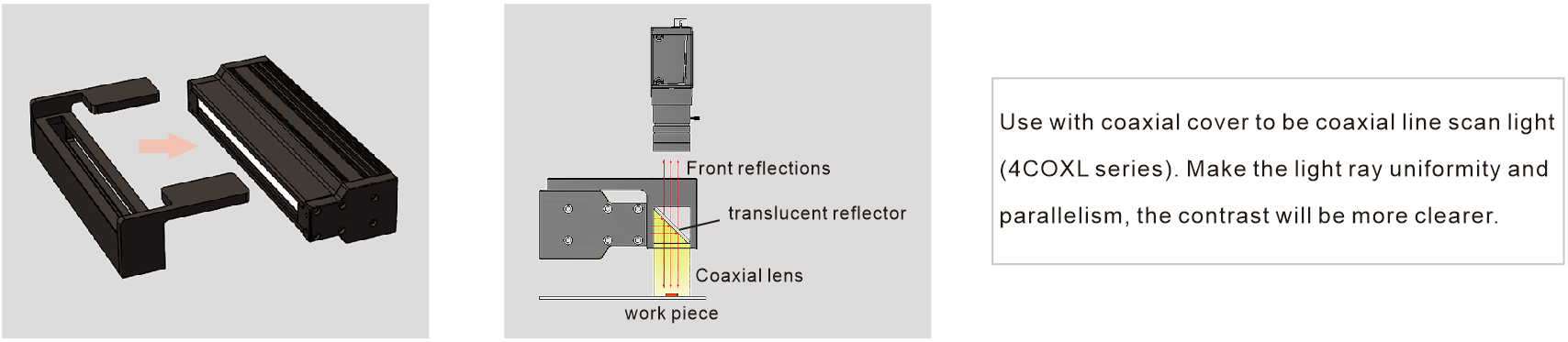

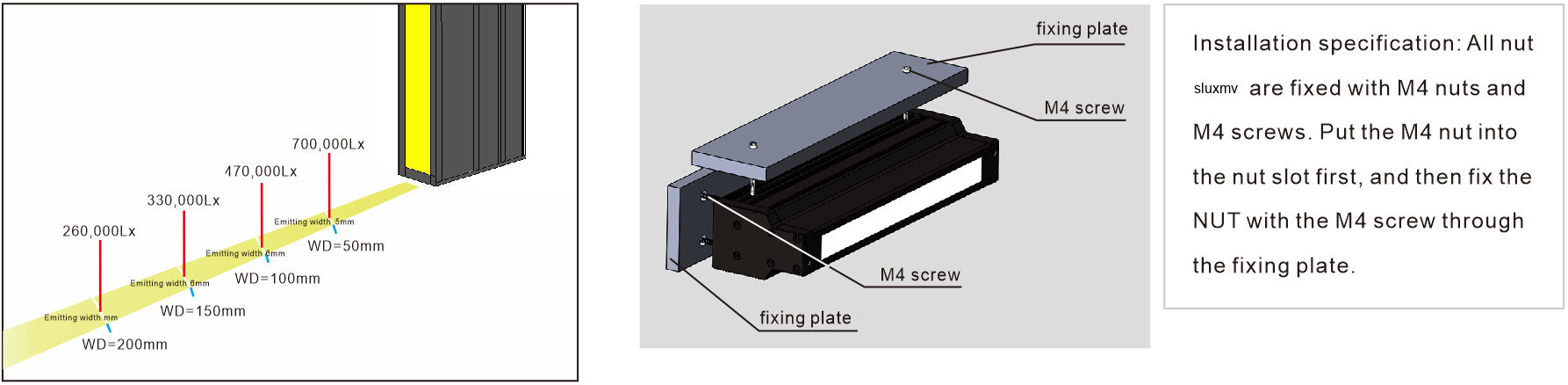

OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention
Model Naming Convention
Vector DiagramDIRECT ENQUIRY
Get a Customized Quotation
Need specific dimensions, custom wavelength LED combinations, or special cabling? Our optical engineering and sales offices are ready to assist.
Sales Email: info@luxmv.com
Response SLA: Under 4 Hours (Business Days)
Free Optical Simulation
Send us your target workpiece samples. We will test them in our R&D lighting darkrooms and supply a selection report completely free.
Request Technical Quotation
Our optical engineering sales team responds to all corporate requests within 4 hours.
