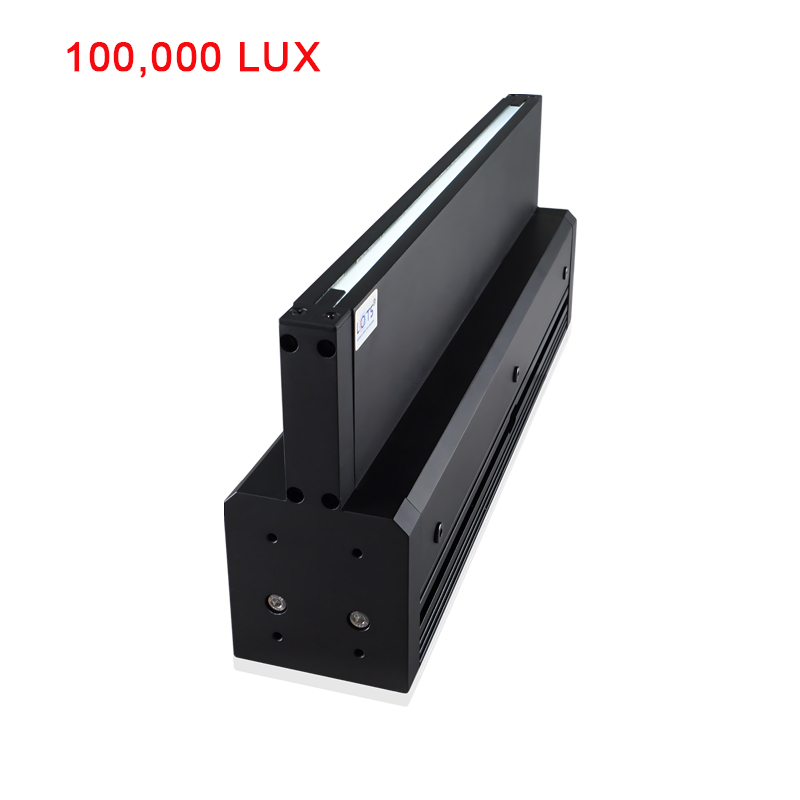

Machine Vision Light
LXV-4LINA
Narrow Line Scan Light
1.Display Dust Detection. 2.Narrow Space Use. 3.Contour Edge Detection. 4.Cleanroom Inspection.
Features
- •Emits uniform and slender light strips.
- •2.The head of the light-emitting area is narrow, suitable for ultra-narrow spaces.
- •3.Large bottom heat dissipation area ensures high brightness and excellent heat dissipation.
- •4.Length can be customized according to customer requirements.
Applications
- •Display Dust Detection.
- •2.Narrow Space Use.
- •3.Contour Edge Detection.
- •4.Cleanroom Inspection.
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-4LINA100-R/BGW | Red / Blue / Green / White | L140xW48xH105.5(mm) | 24V | 14.4W |
| LXV-4LINA200-R/BGW | Red / Blue / Green / White | L240xW48xH105.5(mm) | 24V | 33.6W |
| LXV-4LINA300-R/BGW | Red / Blue / Green / White | L340xW48xH105.5(mm) | 24V | 52.8W |
| LXV-4LINA400-R/BGW | Red / Blue / Green / White | L440xW48xH105.5(mm) | 24V | 67.2W |
| LXV-4LINA500-R/BGW | Red / Blue / Green / White | L540xW48xH105.5(mm) | 24V | 76.8W |
| LXV-4LINA600-R/BGW | Red / Blue / Green / White | L640xW48xH105.5(mm) | 24V | 96.0W |
| LXV-4LINA700-R/BGW | Red / Blue / Green / White | L740xW48xH105.5(mm) | 24V | 116W |
| LXV-4LINA800-R/BGW | Red / Blue / Green / White | L840xW48xH105.5(mm) | 24V | 135W |
| LXV-4LINA900-R/BGW | Red / Blue / Green / White | L940xW48xH105.5(mm) | 24V | 144W |
| LXV-4LINA1000-R/BGW | Red / Blue / Green / White | L1040xW48xH105.5(mm) | 24V | 168W |
| * UV & IR light can be customized as required. | - | - | - | - |

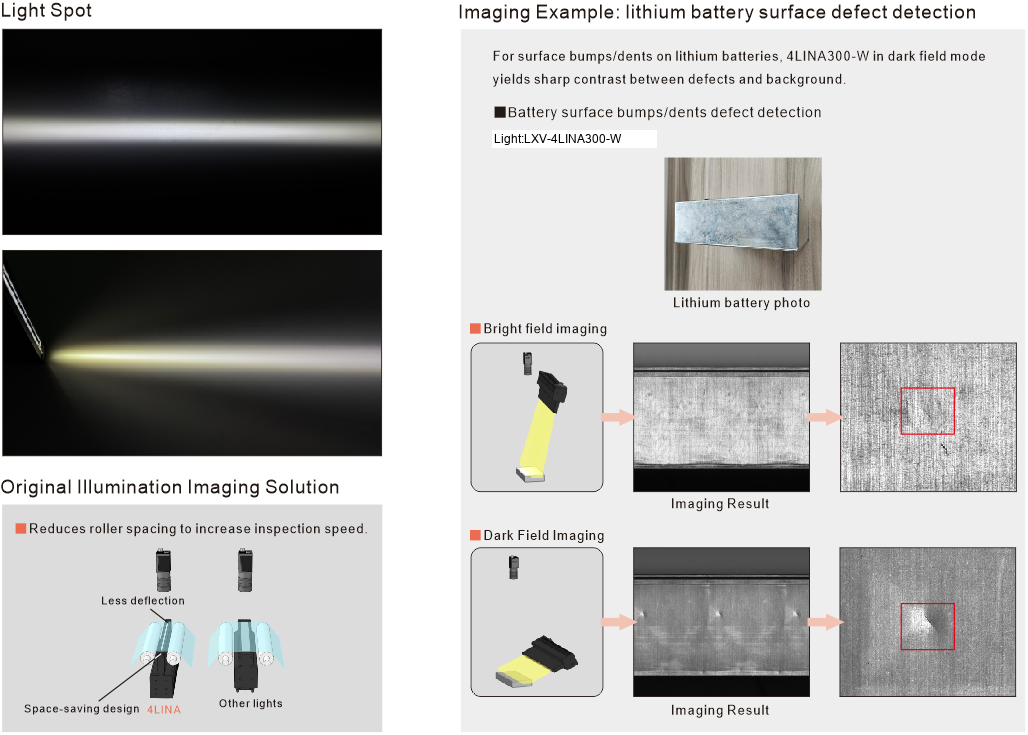

IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-4LINA.

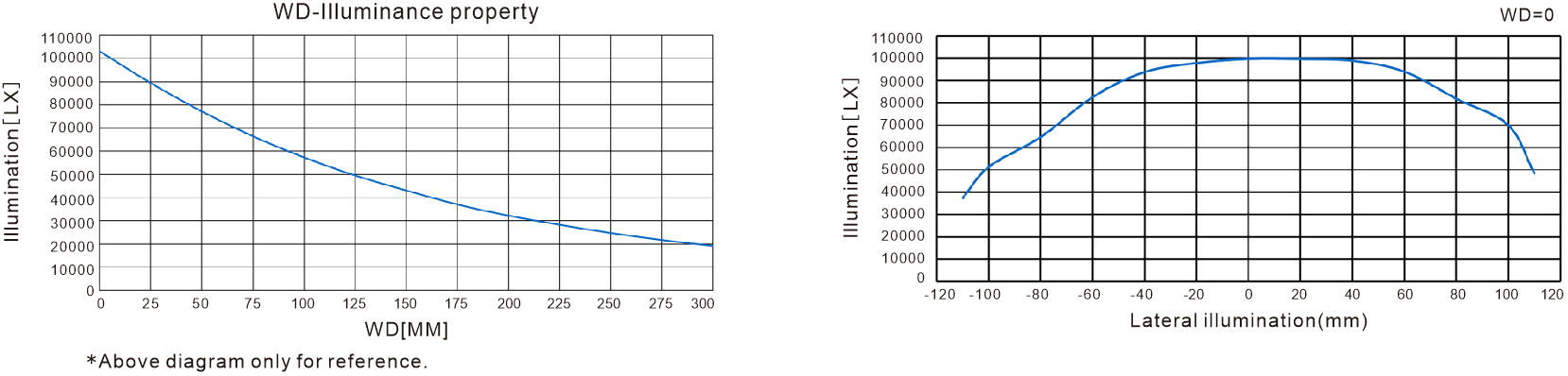

OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention
Model Naming Convention
