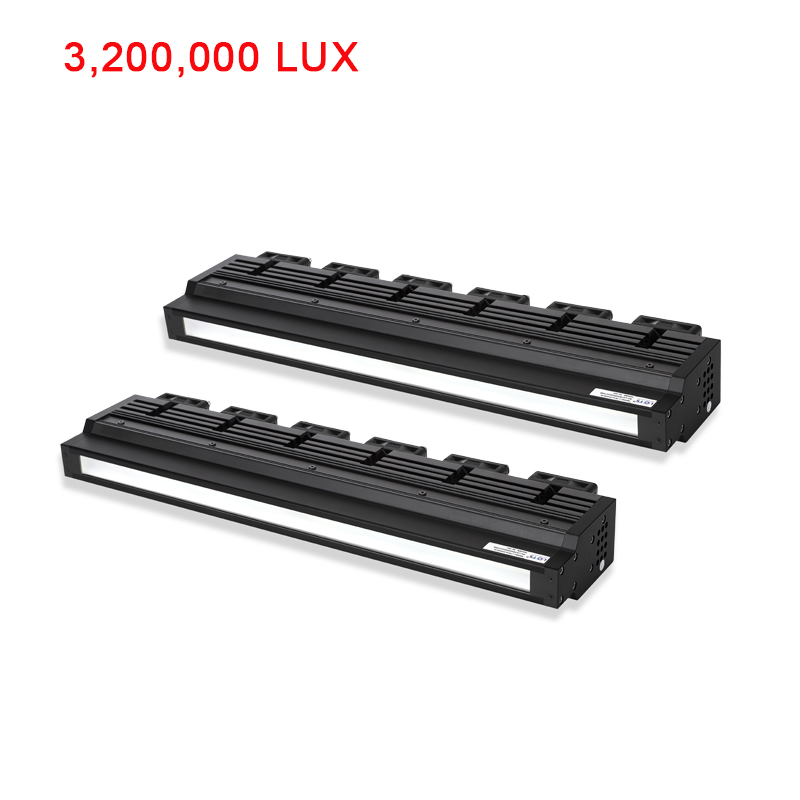

Machine Vision Light
LXV-4LINH
Ultra Brightness Line Scan Light
1.Unique optical design, luminance reach to 3.2 millions. 2.High uniformity and good parallelism. 3.Matched with high speed line scan camera.
Features
- •Unique optical design, luminance reach to 3.2 millions.
- •2.High uniformity and good parallelism.
- •3.Matched with high speed line scan camera.
Applications
- •Steel plate inspection.
- •2.Glass surface inspection.
- •3.Metal surface inspection.
- •4.Contour edges inspection.
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-4LINH100-R/BGW | Red / Blue / Green / White | L140xW50xH117.13(mm) | 24V | 84W |
| LXV-4LINH200-R/BGW | Red / Blue / Green / White | L240xW50xH117.13(mm) | 24V | 168W |
| LXV-4LINH300-R/BGW | Red / Blue / Green / White | L340xW50xH117.13(mm) | 24V | 252W |
| LXV-4LINH400-R/BGW | Red / Blue / Green / White | L440xW50xH117.13(mm) | 24V | 336W |
| LXV-4LINH500-R/BGW | Red / Blue / Green / White | L540xW50xH117.13(mm) | 48V | 420W |
| LXV-4LINH600-R/BGW | Red / Blue / Green / White | L640xW50xH117.13(mm) | 48V | 504W |
| LXV-4LINH700-R/BGW | Red / Blue / Green / White | L740xW50xH117.13(mm) | 48V | 588W |
| LXV-4LINH800-R/BGW | Red / Blue / Green / White | L840xW50xH117.13(mm) | 48V | 672W |
| LXV-4LINH900-R/BGW | Red / Blue / Green / White | L940xW50xH117.13(mm) | 48V | 756W |
| LXV-4LINH1000-R/BGW | Red / Blue / Green / White | L1040xW50xH117.13(mm) | 48V | 840W |
| * UV & IR light can be customized as required. | - | - | - | - |
IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-4LINH.

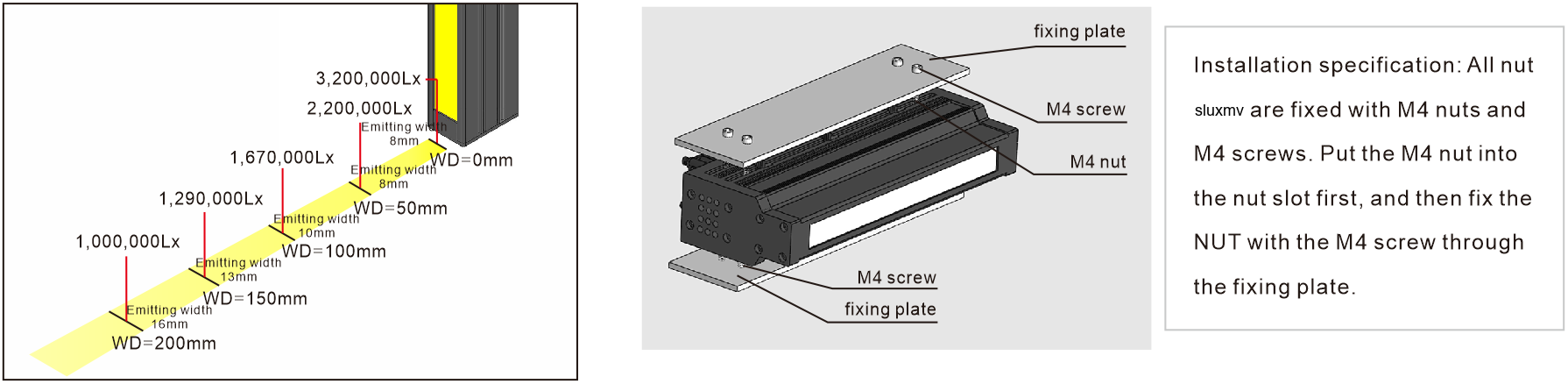

OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention
Model Naming Convention
