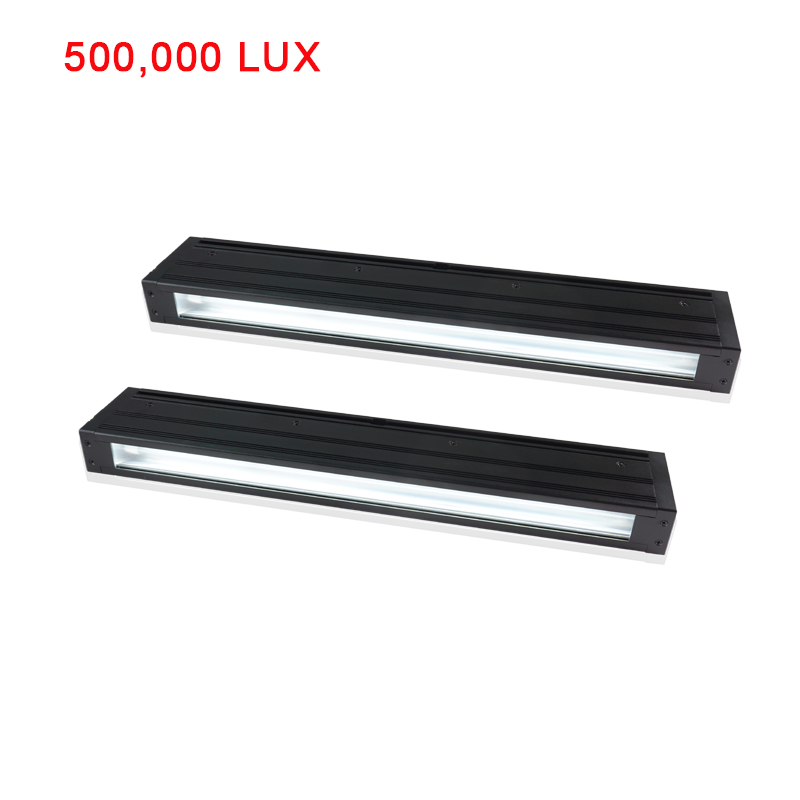

Machine Vision Light
LXV-4LINL
Compact Line Scan Light
1.Fabric pattern lines inspection. 2.Dust inspection on the surface of glass panels. 3.Contour edge inspection. 4.Dust-free environment inspection.
Features
- •High-brightness and uniform, with excellent parallelism.
- •2.Compact in size, with a width of only 30mm and a height of 60mm.
- •3.The dust removal detection effect is relatively good, natural cooling.
- •4.High cost performance and can be customized to different lengths.
- •5.Suitable for use in narrow Spaces.
Applications
- •Fabric pattern lines inspection.
- •2.Dust inspection on the surface of glass panels.
- •3.Contour edge inspection.
- •4.Dust-free environment inspection.
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-4LINL100-R/BGW | Red / Blue / Green / White | L140xW30xH60(mm) | 24V | 10.8W |
| LXV-4LINL200-R/BGW | Red / Blue / Green / White | L240xW30xH60(mm) | 24V | 21.6W |
| LXV-4LINL300-R/BGW | Red / Blue / Green / White | L340xW30xH60(mm) | 24V | 32.4W |
| LXV-4LINL400-R/BGW | Red / Blue / Green / White | L440xW30xH60(mm) | 24V | 43.2W |
| LXV-4LINL500-R/BGW | Red / Blue / Green / White | L540xW30xH60(mm) | 24V | 54.0W |
| LXV-4LINL600-R/BGW | Red / Blue / Green / White | L640xW30xH60(mm) | 24V | 64.8W |
| LXV-4LINL700-R/BGW | Red / Blue / Green / White | L740xW30xH60(mm) | 24V | 75.6W |
| LXV-4LINL800-R/BGW | Red / Blue / Green / White | L840xW30xH60(mm) | 24V | 86.4W |
| LXV-4LINL900-R/BGW | Red / Blue / Green / White | L940xW30xH60(mm) | 24V | 97.2W |
| LXV-4LINL1000-R/BGW | Red / Blue / Green / White | L1040xW30xH60(mm) | 24V | 108W |
| * UV & IR light can be customized as required. | - | - | - | - |

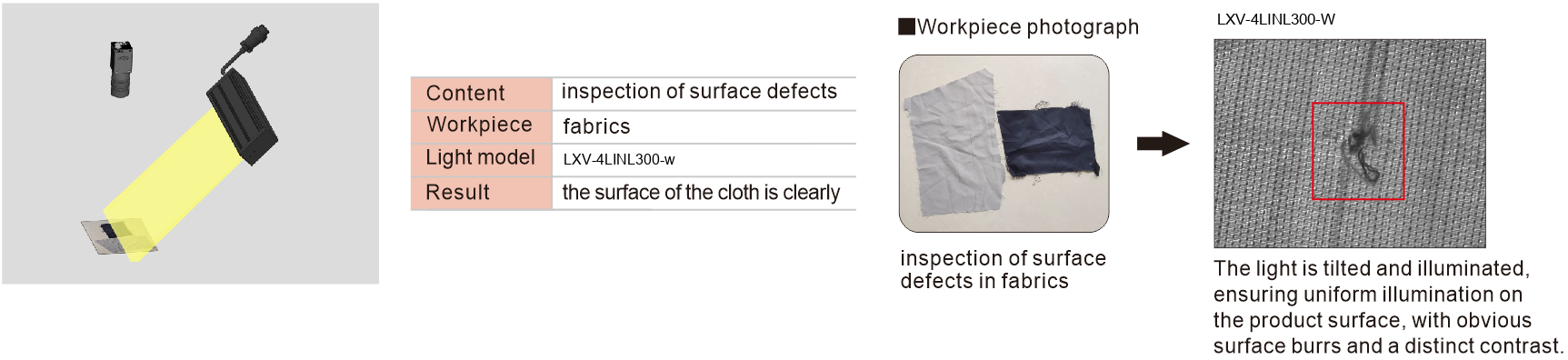

IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-4LINL.
OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention
Model Naming Convention
Vector Diagram
DIRECT ENQUIRY
Get a Customized Quotation
Need specific dimensions, custom wavelength LED combinations, or special cabling? Our optical engineering and sales offices are ready to assist.
Sales Email: info@luxmv.com
Response SLA: Under 4 Hours (Business Days)
Free Optical Simulation
Send us your target workpiece samples. We will test them in our R&D lighting darkrooms and supply a selection report completely free.
Request Technical Quotation
Our optical engineering sales team responds to all corporate requests within 4 hours.
