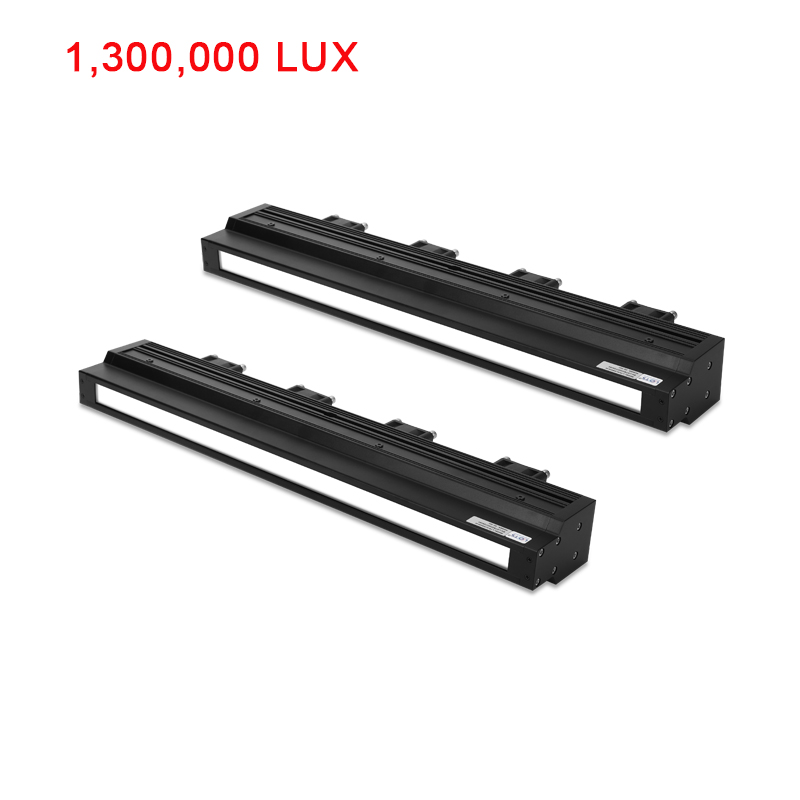

Machine Vision Light
LXV-4LINS
High uniformity line scan light
1.Printing packing inspection. 2.Plastic parts defects inspection. 3.Ceramic tile pattern inspection. 4.Metal surface defect inspection.
Features
- •High uniformity and good paralellism, matched with line scan camera.
- •2.Light weight, good heat dissipation, high luminous.
- •3.High cost-effective, compact volume, suitable for batch use.
- •4.Fan cooling.
- •5.Can be used as direct light or back light.
Applications
- •Printing packing inspection.
- •2.Plastic parts defects inspection.
- •3.Ceramic tile pattern inspection.
- •4.Metal surface defect inspection.
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-4LINS100-W | White | L140xW48xH102(mm) | 24V | 35W |
| LXV-4LINS200-W | White | L240xW48xH102(mm) | 24V | 65W |
| LXV-4LINS300-W | White | L340xW48xH102(mm) | 24V | 95W |
| LXV-4LINS400-W | White | L440xW48xH102(mm) | 24V | 130W |
| LXV-4LINS500-W | White | L540xW48xH102(mm) | 24V | 165W |
| LXV-4LINS600-W | White | L640xW48xH102(mm) | 24V | 190W |
| LXV-4LINS700-W | White | L740xW48xH102(mm) | 24V | 221W |
| LXV-4LINS800-W | White | L840xW48xH102(mm) | 24V | 260W |
| LXV-4LINS900-W | White | L940xW48xH102(mm) | 24V | 286W |
| LXV-4LINS1000-W | White | L1040xW48xH102(mm) | 24V | 324W |
| * UV & IR light can be customized as required. | - | - | - | - |

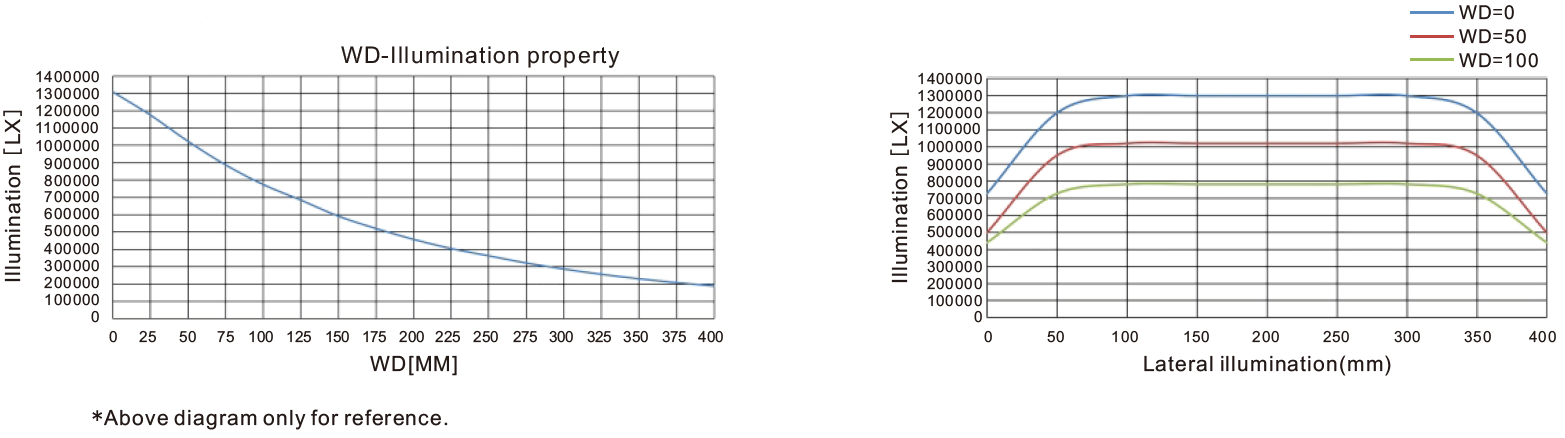

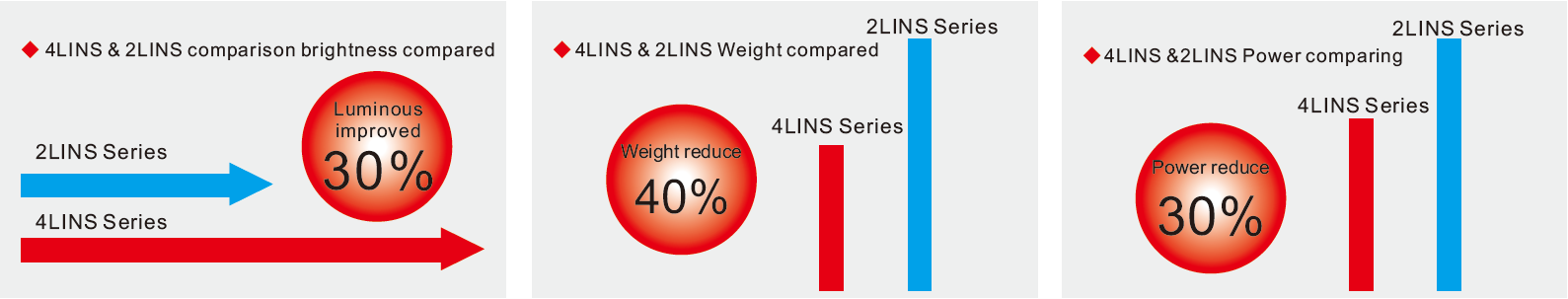

IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-4LINS.

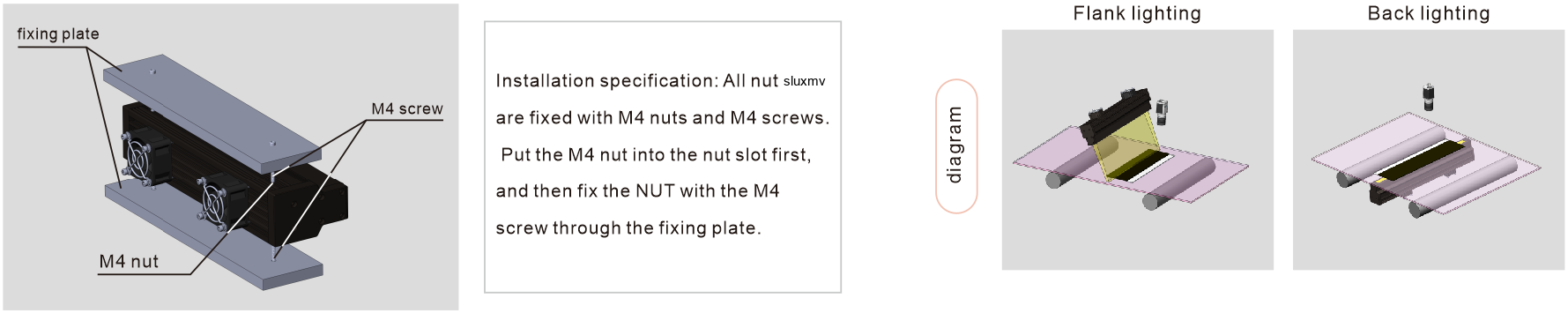

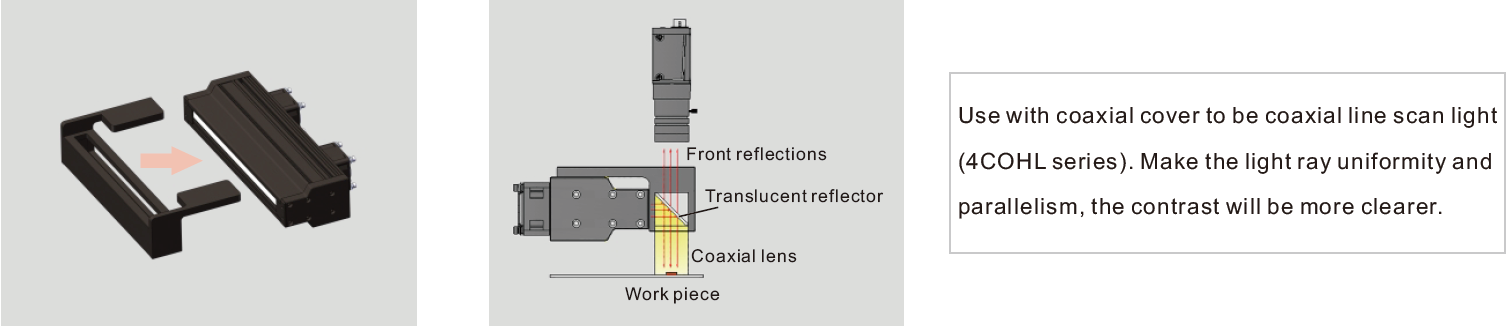

OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention
Model Naming Convention
