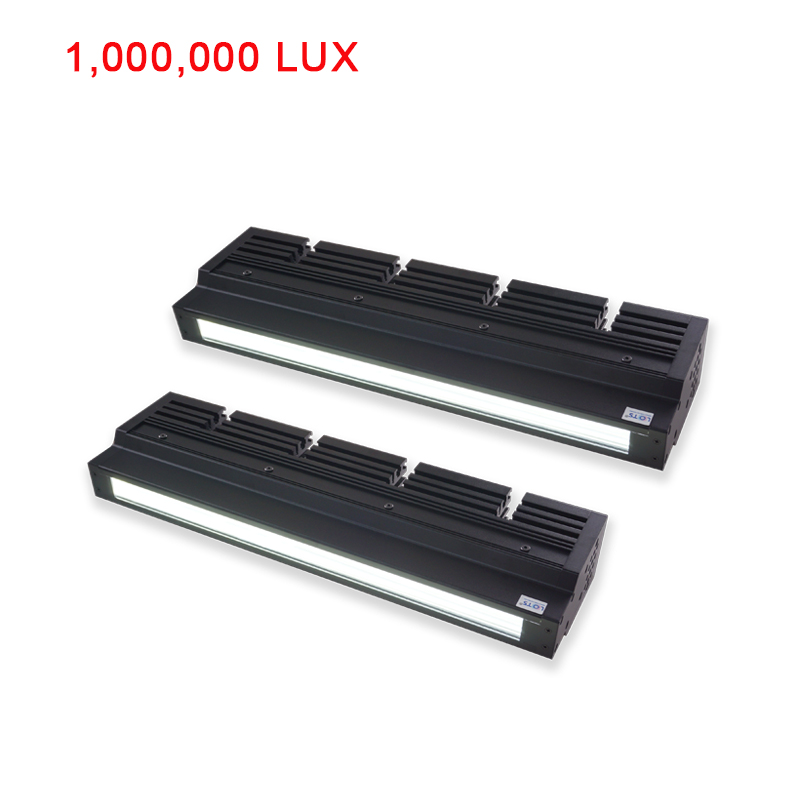

Machine Vision Light
LXV-4LINV
Natural Cooling Line Scan Light
1.Steel plate inspection. 2.Glass plate inspection. 3.PCB board inspection. 4.Contour edge inspection.
Features
- •Use high-standard LED design optics to achieve high uniformity and high brightness imaging effect.
- •2.Dustproof and no fan design, suitable for dusty environments.
- •3.Suitable for semiconductor, LCD manufacturing process and other applications, can achieve high-speed strobe mode.
- •4.Customizable length from 100 to 5000 mm.
Applications
- •Steel plate inspection.
- •2.Glass plate inspection.
- •3.PCB board inspection.
- •4.Contour edge inspection.
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-4LINV100-W | White | L140xW50xH95(mm) | 24V | 24W |
| LXV-4LINV200-W | White | L240xW50xH95(mm) | 24V | 48W |
| LXV-4LINV300-W | White | L340xW50xH95(mm) | 24V | 72W |
| LXV-4LINV400-W | White | L440xW50xH95(mm) | 24V | 96W |
| LXV-4LINV500-W | White | L540xW50xH95(mm) | 24V | 120W |
| LXV-4LINV600-W | White | L640xW50xH95(mm) | 24V | 144W |
| LXV-4LINV700-W | White | L740xW50xH95(mm) | 24V | 168W |
| LXV-4LINV800-W | White | L840xW50xH95(mm) | 24V | 192W |
| LXV-4LINV900-W | White | L940xW50xH95(mm) | 24V | 216W |
| LXV-4LINV1000-W | White | L1040xW50xH95(mm) | 24V | 240W |
| * UV & IR light can be customized as required. | - | - | - | - |

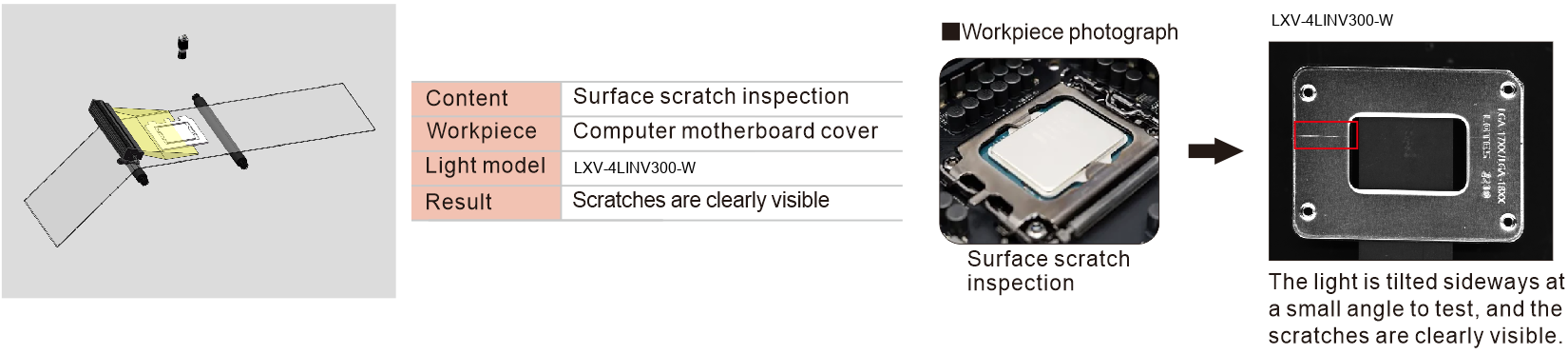

IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-4LINV.

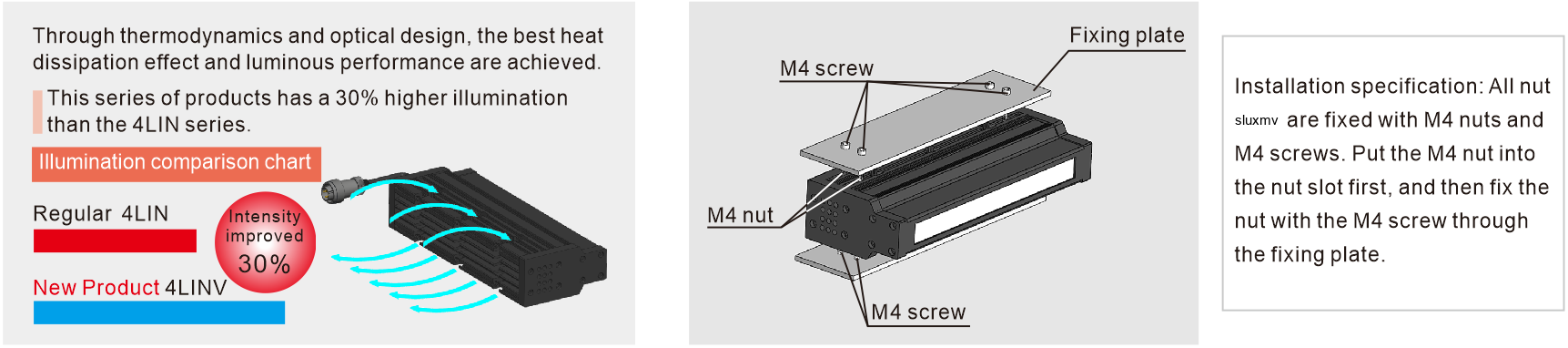

OPTICAL DESIGN & NAMING

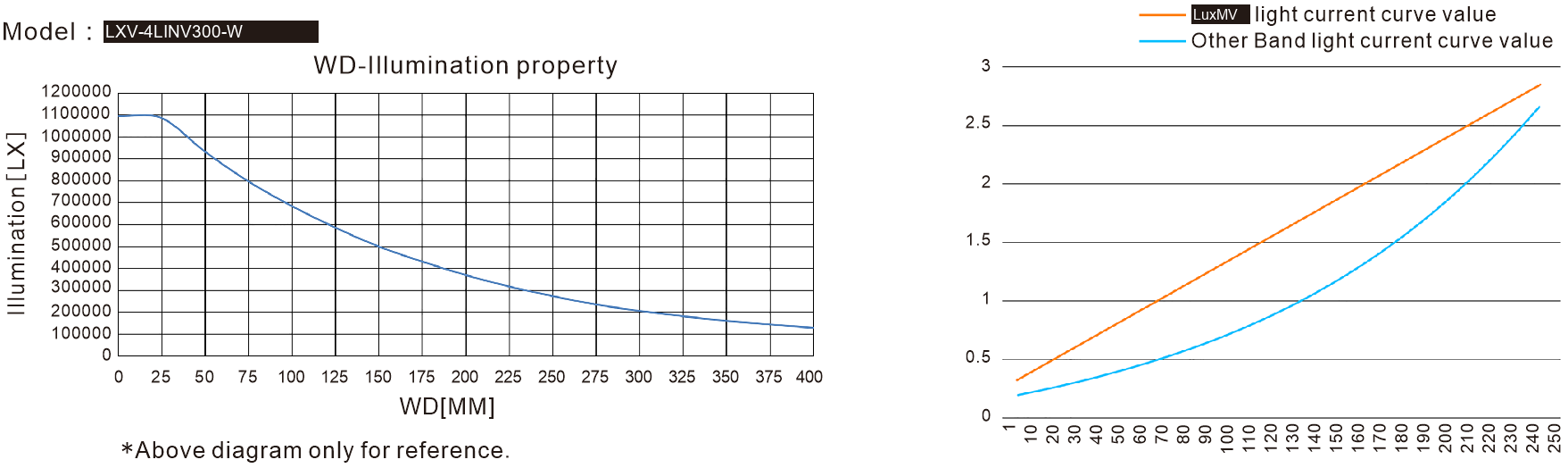

Optical Diagram & Model Naming Convention
Model Naming Convention
Vector Diagram
