Machine Vision Light

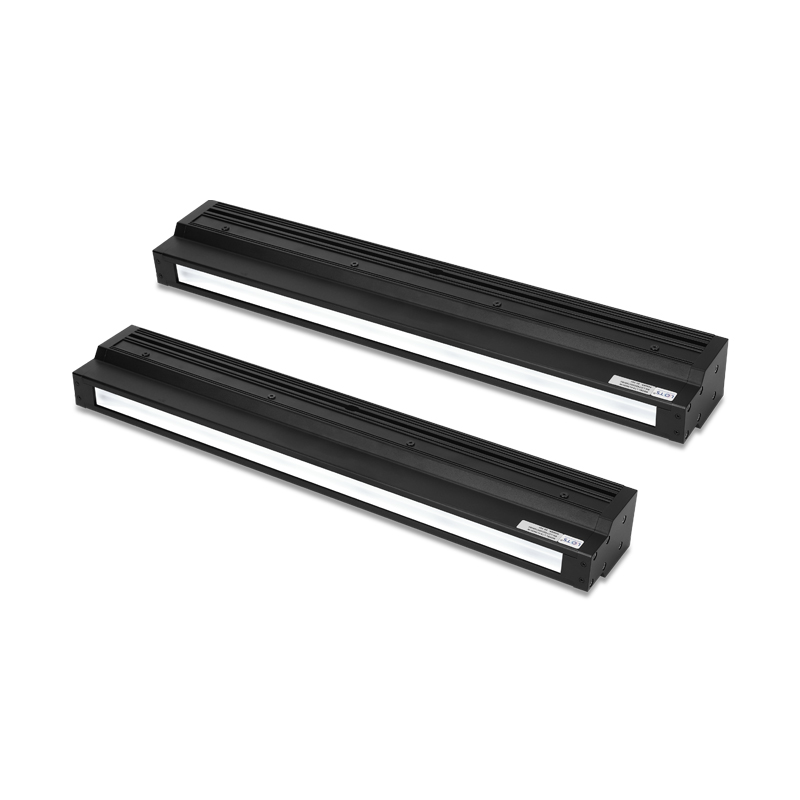

LXV-4LIT
Oblique Line Scan Light
1.Textile fabric inspection for wrinkles. 2.Carton inspection for loose threads. 3.Film inspection for vertical wrinkles.
Features
- •oblique optical design, the light is emitted at a 20° angle. The oblique line scan light is suitable for line scan system to detect wrinkles and scratches.
Applications
- •Textile fabric inspection for wrinkles.
- •2.Carton inspection for loose threads.
- •3.Film inspection for vertical wrinkles.
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-4LIT100-R/BGW | Red / Blue / Green / White | L140xW48xH75(mm) | 24V | 20W |
| LXV-4LIT200-R/BGW | Red / Blue / Green / White | L240xW48xH75(mm) | 24V | 34W |
| LXV-4LIT300-R/BGW | Red / Blue / Green / White | L340xW48xH75(mm) | 24V | 53W |
| LXV-4LIT400-R/BGW | Red / Blue / Green / White | L440xW48xH75(mm) | 24V | 68W |
| LXV-4LIT500-R/BGW | Red / Blue / Green / White | L540xW48xH75(mm) | 24V | 87W |
| LXV-4LIT600-R/BGW | Red / Blue / Green / White | L640xW48xH75(mm) | 24V | 101W |
| LXV-4LIT700-R/BGW | Red / Blue / Green / White | L740xW48xH75(mm) | 24V | 116W |
| LXV-4LIT800-R/BGW | Red / Blue / Green / White | L840xW48xH75(mm) | 24V | 135W |
| LXV-4LIT900-R/BGW | Red / Blue / Green / White | L940xW48xH75(mm) | 24V | 154W |
| LXV-4LIT1000-R/BGW | Red / Blue / Green / White | L1040xW48xH75(mm) | 24V | 168W |
| * UV & IR light can be customized as required. | - | - | - | - |
OPTICAL DESIGN & NAMING

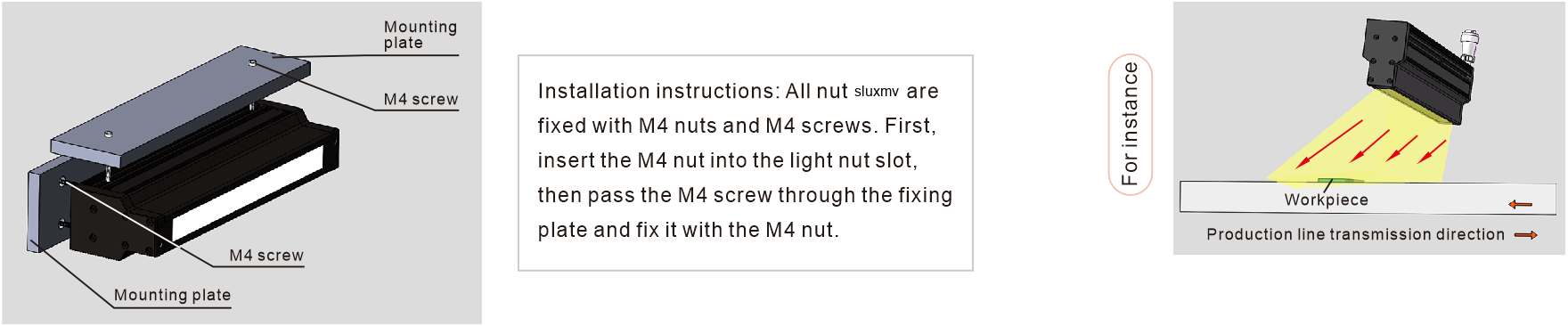

Optical Diagram & Model Naming Convention
Model Naming Convention
Vector Diagram
