Machine Vision Light
LXV-AOI
AOI Light

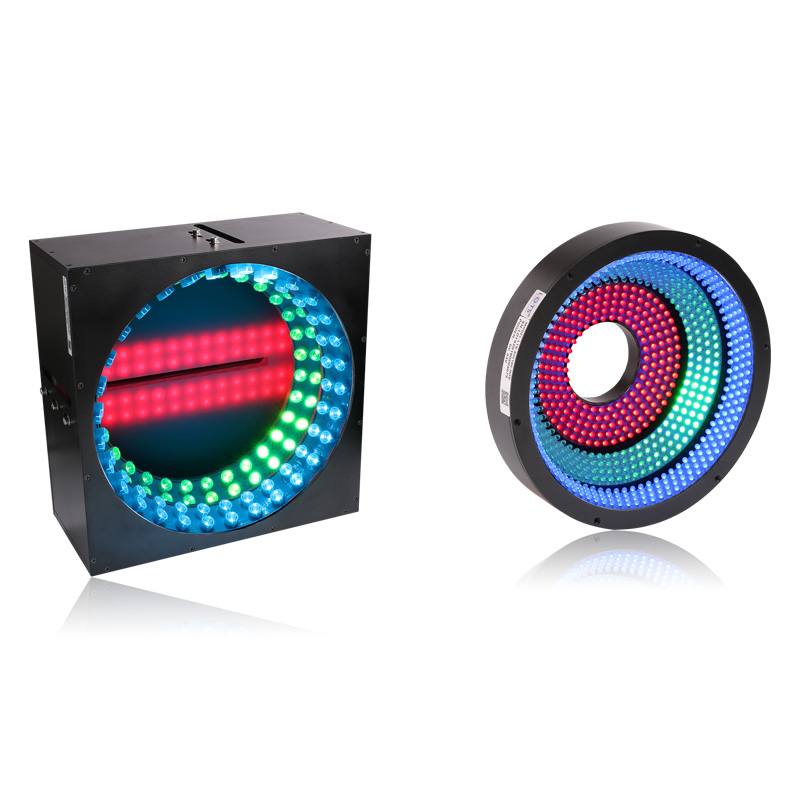

The LED array of AOI light is combined with three colors of red, green and blue. It can illuminate objects in different angles and colors to highlight the 3D information of the object. It specializes in inspection of defects of the PCB boards. It can match with coaxial lights.
Features
- •Adopted high luminance straight -through LED, equally distribution.
- •2.With multiple angle, can control the luminance independently. Used in various applications.
- •3.Can customized different installation method and lamp beads angle.
Applications
- •PCB Welding quality inspection.
- •2.Printed character inspection.
- •3.Glue contour inspection.
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-AOI80-UV/W | UV (Ultraviolet) / White | Out dia. φ80,Inner Dia. φ24,Height 22mm | 24V | 5.1W |
| LXV-AOI92-W | White | Out dia. φ92,Inner Dia. φ35,Height 24mm | 24V | 4.4W |
| LXV-AOI100-RW | Red / White | Out dia. φ100,Inner Dia. φ20,Height 33mm | 24V | 6.2W |
| LXV-AOI122-RGB | Red / Blue / Green | Out dia. φ122,Inner Dia. φ43,Height 55mm | 24V | 28.4W |
| LXV-AOI160-RGB | Red / Blue / Green | Out dia. φ160,Inner Dia. φ45,Height 55mm | 24V | 30.9W |
| LXV-AOI180-W | White | Out dia. φ180,Inner Dia. φ60,Height 90mm | 24V | 29.2W |
| LXV-AOI275-W | White | Out dia. φ275,Inner Dia. φ160,Height 60mm | 24V | 69.2W |
| * UV & IR light can be customized as required. | - | - | - | - |
IMAGING COMPARISON
Application Effect Analysis

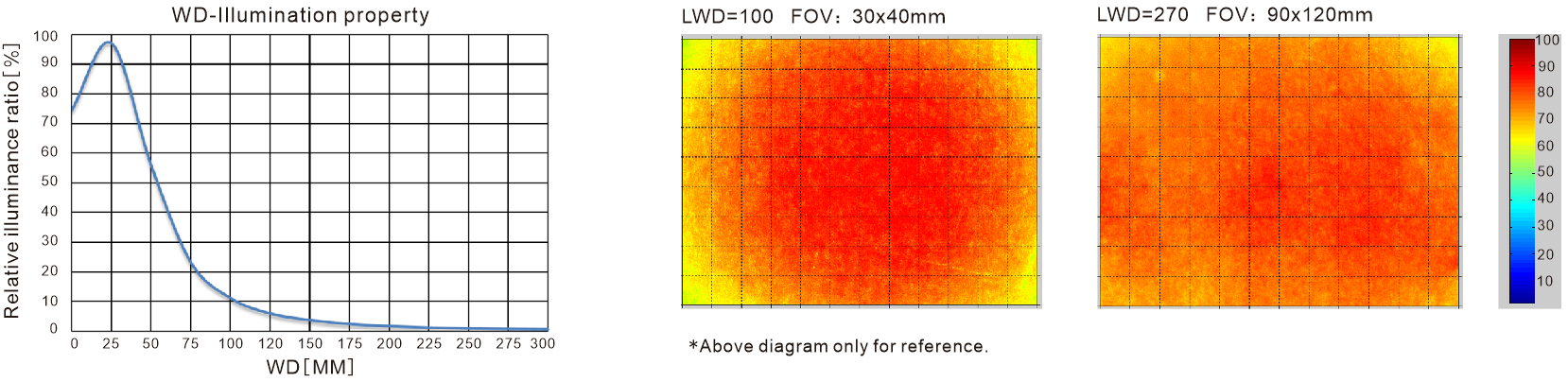

Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-AOI.
OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention
Model Naming Convention
Vector DiagramDIRECT ENQUIRY
Get a Customized Quotation
Need specific dimensions, custom wavelength LED combinations, or special cabling? Our optical engineering and sales offices are ready to assist.
Sales Email: info@luxmv.com
Response SLA: Under 4 Hours (Business Days)
Free Optical Simulation
Send us your target workpiece samples. We will test them in our R&D lighting darkrooms and supply a selection report completely free.
Request Technical Quotation
Our optical engineering sales team responds to all corporate requests within 4 hours.
