Controller
LXV-APC

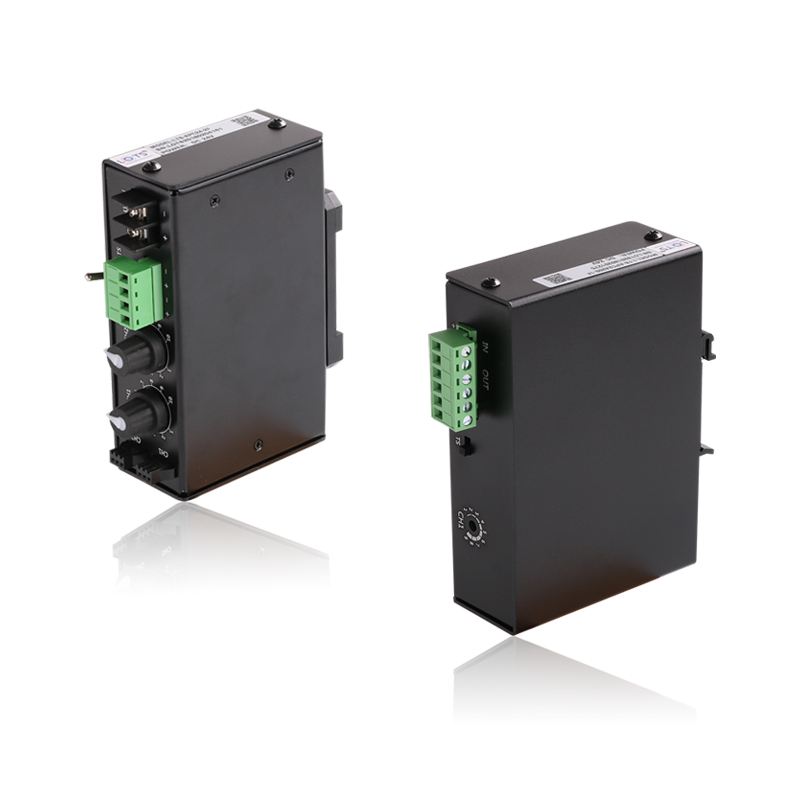

APC Analog Controller Box High Power Led Strobe

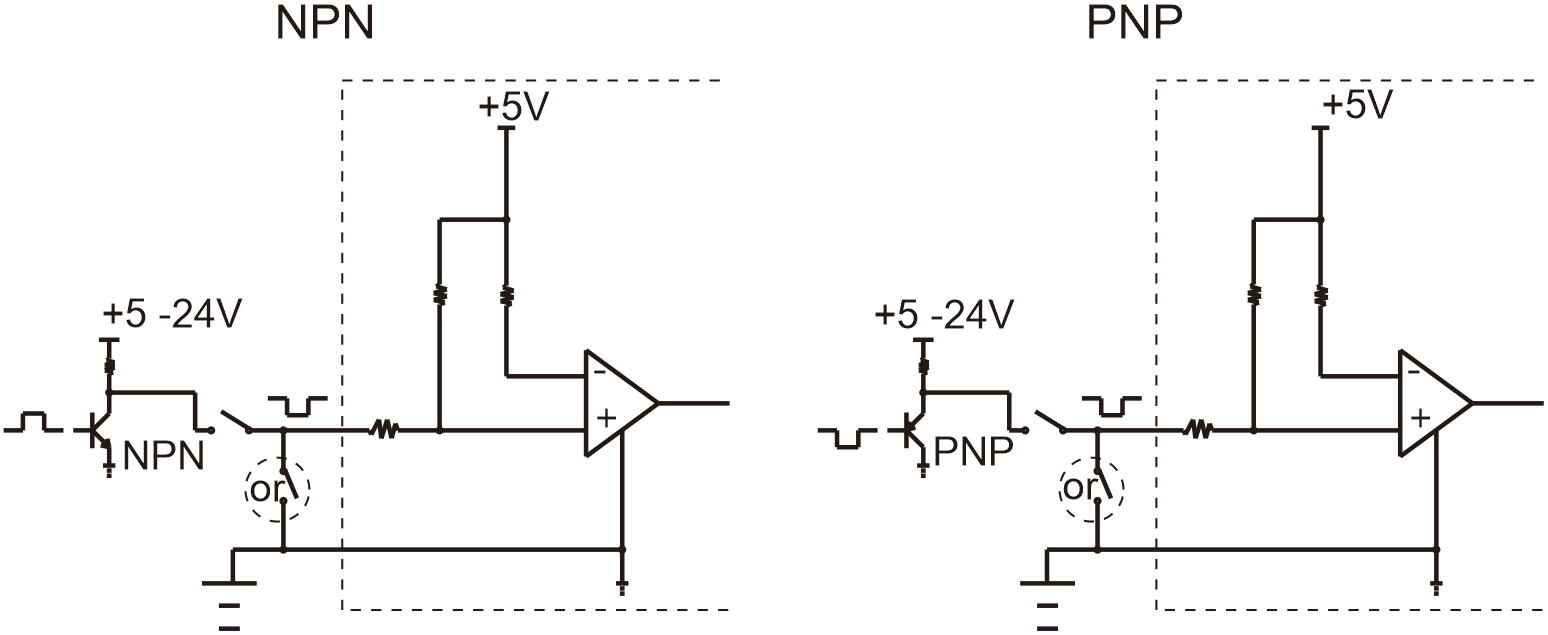

1.DC24V input. 2.Stepless adjustable output voltage. 3.Compact size. 4.External trigger.

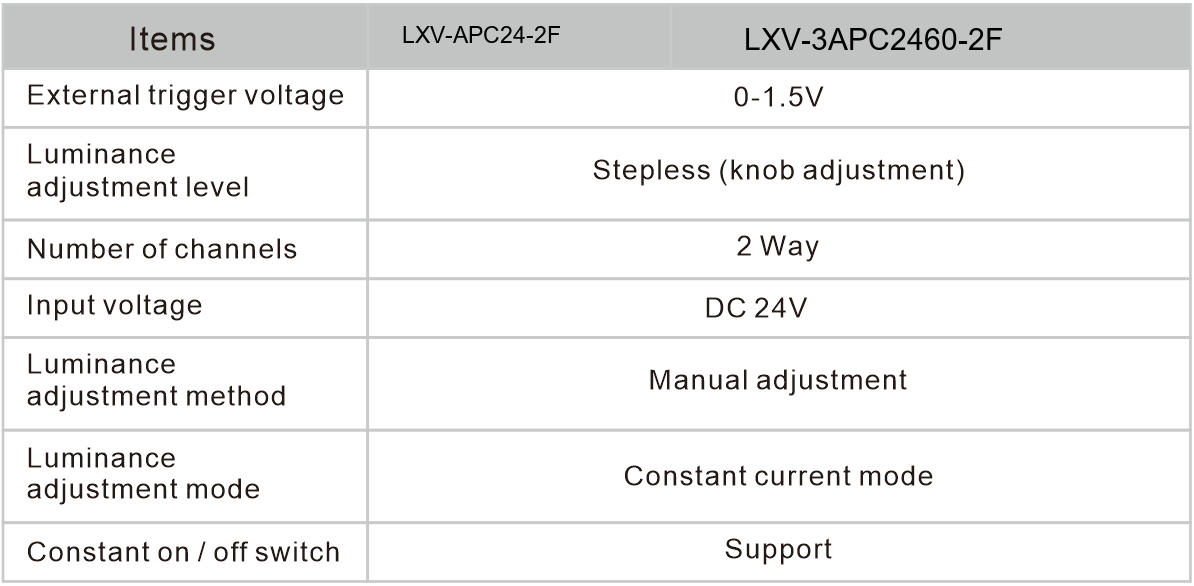

| Product | Model | Output voltage | Total output power | One way Max.output power | Number of channels | External trigger voltage |
|---|---|---|---|---|---|---|
| Analog controller box | LXV-APC24-2F | 24V | 48W | 24W | 2 | 0-1.5V |
| LXV-3APC2460-2F(New) | 24V | 60W | 30W | 2 | 0-1.5V | - |
IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-APC.
OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention

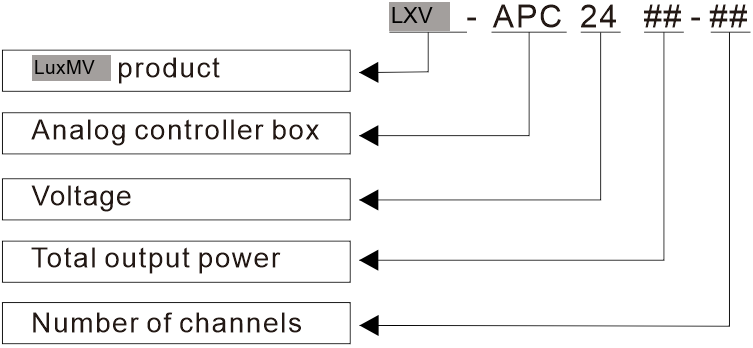

Model Naming Convention
Vector DiagramDIRECT ENQUIRY
